Engine Controls

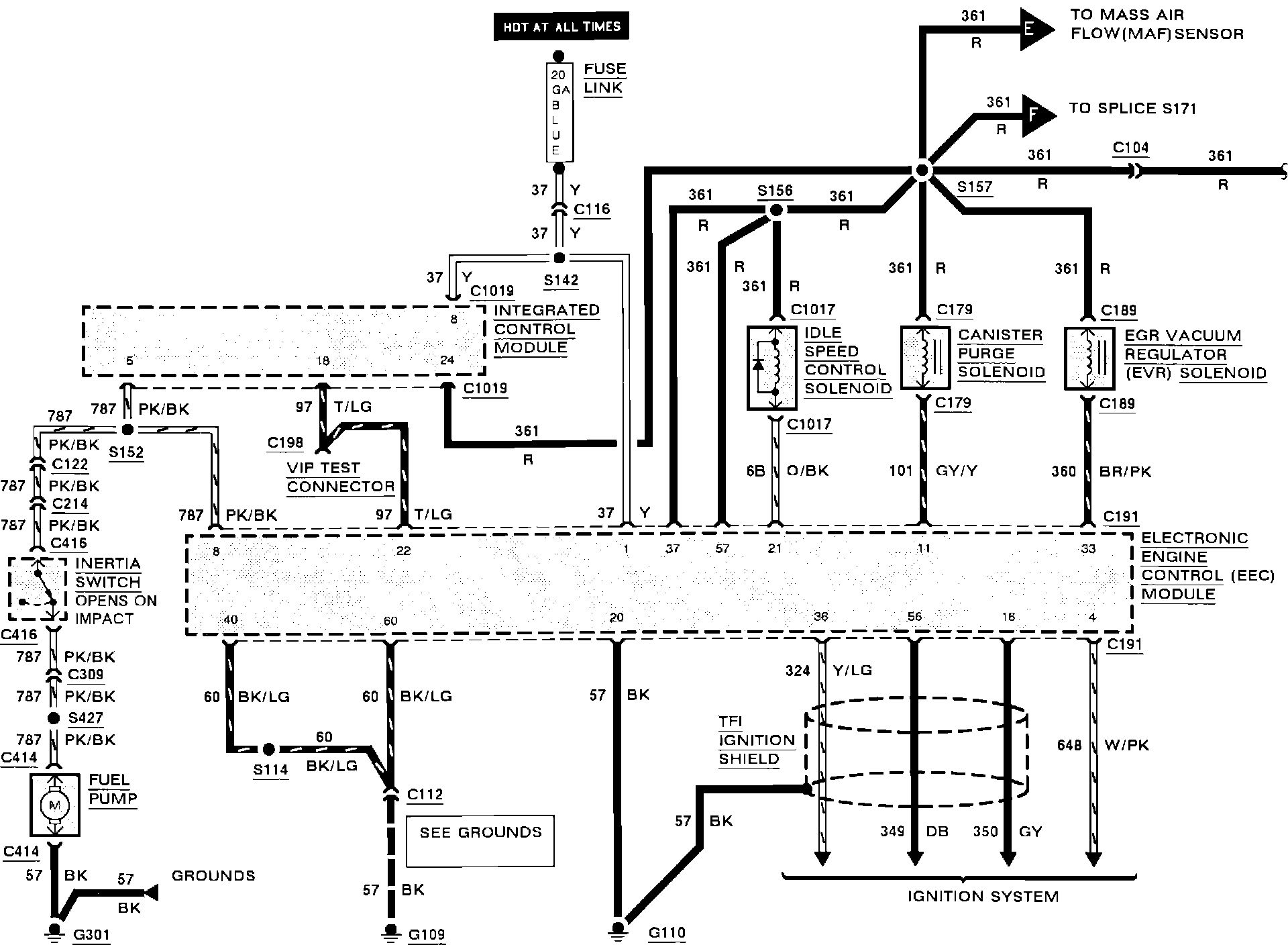

Electronic Engine Control (3.8L):

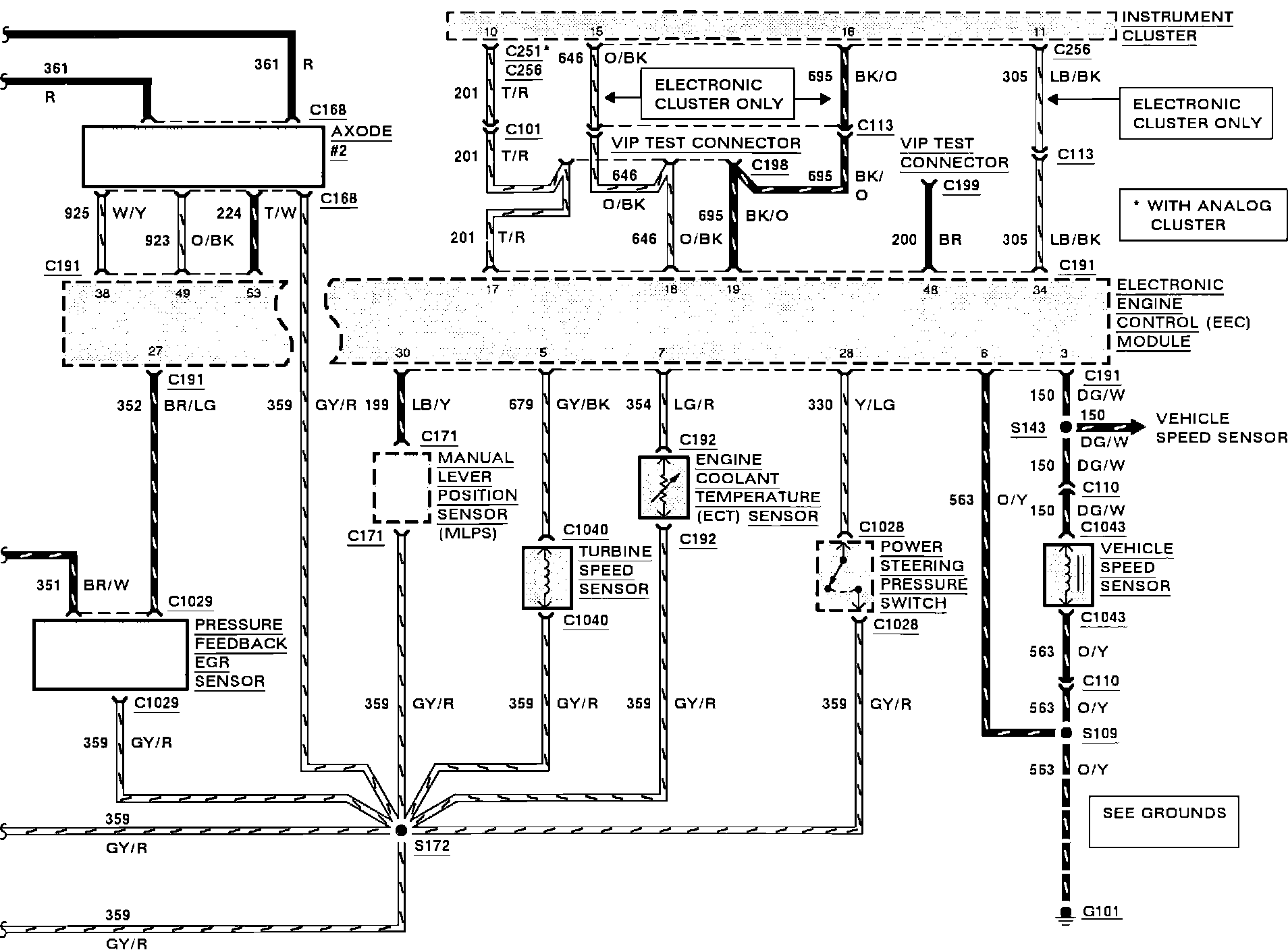

Electronic Engine Control (3.8L):






Electronic Engine Control (3.8L):

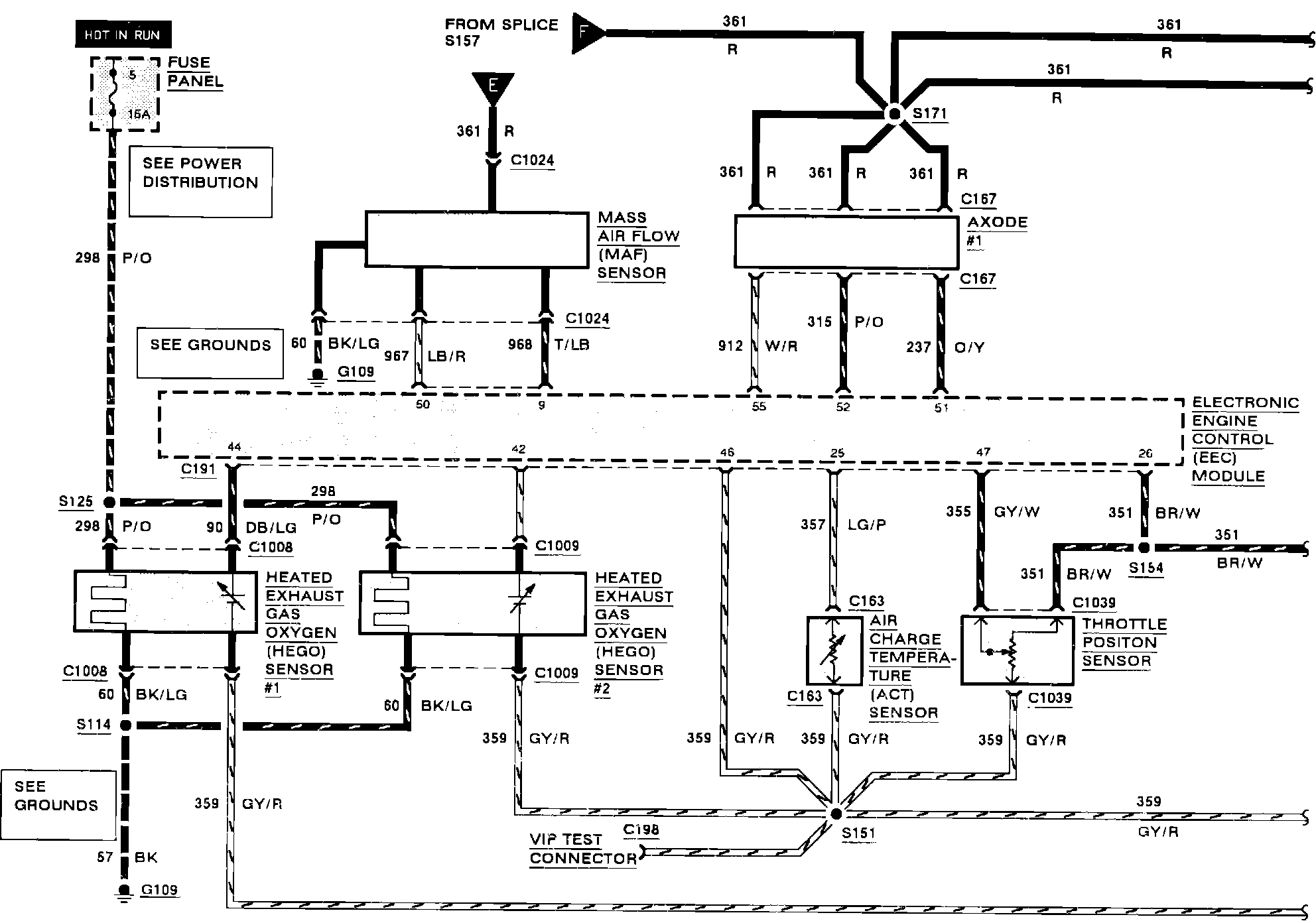

Electronic Engine Control (3.8L):

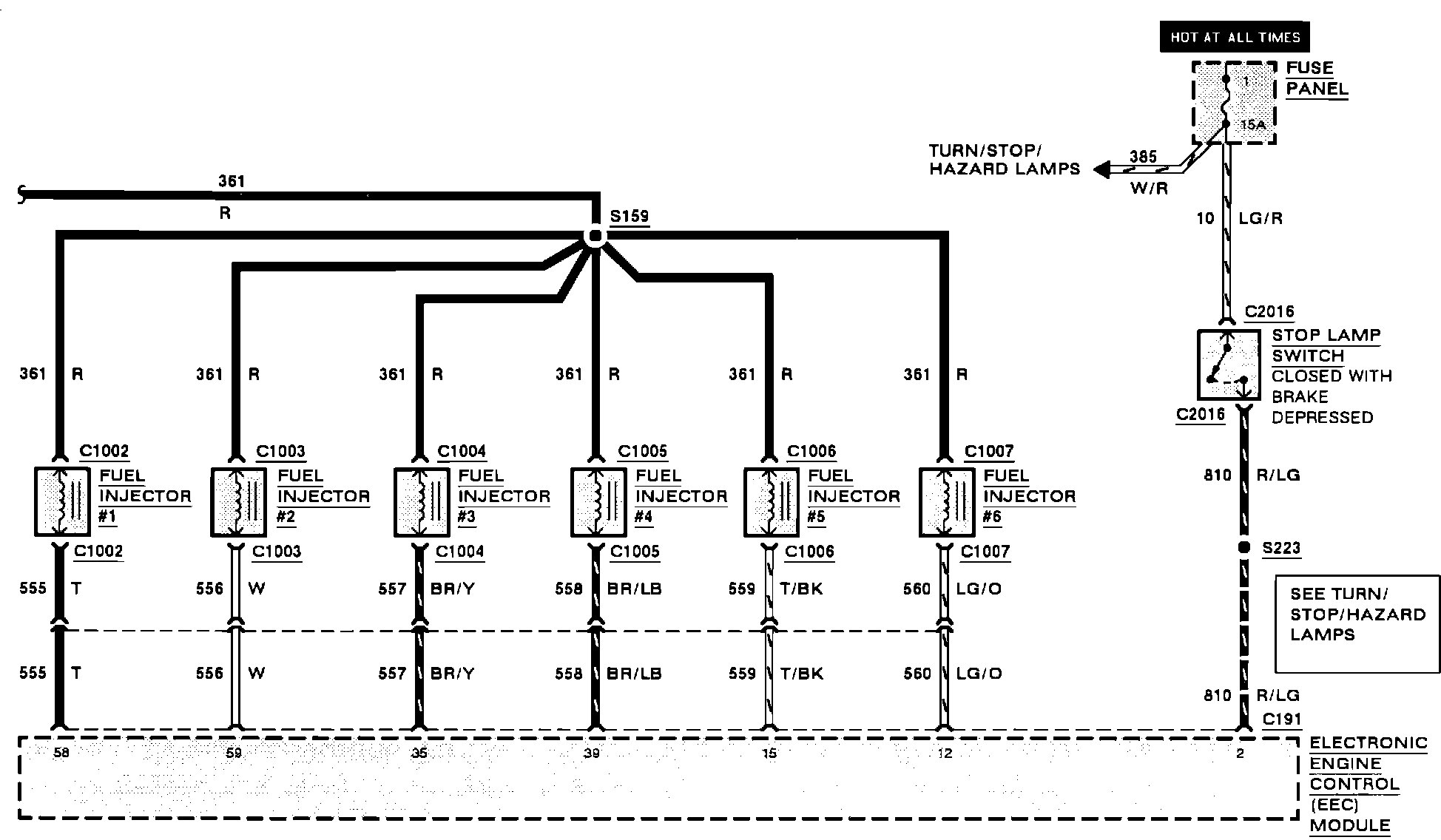

Electronic Engine Control (3.8L):
