Control Units

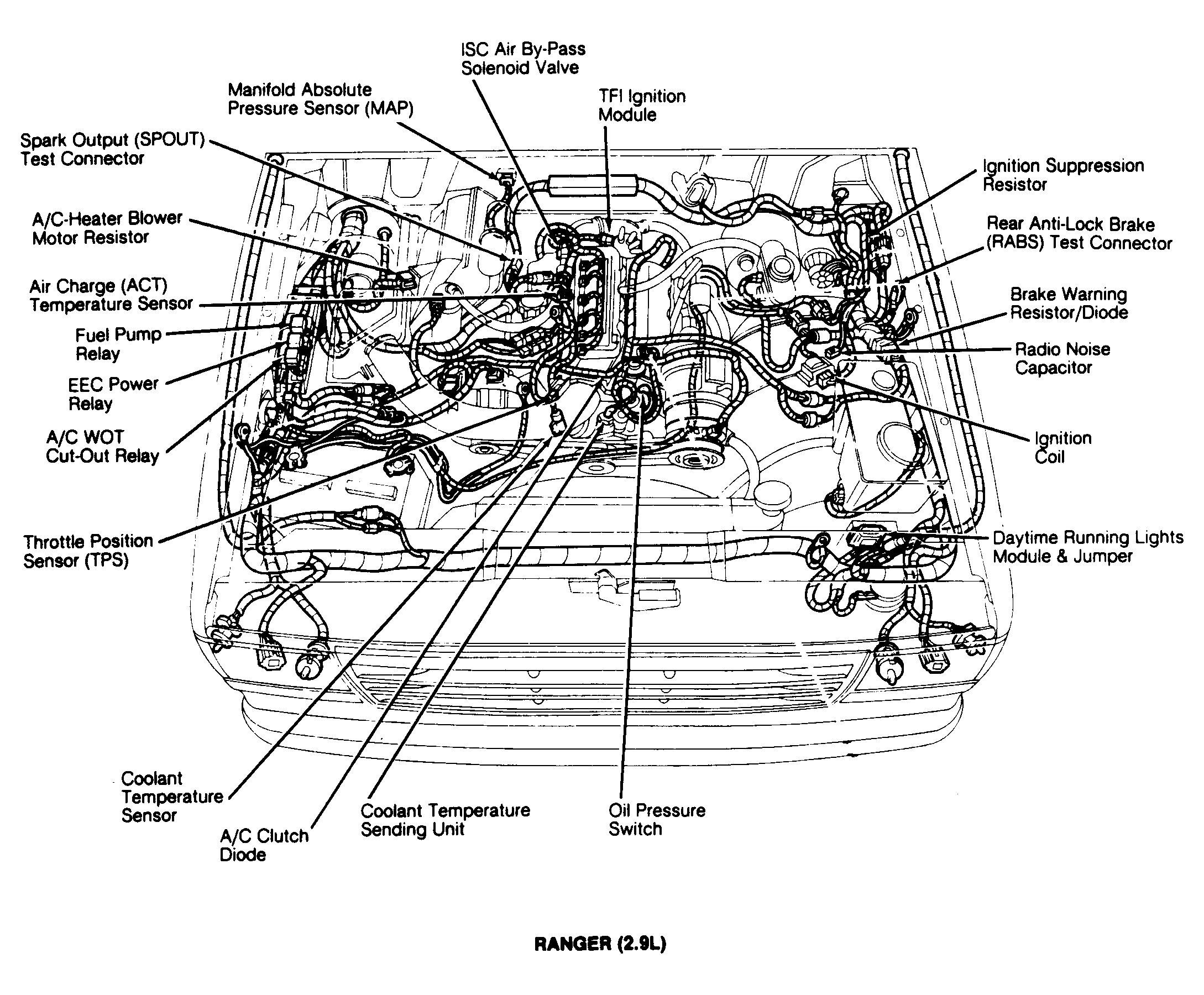

CONTROL UNITS LOCATION
| Component | Location | ||
|---|---|---|---|
| ABS Control Module | Behind center of dash, left of ashtray. | ||
| Daytime Running Lights (DRL) Module (Ranger) | |||
| 2.3L | Behind left headlight. See Figure . | ||
| 2.9L | Behind left headlight. See Figure . | ||
| 3.0L | Behind left headlight. See Figure . | ||
| Distributorless Ignition (DIS) Module | |||

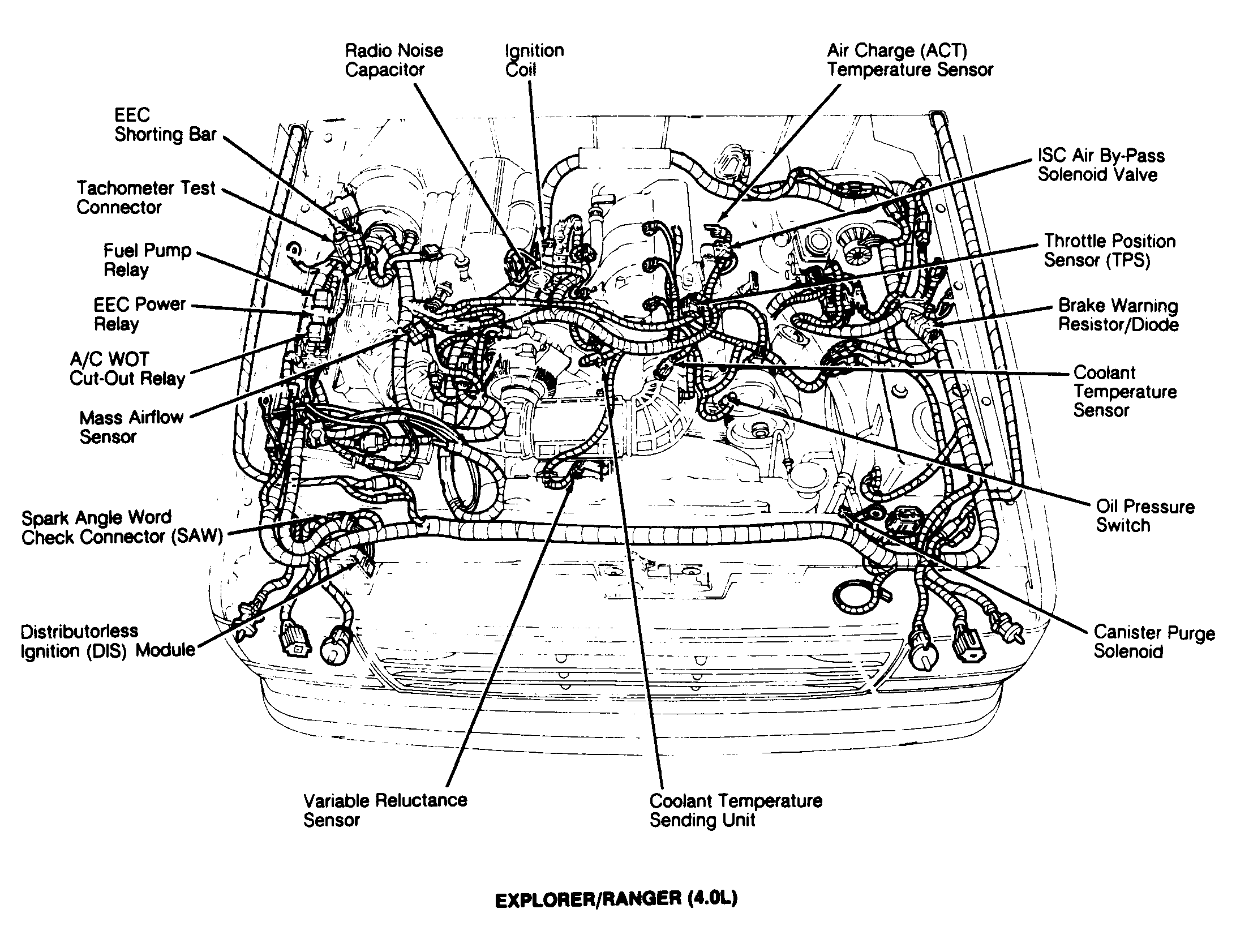

| Explorer/Ranger (4.0L) | Behind right headlight. See Figure . | ||
| Ranger (2.3L) | Behind alternator, near intake manifold. See Figure . | ||
| Electronic Distributorless Ignition (EDIS) Module | Mounted on right upper radiator support. | ||
| Electronic Engine Control (EEC) Module | |||
| Explorer | Behind right side of dash, near kick panel. | ||
| Ranger | Behind right kick panel. | ||
| Electronic Shift Control Module | |||
| Explorer | Over left rear wheelwell. | ||
| Ranger | |||
| Regular Cab | In lower left rear of cab. | ||
| Super Cab | Behind driver door pillar trim panel. | ||
| One-Touch Module | Behind left front door panel. | ||
| TFI Ignition Module (Ranger) | |||
| 2.9L | On distributor. See Figure . | ||
| 3.0L | On left radiator support. See Figure . | ||
| Warning Chime Module | Behind center of dash, below ashtray. | ||
| Windshield Wiper Interval Governor (Explorer) | Behind center of dash, with rear ABS module. | ||
| Windshield Wiper Module (Ranger) | Behind center of dash, left of ashtray. | ||
