Diagnostic Trouble Code Reference Charts (3-Digit)

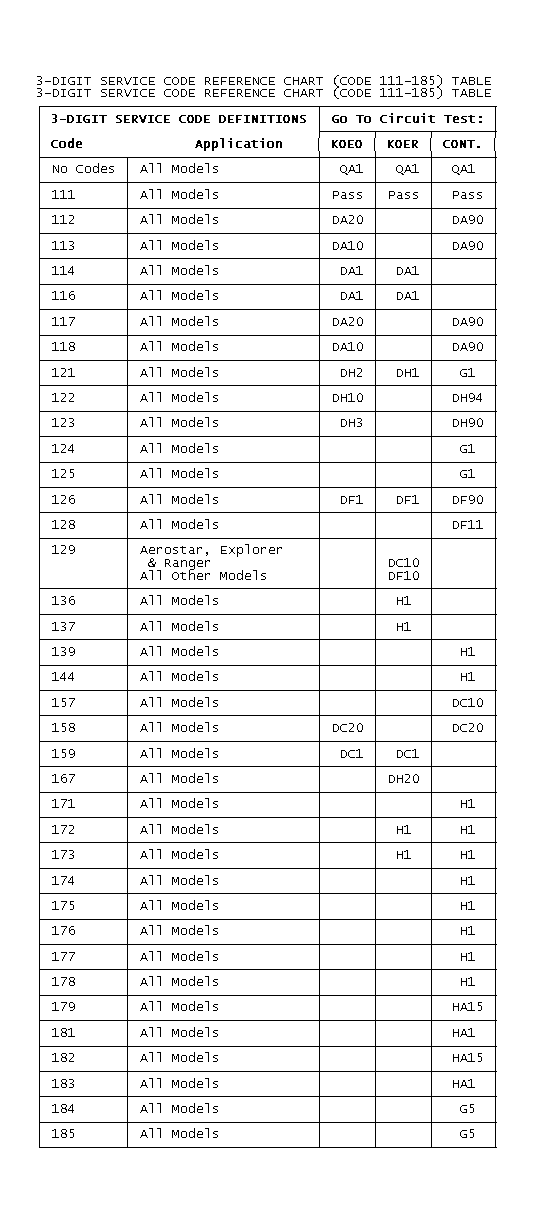

Fig 1: Diagnostic Trouble Code Reference Chart (Codes 111-185)
GB0020915Courtesy of FORD MOTOR CO.

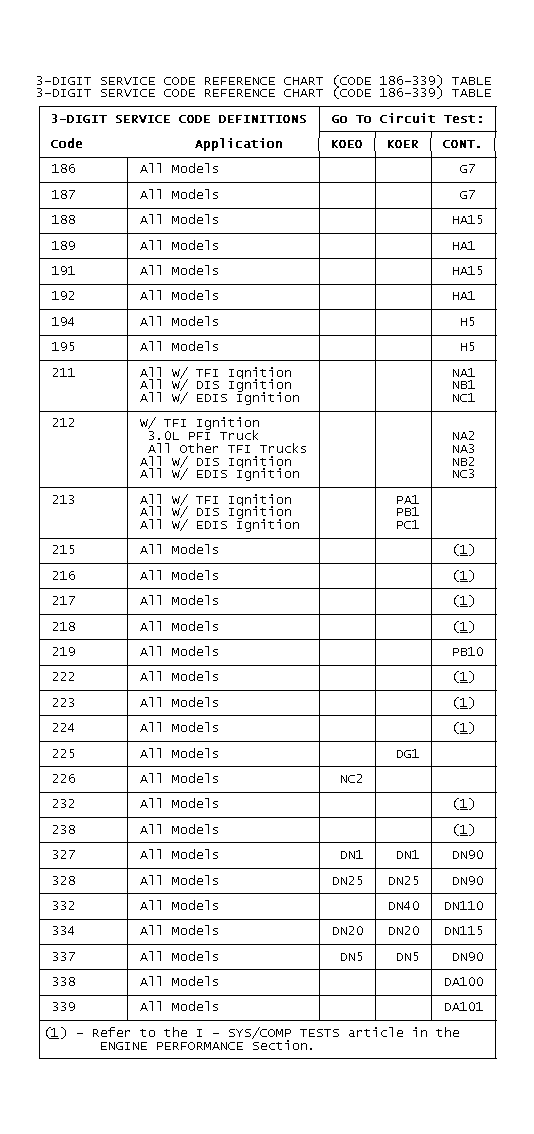

Fig 2: Diagnostic Trouble Code Reference Chart (Codes 186-339)
GB0020916Courtesy of FORD MOTOR CO.

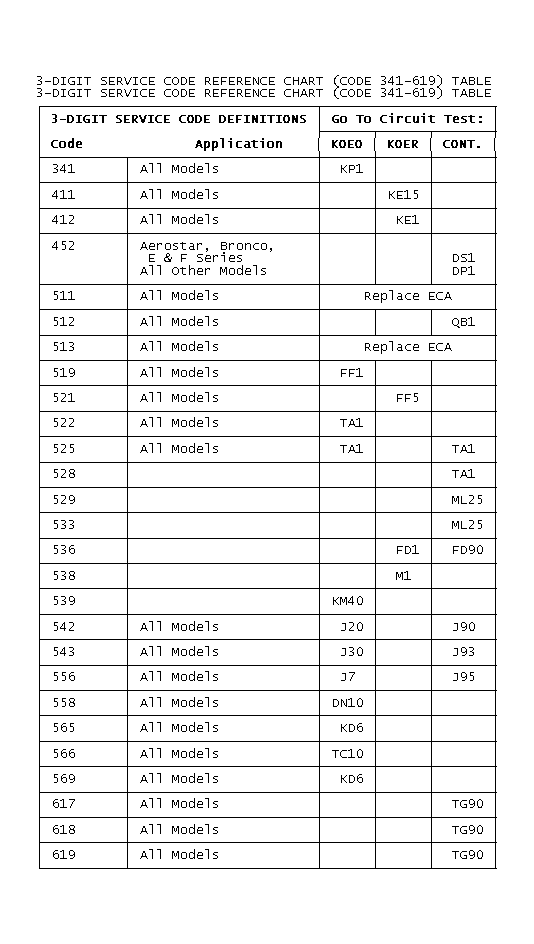

Fig 3: Diagnostic Trouble Code Reference Chart (Codes 341-619)
GB0020917Courtesy of FORD MOTOR CO.

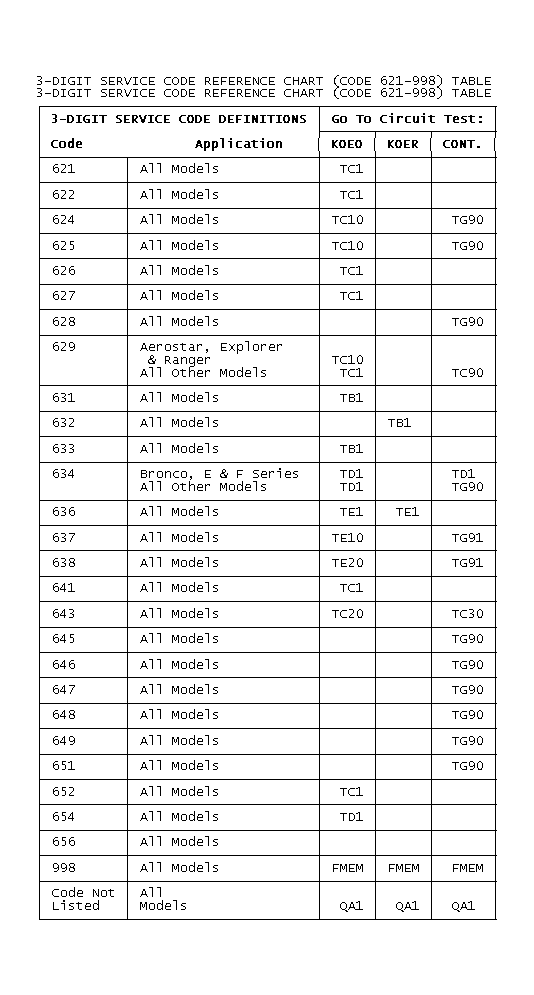

Fig 4: Diagnostic Trouble Code Reference Chart (Codes 621-998)
GB0020918Courtesy of FORD MOTOR CO.
