1992
>>
Explorer 2D Utility, RWD, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Specifications
>>
Engine Controls - Specifications
>>
Quick-Service
>>
Service Intervals & Specifications
>>
Drive Belt Routing (4.9L)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Drive Belt Routing (4.9L)

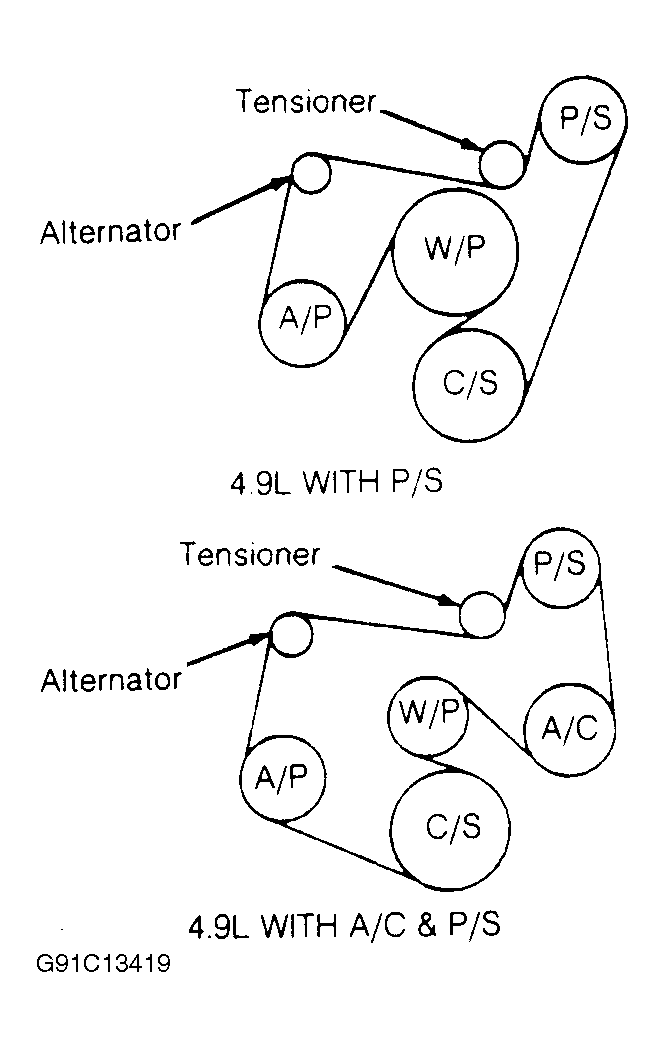

Fig 1: Checking Belt Routing (4.9L)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
