Drive Belt Routing (2.9L)

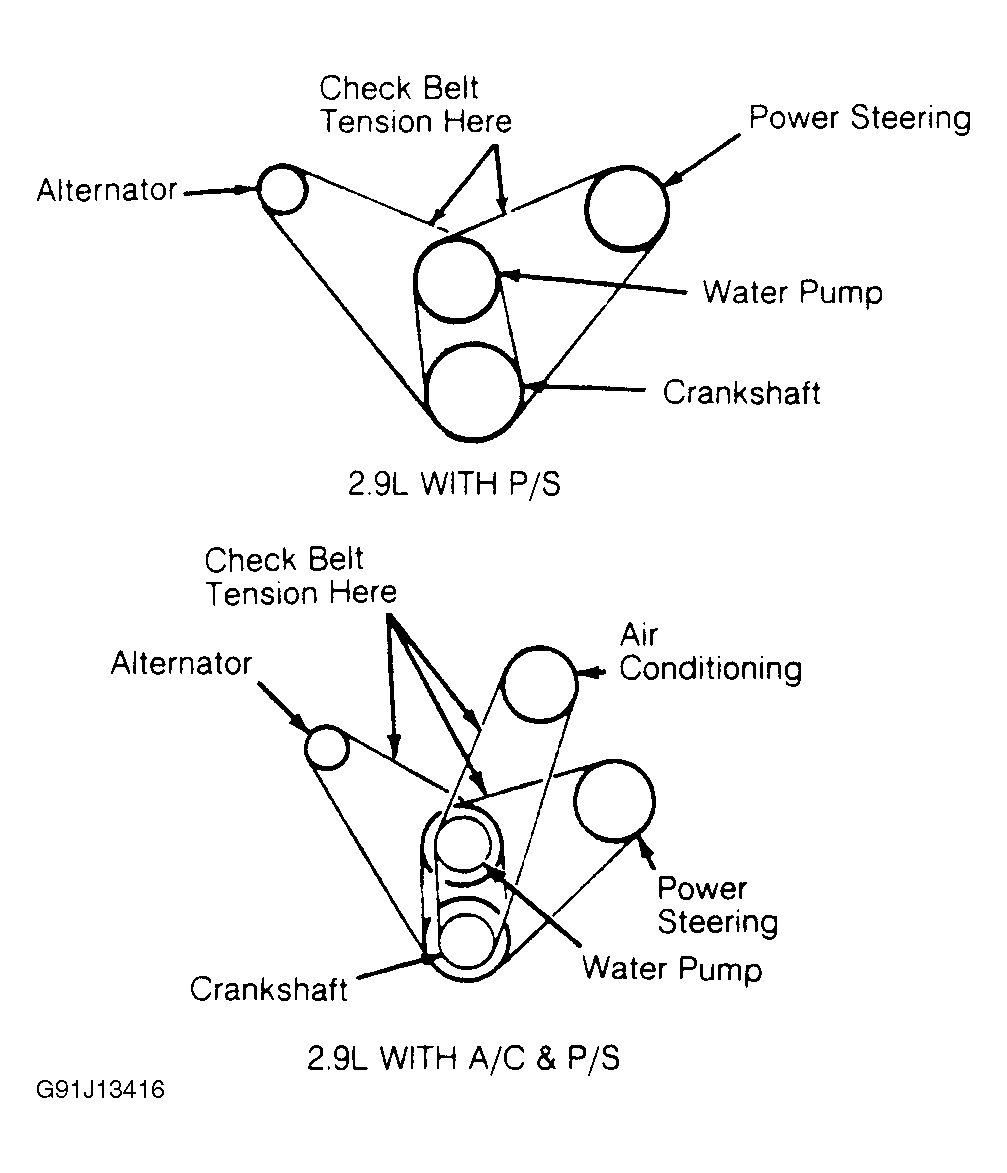

Fig 1: Checking Belt Routing & Tension (2.9L)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
