Diagnostic Trouble Code Reference Charts (2-Digit)

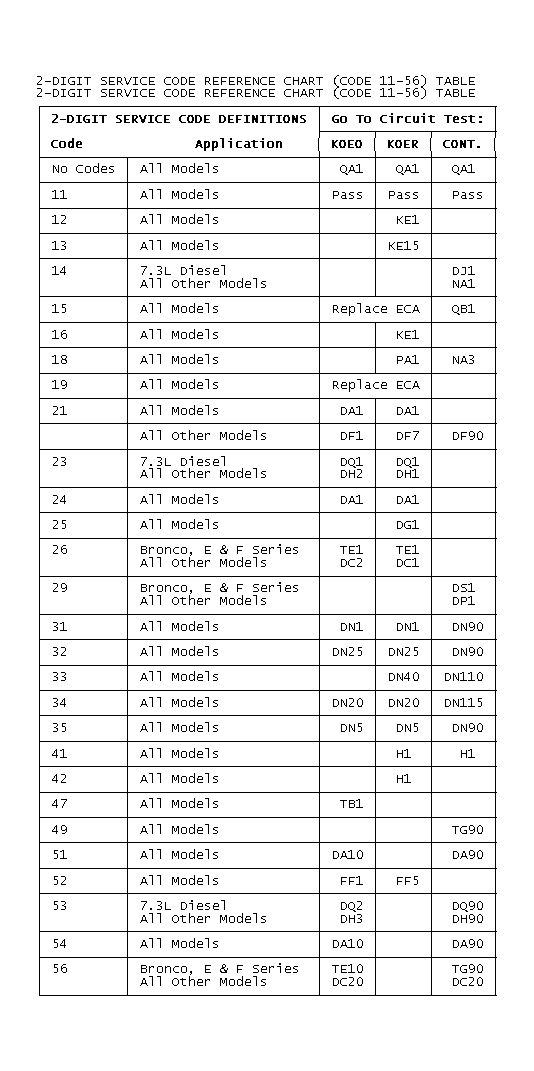

Fig 1: Diagnostic Trouble Code Reference Chart (Codes 11-56)
Courtesy of FORD MOTOR CO.

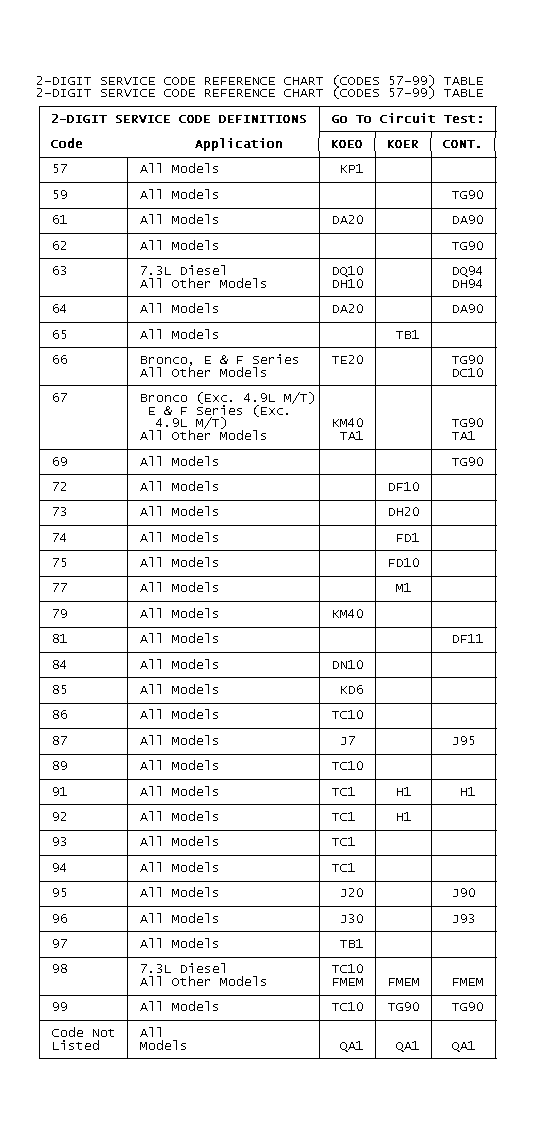

Fig 2: Diagnostic Trouble Code Reference Chart (Codes 57-99)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
