Mirror Motor Test Specifications

LEFT & RIGHT MIRROR MOTOR TEST (ESCORT & TRACER) (1)

Mirror Movement Battery Voltage Ground
Up BRN YEL
Down YEL BRN
Left YEL BLK
Right BLK YEL
(1) See Figure for connector terminal identification.
SIDE MIRROR MOTOR TEST (PROBE)

Mirror Movement Battery Voltage Ground
Left Mirror
Up BRN LT GRN
Down LT GRN BRN
Left LT GRN BRN/YEL
Right BRN/YEL LT GRN
Right Mirror
Up BRN LT GRN/BLK
Down LT GRN/BLK BRN
Left LT GRN/BLK BRN/BLK
Right BRN/BLK LT GRN/BLK
SIDE MIRROR MOTOR TEST (EXCEPT ESCORT, PROBE & TRACER) (1)

Mirror Movement Battery Voltage Ground
Left Mirror
Up DK BLU YEL
Down YEL DK BLU
Left RED YEL
Right YEL RED
Right Mirror
Up PPL (2) WHT
Down (2) WHT PPL
Left DK GRN (2) WHT
Right (2) WHT DK GRN

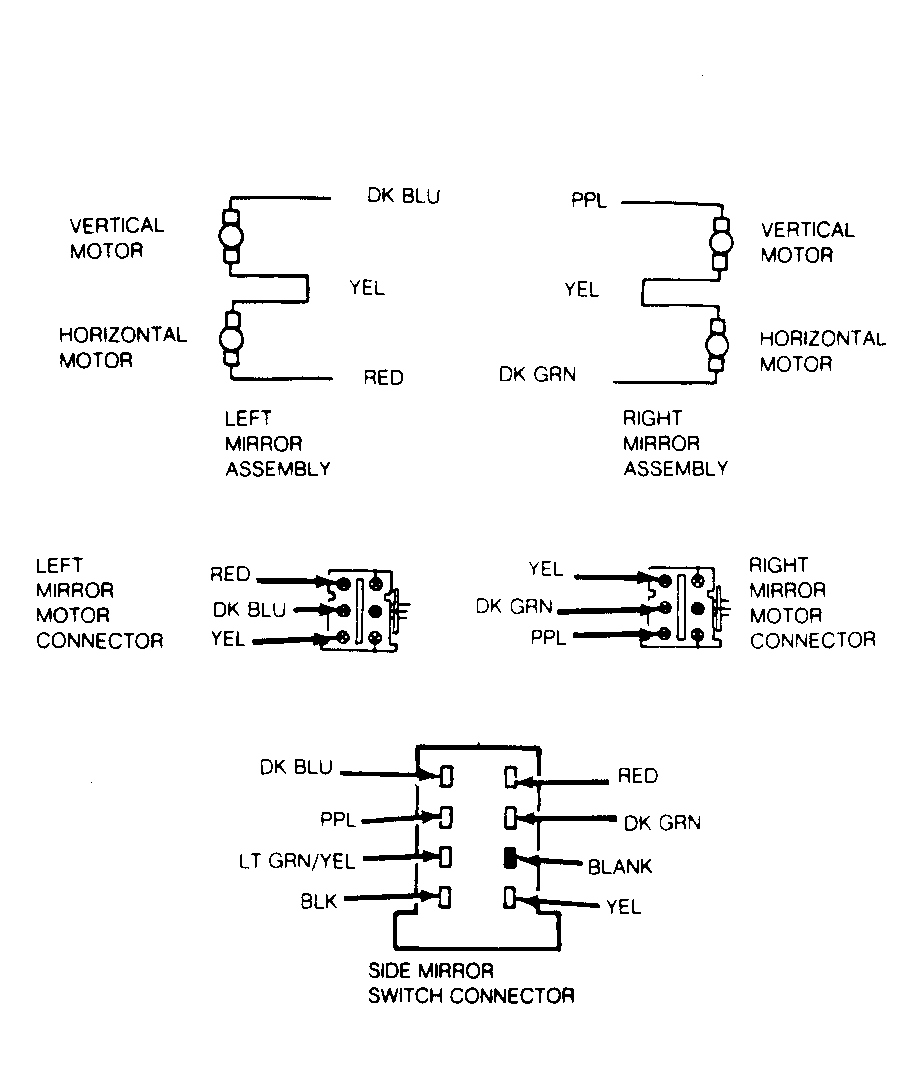

(1) See Figure and Figure for connector terminal identification.
(2) YEL on Continental, Cougar, Mark VII, Mustang, Thunderbird & Town Car.
