Circuit Test STP - Switch To Power: Notes
| Circuit | Breakout Box Pin No. | ECA Pin | Wire Color | ||||
|---|---|---|---|---|---|---|---|
| 1.8L | |||||||
| BOO | 2 | (1) 1O | Green | ||||
| DEF | 30 | 1T | Black/Blue | ||||
| FAN | (1) 22 | (1) 1R | Black/Green | ||||
| HLDT | 28 | 1U | Red/Black | ||||
| VST | 5 | 1C | Pink | ||||
| 2.2L Non-Turbo | |||||||
| A/T | |||||||
| BOO | 2 | 1Q | White/Green | ||||
| DEF | 34 | 1J | Black/Blue | ||||
| FAN | 51 | 2D | Black/Green | ||||
| HLDT | 32 | 1H | White/Black | ||||
| VST | 23 | 1C | Black/Pink | ||||
| M/T | |||||||
| BOO | 2 | 1O | White/Green | ||||
| DEF | 30 | 1T | Black/Blue | ||||
| FAN | 22 | 1R | Black/Green | ||||
| HLDT | 28 | 1U | White/Black | ||||
| VST | 5 | 1C | Black/Pink | ||||
| 2.2L Turbo | |||||||
| BOO | (1) 2 | (1) 1Q | White/Green | ||||
| DEF | 34 | 1J | Black/Blue | ||||
| FAN | 51 | 2D | Black/Green | ||||
| HLDT | 32 | 1H | White/Black | ||||
| VST | 23 | 1C | Black/Pink | ||||
|
|||||||
1) Checking System Integrity Visually check all wiring, connectors and components for damage, shorting or looseness. If fault is found, repair as necessary. If no fault is found, go to next step.

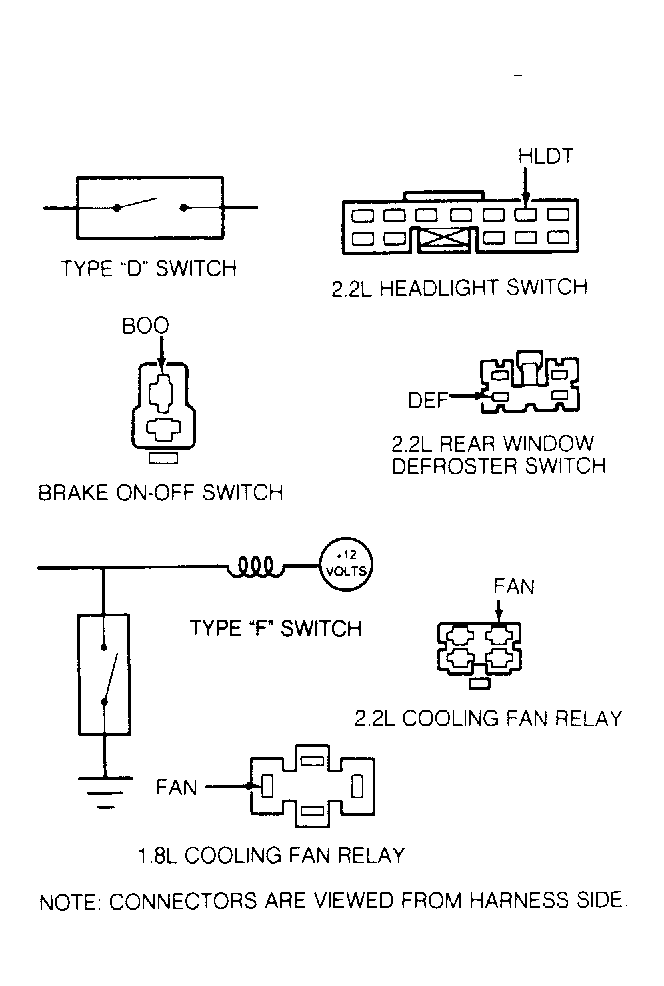

2) Checking Switch Signal Install breakout box, leaving ECA disconnected. Turn ignition on. Measure voltage between breakout box test pin of component being tested and ground. See CIRCUIT PIN IDENTIFICATION (STP) . Check voltage with component in ON and OFF positions. See SWITCH PERFORMANCE CHECK.
3) Voltage should switch from 0-4 volts to 10-14 volts. If voltage is as specified and no other problem or code is found, replace ECA. If voltage is not as specified, measure voltage at switch connector terminal with component in ON and OFF positions.
4) If voltage switches from 0-4 volts to 10-14 volts, repair open circuit between switch and ECA. If voltage does not switch from 0-4 volts to 10-14 volts, turn ignition off. Measure resistance between component test pin and the following: test pin No. 1, test pin No. 37, test pin No. 57 and ground. Resistance should be more than 10,000 ohms. If resistance is as specified, go to next step. If resistance is not as specified, repair appropriate circuit(s).
5) Disconnect connector of switch being tested. Measure resistance between switch terminals. Resistance should be less than 5 ohms with switch closed and more than 10,000 ohms with switch open. If resistance is not as specified, replace switch. If resistance is as specified and no other problem or code is found, replace ECA.
