Steering System - Variable Assist: Wiring Diagram

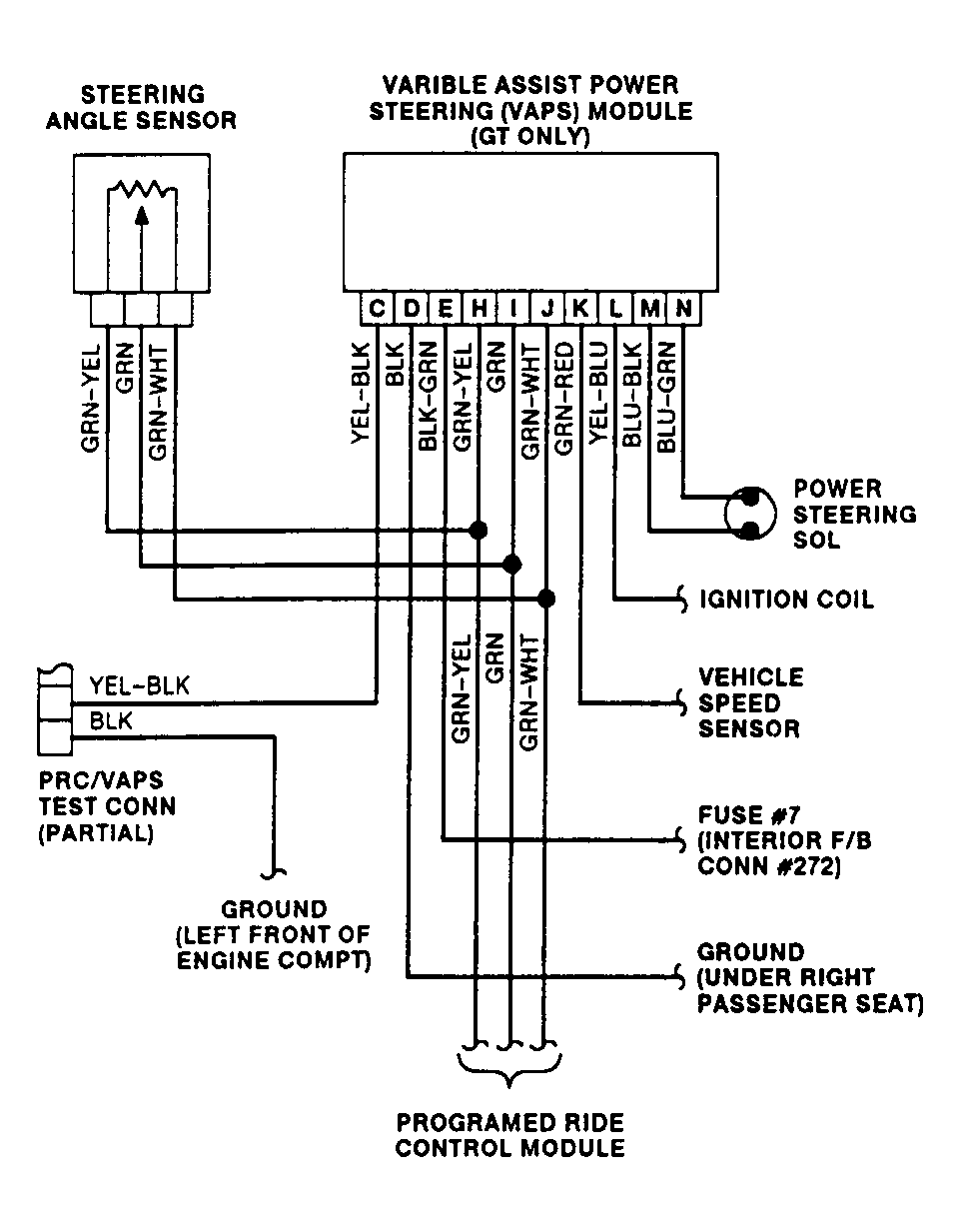

Fig 1: Variable Assist Power Steering (VAPS) Wiring Diagram (Probe)
G92F03992Courtesy of FORD MOTOR CO.
