Repair and Diagnosis: Transmission: Clutches: Description

Clutch is a single dry disc design with a Belleville spring type pressure plate. See Fig 1 . Probe models use a hydraulically operated clutch release system.

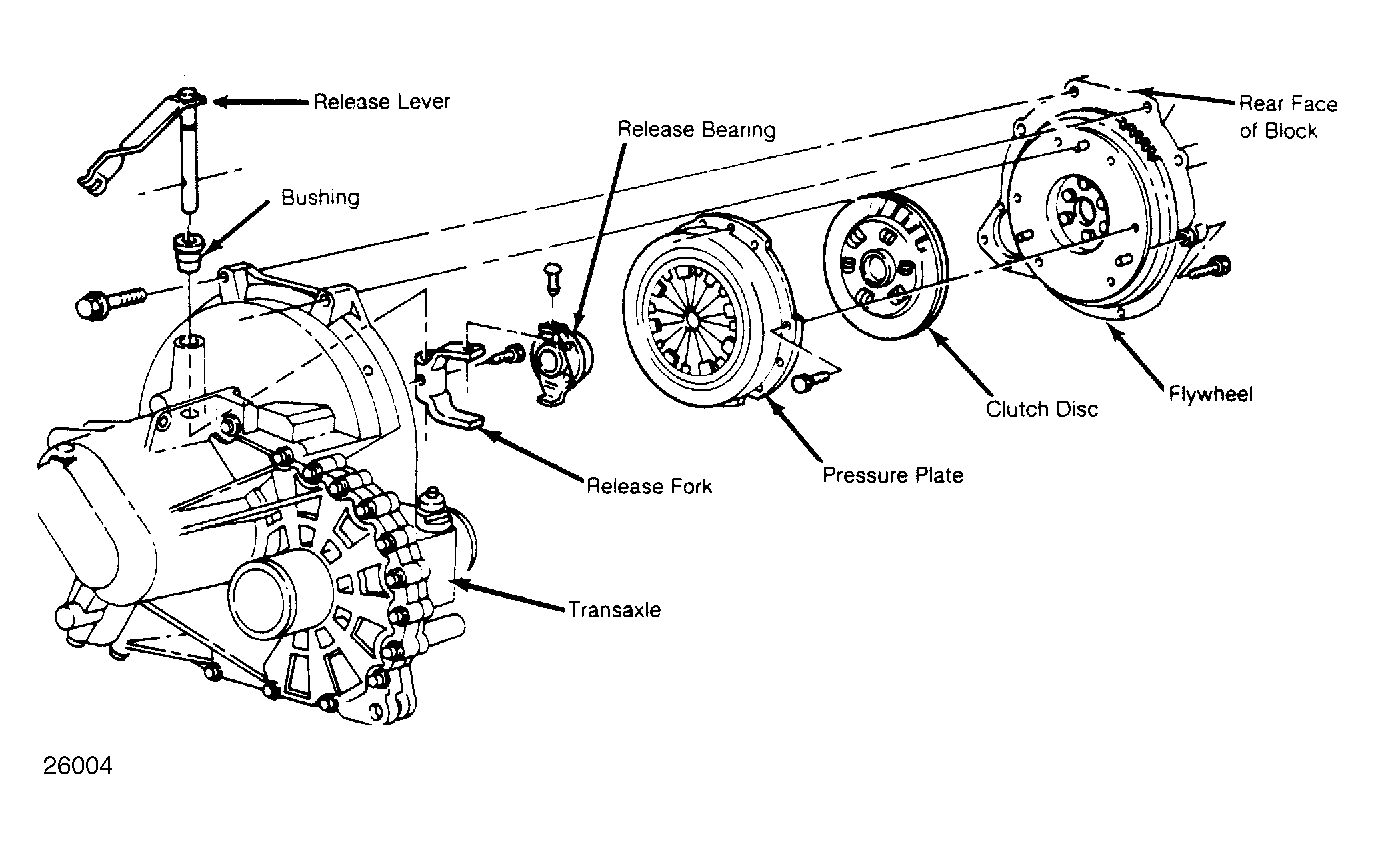

Fig 1: Exploded View of FWD Clutch Assembly

Courtesy of FORD MOTOR CO.
