Control Module, A/T
4EAT CONTROL MODULE
ELECTRICAL DIAGRAM

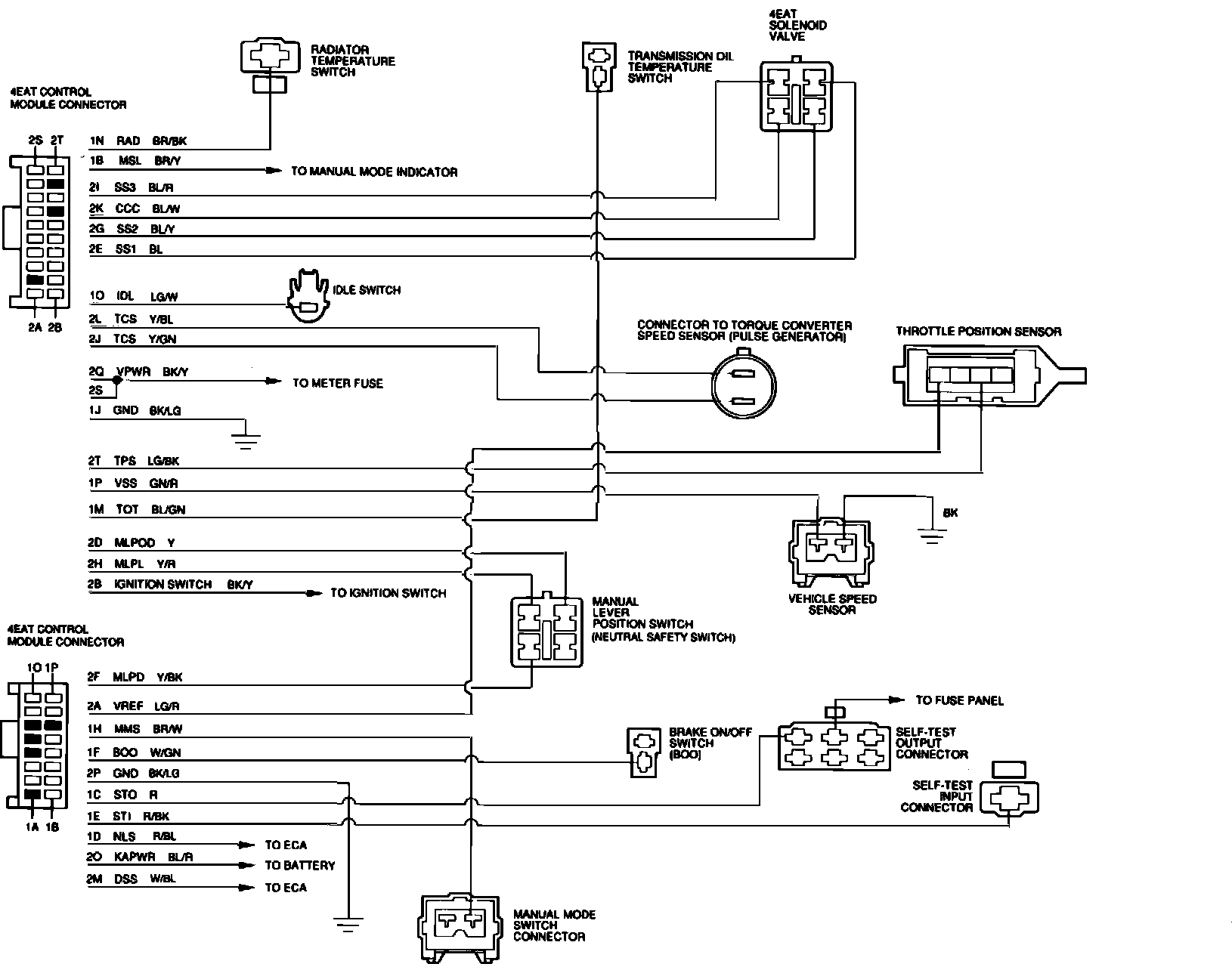

Electrical Schematic:
4EAT CONTROL MODULE
CONNECTOR PIN USAGE

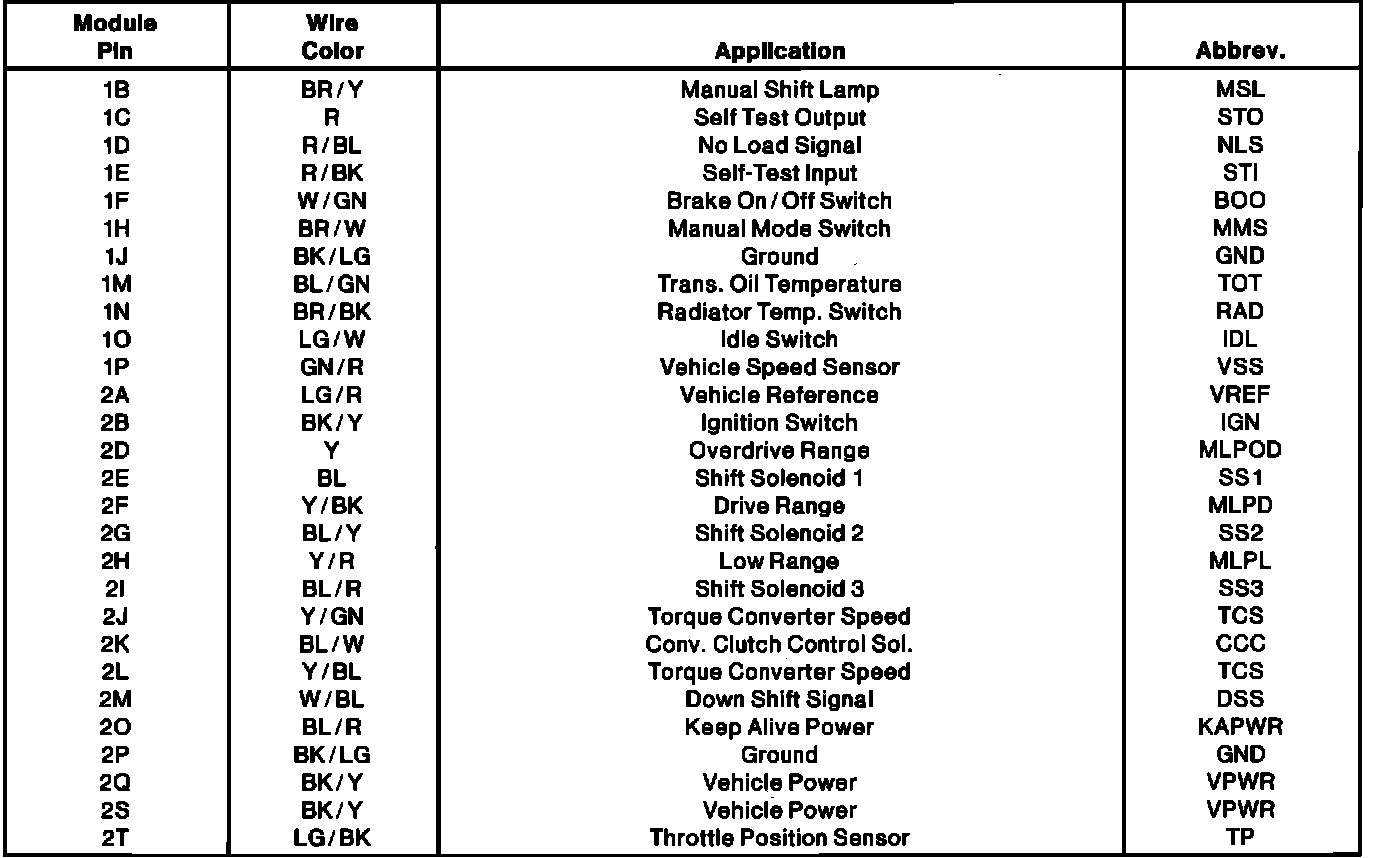

Control Module Pinout:
