Manifold Pressure/Vacuum Sensor: Service and Repair

REMOVAL

Manifold Absolute Pressure Sensor Replacement:

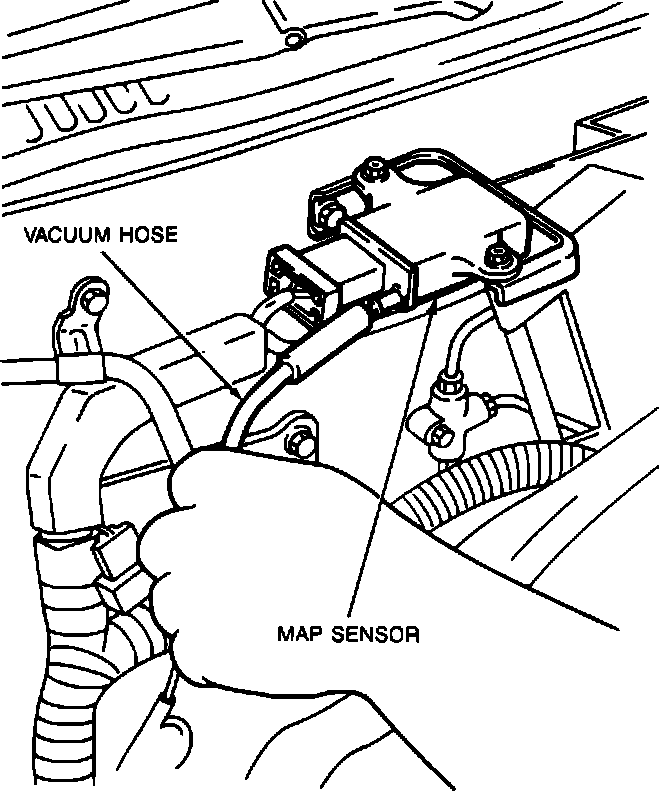

1. Disconnect the vacuum hose and electrical connector from the Manifold Absolute Pressure (MAP) sensor.
2. Remove the two sensor retaining nuts and remove the sensor from the vehicle.



INSTALLATION

1. Place the sensor in position and install the retaining nuts.
2. Connect the electrical connector and vacuum line to the sensor.
