FE - Testing Notes

NOTE: You should enter this Pinpoint Test only when you have been directed here from Quick Test.

REMEMBER


This Pinpoint Test is intended to diagnose only the following:


- Blower motor (BLR) input circuit.

- Daytime Running Lights (DRL) input circuit.

- Headlamp (HDL) input circuit

- Rear window defrost (DEF) input circuit

- Processor assembly




DESCRIPTION

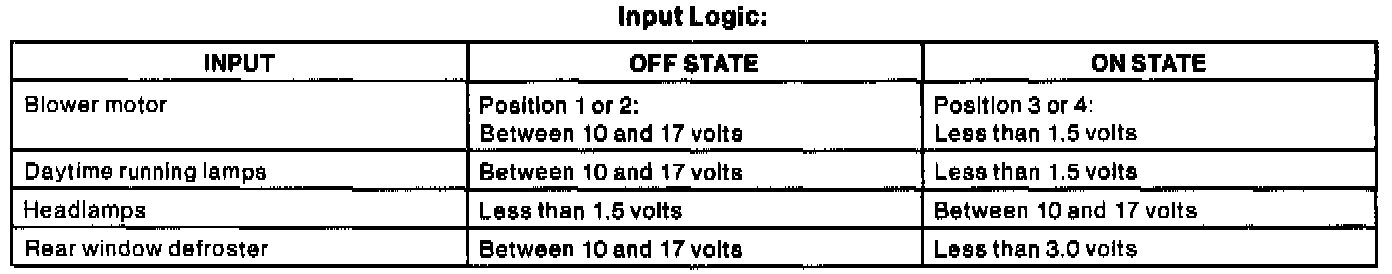

Input Logic:

The electrical load inputs are used by idle speed control strategy to prevent idle speed fluctuations when loads are demanded or turned off by the driver. Four circuits are used by the processor to detect the ON and OFF status of the blower motor and daytime running lights (Canidian vehicles), the headlights and the rear window defroster.
