Ignition Timing Connector: Description and Operation

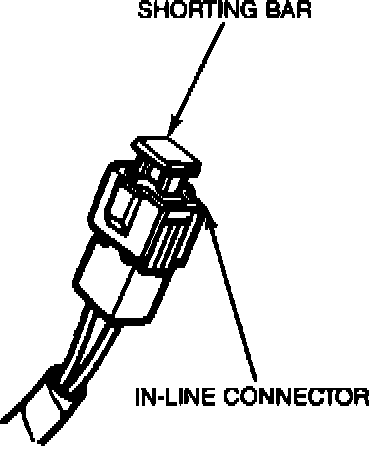

In-line Connector With Shorting Bar:

The octane adjustment switch is used to retard the ignition timing three to four degrees.
When the switch jumper is INSTALLED, the timing is normal. With the jumper REMOVED, the timing is retarded. This is done to allow for optimum spark advance for effective combustion of the air/fuel mixture.
