Test Notes

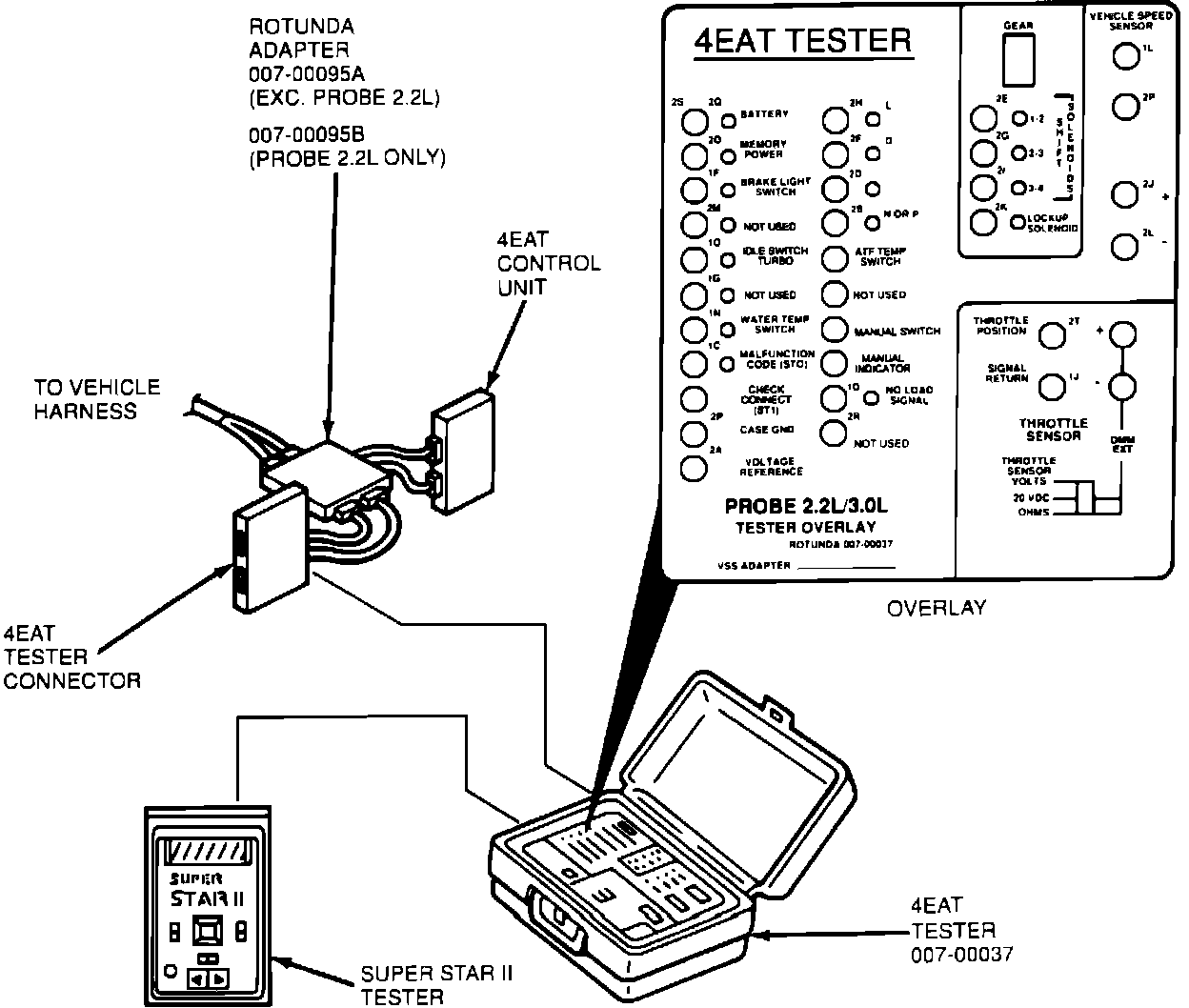

Switch Monitor Test Equipment:

^ Switch Monitor Test checks signals from individual input switches to the 4EAT control module.

^ Procedure requires use of Ford test equipment or aftermarket equivalents.
