M/T Torque Data

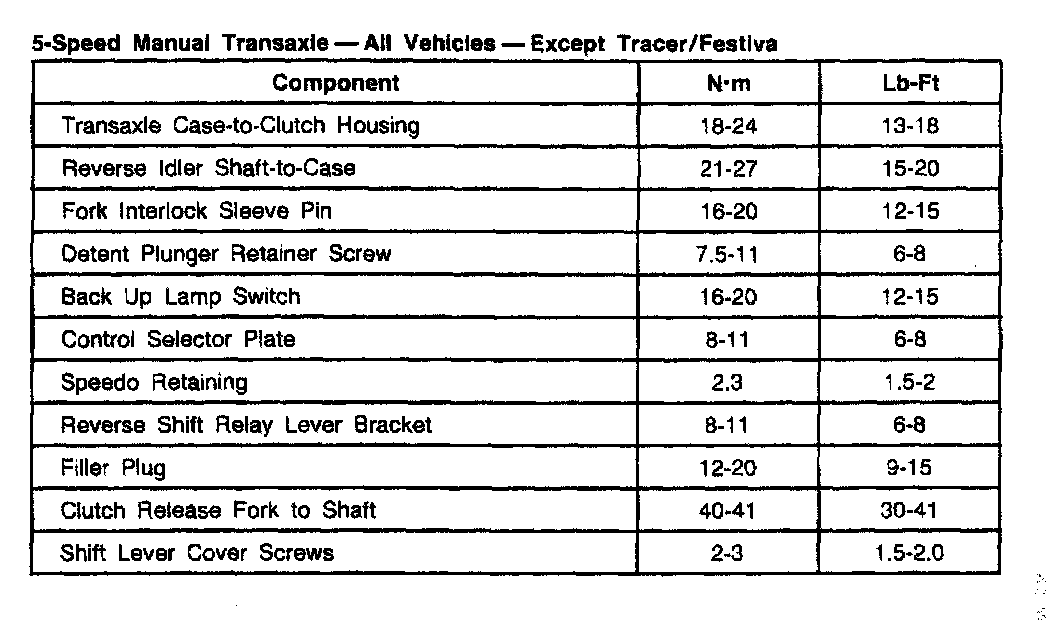

MTX 5-spd M/T, Transaxle (All except Tracer/Festiva):

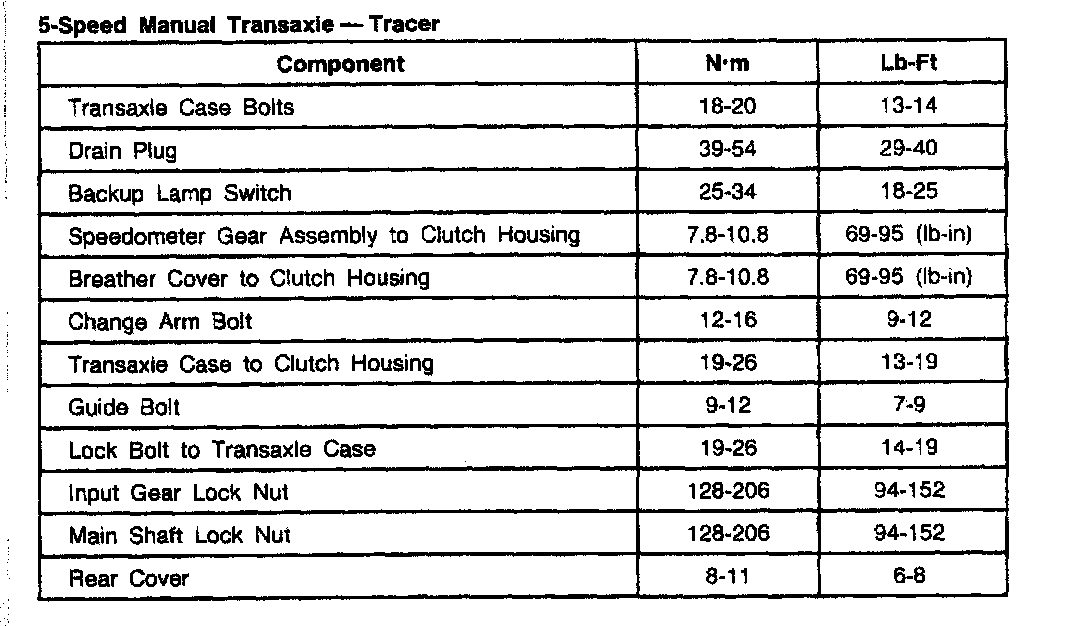

MTX 5-spd M/T, Transaxle (Tracer):

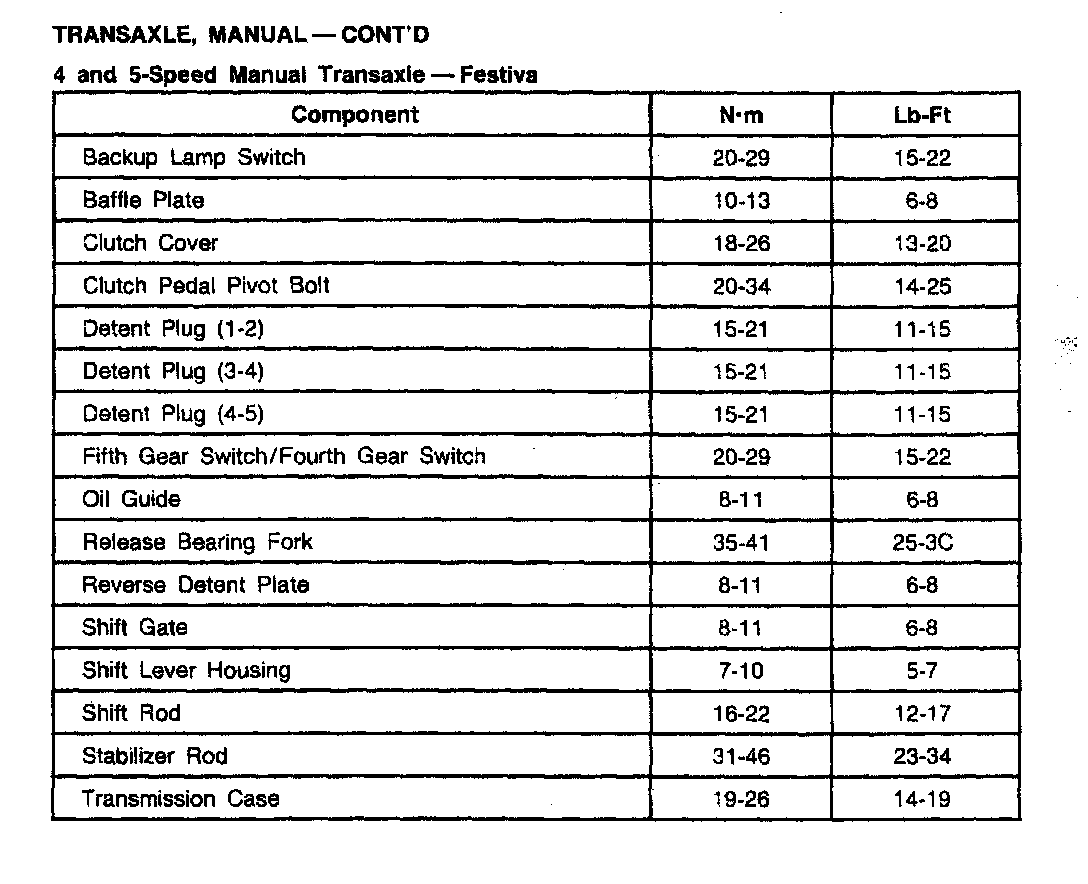

MTX 5-spd M/T, Transaxle Assembly (Festiva):

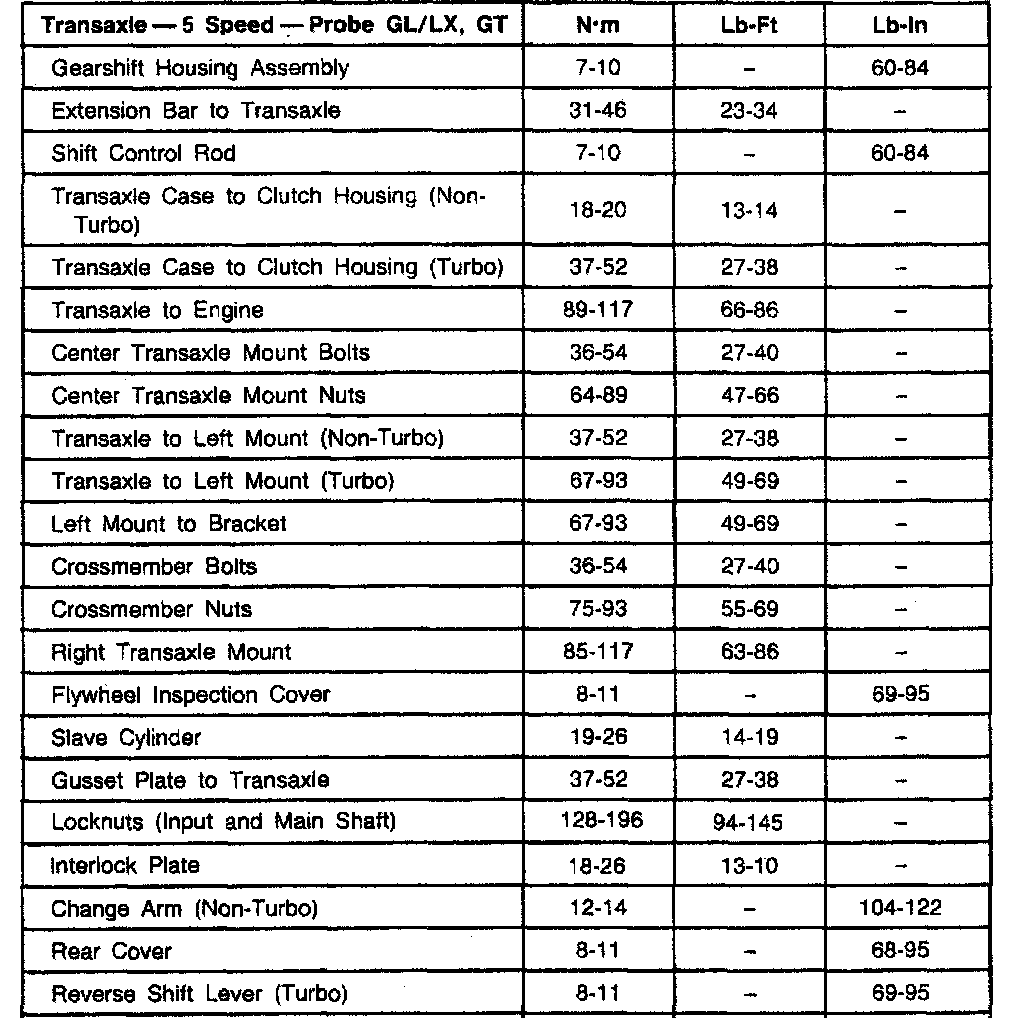

MTX 5-spd M/T, Transaxle Assembly (Probe GL/LX, GT):

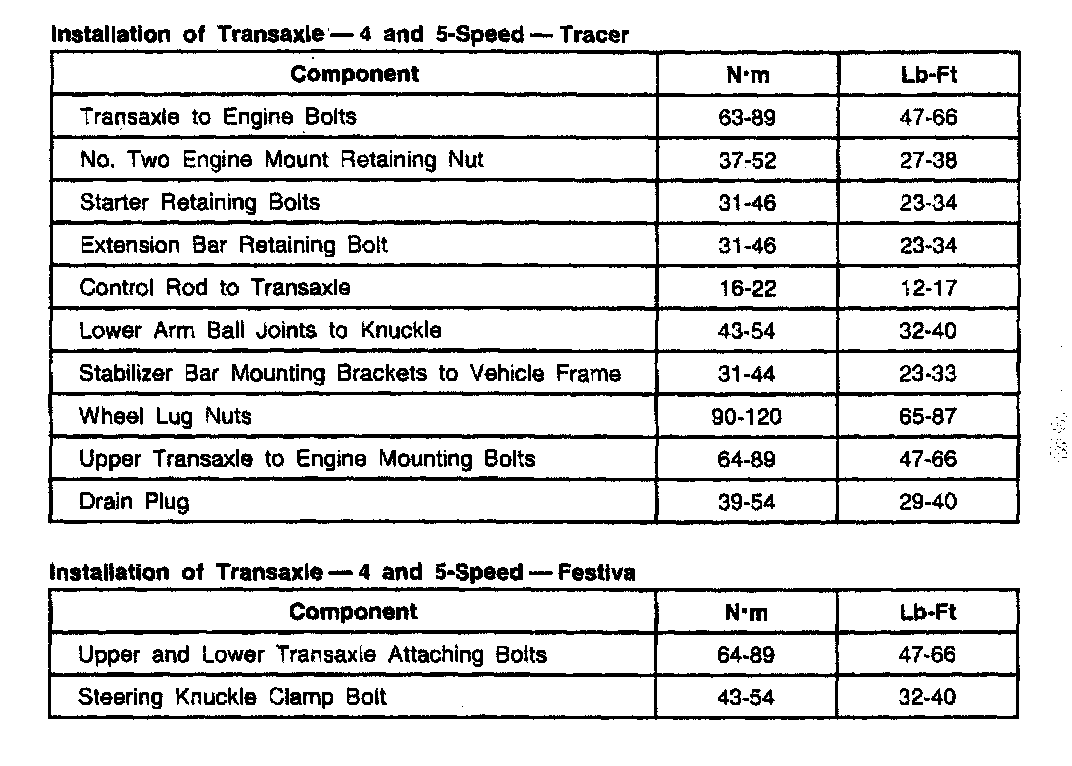

MTX 5-spd M/T, Installation Of Transaxle (Tracer) (Festiva):
