Air Flow Meter/Sensor: Locations

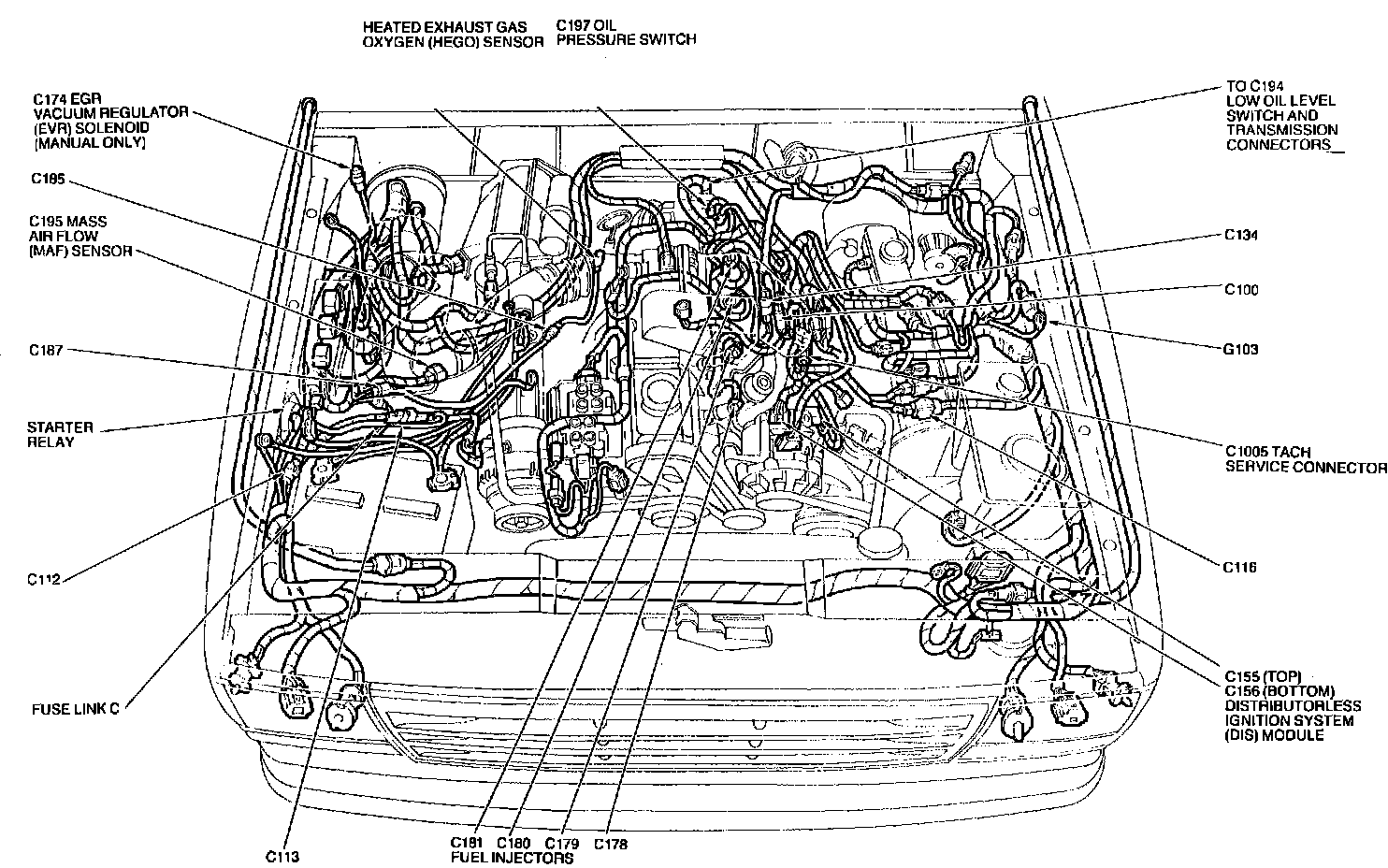

Engine Compartment Components.:

RH Side Of Engine Compartment, On Air Cleaner

Applicable to: 2.3L/4-140

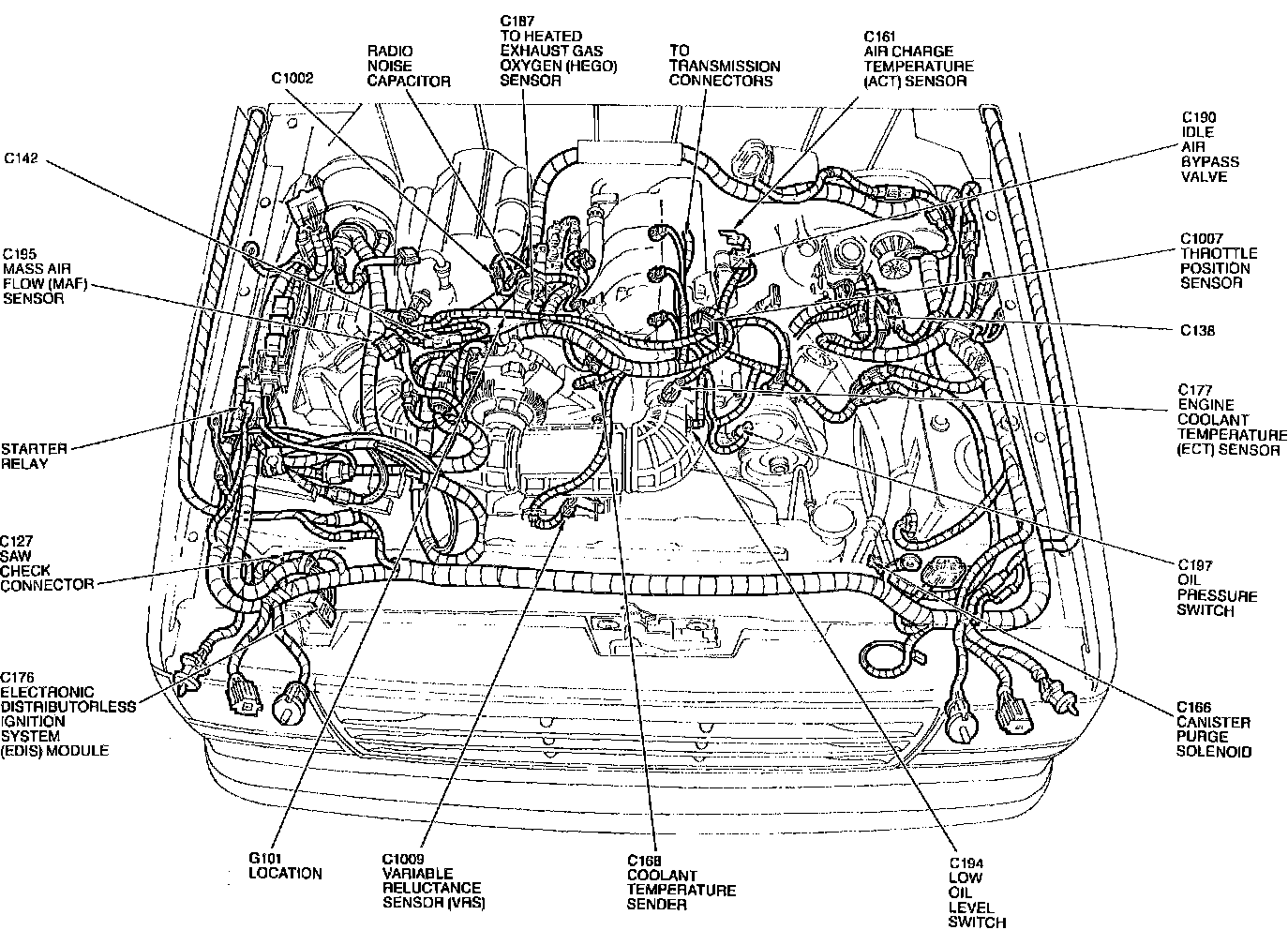

Engine Compartment Components.:

RH Side Of Engine Compartment, On Air Cleaner

Applicable to: 3.0L/V6-181

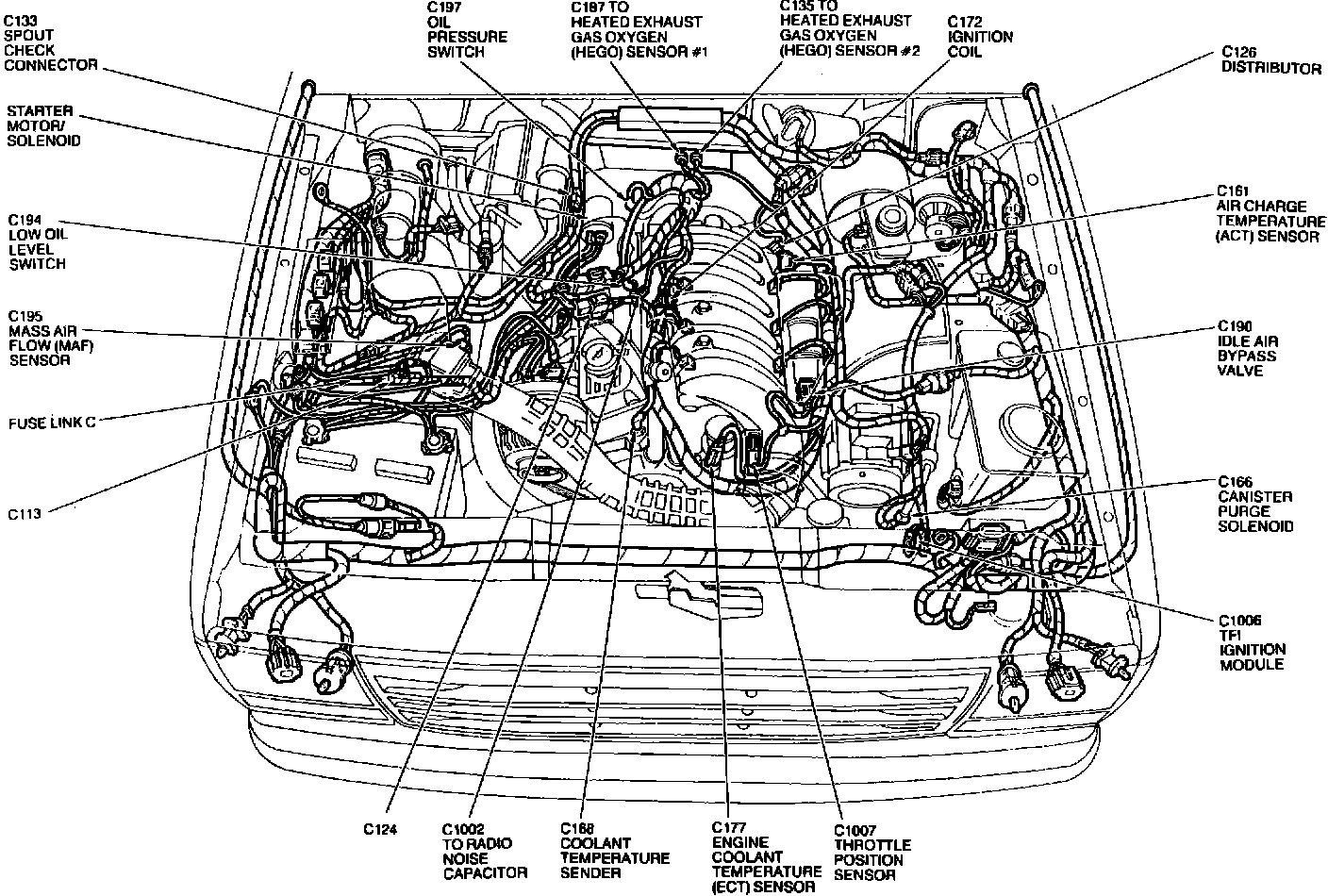

Engine Compartment Components.:

RH Side Of Engine Compartment, On Air Cleaner

Applicable to: 4.0L/V6-244
