Coolant Temperature Sensor/Switch (For Computer): Locations

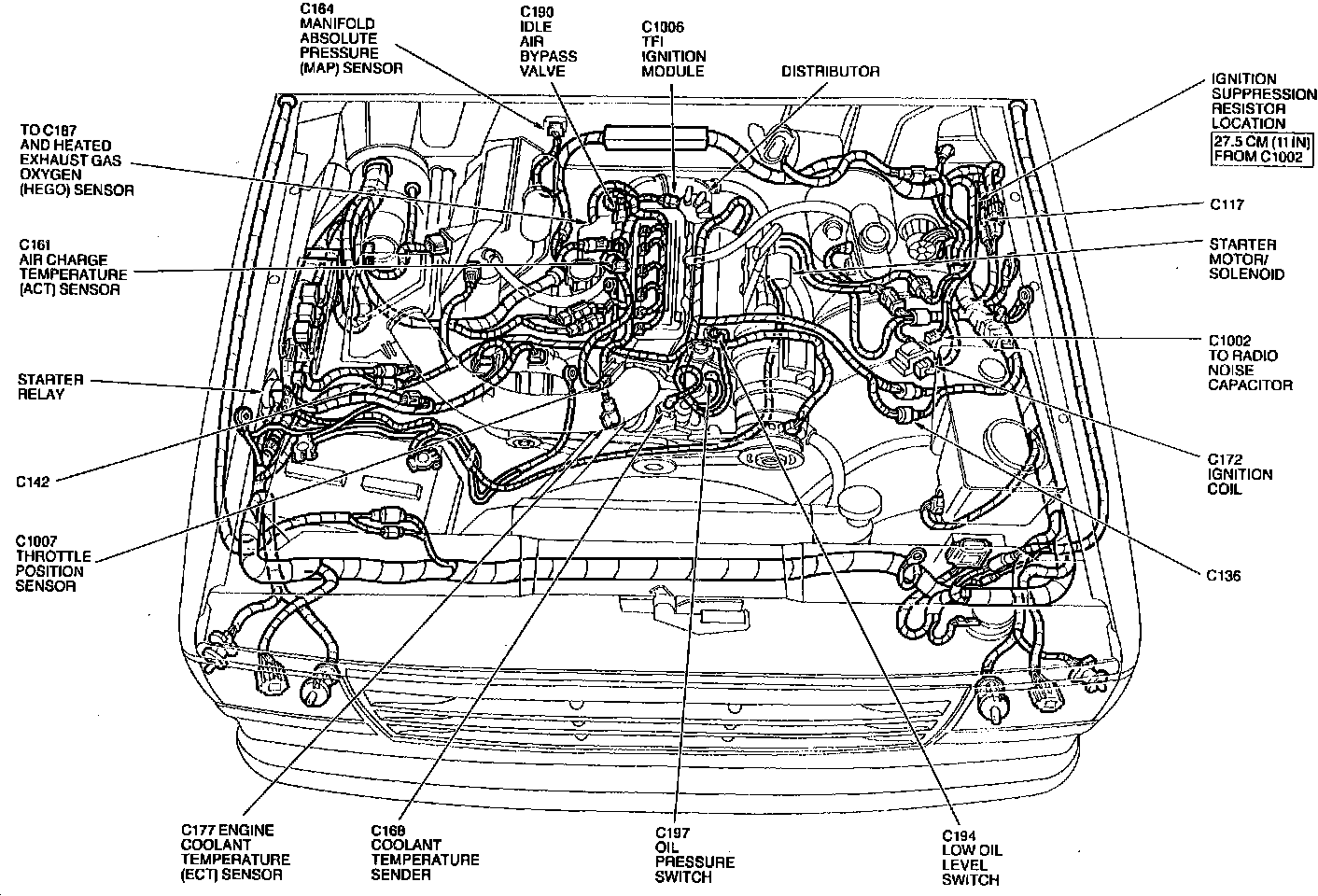

Engine Compartment Components.:




Top Front Of Engine, Near Thermostat Housing

Applicable to: 2.9L/V6-179

Engine Compartment Components.:




Top Front Of Engine, Near Thermostat Housing

Applicable to: 3.0L/V6-181
