Main Relay (Computer/Fuel System): Locations

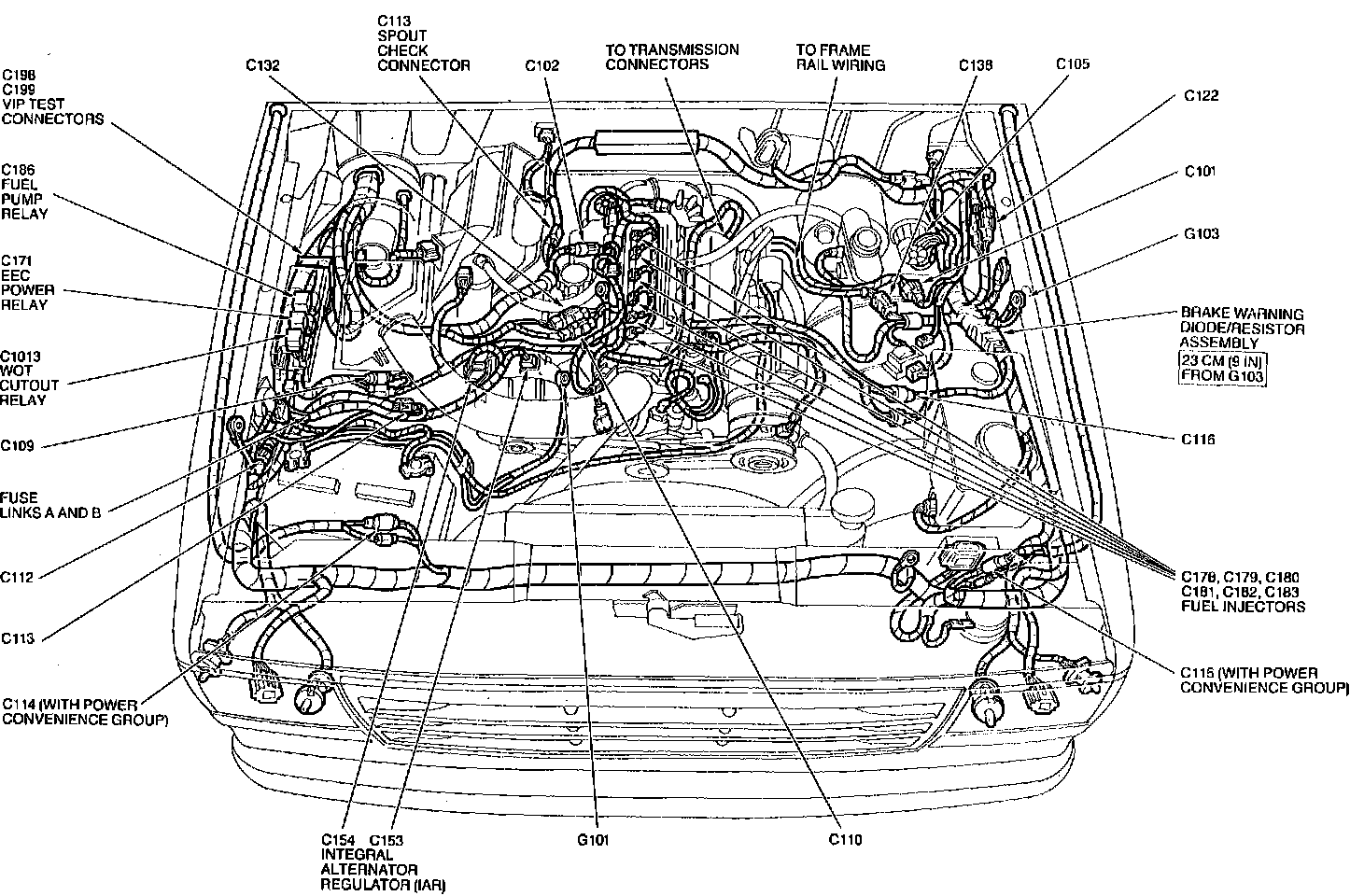

Engine Compartment Components.:




Center Of RH Fender Apron, In Power Distribution Box

Applicable to: 2.9L/V6-179

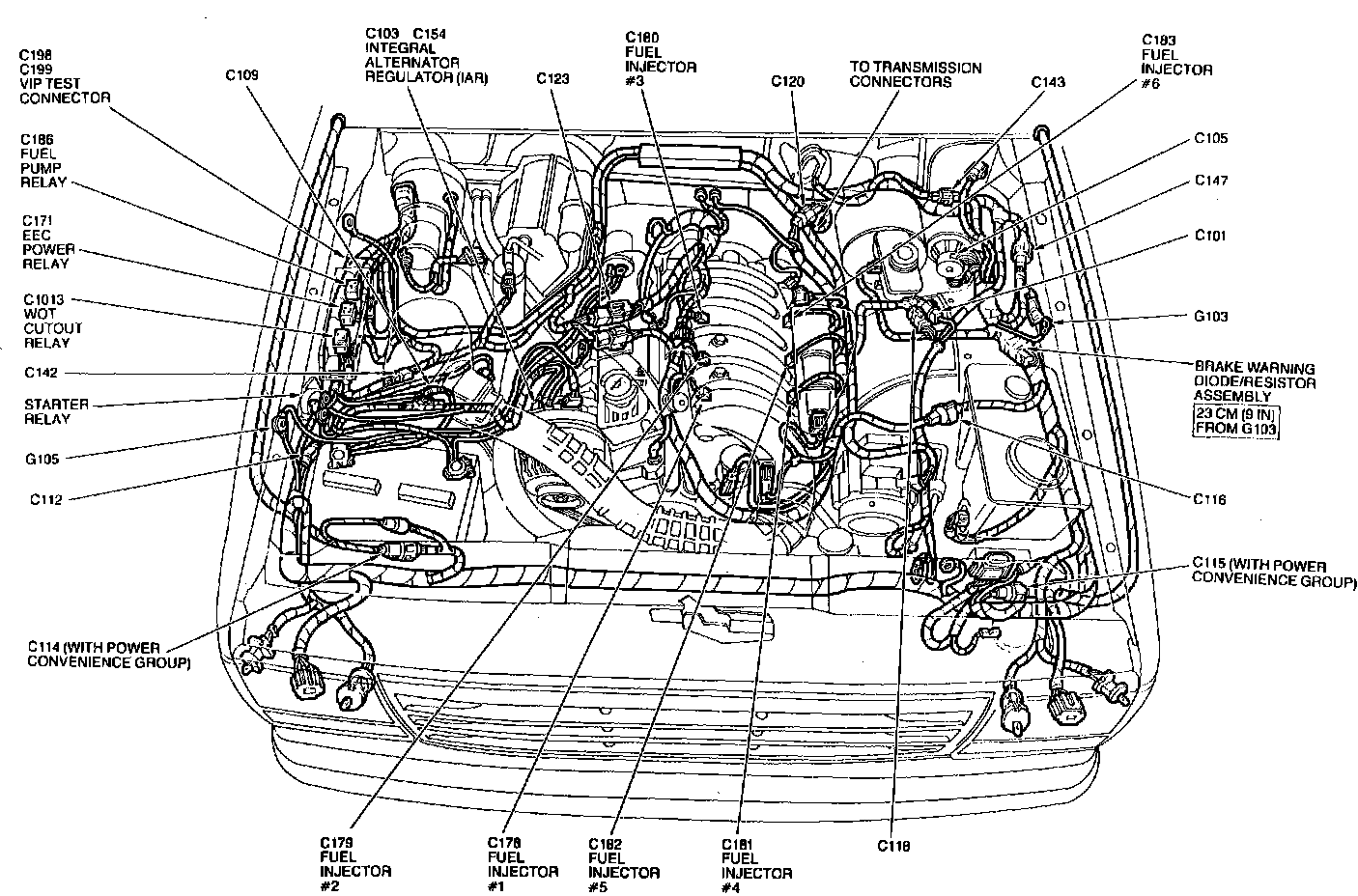

Engine Compartment Components.:




Center Of RH Fender Apron, In Power Distribution Box

Applicable to: 3.0L/V6-181
