On-Off Control Switch

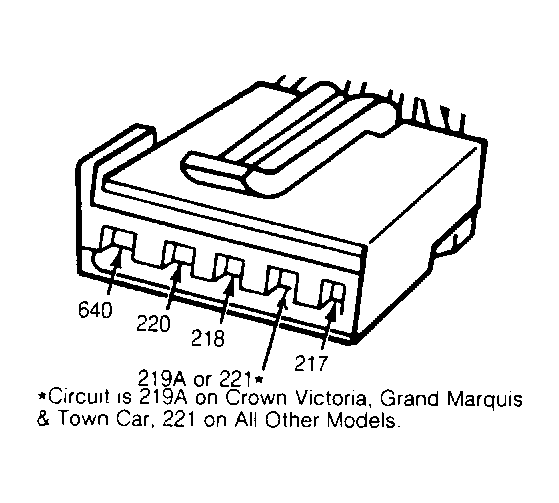

- Unplug connector from photocell/amplifier, located at top left of instrument panel. Connect one lead of a self-powered test light to connector terminal No. 220 (Purple/Orange wire). See Fig 1

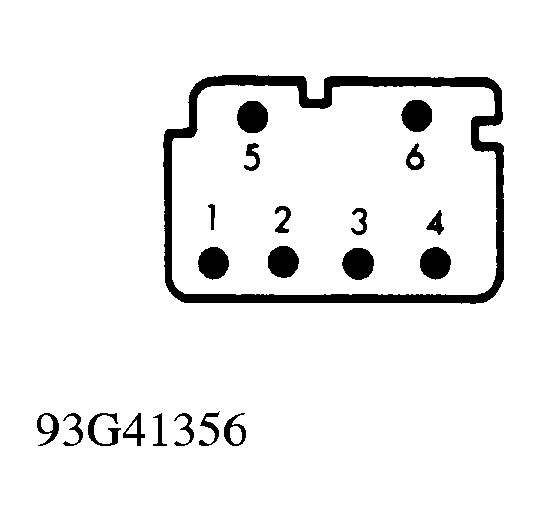

, Fig 2

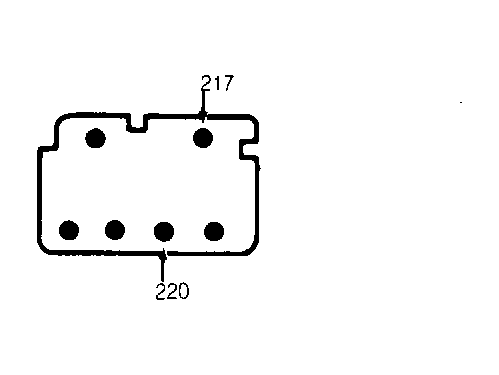

& 3. Connect other test lead to ground. Turn switch to ON position. If continuity exists, switch is okay; go to POTENTIOMETER TEST
.
- If continuity does not exist, check Purple/Orange wire between potentiometer connector and photocell/amplifier connector. If continuity exists, go to POTENTIOMETER TEST
.
