Diagnostic Tests Using Warning Light Symptom Chart: Notes
NOTE:

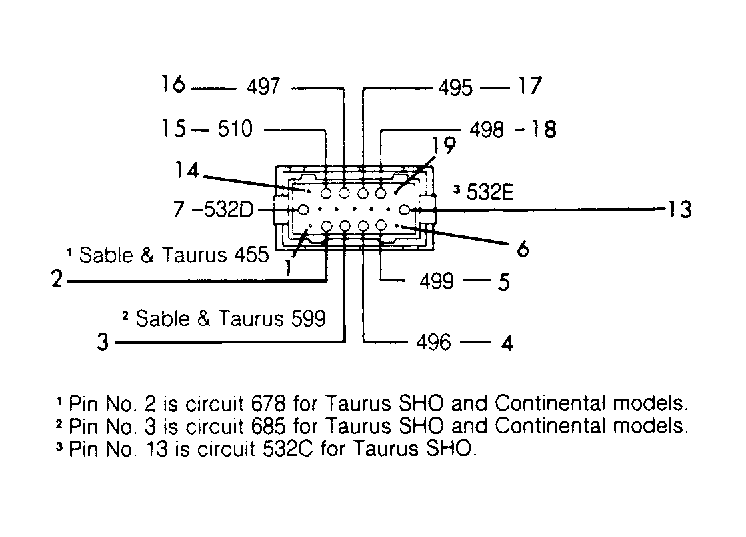

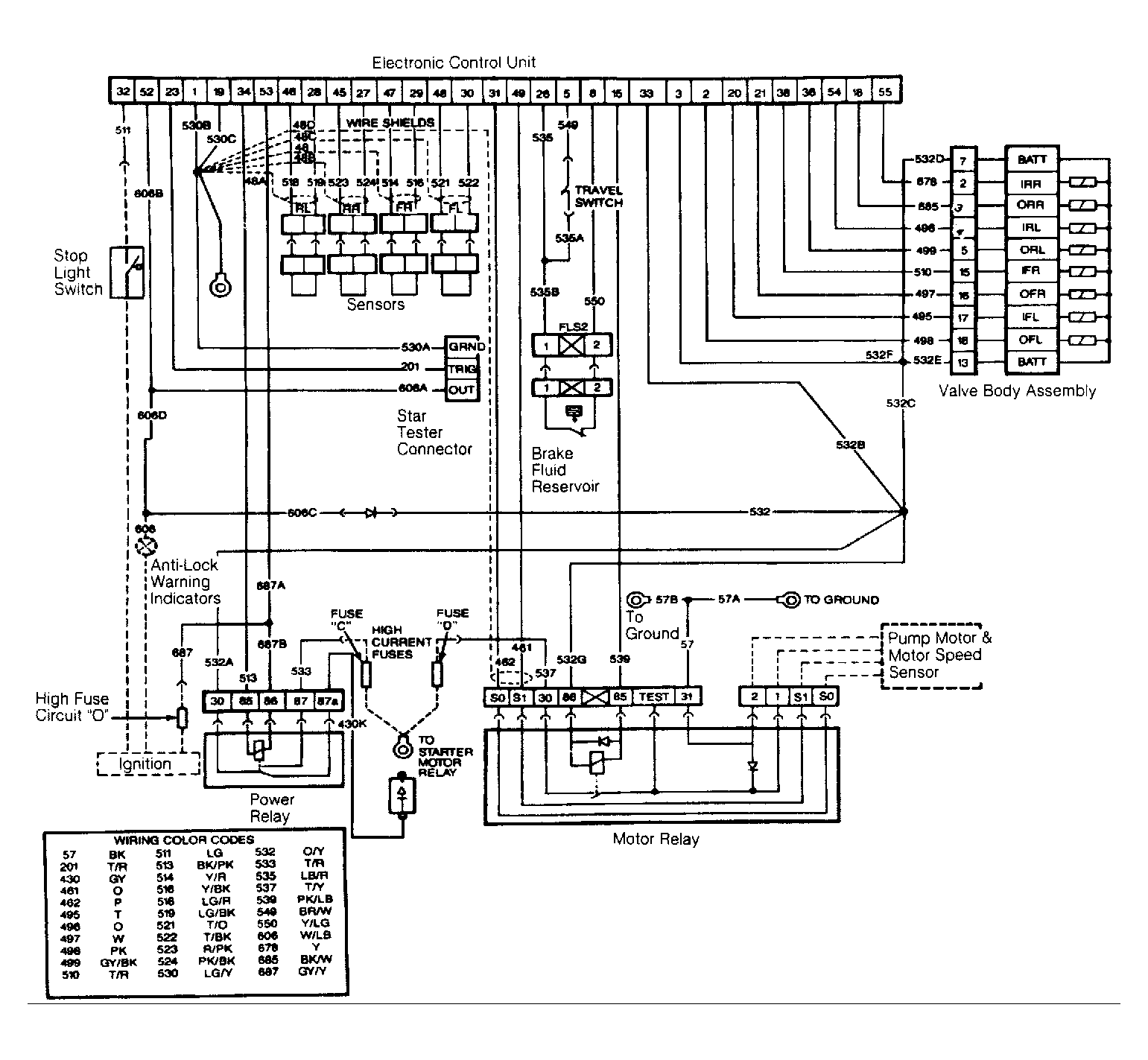

Test procedures require Breakout Box (014-00322) and ABS Adapter (T90P-50-ALA). See Figure
-Figure
for circuit and terminal identification. See COMPONENT LOCATIONS
for connector and component locations. Make all voltage measurements with digital voltmeter.
