Anti-Lock Brake System: Operation

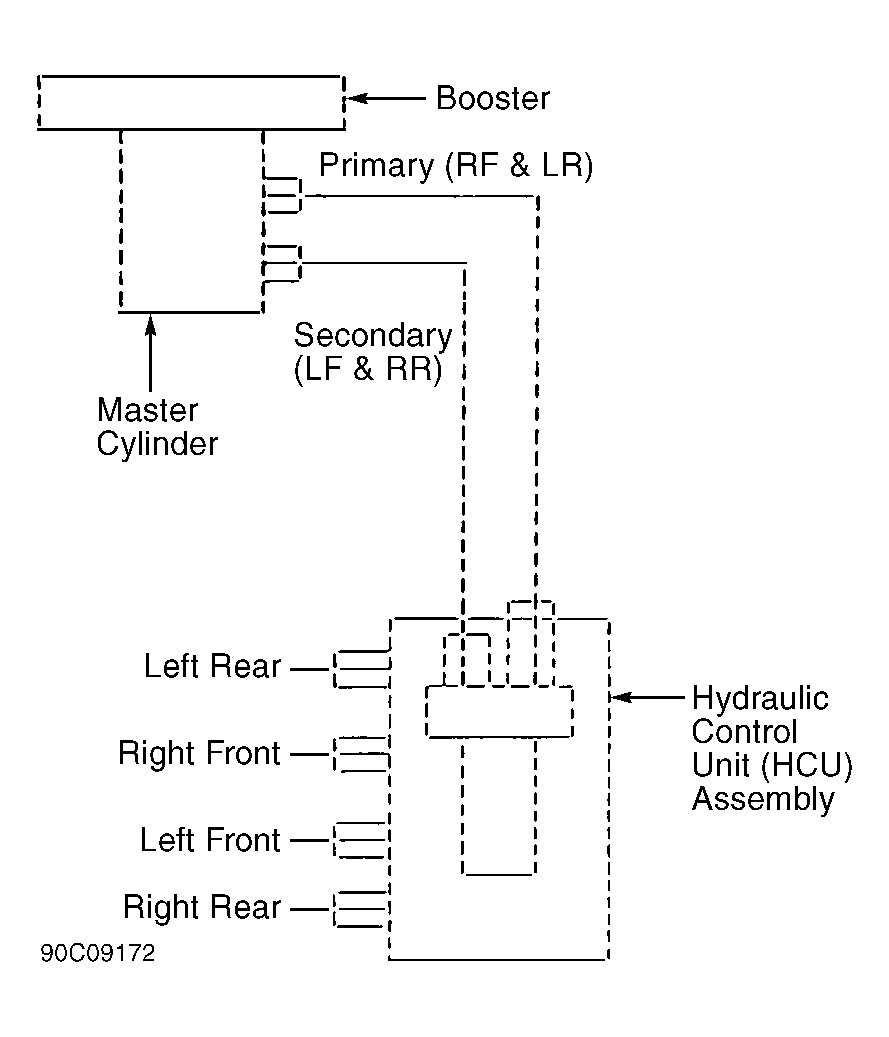

The ECU receives and processes a wheel speed signal from each wheel sensor. When wheel lock-up is about to occur, the ECU activates solenoid valves to modulate hydraulic pressure to each wheel. A pump/motor assembly provides hydraulic pressure to the system. The ABS incorporates self-diagnostic capabilities. See Fig 1 . See DIAGNOSIS .
