Cruise Control Module: Locations

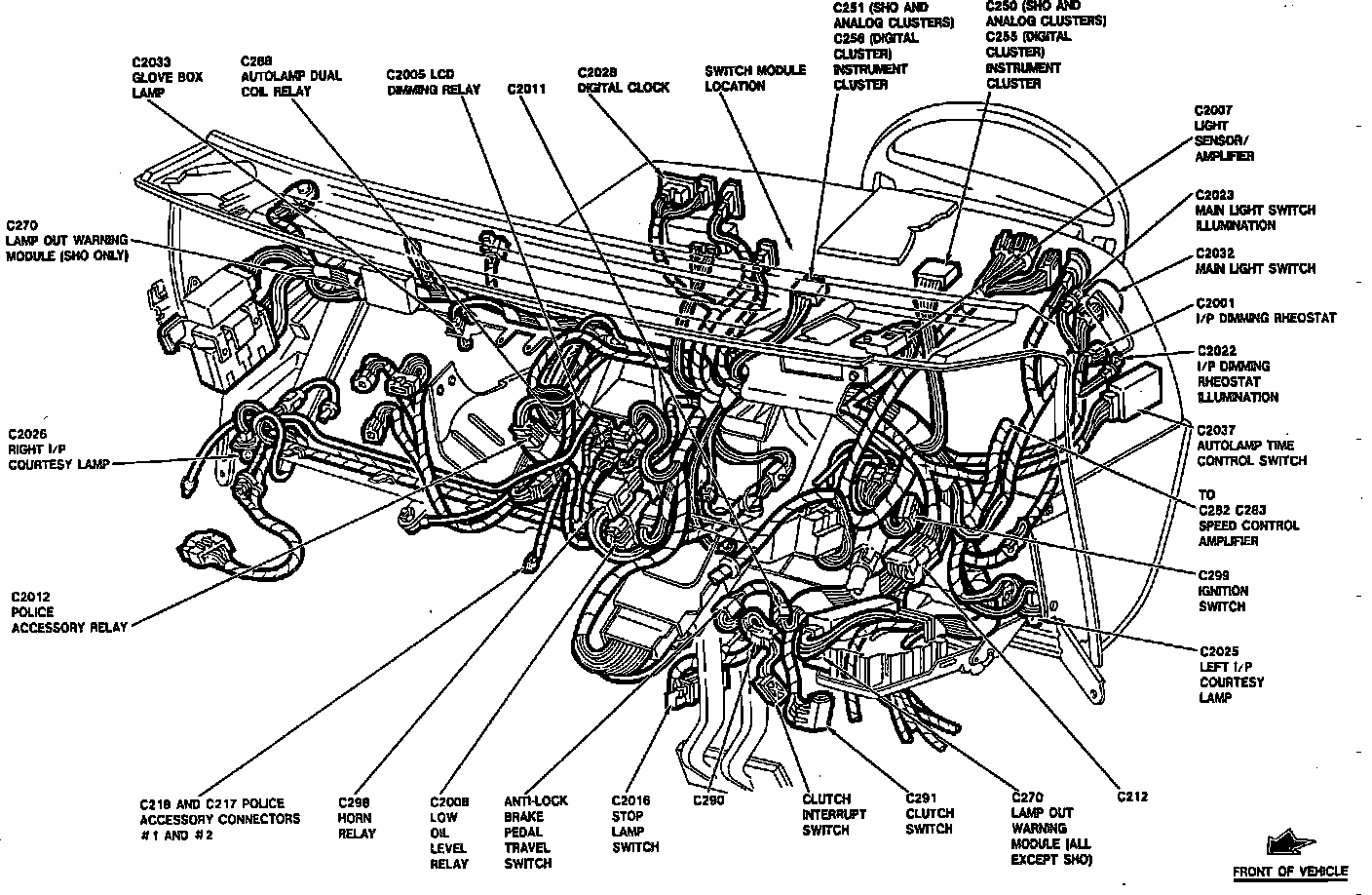

Instrument Panel Component Locations.:






The Speed Control Amplifier is on the Left Hand side of the Instrument Panel and is identified by C282 and C283.
