Ignition Control Module

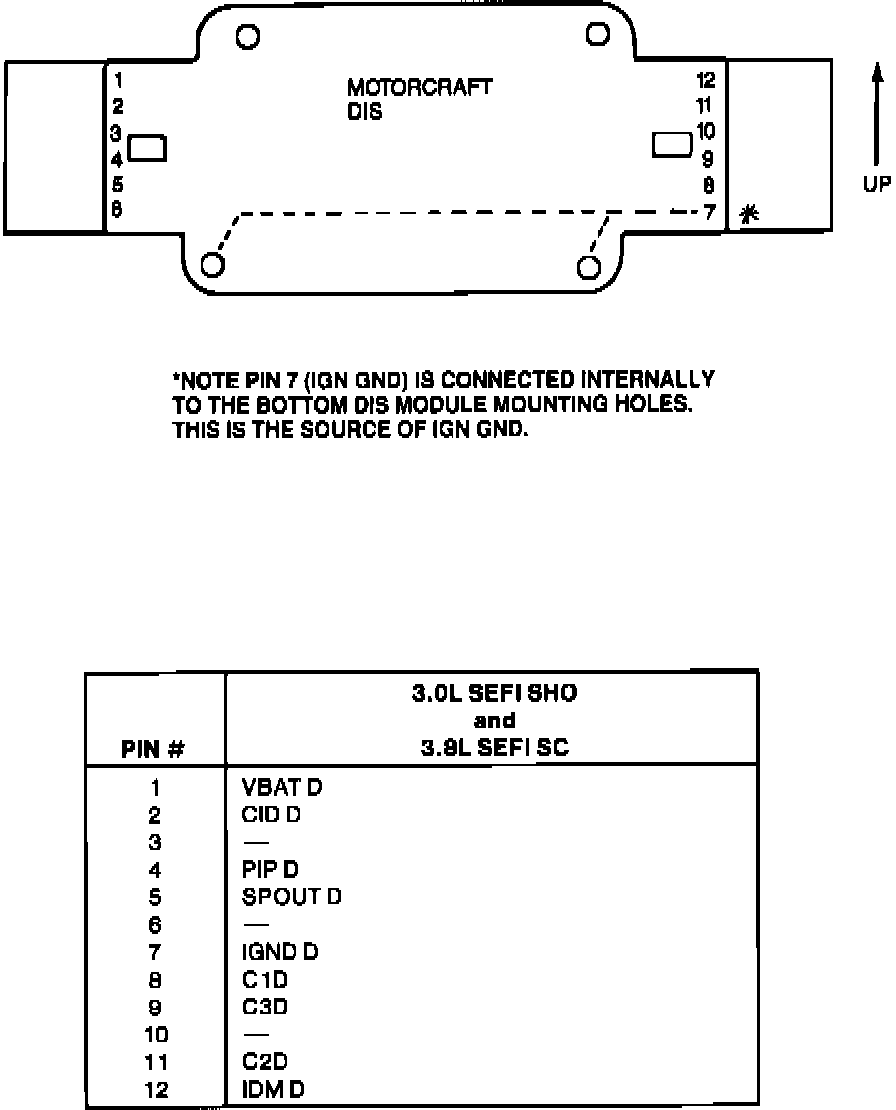

DIS Ignition Module And Pinout:

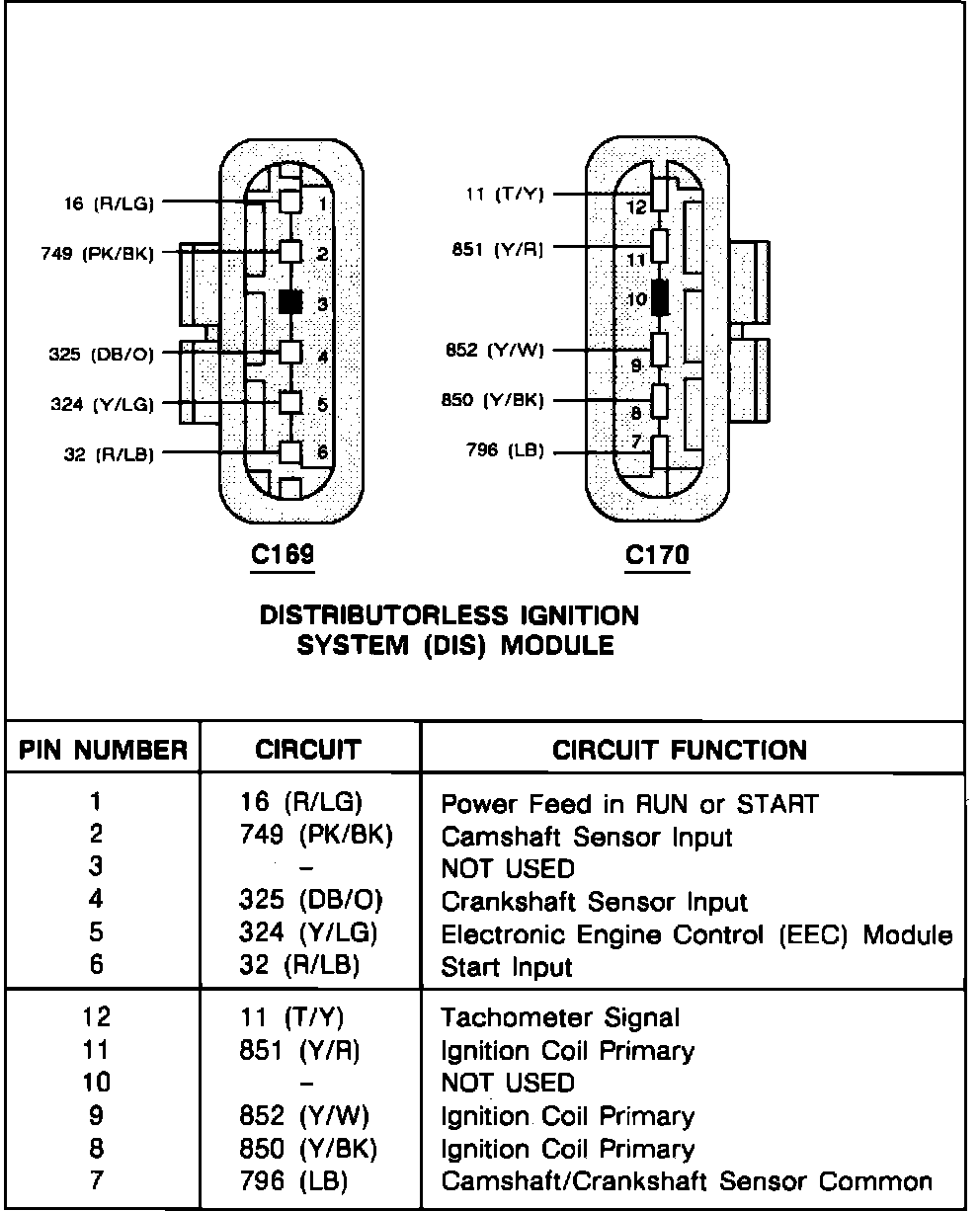

Distributerless Ignition Module Connector Pinout:
