Main Relay (Computer/Fuel System): Locations

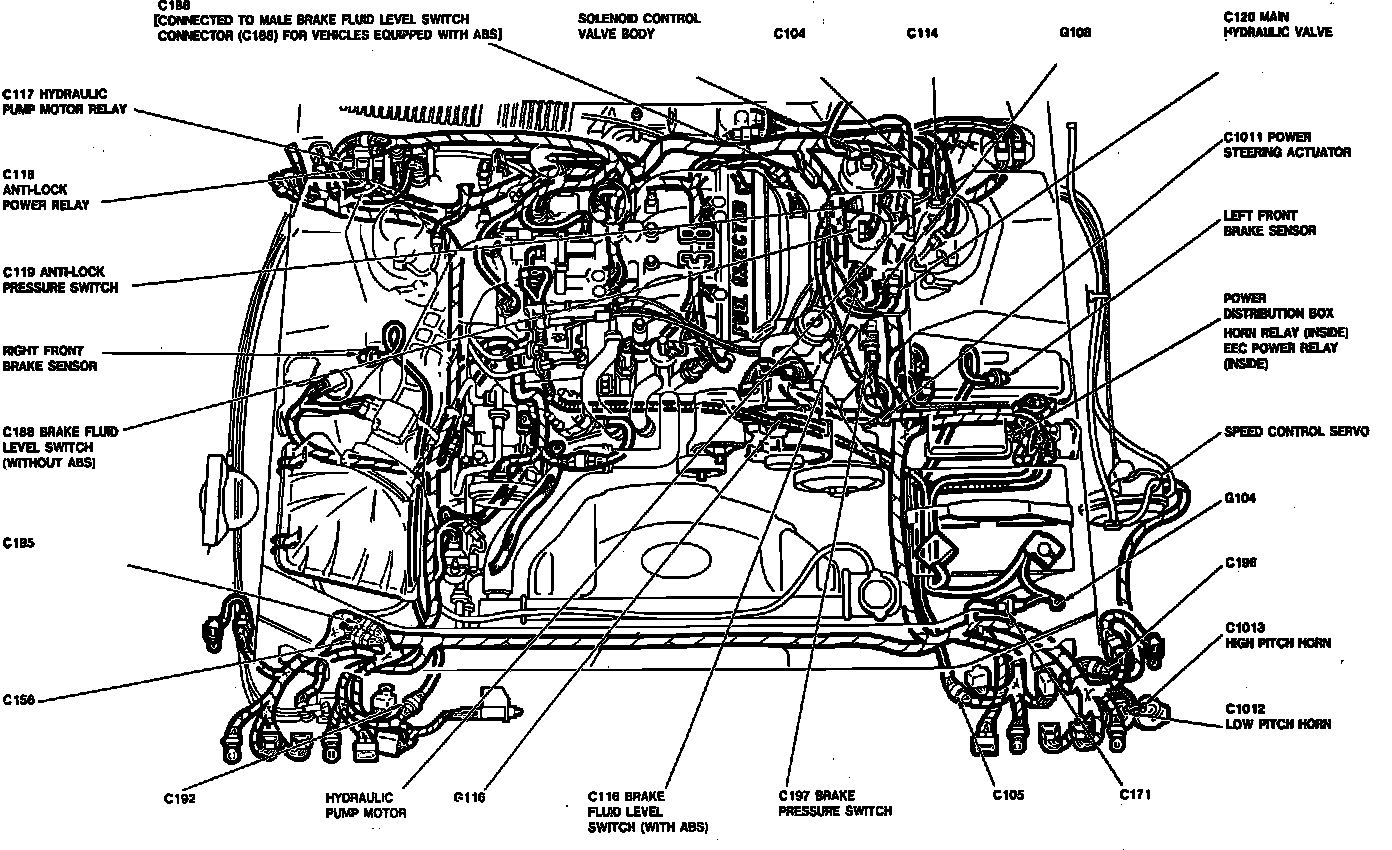

Engine Compartment Components.:




LH Fender Apron, Inside Power Distribution Box

Applicable to: 3.8L/V6-232 Except Supercharged

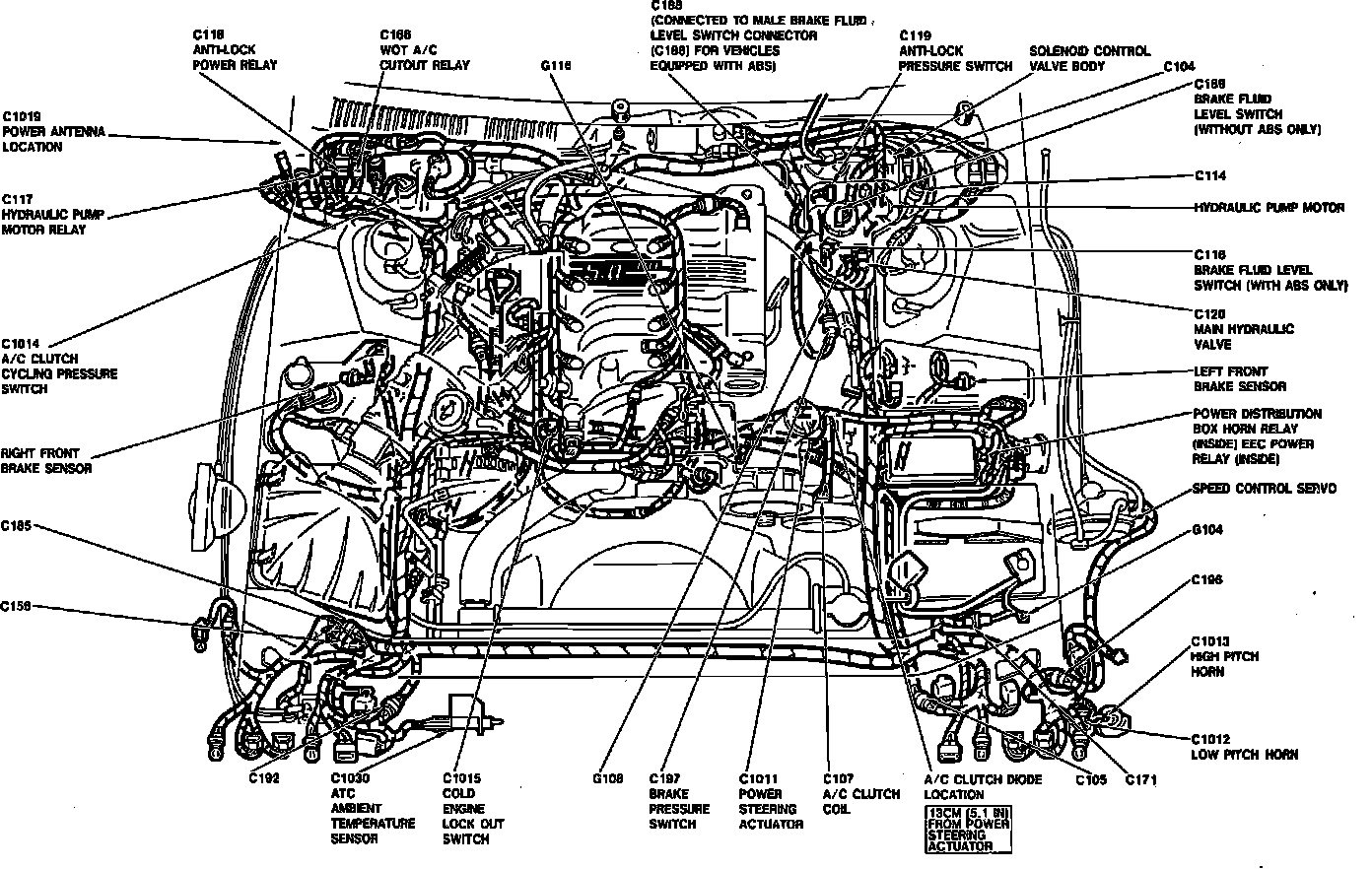

Engine Compartment Components.:




LH Fender Apron, Inside Power Distribution Box

Applicable to: 5.0L/V8-302
