Home >> Ford >> 1992 >> Thunderbird V6-232 3.8L SC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Timing Components
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Timing Components

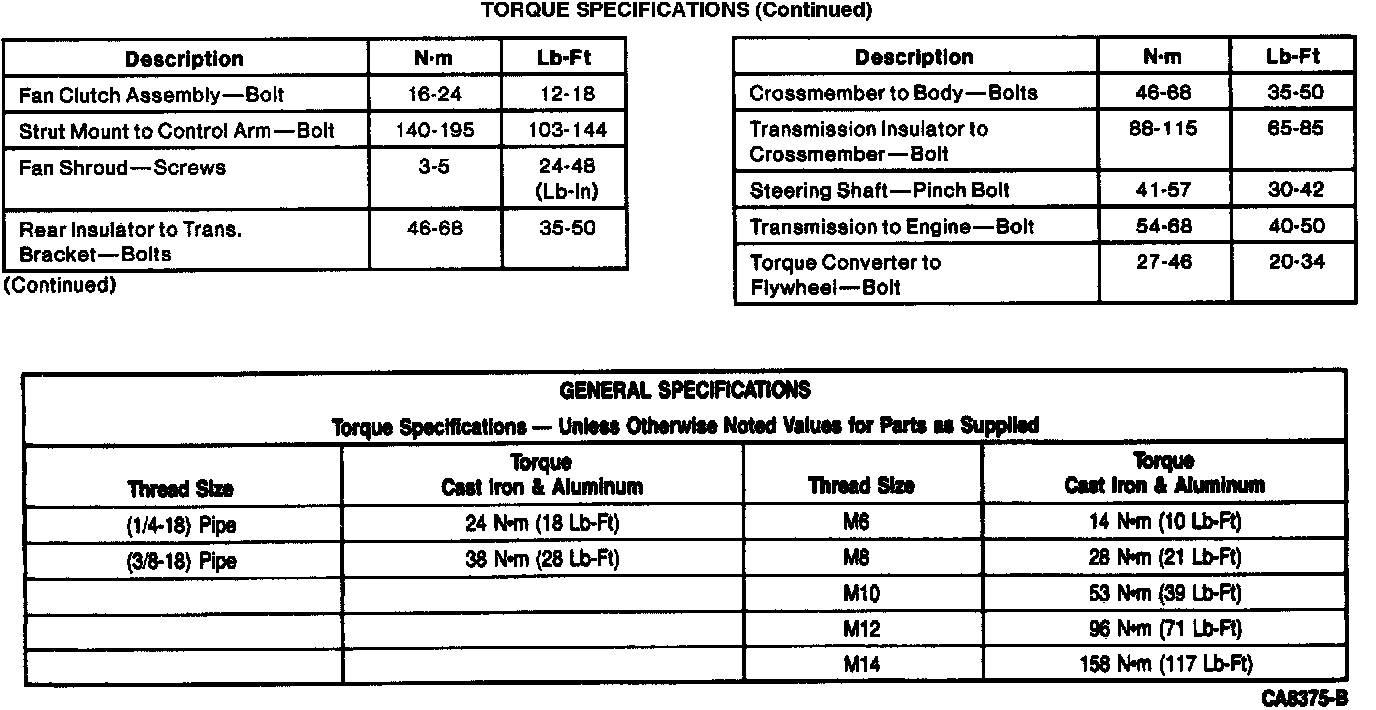

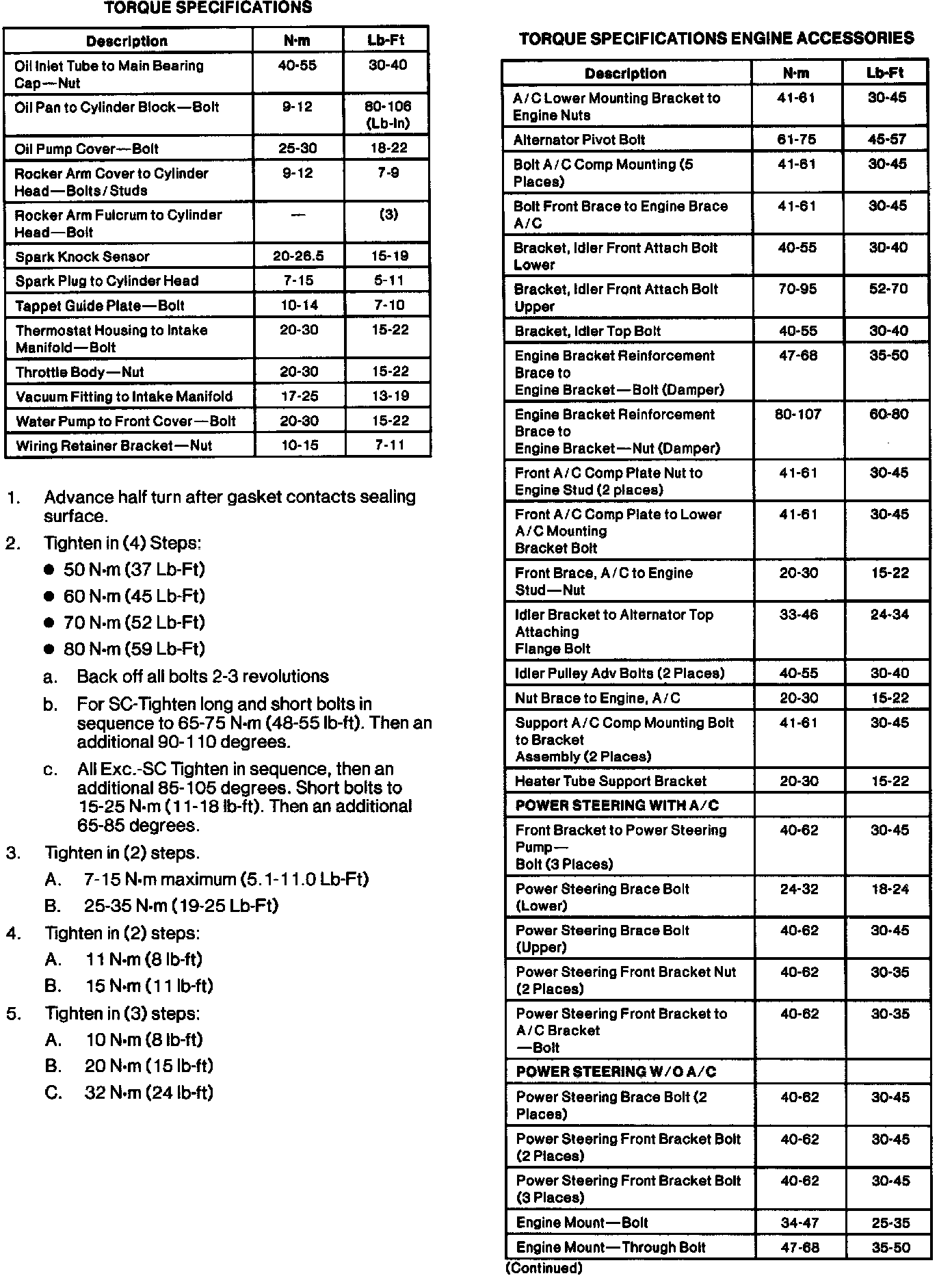

Torque Specifications:



Torque Specifications:



Torque Specifications:
