Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

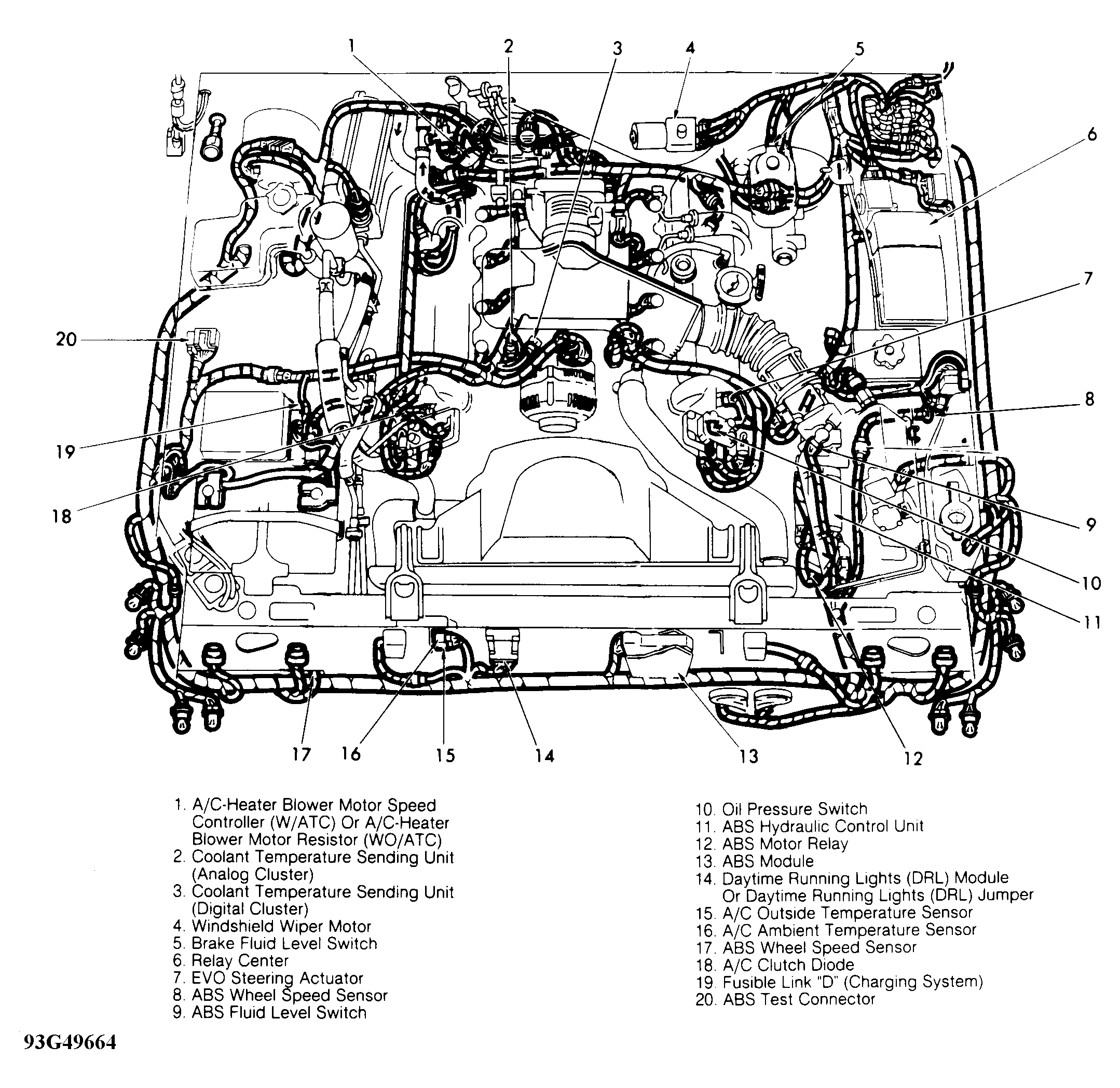

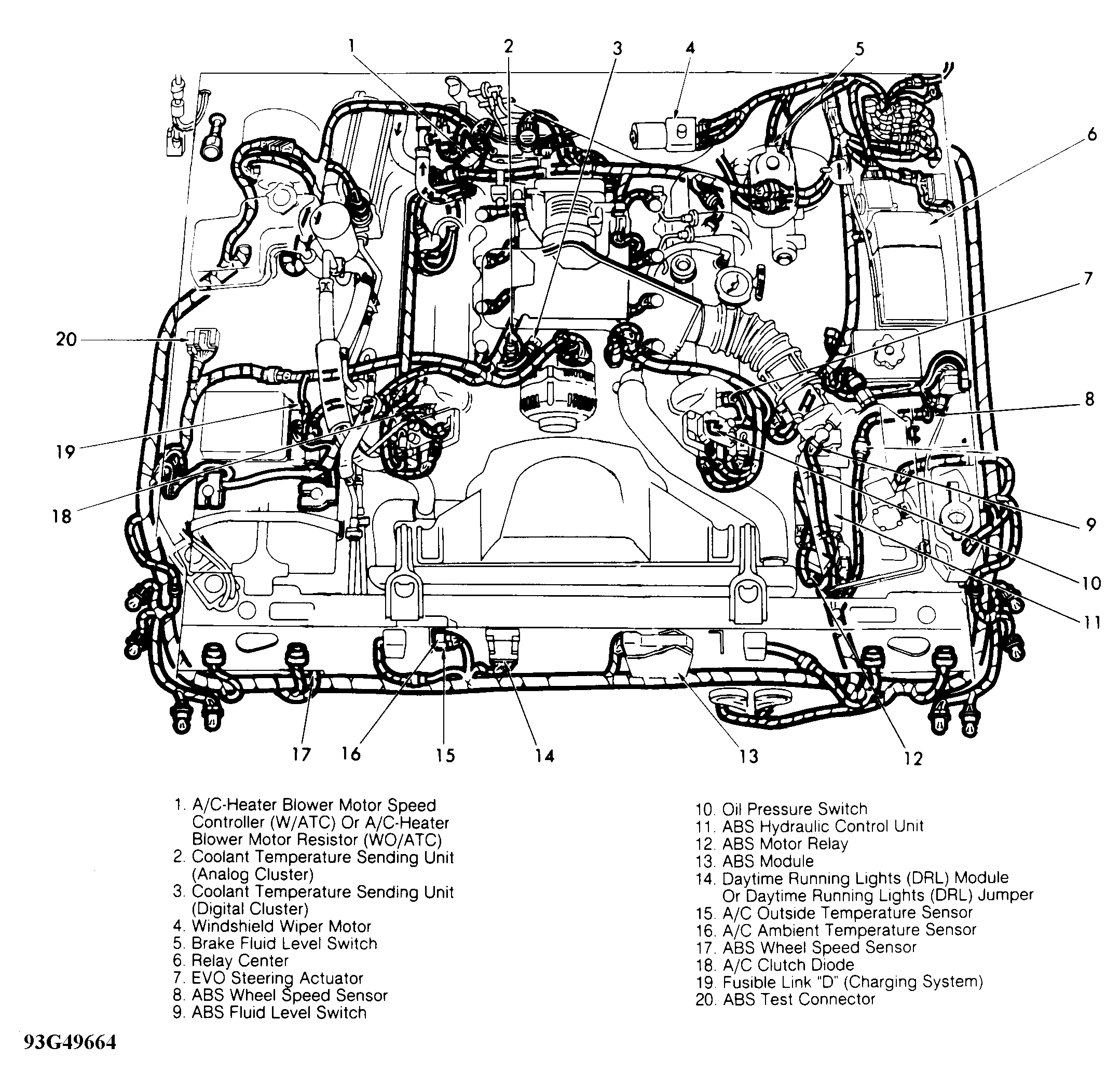

| ABS Module | On front of upper radiator support. See Figure . |

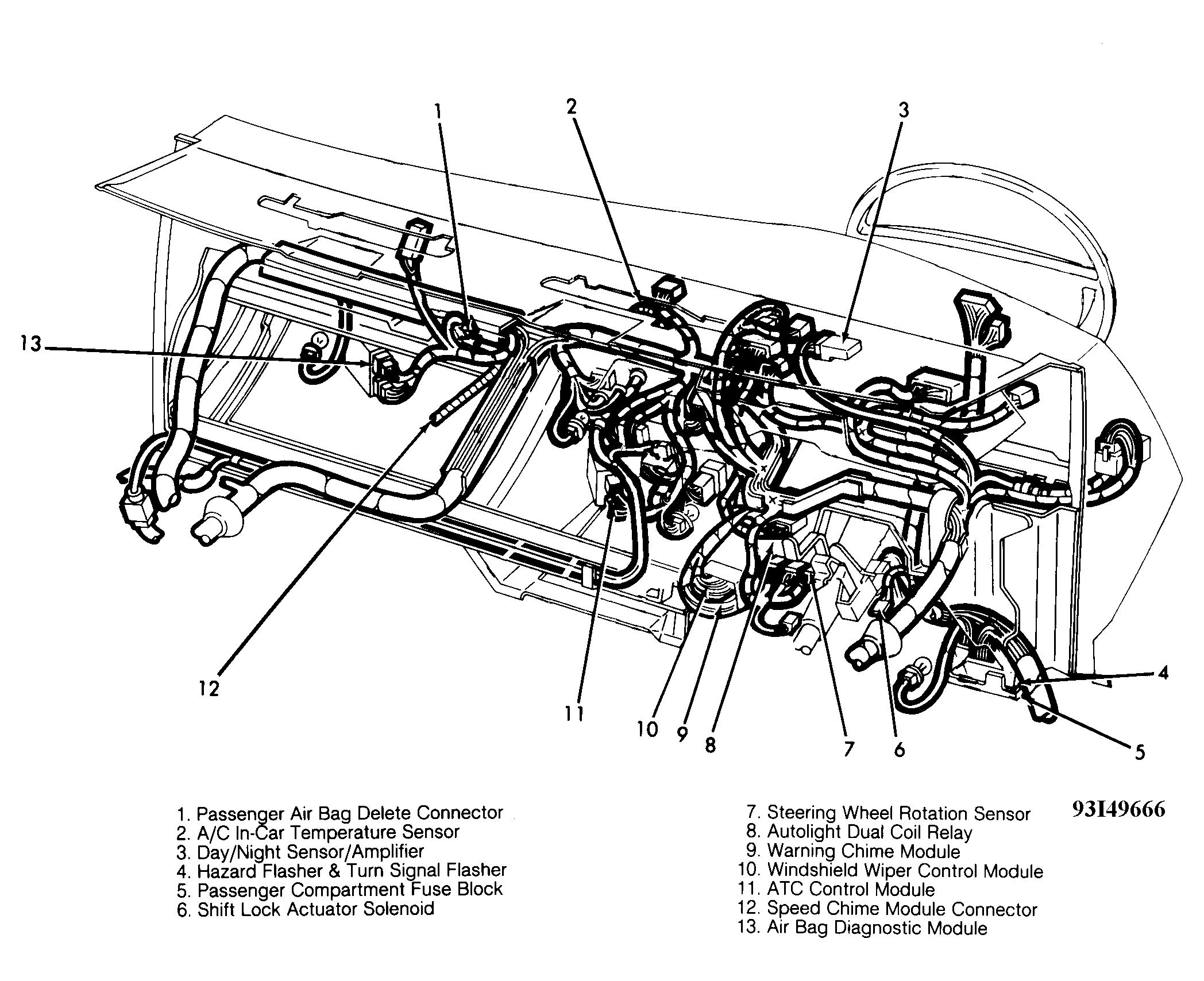

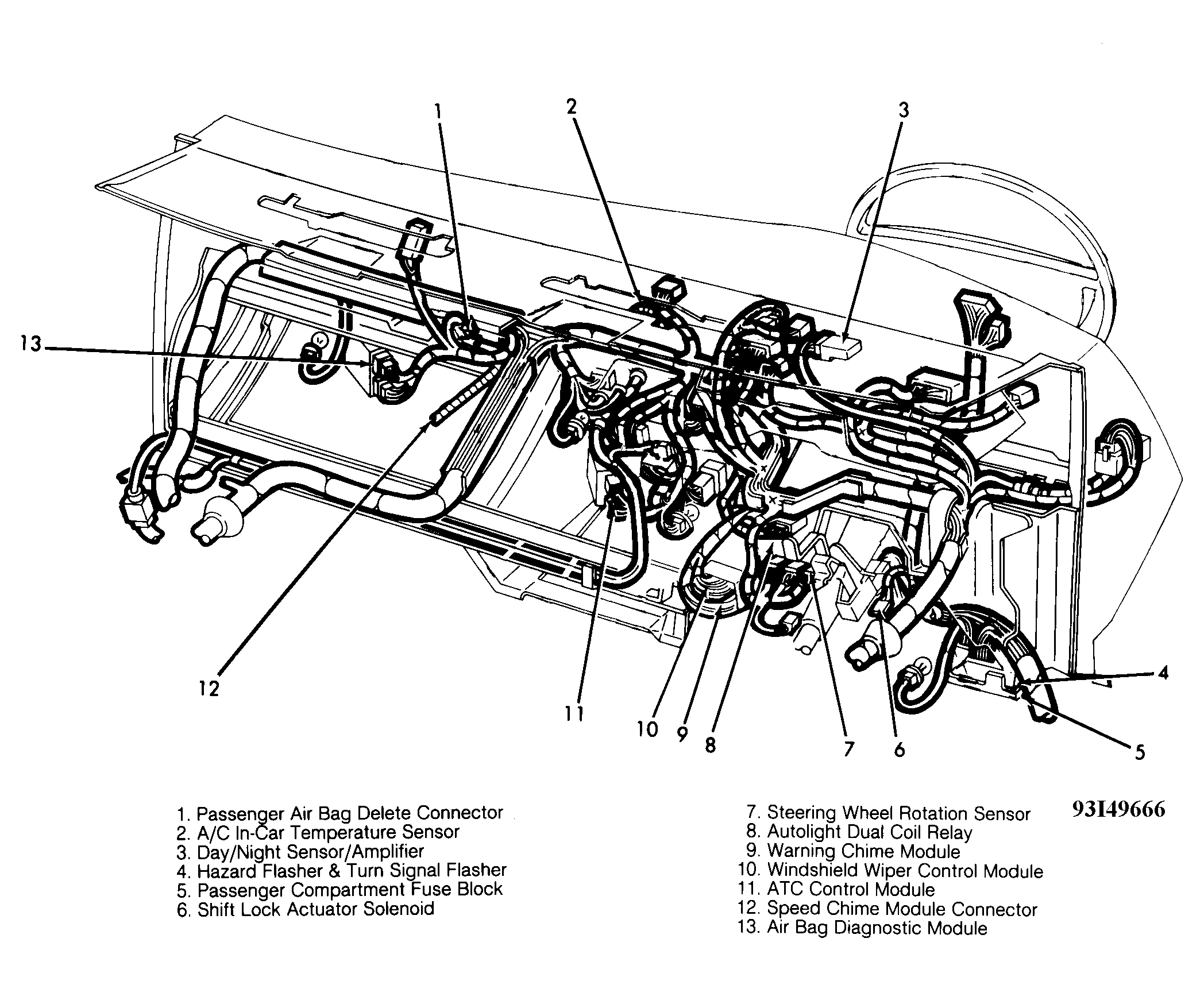

| Air Bag Diagnostic Module | Behind right side of dash, above glove box. See Figure . |
| Air Suspension/EVO Steering Module | Below right side of rear package shelf. |
| ATC Control Module | Behind center of dash. See Figure . |
| A/C-Heater Blower Motor Speed Controller | On right side of firewall, on evaporator case. See Figure . |
| Daytime Running Lights (DRL) Module | On front of upper radiator support. See Figure . |

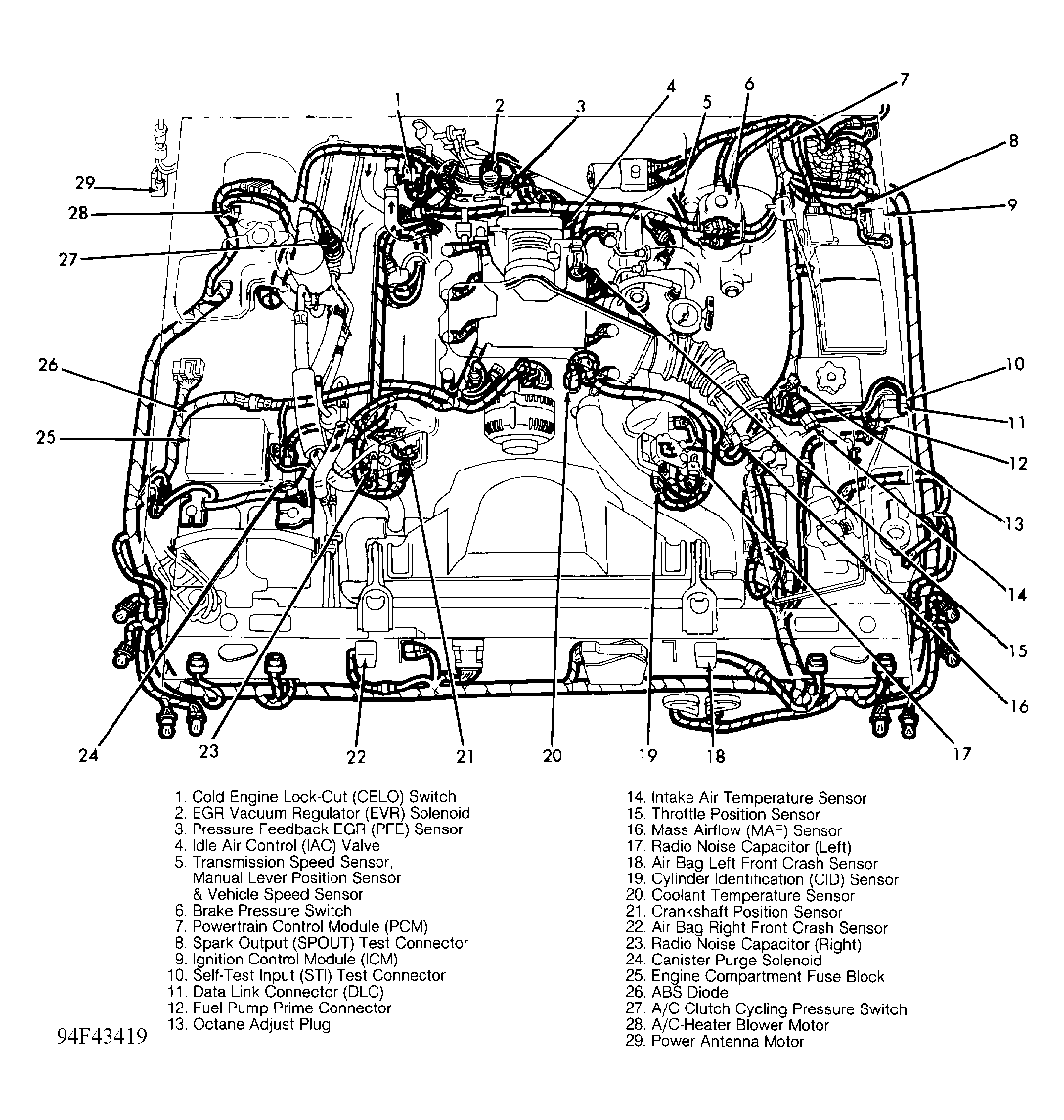

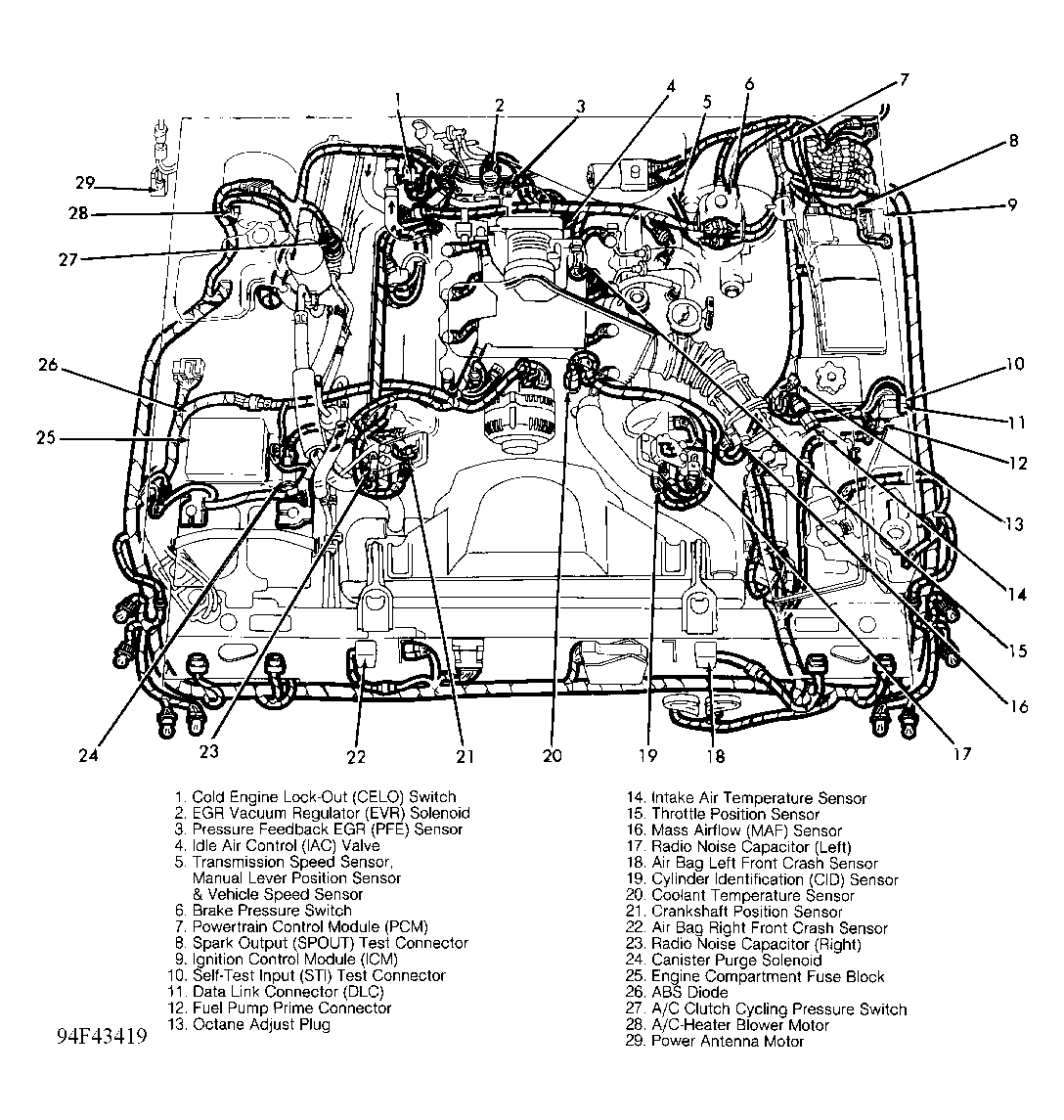

| Ignition Control Module (ICM) | In engine bay, on left rear inner fender panel. See Figure . |

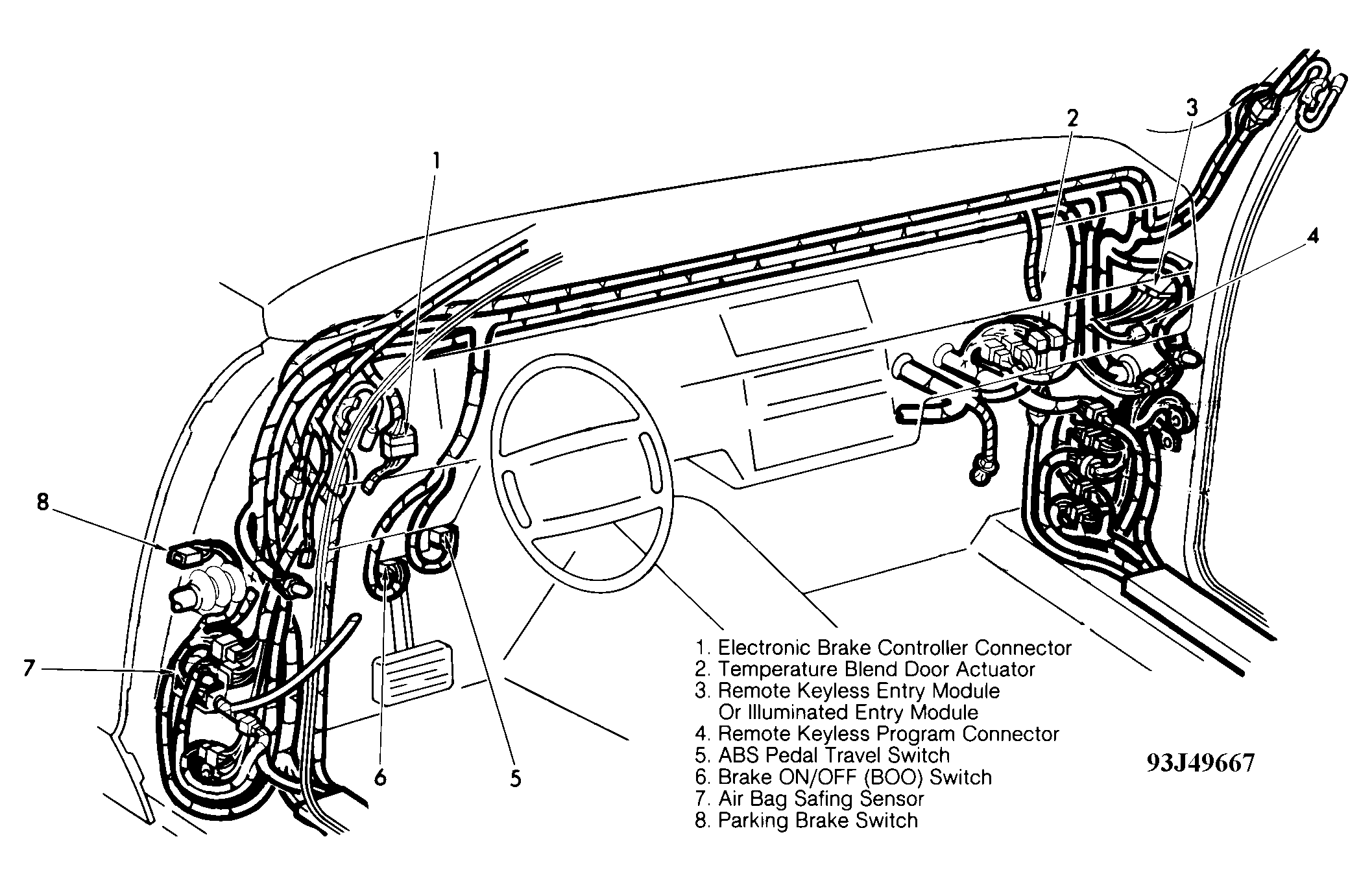

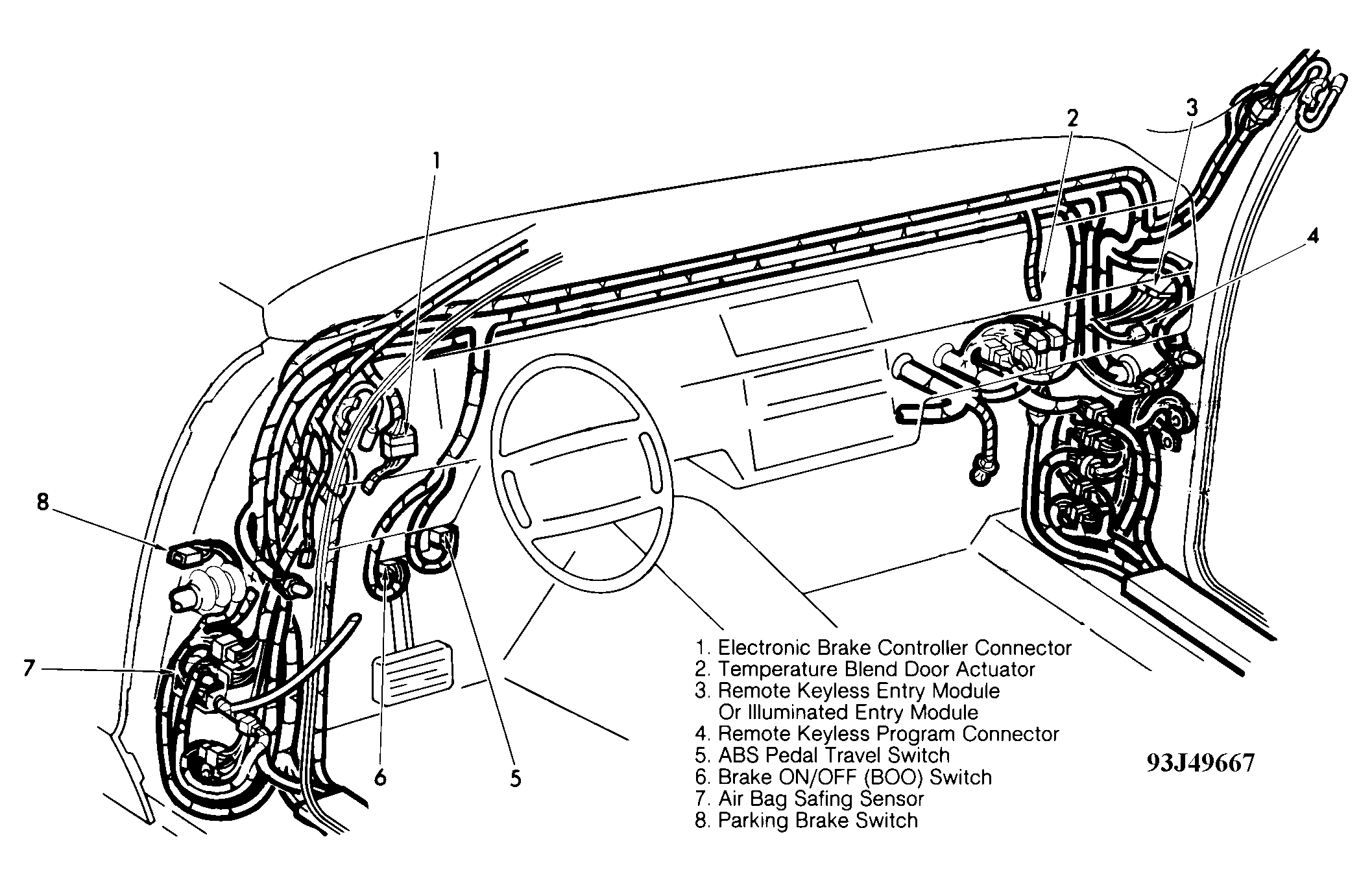

| Illuminated Entry Module | Behind top of right kick panel, behind insulator. See Figure . |
| One Touch Window Down Module | In center of driver's door, near master control switch. |
| Powertrain Control Module (PCM) | Behind left side of dash, on left side of firewall. See Figure . |
| Remote Keyless Entry Module | Behind top of right kick panel, behind insulator. See Figure . |
| Speaker Interrupt Module | In trunk area. |
| Warning Chime Module | Behind center of dash, to right of steering column. See Figure . |
| Windshield Wiper Control Module | Behind center of dash, above warning chime module. See Figure . |
