Engine Control System Wiring Diagrams

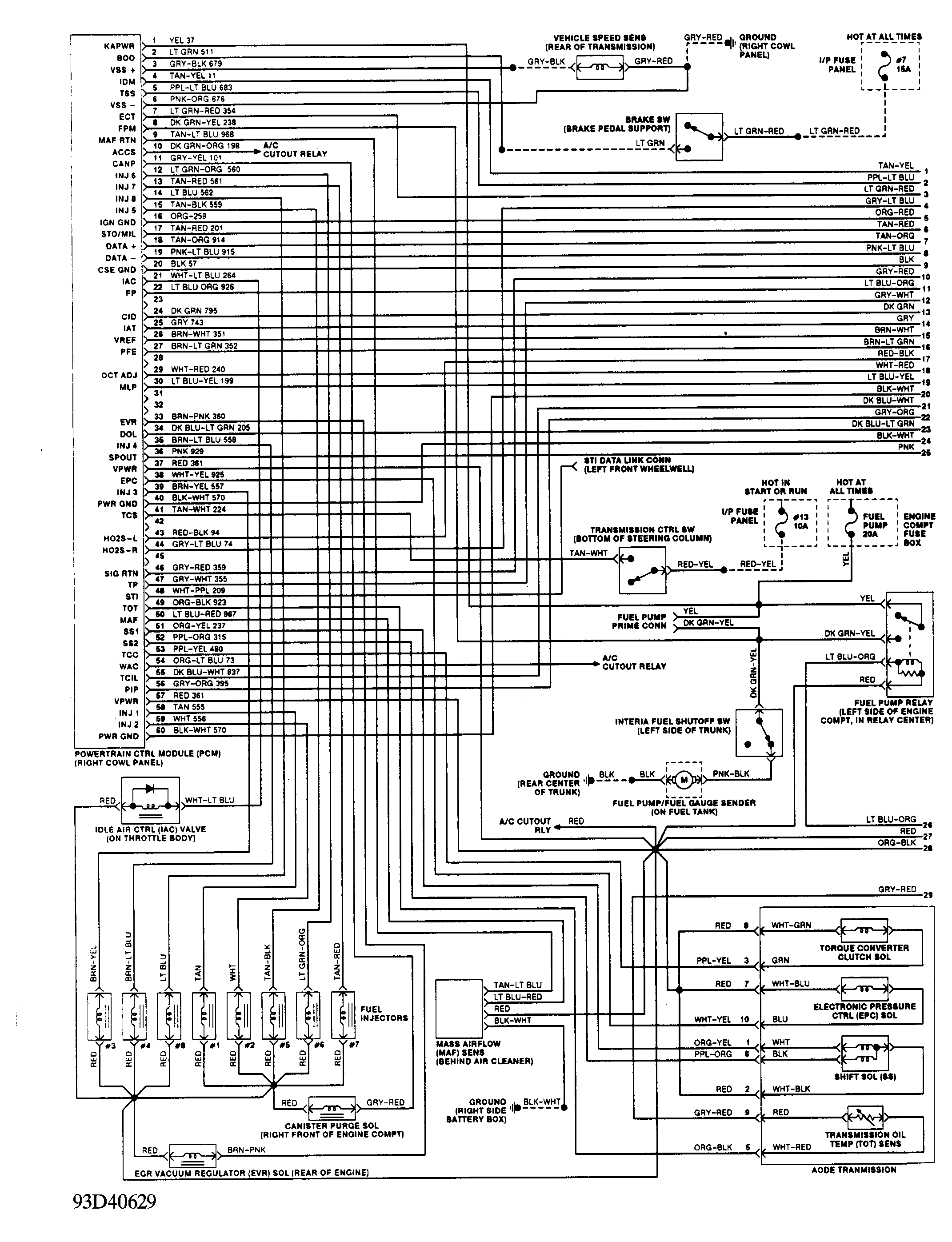

Fig 1: EEC-IV Wiring Diagram (Crown Victoria/Grand Marquis 1 of 3)
G93D40629

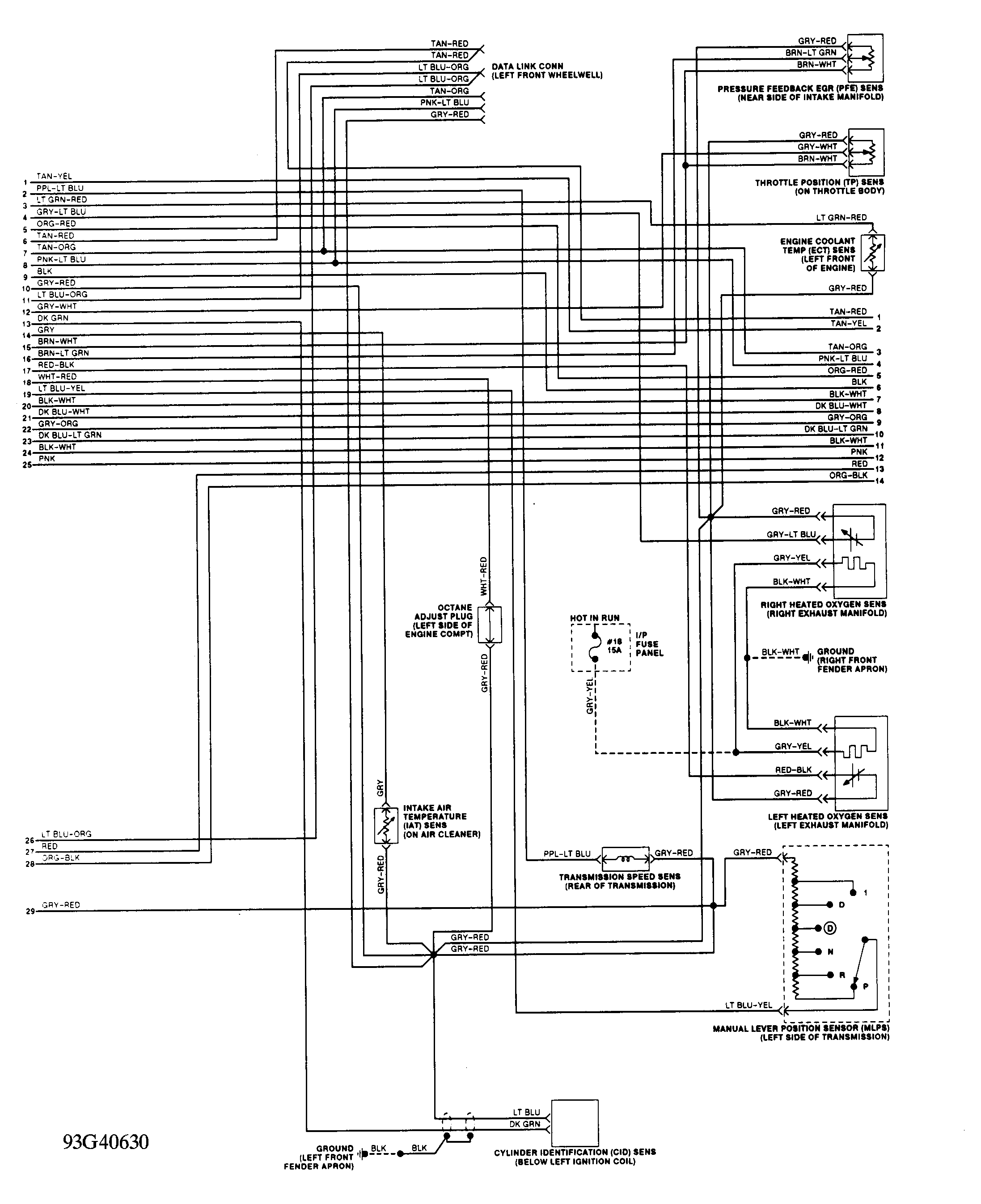

Fig 2: EEC-IV Wiring Diagram (Crown Victoria/Grand Marquis 2 of 3)
G93G40630

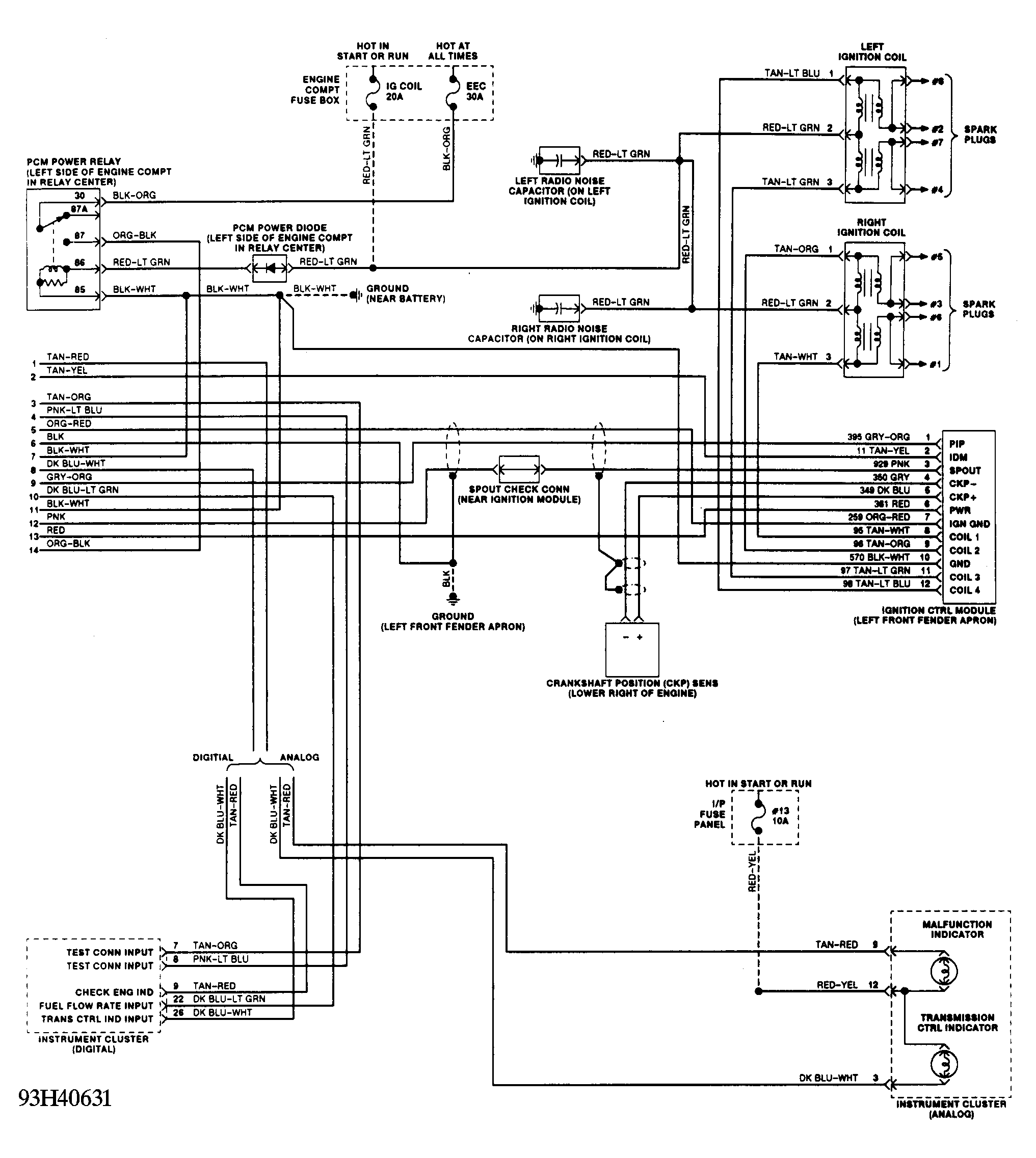

Fig 3: EEC-IV Wiring Diagram (Crown Victoria/Grand Marquis 3 of 3)
G93H40631
