Power Window

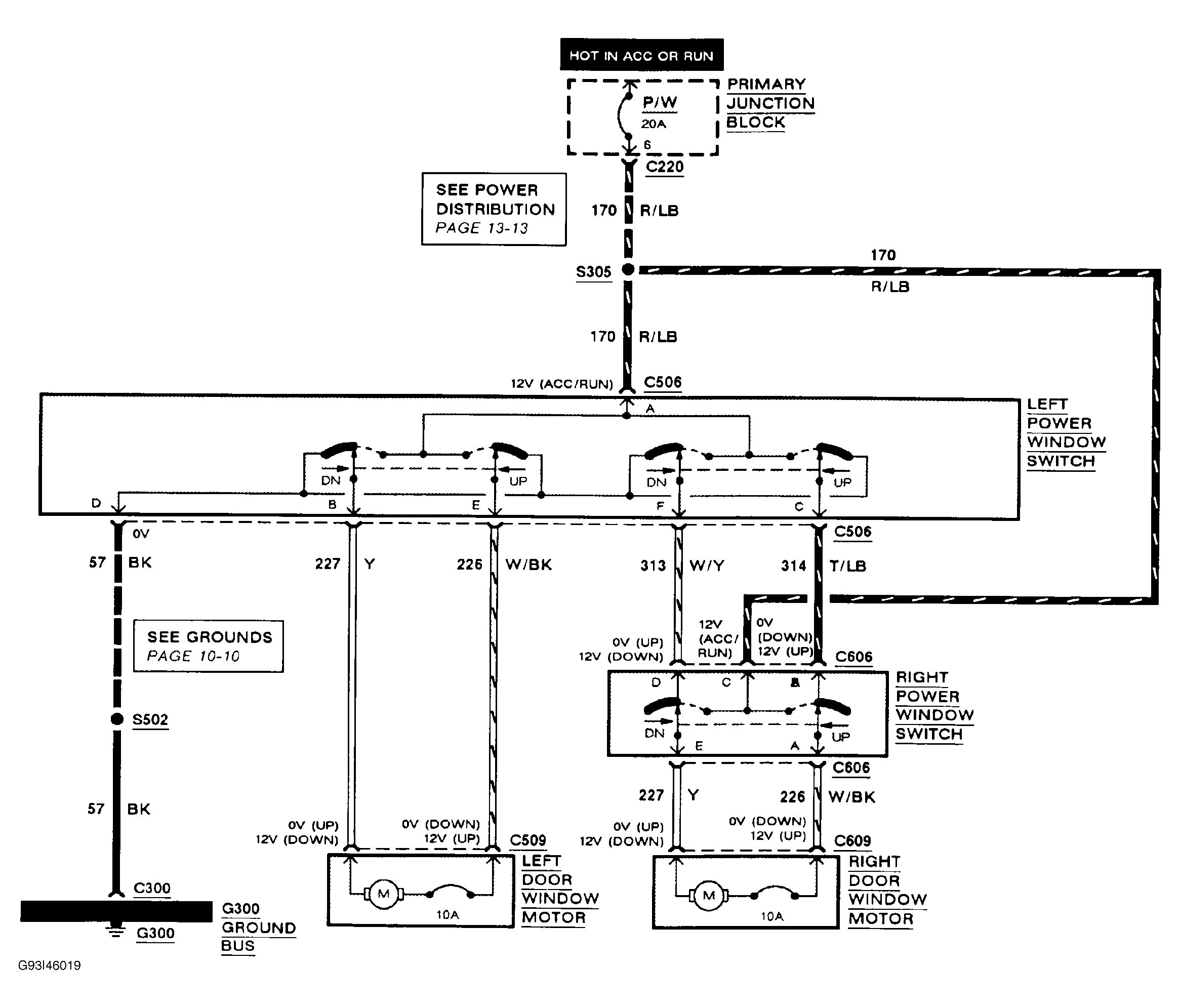

Fig 1: Wiring Diagram (Continental - 1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 2: Wiring Diagram (Continental - 2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 3: Wiring Diagram (Cougar & Thunderbird)

Courtesy of FORD MOTOR CO.

Fig 4: Wiring Diagram (Crown Victoria & Grand Marquis - 1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 5: Wiring Diagram (Crown Victoria & Grand Marquis - 2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 6: Wiring Diagram (Escort & Tracer - 1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 7: Wiring Diagram (Escort & Tracer - 2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 8: Wiring Diagram (Mark VIII)

Courtesy of FORD MOTOR CO.

Fig 9: Wiring Diagram (Mustang - 1 Of 3)

Courtesy of FORD MOTOR CO.

Fig 10: Wiring Diagram (Mustang - 2 Of 3)

Courtesy of FORD MOTOR CO.

Fig 11: Wiring Diagram (Mustang - 3 Of 3)

Courtesy of FORD MOTOR CO.

Fig 12: Wiring Diagram (Sable & Taurus - 1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 13: Wiring Diagram (Sable & Taurus - 2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 14: Wiring Diagram (Tempo & Topaz - 1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 15: Wiring Diagram (Tempo & Topaz - 2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 16: Wiring Diagram (Town Car - 1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 17: Wiring Diagram (Town Car - 2 Of 2)

Courtesy of FORD MOTOR CO.
