Power Window Motor: Installation
- Install a new motor and assembly. Tighten motor retaining screws to 5.6-9.6 N.m (50-84 in-lb). Install two pieces for Pressure Sensitive Waterproof Tape (D6AZ-19627-A) or equivalent body tape 25.4mm (1 inch) square over drilled holes.
- Connect power window motor wiring, and battery ground cable. Remove glass prop and check window operation. Make sure door drain holes are open. Install door trim panel to door. See FRONT DOOR TRIM PANEL .
- Position the motor and drive to the regulator and install the three screws snug, not tight. Connect the motor wires at the connector and cycle the glass to ensure gear engagement. After the gears are engaged, tighten the three motor and drive attaching screws to 5.6-9.6 N.m (50-84 in-lb). Install the door trim panel and watershield. Appropriate plug buttons may be installed to cover the exposed hole at the trim panel edge, if necessary.
- Connect battery ground cable. Check the drain holes at the bottom of the doors to ensure that each is open to prevent water buildup over the motor.
- Install new motor onto housing and drum. Start the lower screw on motor first, but do not tighten. Leave approximately one-quarter inch between screw head and motor.

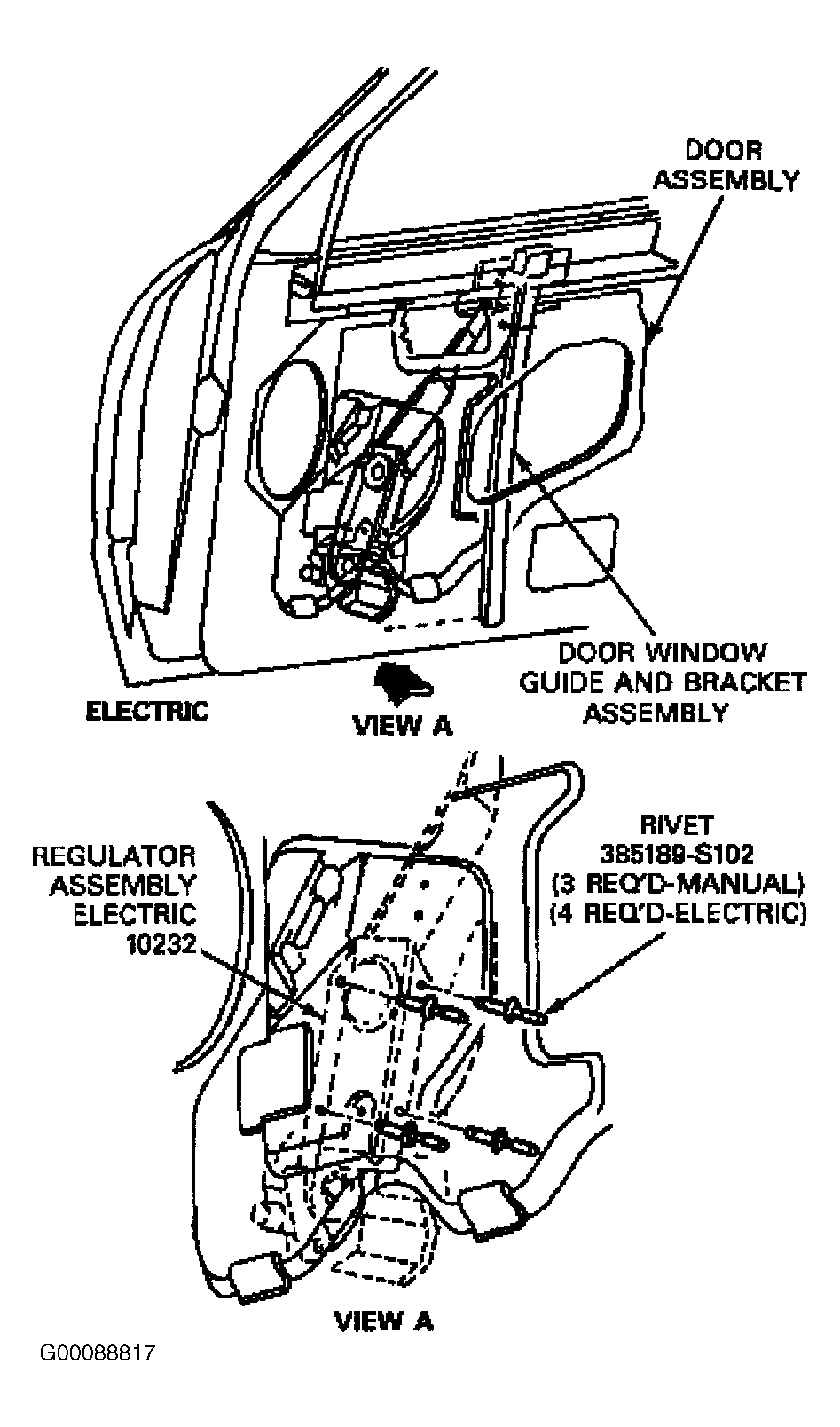

- Slide motor bracket onto motor and the lower screw. Align holes in motor with bracket and install remaining two screws. Tighten all three screws. Align bracket with inner panel and install rivets.
- Connect motor wiring, and battery ground cable. Install watershield and trim panel. Check window operation.
Install new motor and drive assembly to regulator. Tighten motor retaining screws to 5.6-9.6 N.m (50-84 in-lb). Connect power window motor wiring, and battery ground cable. Check window operation. Make sure door drain holes are open. Install watershield and trim panel to door. See FRONT DOOR TRIM PANEL .
