Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Charging System Fusible Link (Gray) | On starter relay, on right inner fender panel. | |
| Circuit Breakers | ||
| Cigar Lighter, Flash-To-Pass & Power Lumbar Seats | In cavity No. 12 of passenger compartment fuse block. | |
| In-Line | Behind right side of dash, below glove box. | |
| Power Windows | In cavity No. 14 of passenger compartment fuse block. | |
| Windshield Wiper | In cavity No. 2 of passenger compartment fuse block. | |
| Fuse Block | Behind trim panel, left of steering column. | |

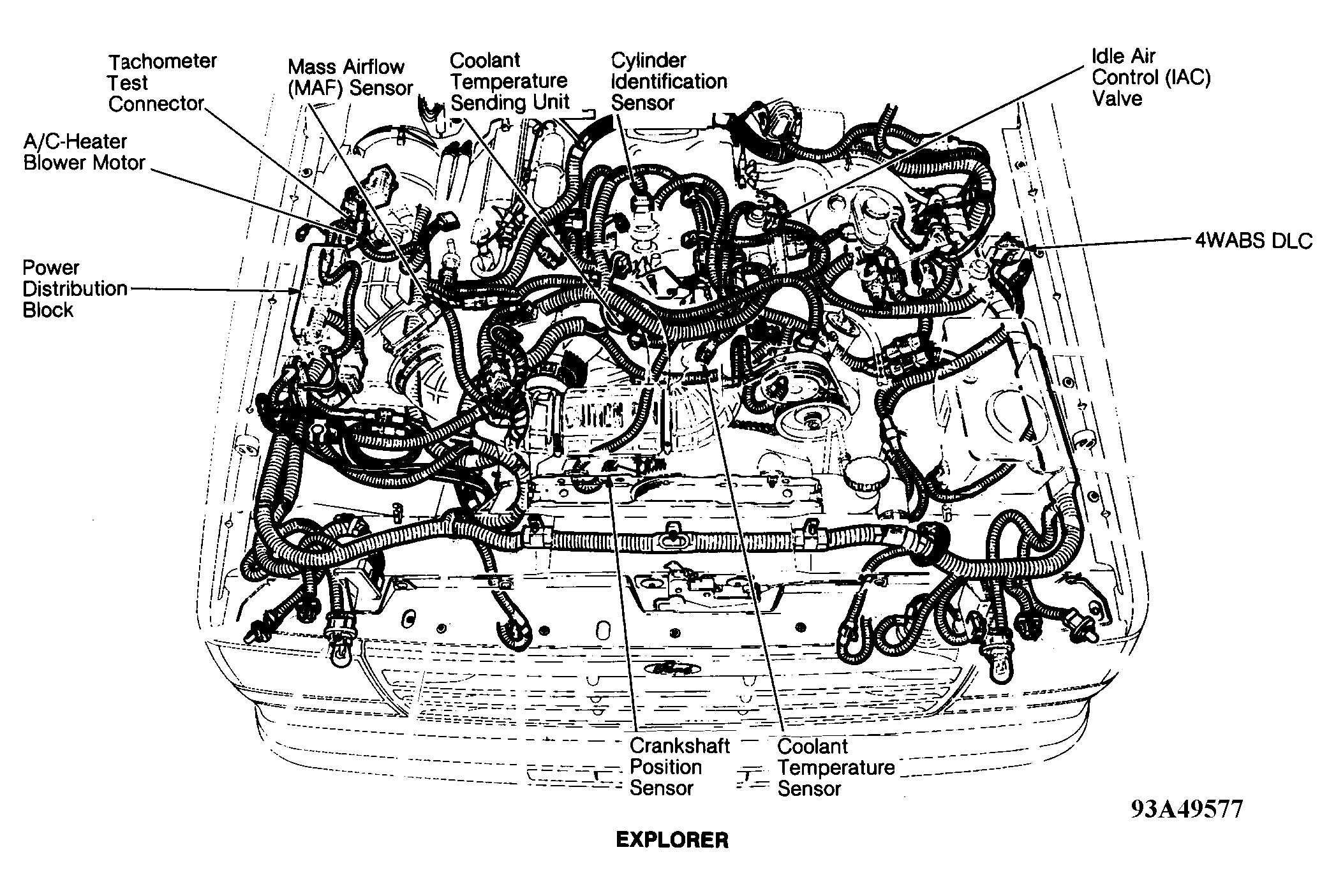

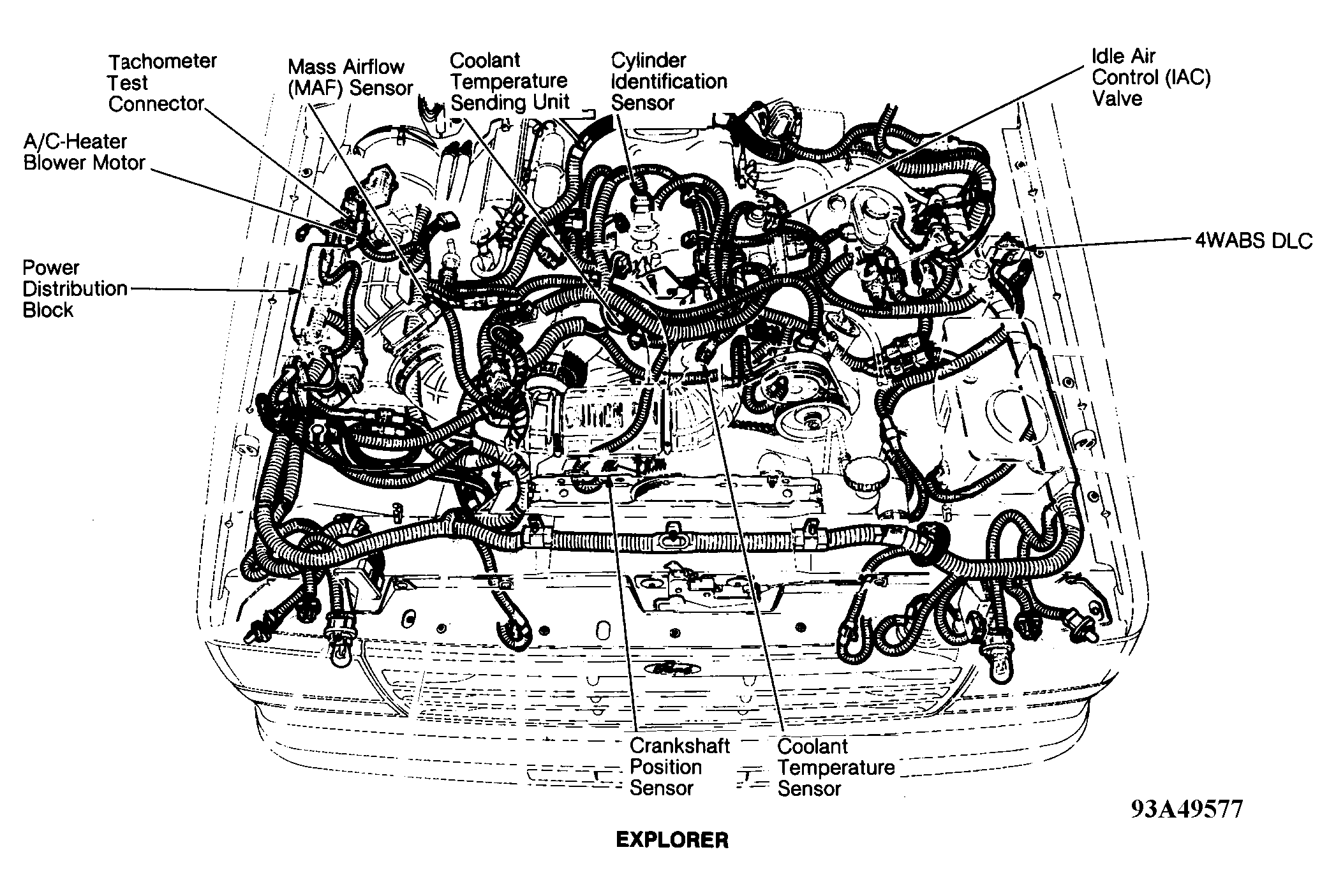

| Power Distribution Block | On right inner fender panel. See Figure . | |
