Wheel Alignment Specifications

WHEEL ALIGNMENT SPECIFICATIONS

Application

Preferred

Range

Aerostar (2WD)

Camber ⁽¹⁾

.25

-0.25 to 0.75

Caster ⁽¹⁾

3.5

2.5 to 4.5

Toe-In ⁽²⁾

0.03

-0.1 to 0.16

Toe-In ⁽¹⁾

0.06

-0.2 to 0.32

Aerostar (4WD)

Camber ⁽¹⁾

.25

-0.25 to 0.75

Caster ⁽¹⁾

4.5

3.75 to 5.25

Toe-In ⁽²⁾

-0.03

-0.16 to 0.1

Toe-In ⁽¹⁾

-0.06

0.32 to 0.2

Bronco ⁽³⁾

Camber ⁽¹⁾

0.25

-0.75 to 1.25

Caster ⁽¹⁾

2 to 6

Toe-In ⁽²⁾

0.03

-0.08 to 0.15

Toe-In ⁽¹⁾

0.06

0.16 to 0.3

Explorer (2WD)

Camber ⁽¹⁾

0.25

-0.25 to .75

Caster ⁽¹⁾

5.5

3 to 8

Toe-In ⁽²⁾

-0.13 to 0.13

Toe-In ⁽¹⁾

-0.25 to 0.25

Explorer (4WD)

Camber ⁽¹⁾

0.25

-0.75 to 1.25

Caster ⁽¹⁾

4.5

2 to 7

Toe-In ⁽²⁾

-0.13 to 0.13

Toe-In ⁽¹⁾

-0.25 to 0.25

E150 ⁽³⁾

Camber ⁽¹⁾

0.25

-0.75 to 1.25

Caster ⁽¹⁾

4.5

2 to 7

Toe-In ⁽²⁾

0.03

-0.08 to 0.15

Toe-In ⁽¹⁾

0.06

-0.16 to 0.3

E250 ⁽³⁾

Camber ⁽¹⁾

0.5

-0.5 to 1.5

Caster ⁽¹⁾

4.5

2 to 7

Toe-In ⁽²⁾

0.03

-0.08 to 0.15

Toe-In ⁽¹⁾

0.06

-0.16 to 0.3

F150/250 (2WD) ⁽³⁾

Camber ⁽¹⁾

0.25

-0.75 to 1.25

Caster ⁽¹⁾

2 to 6

Toe-In ⁽²⁾

0.03

-0.08 to 0.15

Toe-In ⁽¹⁾

0.06

-0.16 to 0.3

F150 (4WD) ⁽³⁾

Camber ⁽¹⁾

0.25

-0.75 to 1.25

Caster ⁽¹⁾

2 to 6

Toe-In ⁽²⁾

0.03

-0.08 to 0.15

Toe-In ⁽¹⁾

0.06

-0.16 to 0.3

F250 (4WD)

Camber ⁽¹⁾

0.25

-0.75 to 1.25

Caster ⁽¹⁾

3.5

2 to 5

Toe-In ⁽²⁾

0.03

-0.08 to 0.15

Toe-In ⁽¹⁾

0.06

-0.16 to 0.3

Ranger (2WD)

Camber ⁽¹⁾

0.25

-0.75 to 1.25

Caster ⁽¹⁾

2 to 6

Toe-In ⁽²⁾

-0.13 to 0.13

Toe-In ⁽¹⁾

-0.25 to 0.25

Ranger (4WD)

Camber ⁽¹⁾

0.25

-0.25 to .75

Caster ⁽¹⁾

4.5

2 to 7

Toe-In ⁽²⁾

-0.13 to 0.13

Toe-In ⁽¹⁾

-0.25 to 0.25

Villager

Camber ⁽¹⁾

0.3

.45 to 1.05

Caster ⁽¹⁾

.05 to 1.55

Toe-In ⁽²⁾

0.12

0.08 to 0.16

Toe-In ⁽¹⁾

0.24

0.16 to 0.32

⁽¹⁾	Measurement in degrees.

⁽²⁾	Measurement in inches.

⁽³⁾	Specifications are for vehicles without aftermarket modifications. For vehicles with aftermarket modifications, see Figure -Fig 19 .

Fig 1: Measuring Front Axle Gap (Explorer/Ranger 2WD)

Courtesy of FORD MOTOR CO.

Fig 2: Measuring Front Axle Gap (Ranger 2WD - Right)

Courtesy of FORD MOTOR CO.

Fig 3: Measuring Front Axle Gap (F150/250/350 2WD)

Courtesy of FORD MOTOR CO.

Fig 4: Measuring Front Axle Gap (F150 4WD)

Courtesy of FORD MOTOR CO.

Fig 5: Measuring Front Axle Gap (Exp./Ranger 4WD)

Courtesy of FORD MOTOR CO.

Fig 6: Measuring Front Axle Gap (E150/250/350)

Courtesy of FORD MOTOR CO.

Fig 7: Measuring Front Axle Gap (F250 4WD)

Courtesy of FORD MOTOR CO.

Fig 8: Measuring Front Axle Gap (F350 4WD)

Courtesy of FORD MOTOR CO.

Fig 9: Camber Angle - Explorer (2WD W/Aftermarket Mod.)

Courtesy of FORD MOTOR CO.

Fig 10: Caster Angle - Explorer (2WD W/Aftermarket Mod.)

Courtesy of FORD MOTOR CO.

Fig 11: Camber Angle - Ranger (2WD W/Aftermarket Mod.)

Courtesy of FORD MOTOR CO.

Fig 12: Caster Angle - Ranger (2WD W/Aftermarket Mod.)

Courtesy of FORD MOTOR CO.

Fig 13: Camber Angle - Explorer & Ranger (4WD W/Aftermarket Mod.)

Courtesy of FORD MOTOR CO.

Fig 14: Caster Angle - Explorer & Ranger (4WD W/Aftermarket Mod.)

Courtesy of FORD MOTOR CO.

Fig 15: Camber Angle - E-150/250/350 (W/Aftermarket Mod.)

Courtesy of FORD MOTOR CO.

Fig 16: Caster Angle - E-150/250/350 (W/Aftermarket Mod.)

Courtesy of FORD MOTOR CO.

Fig 17: Camber Angle - F-150 Pickup (2WD W/Aftermarket Mod.)

Courtesy of FORD MOTOR CO.

Fig 18: Caster Angle - F-150/250/350 Pickup (2WD W/Aftermarket Mod.)

Courtesy of FORD MOTOR CO.

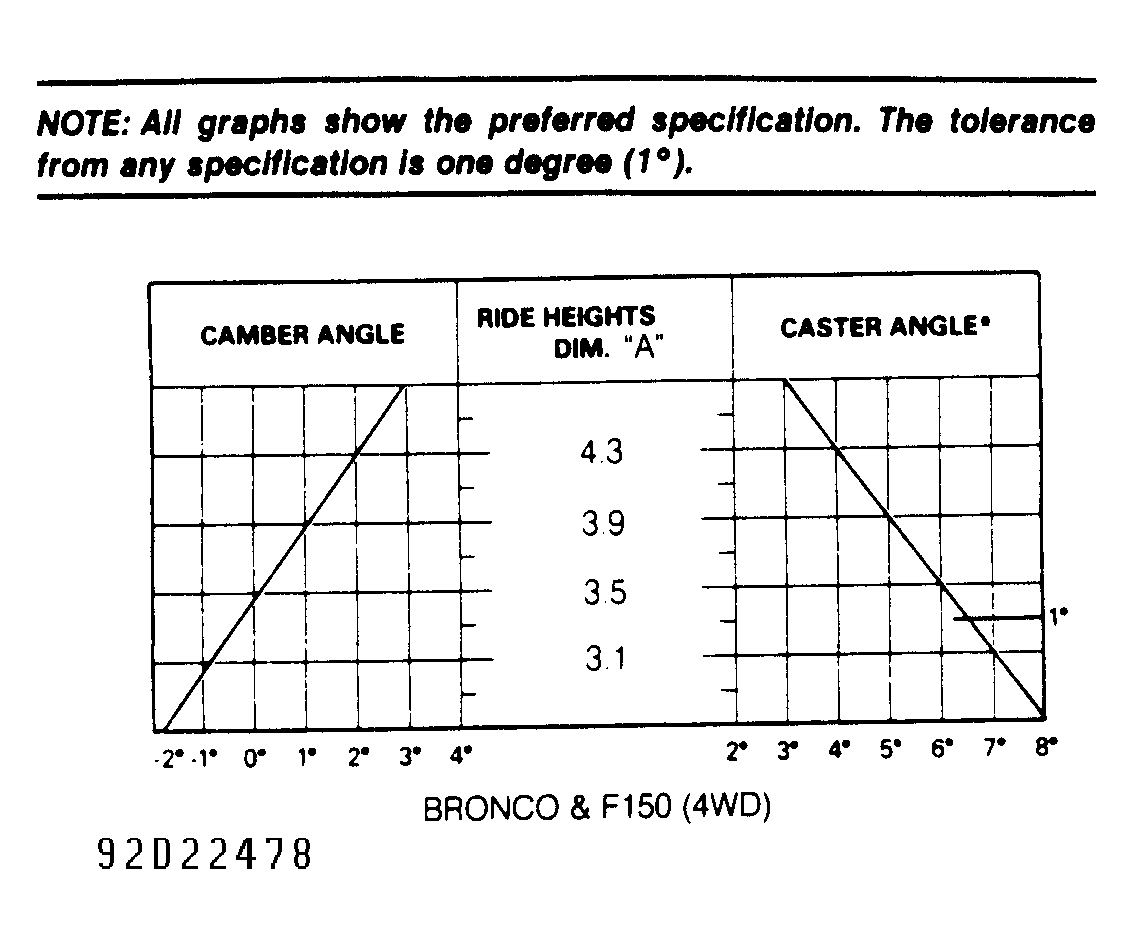

Fig 19: Camber & Caster Angle - Bronco & F150 (4WD W/Aftermarket Mod.)

Courtesy of FORD MOTOR CO.

Fig 20: Camber & Caster Angle - F250/350 (4WD W/Aftermarket Mod.)

Courtesy of FORD MOTOR CO.
