Ranger & Explorer (Single Switch)
NOTE:
The switch should be oriented so that the raised portion of the switch knob is to the right and you are looking at five terminals.

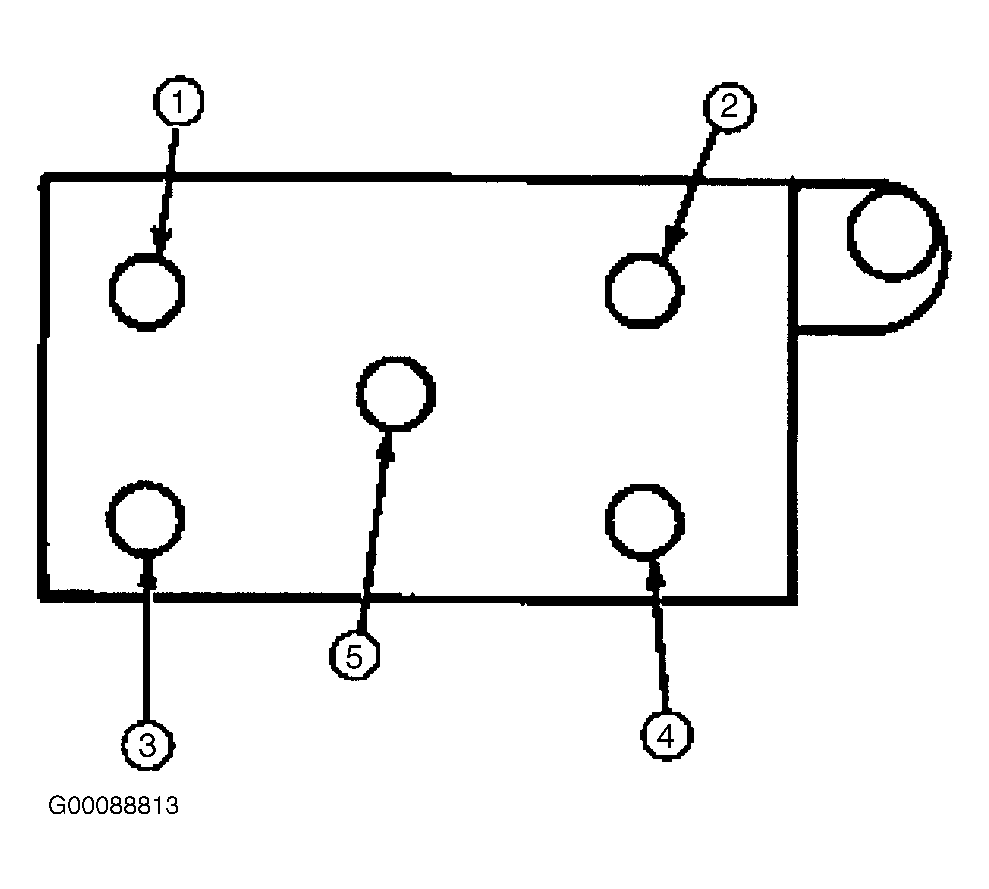

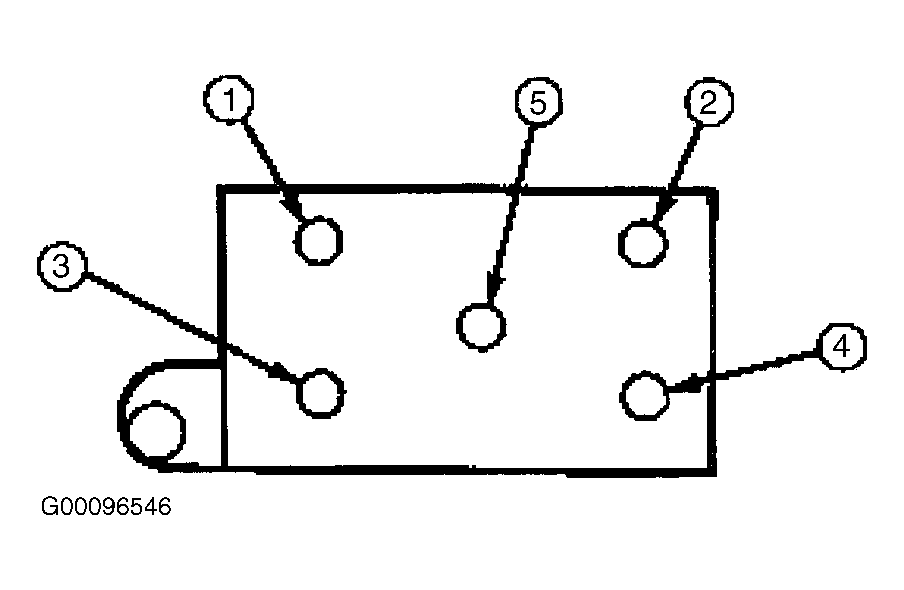

- Use a self-powered test lamp or Rotunda Digital Volt-Ohmmeter (007-00001) or equivalent to test the power window switch. With the switch in the NEUTRAL position there should be continuity between terminals No. 1 and 2 and terminals No. 3 and 4. Terminal No. 5 should be disconnected from all other terminals. See Fig 1 or Fig 2 .
- When the raised portion of the switch rocker knob is pushed (to raise the window), there should be continuity between terminals No. 1 and 5 and terminals No. 3 and 4. Terminal No. 2 should be disconnected from all other terminals.
- When the depressed portion of the switch rocker knob is pushed (to lower the window), there should be continuity between terminal No. 1 and 2 and terminal No. 4 and 5. Terminal No. 3 should be disconnected from all other terminals. If the switch assembly does not test as stated, replace the switch.
