Control Module Connector Pin I.D.

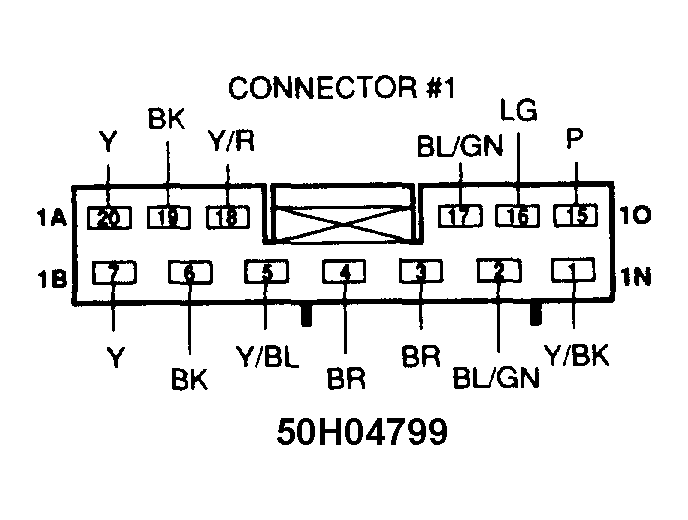

CONTROL MODULE CONNECTOR PIN I.D. (DRIVER/PASSENGER SIDE SPECIFIC)
| System Input: | Driver Side Pin Nos. | Passenger Side Pin Nos. |
|---|---|---|
| Door | 2D | 2N |
| "ON" Switch | 1E | 2O |
| "OFF" Switch | 1F | 2K |
| Motor Leads | 1L & 1K | 2L & 2D |
| Motor Leads | 1J & 1H | 2J & 2H |

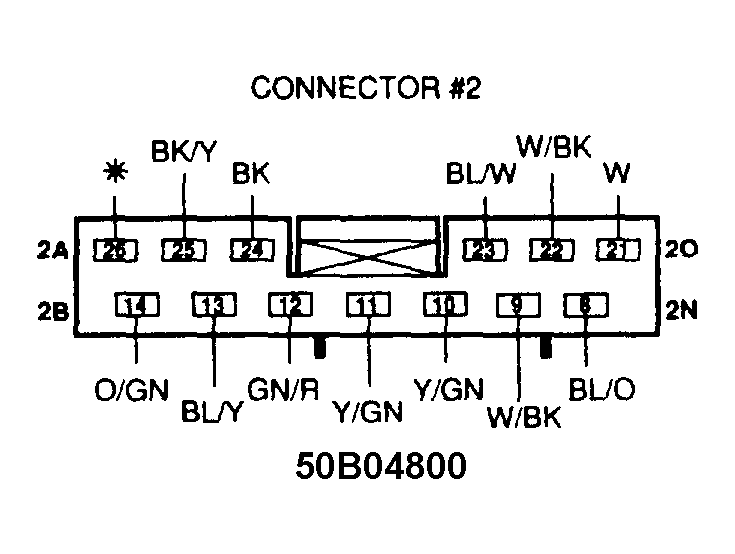

CONTROL MODULE CONNECTOR PIN I.D. (COMMON)
| System Input: | Pin Nos. |
|---|---|
| Warning Switch | 1O & 2B |
| Control Module Ground | 1C & 1D |
| Control Module to Inertia Switch | 2F |
| Control Module to Instrument Panel | 1M |
| Control Module to Warning Buzzer | 1N |
| Control Module to 30-Amp "Belt" Fuse | 1A & 1B |
| Control Module to 10-Amp "Meter" Fuse | 2C |
