Manual Lever Position Switch (A/T) Test

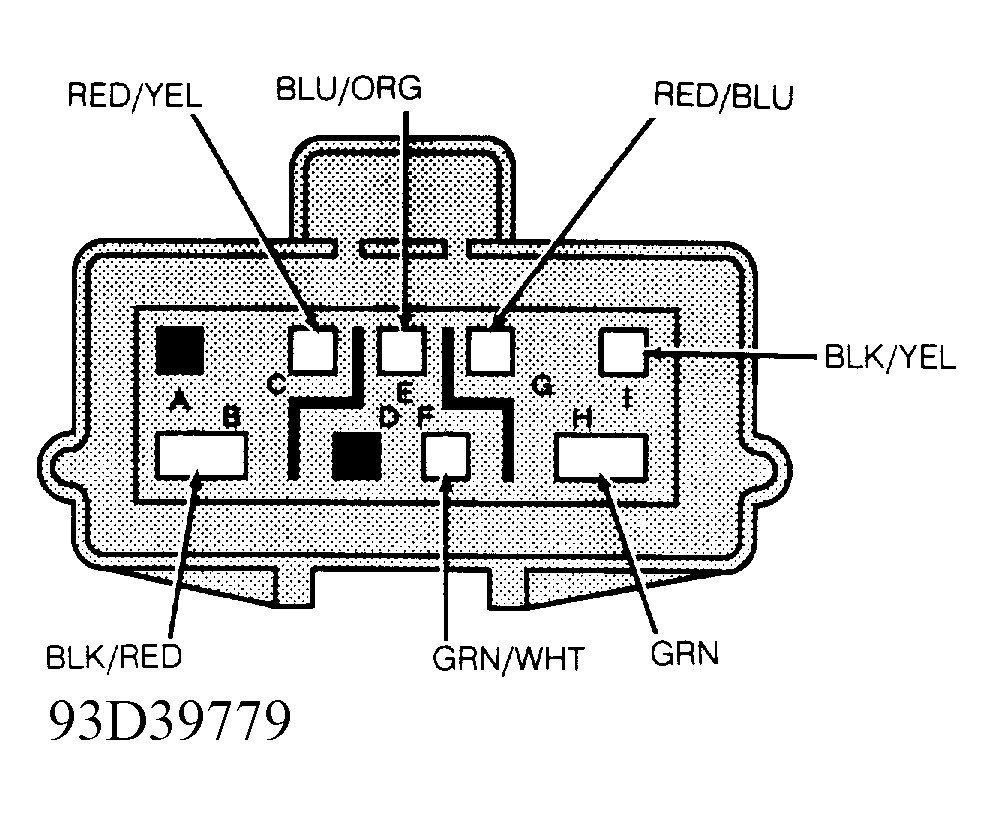

Unplug manual lever position switch connector. Connect ohmmeter between Green wire terminal and Black/Red wire terminal. Place transmission selector lever in Park or Neutral position. Continuity should be present. If there is no continuity, ensure switch is adjusted properly. If adjustment is okay, replace manual lever position switch. See Fig 1 .
