Wiring Diagrams

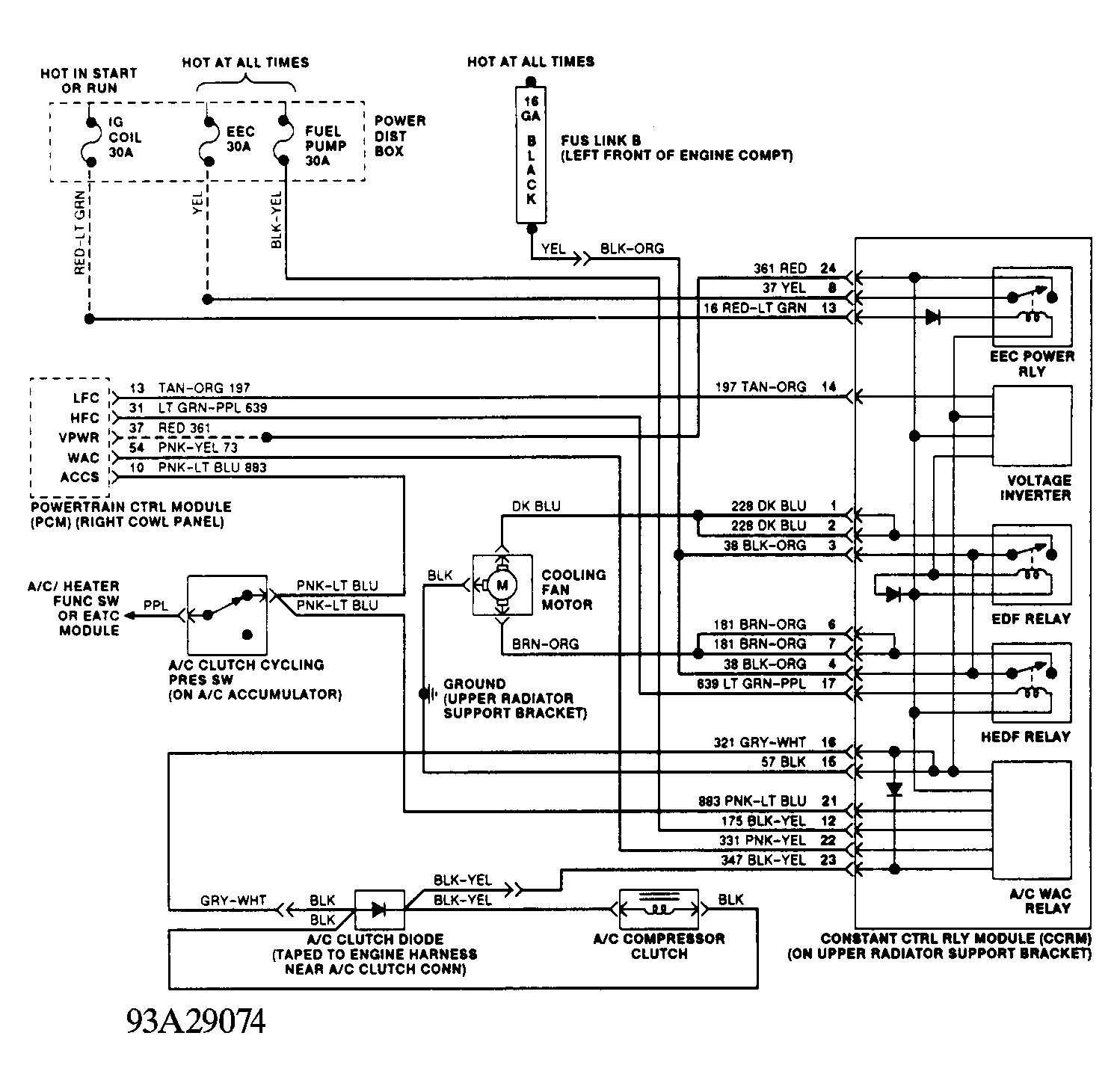

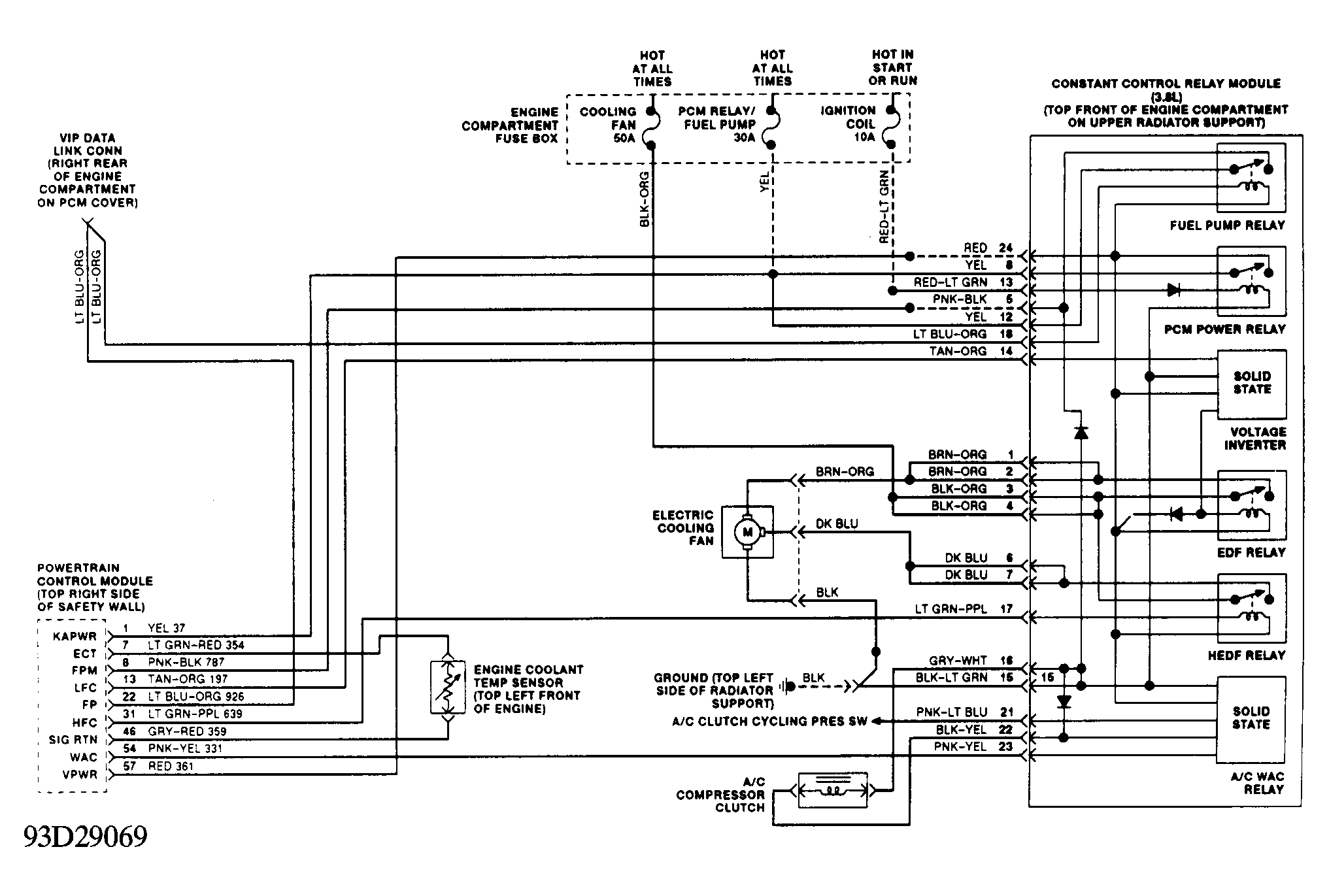

Fig 1: Electric Cooling Fan Wiring Diagram (Continental 3.8L)

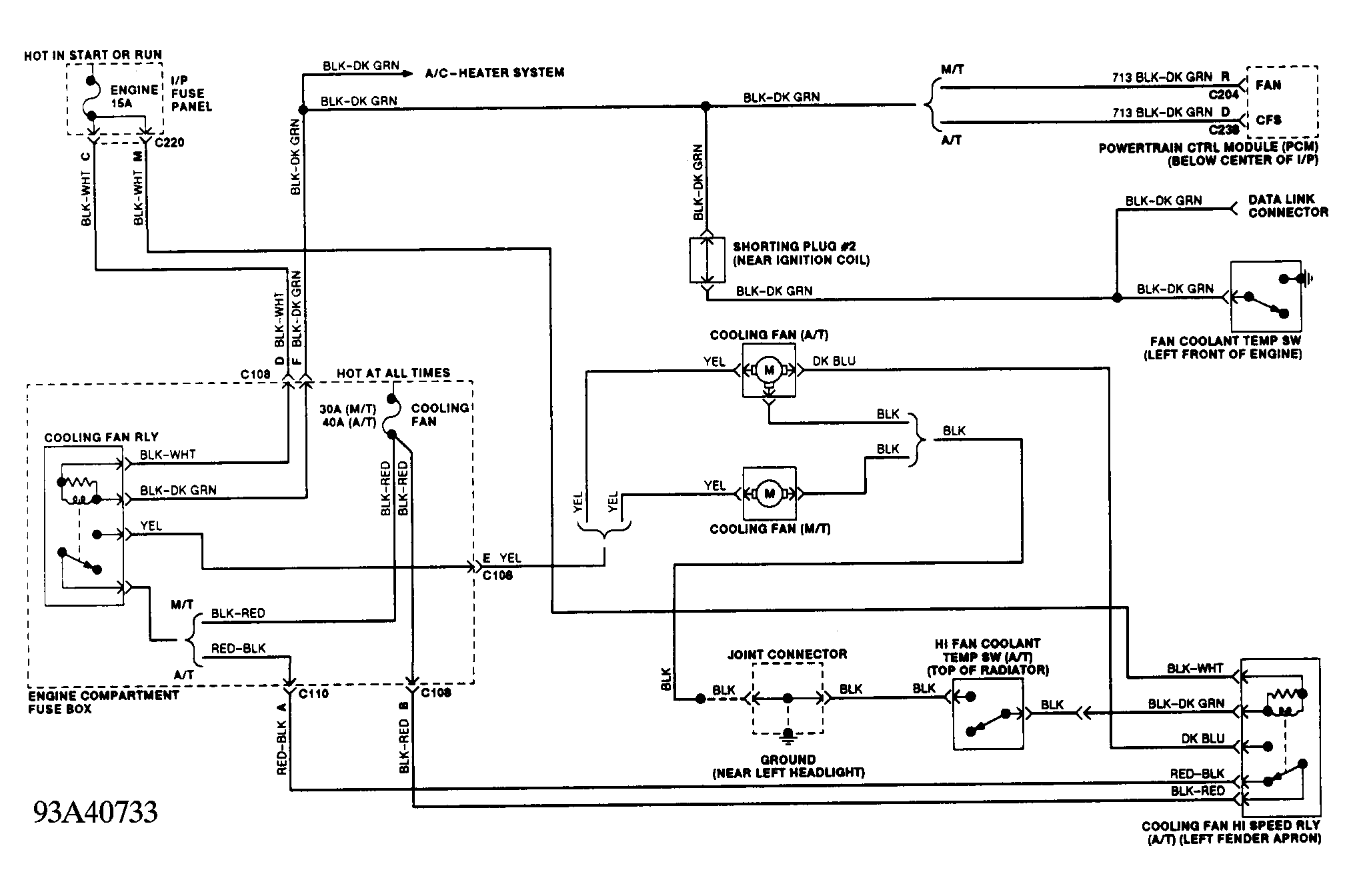

Fig 2: Electric Cooling Fan Wiring Diagram (Escort 1.8L & Tracer 1.8L)

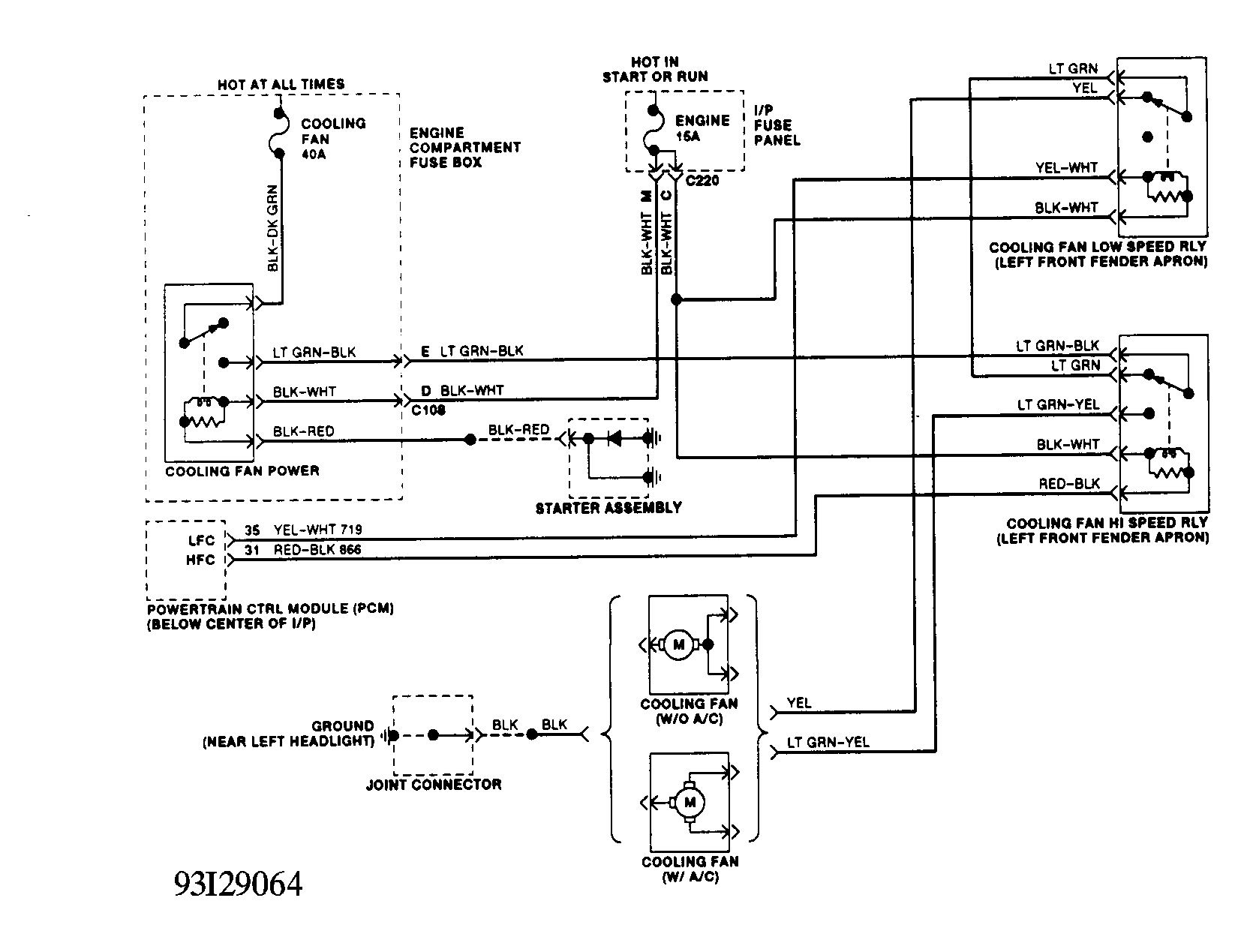

Fig 3: Electric Cooling Fan Wiring Diagram (Escort 1.9L & Tracer 1.9L)

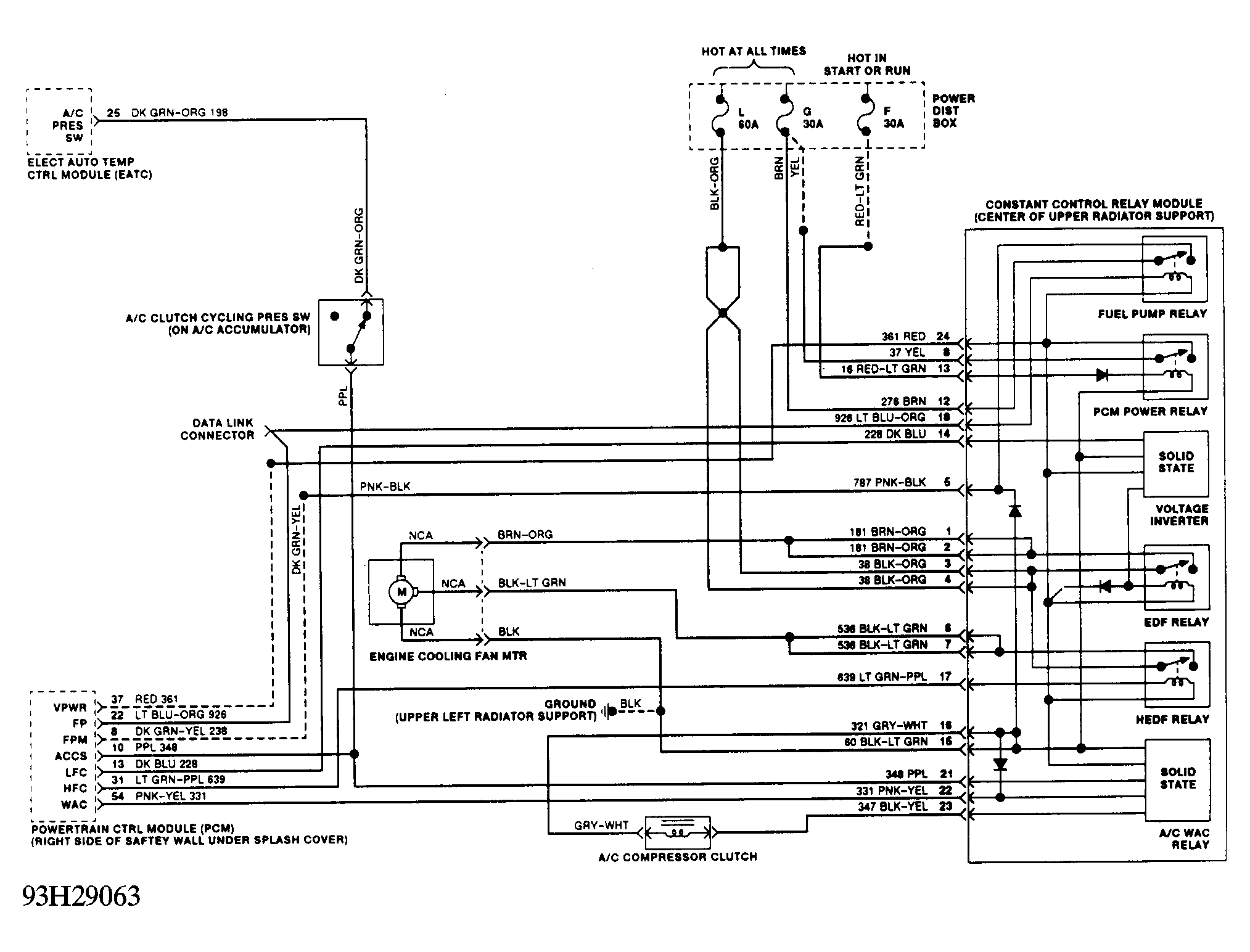

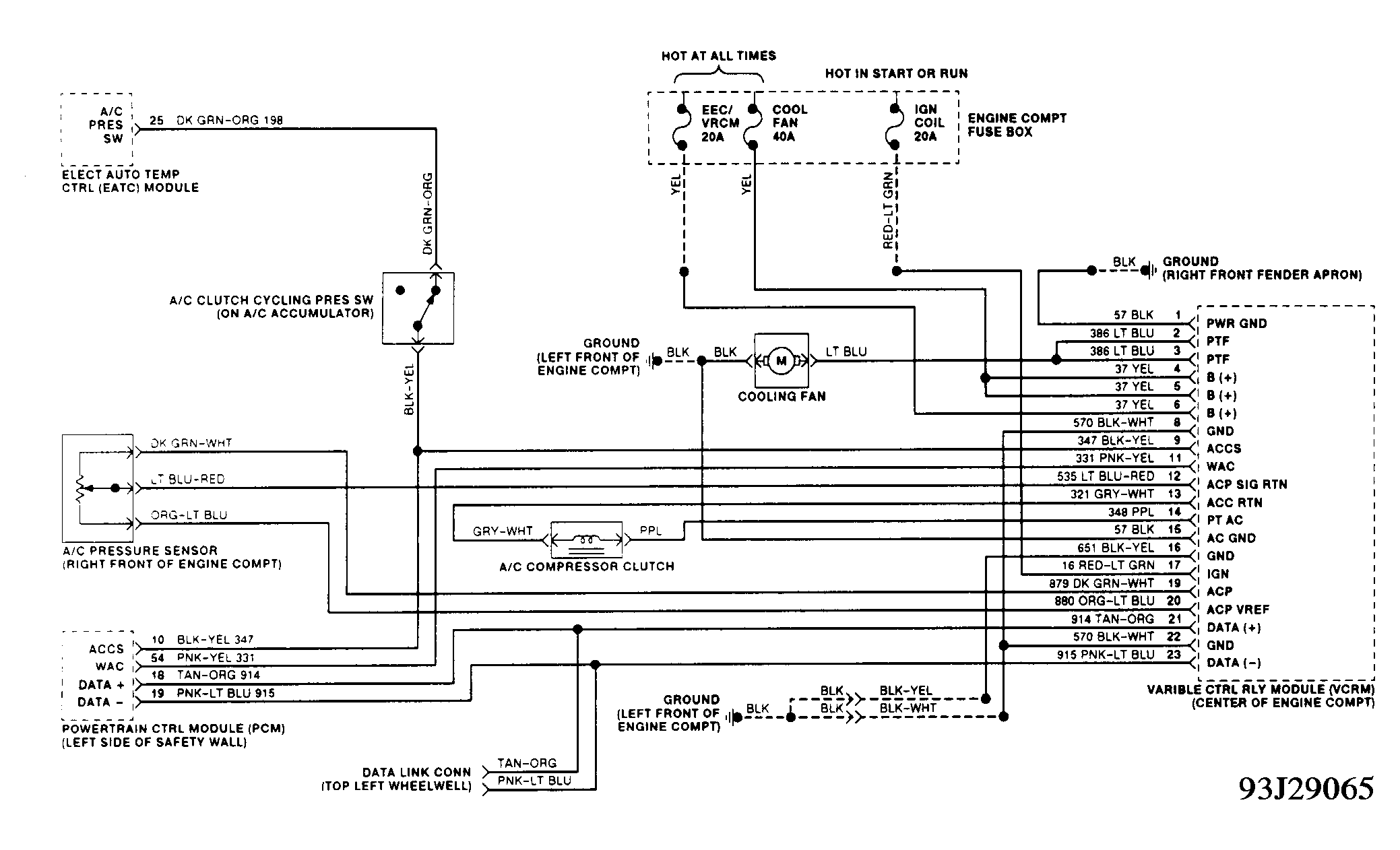

Fig 4: Electric Cooling Fan Wiring Diagram (Mark VIII 4.6L)

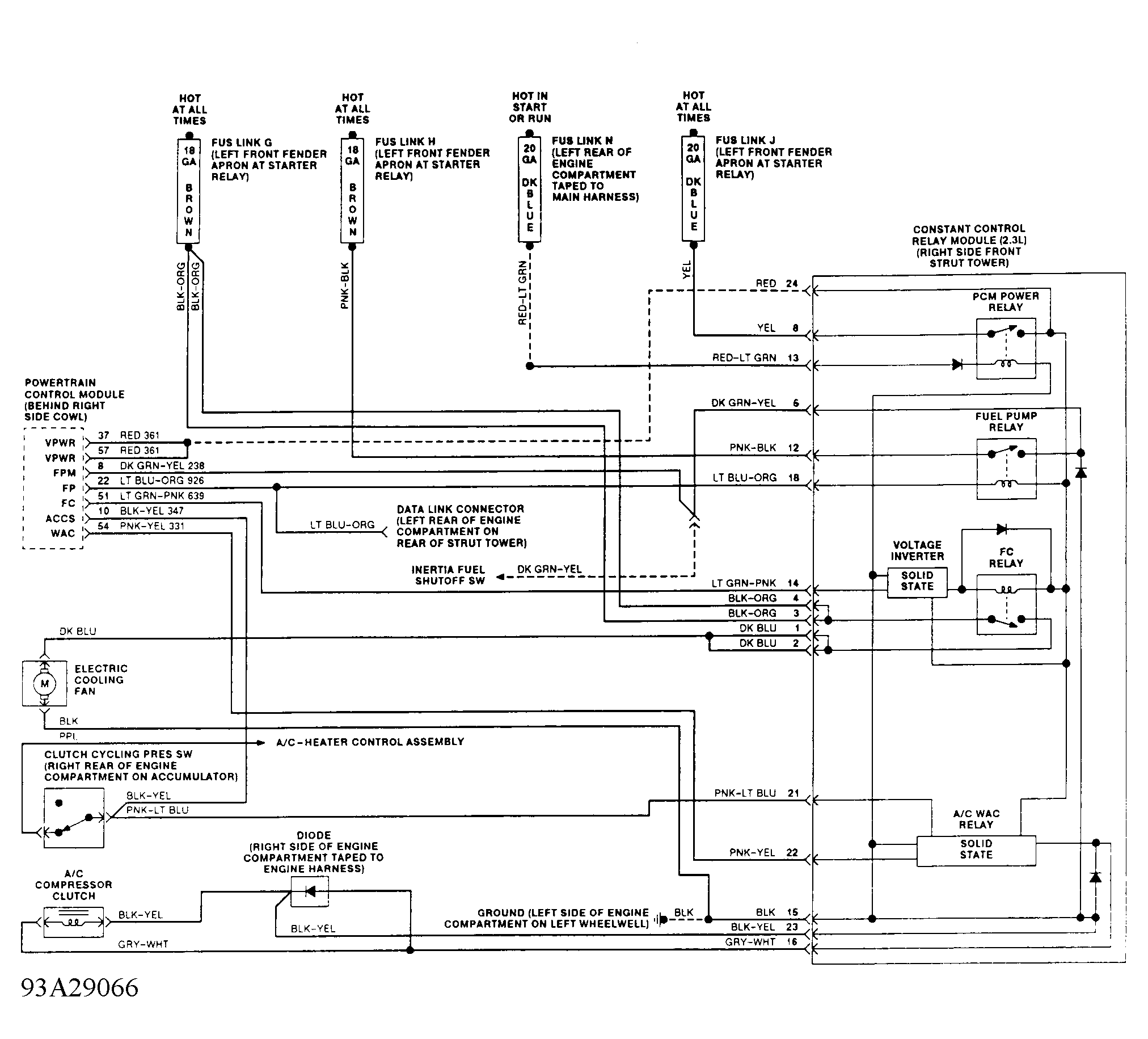

Fig 5: Electric Cooling Fan Wiring Diagram (Mustang 2.3L)

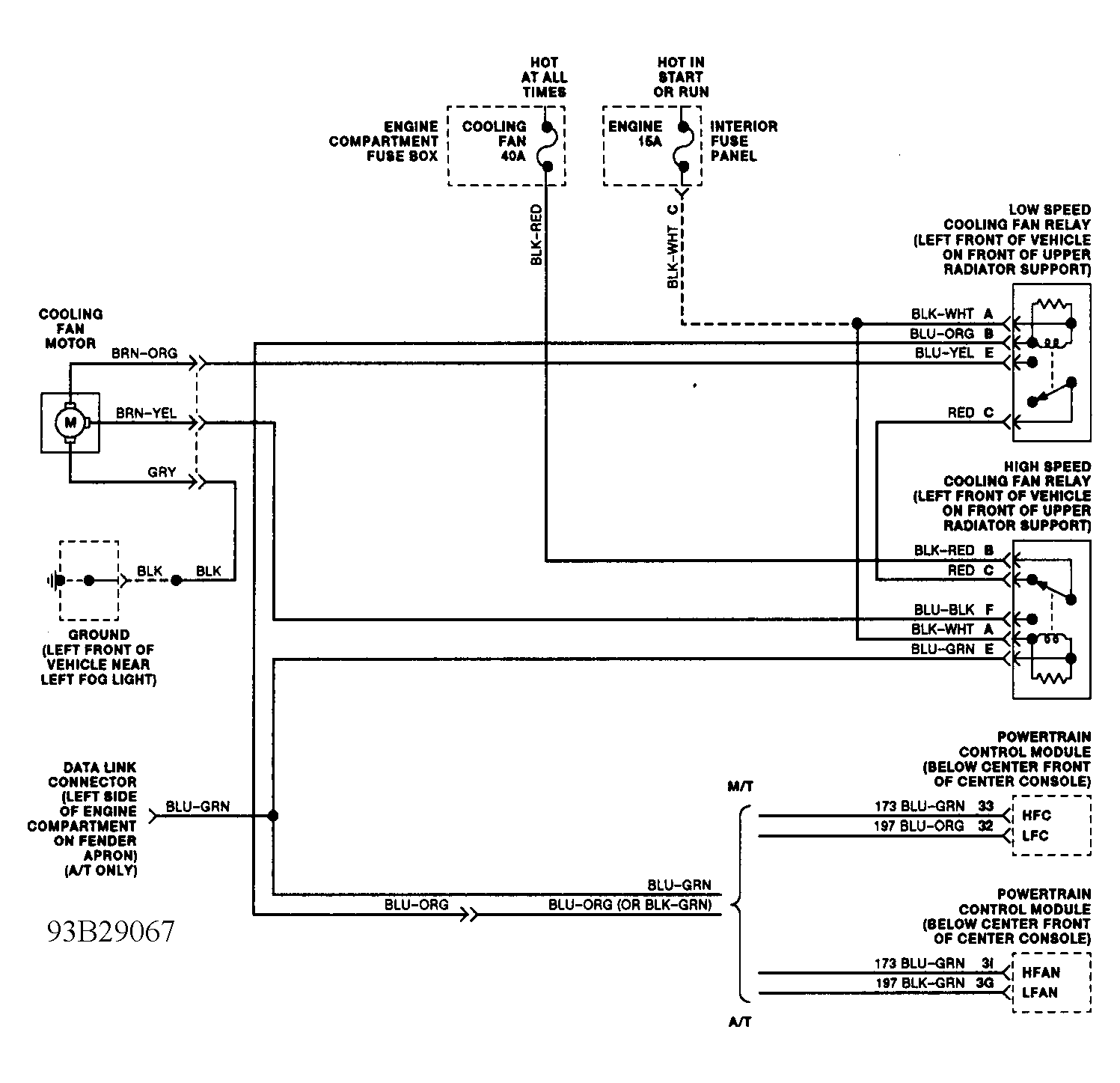

Fig 6: Electric Cooling Fan Wiring Diagram (Probe 2.0L)

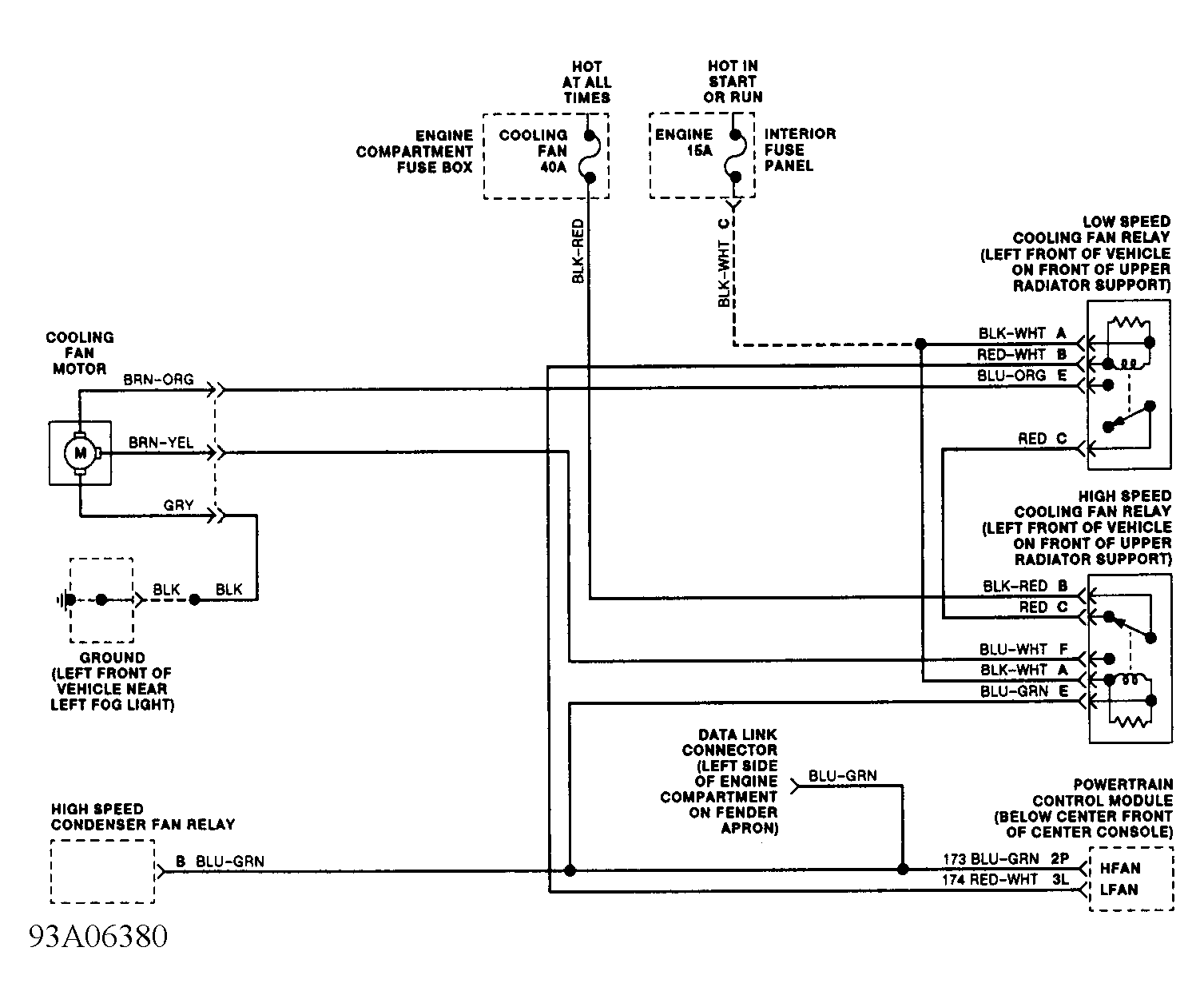

Fig 7: Electric Cooling Fan Wiring Diagram (Probe 2.5L)

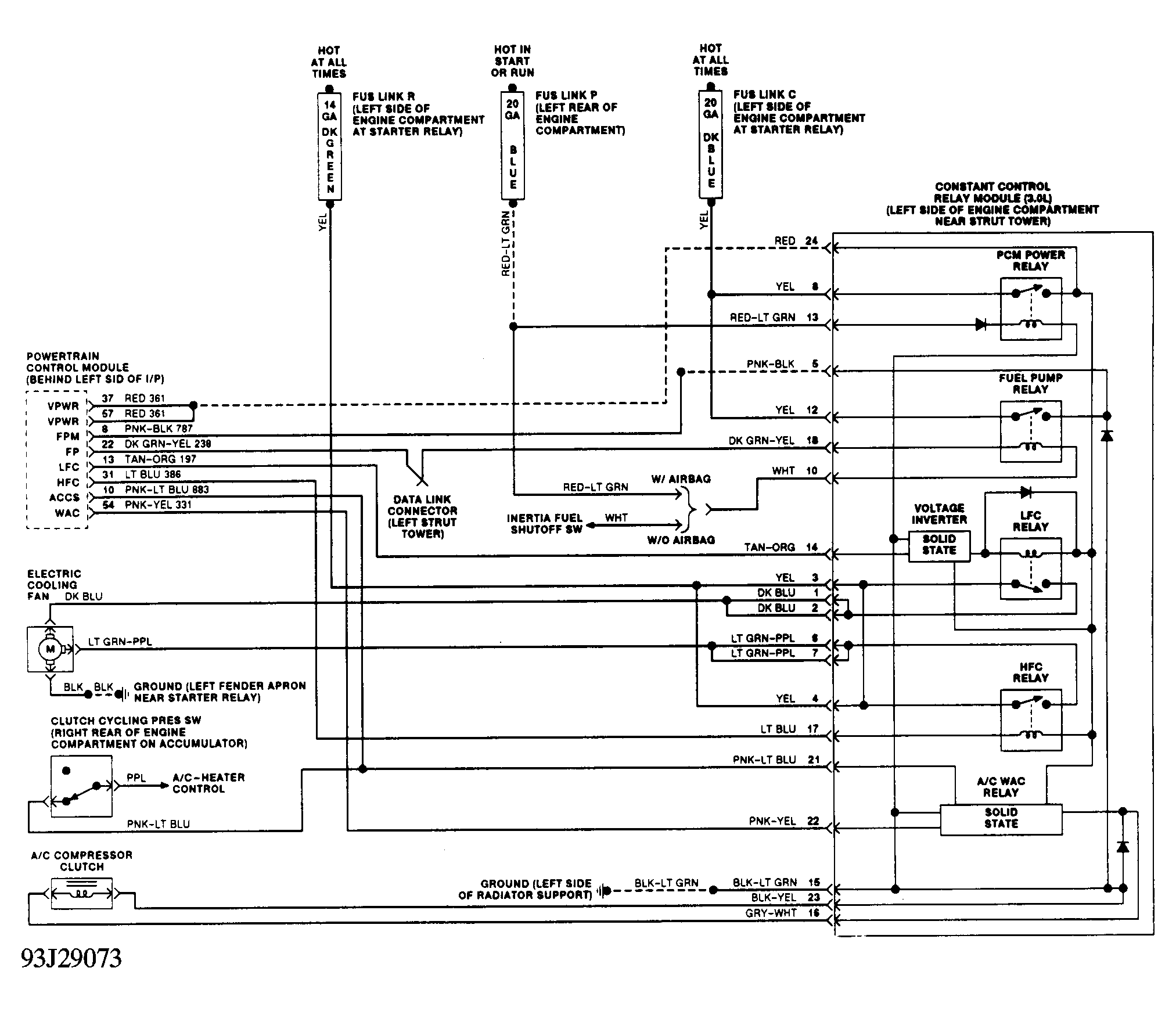

Fig 8: Electric Cooling Fan Wiring Diagram (Sable 3.0L & Taurus 3.0L Except SHO)

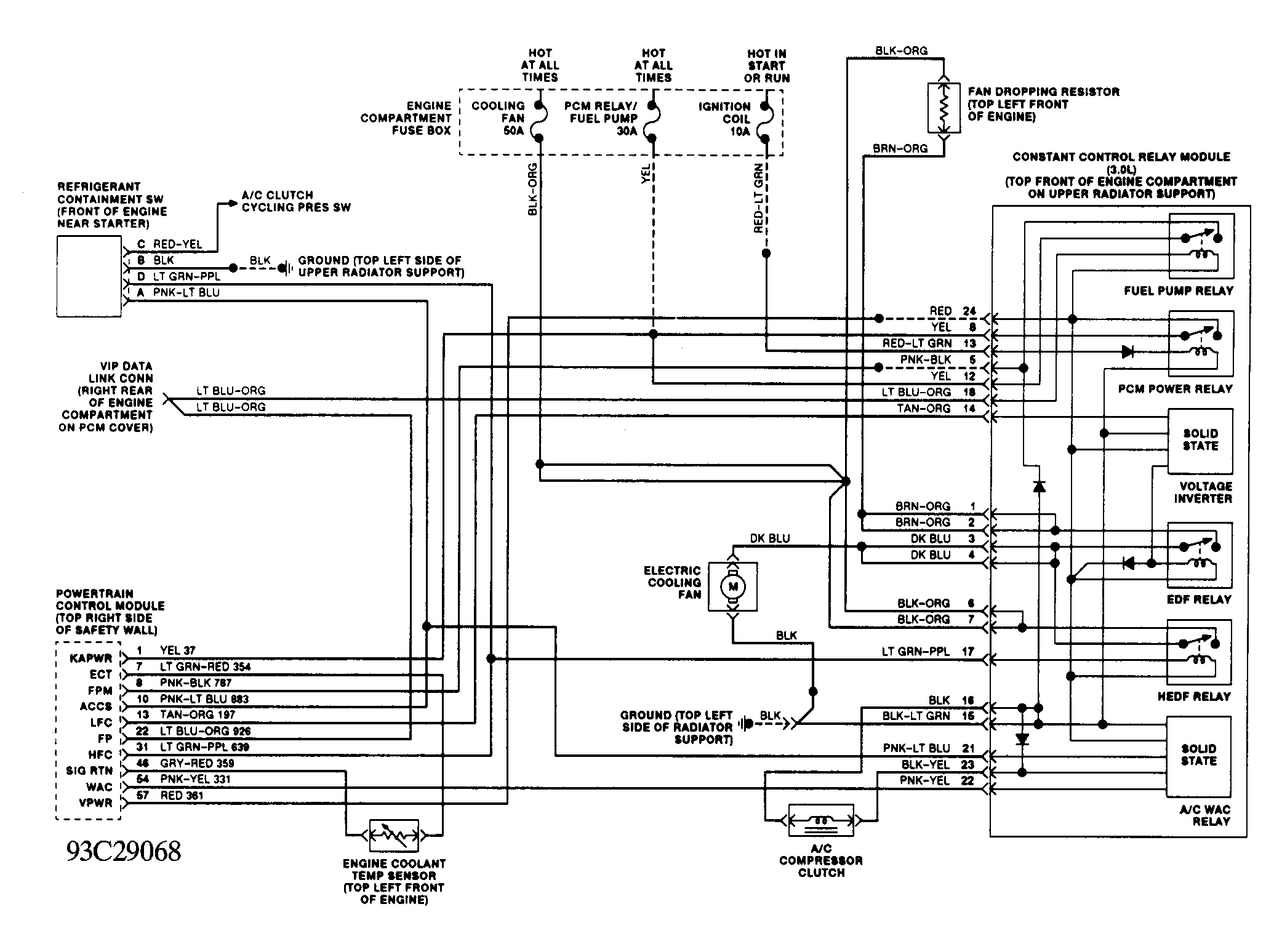

Fig 9: Electric Cooling Fan Wiring Diagram (Sable 3.8L & Taurus 3.8L)

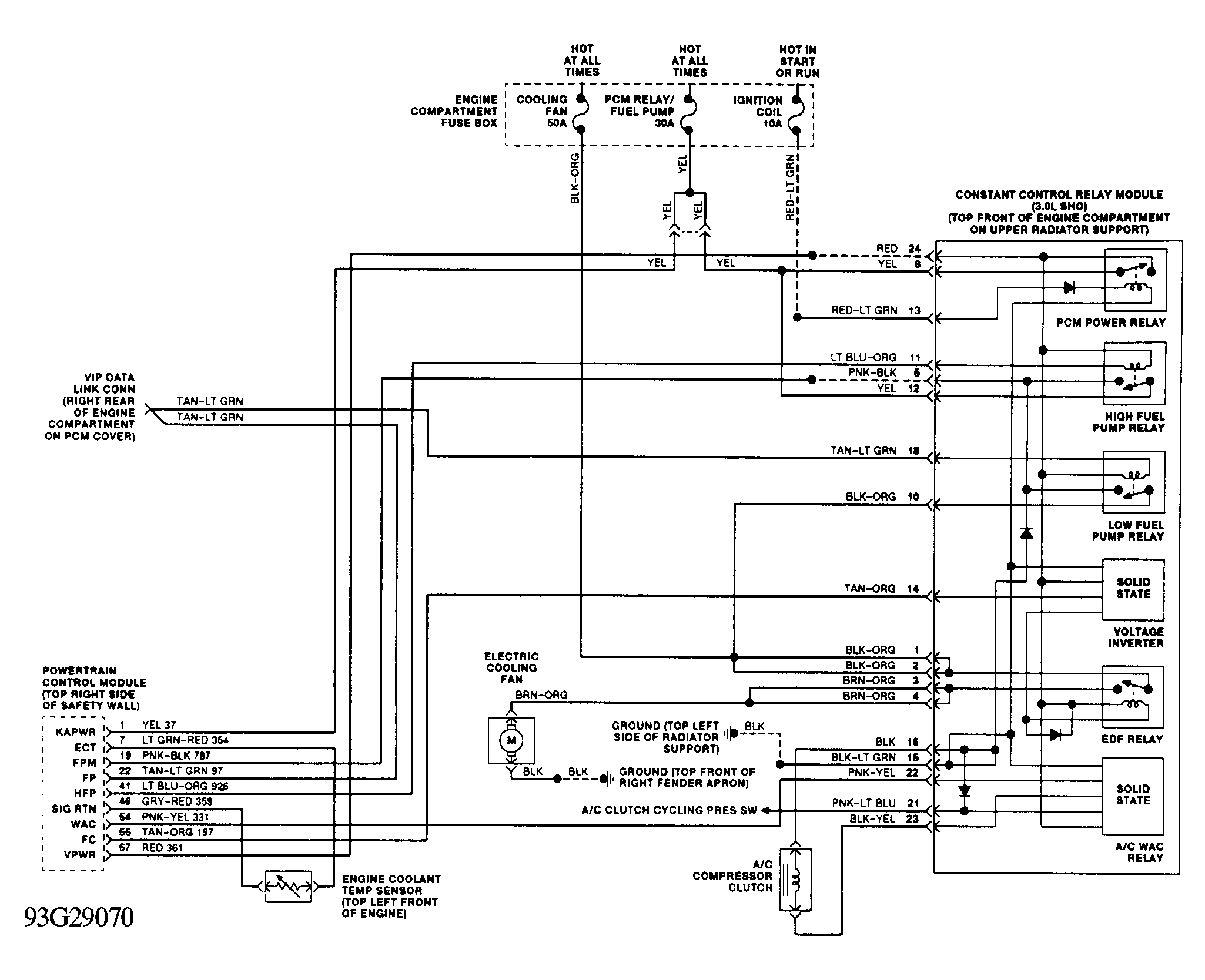

Fig 10: Electric Cooling Fan Wiring Diagram (Taurus 3.0L SHO)

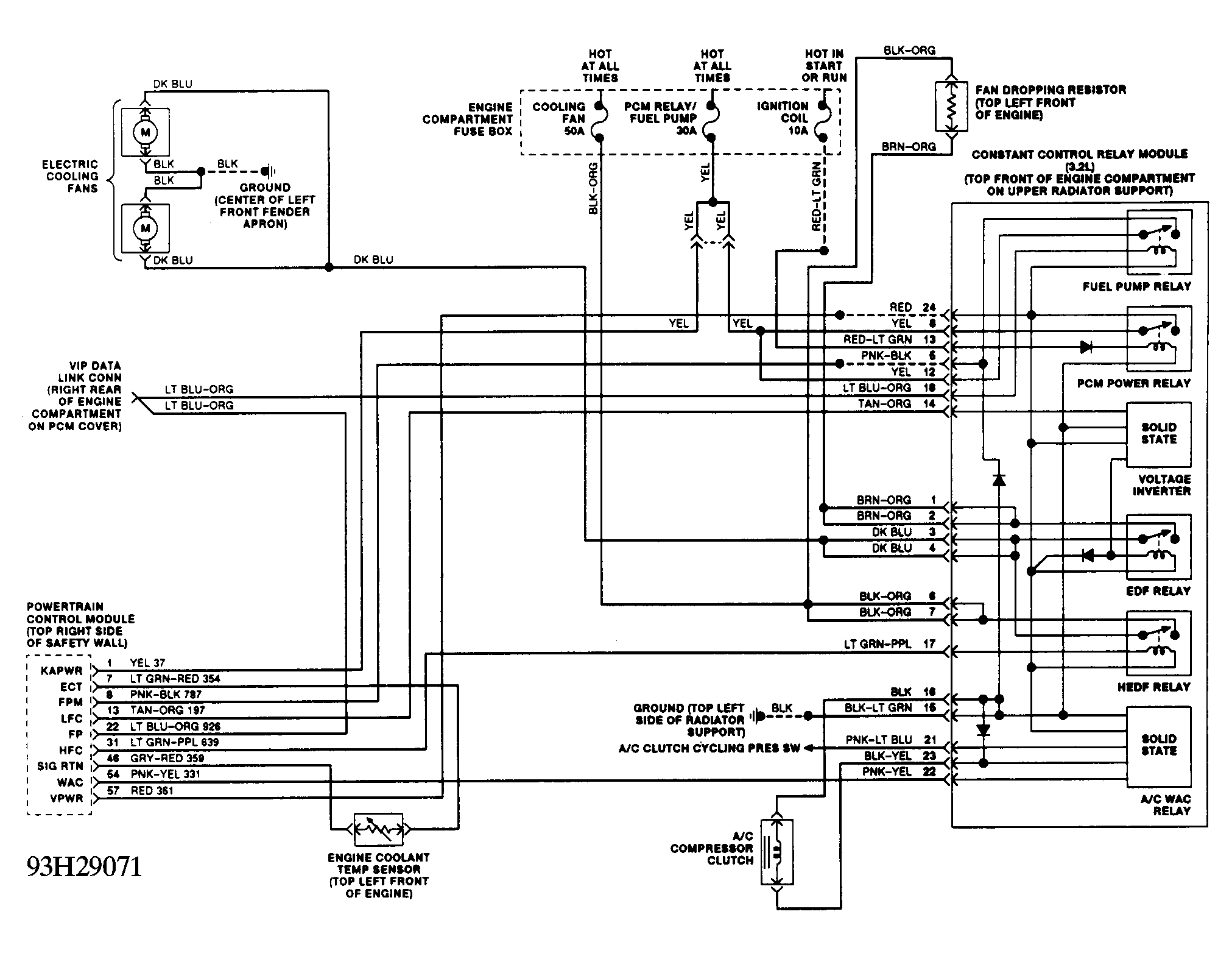

Fig 11: Electric Cooling Fan Wiring Diagram (Taurus 3.2L SHO)

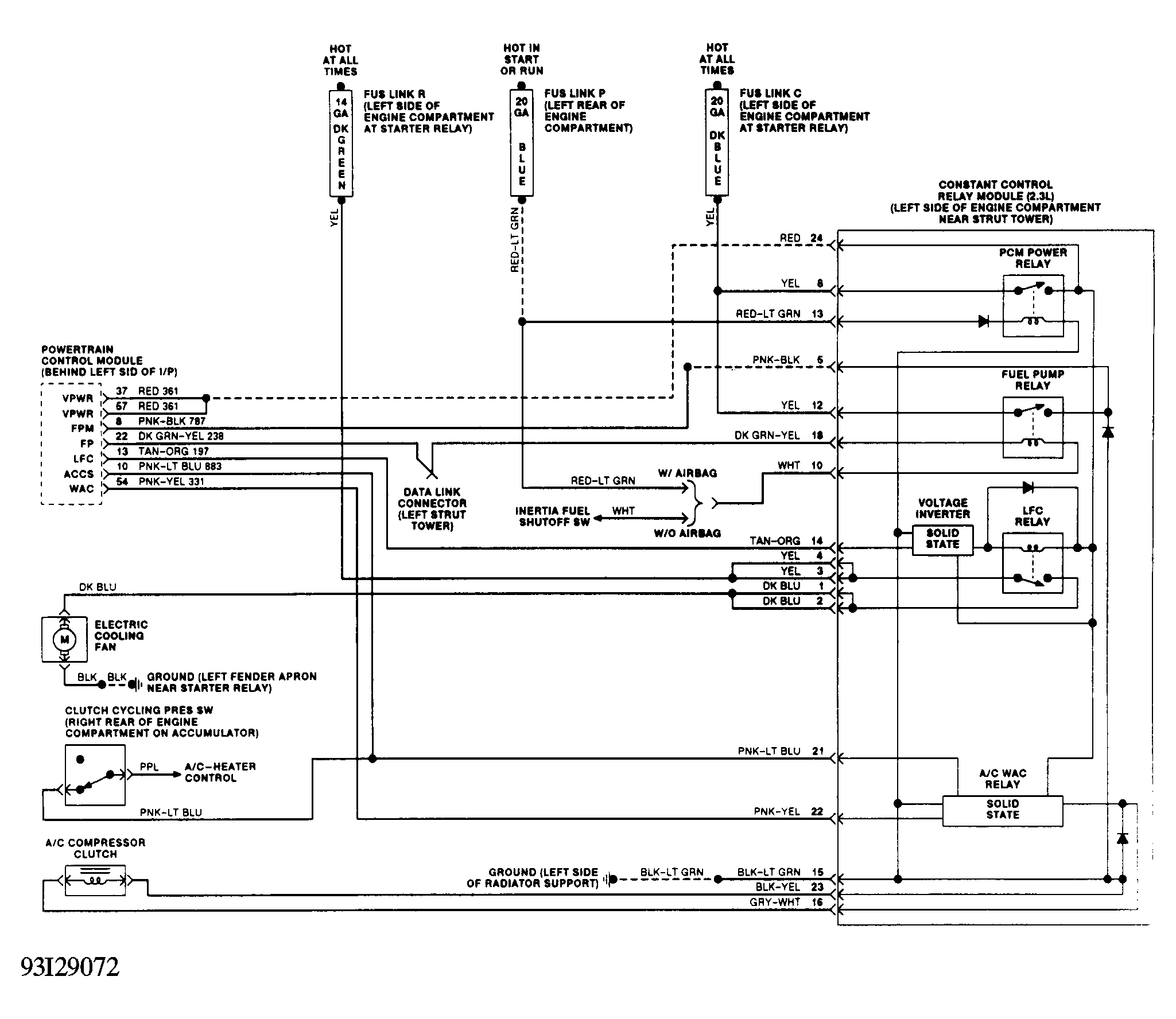

Fig 12: Electric Cooling Fan Wiring Diagram (Tempo 2.3L & Topaz 2.3L)

Fig 13: Electric Cooling Fan Wiring Diagram (Tempo 3.0L & Topaz 3.0L)

Fig 14: Electric Cooling Fan Wiring Diagram (Thunderbird 3.8L SC)
