Test Roc - Relay Output Check
| Circuit | Breakout Box Pin No. | PCM Pin | Wire Color | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|

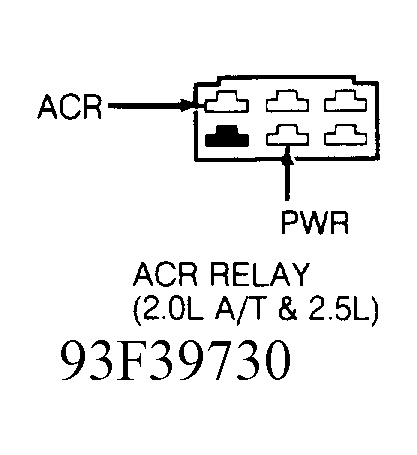

| ARC (1) | 14 | 1S | Green/Black | ||||||||

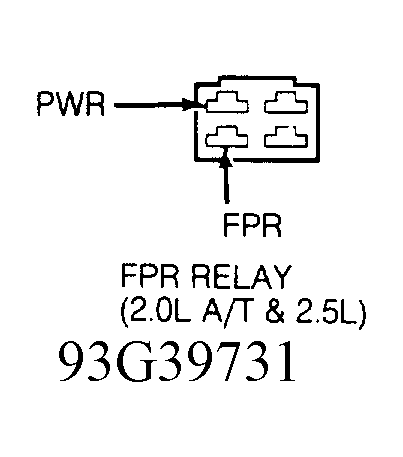

| FPR (2) | 8 | 3L | Light Green | ||||||||

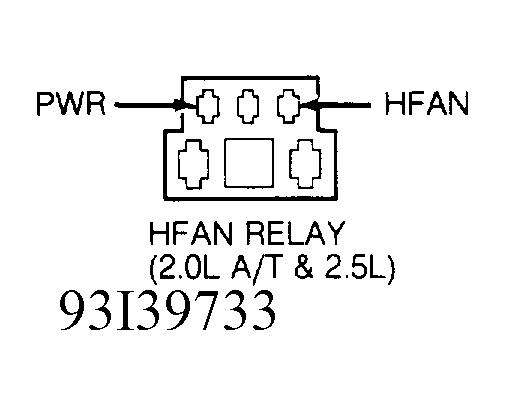

| HFAN (3) | 54 | 3I | Blue/Green | ||||||||

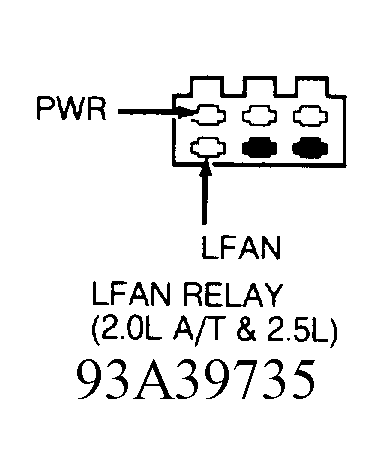

| LFAN (4) | 55 | 3G | Black/Green | ||||||||
|
|||||||||||
1) Check System Integrity Visually check all wiring, connectors and components for evidence of damage, shorting or looseness. If fault is found, repair as necessary. If no fault is found, go to next step.
2) Perform Relay Click Test Turn ignition off. Install breakout box. Connect PCM to breakout box. Locate relay to be tested. Turn ignition on. Feel and/or listen to relay while grounding appropriate relay test pin at breakout box. If relay clicks, relay is okay. If relay does not click, go to next step.
3) Check For Open Relay Wire To PCM Turn ignition off. With breakout box installed, disconnect PCM connectors. Disconnect relay to be tested. Measure resistance between breakout box test pin of relay being tested and relay terminal to PCM at relay connector. If resistance is less than 5 ohms, go to next step. If resistance is 5 ohms or more, repair open wire between PCM and relay connector.
4) Check For Short In Relay Wire To PCM Turn ignition off. With PCM disconnected and breakout box installed, disconnect relay to be tested. Measure resistance between ground and breakout box test pin of relay being tested. If resistance is more than 10,000 ohms, go to next step. If resistance is 10,000 or less, repair short to ground in wire between PCM and relay connector.
5) Check Power To Suspect Relay Turn ignition off. Disconnect relay to be tested. Turn ignition off. Measure voltage at PWR terminal at relay connector. If voltage is more than 10 volts, replace relay. If voltage is 10 volts or less, repair PWR wire.
