Engine Control System Wiring Diagrams: 2.5L

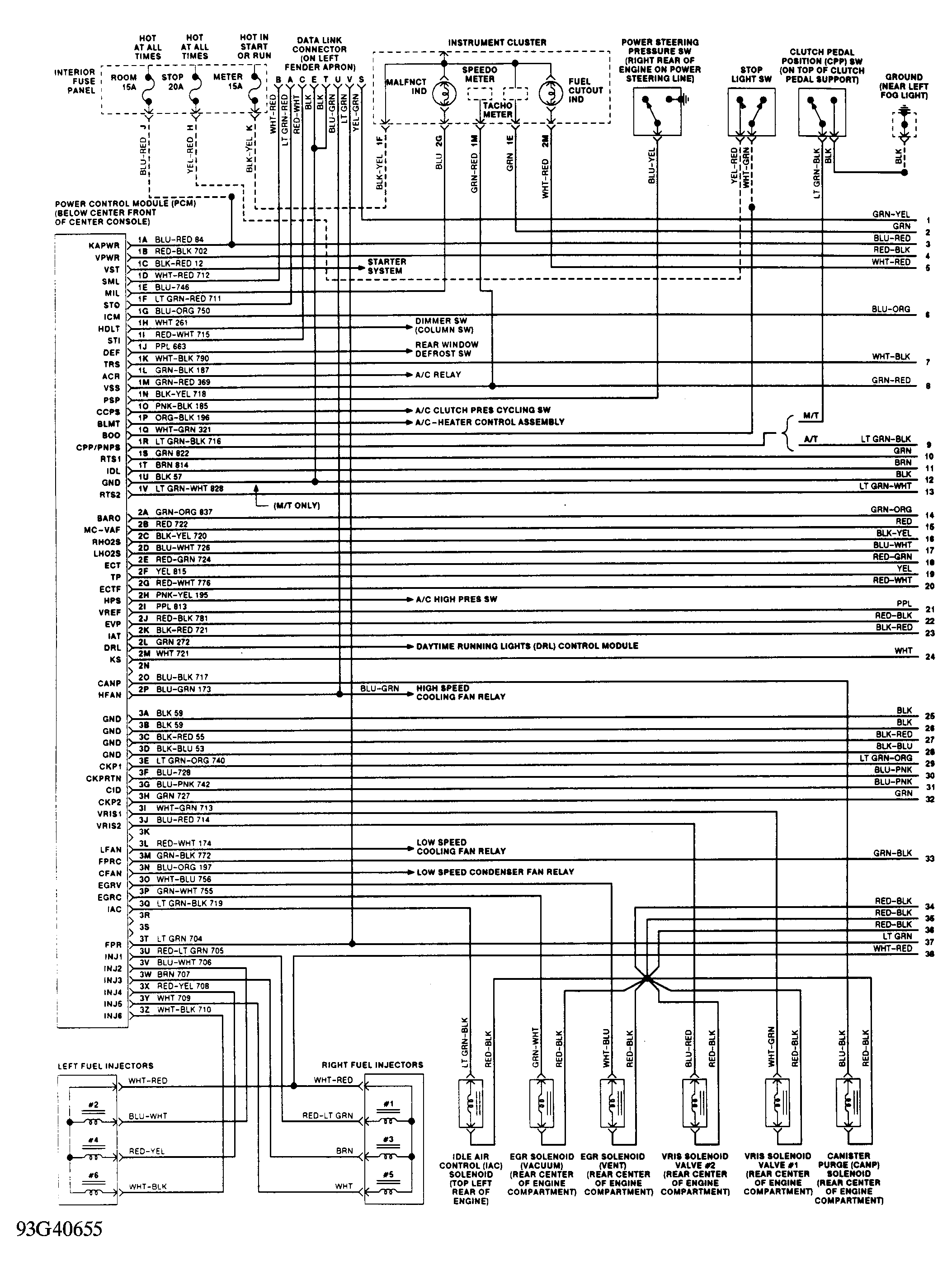

Fig 1: EEC Wiring Diagram (Probe 2.5L - 1 of 3)
G93G40655

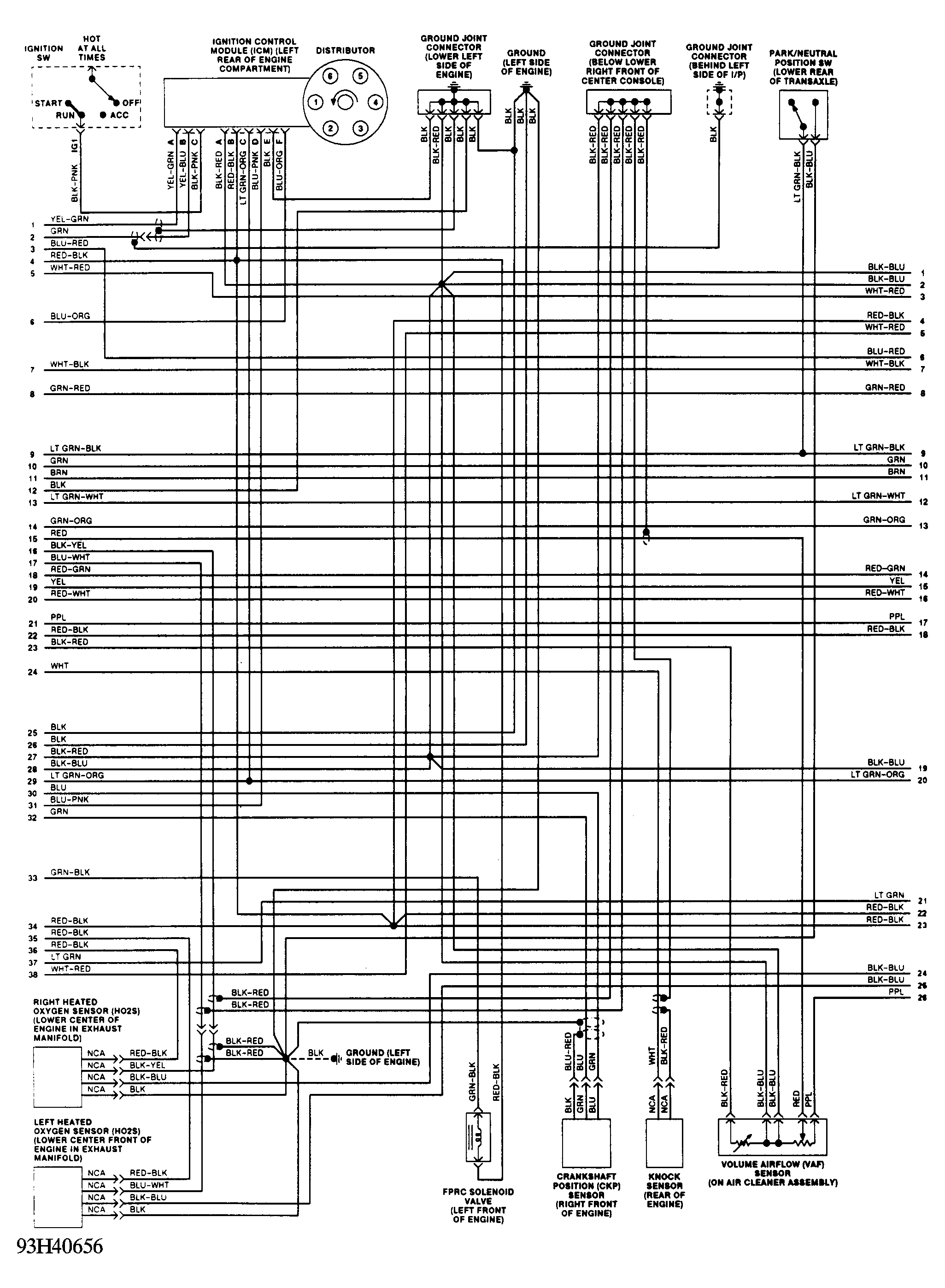

Fig 2: EEC Wiring Diagram (Probe 2.5L - 2 of 3)
G93H40656

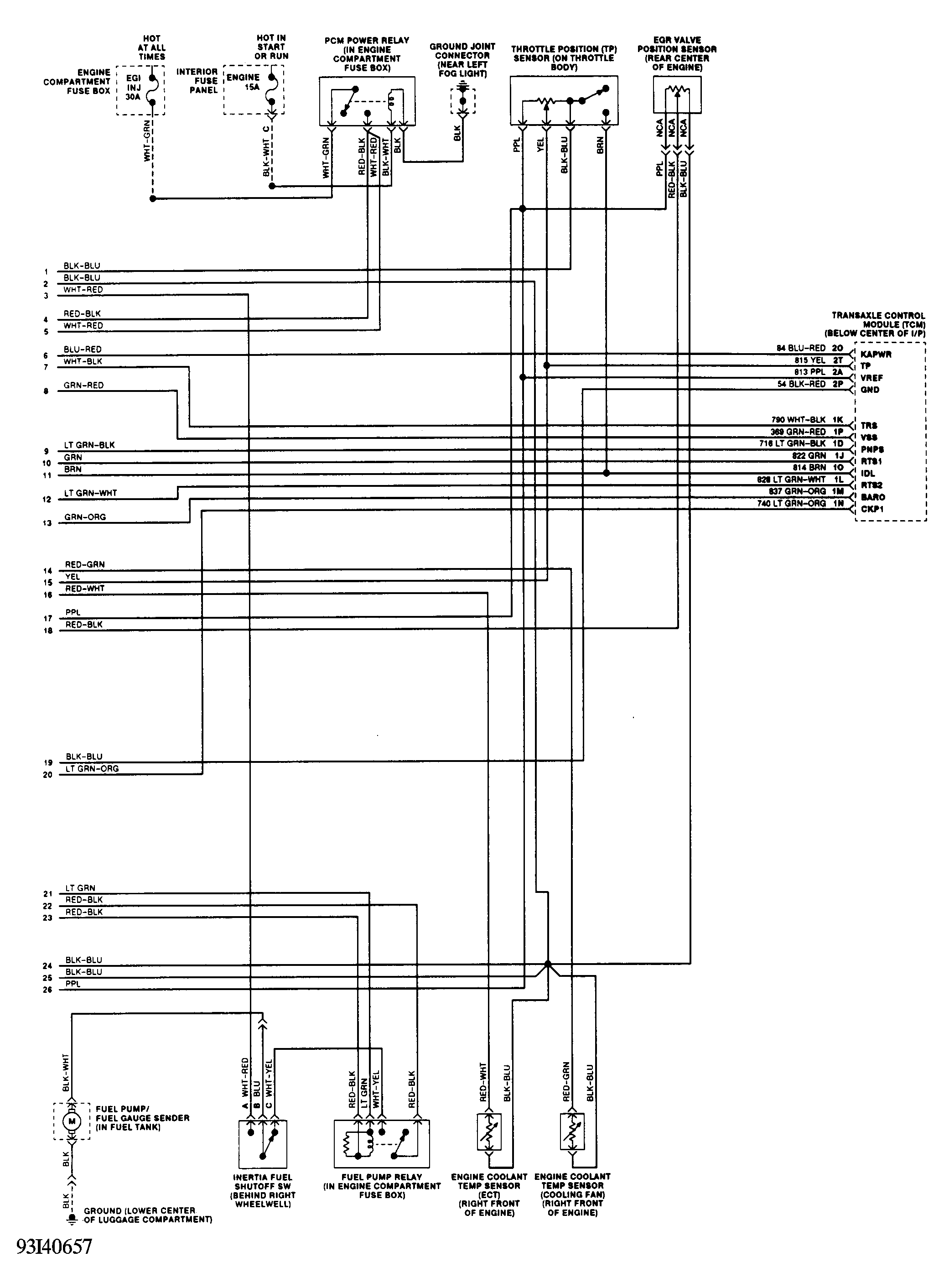

Fig 3: EEC Wiring Diagram (Probe 2.5L - 3 of 3)
G93I40657
