REMOTE KEYLESS ENTRY SYSTEM SERVICE TIPS

TECHNICAL SERVICE BULLETIN

Reference Number(s): 94-4-3, Date of Issue: February 23, 1994

REMOTE KEYLESS ENTRY SYSTEM - SERVICE TIPS

APPLICATION

Model(s): Ford: 1993-94 Crown Victoria, Probe, Taurus, Thunderbird

Lincoln-Mercury: 1992-94 Continental

1993-94 Cougar, Grand Marquis, Mark VIII, Sable, Town Car

Ford Light Truck: 1992-94 Econoline

1993-94 Explorer

1994 Bronco, F Super Duty, F-150-350 Series

Bulletin No.: 94-4-3

Date: February 23, 1994

NOTE: This TSB article supplements TSB 93-24-12. It is being published to show the latest Remote Keyless Entry parts Information and to include F-150-350 Series vehicles In the model application and parts lists.

ISSUE

This TSB article highlights and clarifies Remote Keyless Entry (RKE) system service information that is often overlooked due to unfamiliarity with this new RKE feature.

ACTION

Review the following information to become more familiar with the various features, operation and service of the Ford Remote Keyless Entry System.

The following items are covered in this article:

Transmitter Programming Procedures
Programming Service Information
Ordering Additional RKE Transmitters
RKE Transmitter Service Part Numbers

TRANSMITTER PROGRAMMING PROCEDURES

Transmitters should be programmed according to the procedure that is outlined in the appropriate Service Manual, Section 01 - 14B.

PROGRAMMING SERVICE INFORMATION

The following information clarifies some commonly misunderstood Ford factory-installed RKE system features that affect servicing the system.

Each Ford RKE transmitter contains an individual non-resettable code. When programmed, the RKE module retains the transmitter's code in its memory.
The Ford RKE module (receiver) can be programmed to operate with up to four (4) transmitters.
When additional transmitters are programmed or if reprogramming is necessary, all transmitters for that vehicle must be programmed (or reprogrammed) at the same time. If the programming mode is entered and a transmitter or transmitters are not programmed (or reprogrammed) at the same time, they will not operate with the system.

ORDERING ADDITIONAL RKE TRANSMITTERS

When additional transmitter(s) are purchased for a vehicle, the cost of the transmitter(s) and costs associated with programming the transmitters to the vehicle are not covered by warranty.

RKE TRANSMITTER SERVICE PART NUMBERS - 1992-94 MODELS

The following RKE transmitter chart lists the part numbers of all factory installed RKE transmitters and the number of the transmitters. Refer to this chart for the correct part number. Please note that the transmitters are handled through normal stock orders, not via special order programs.

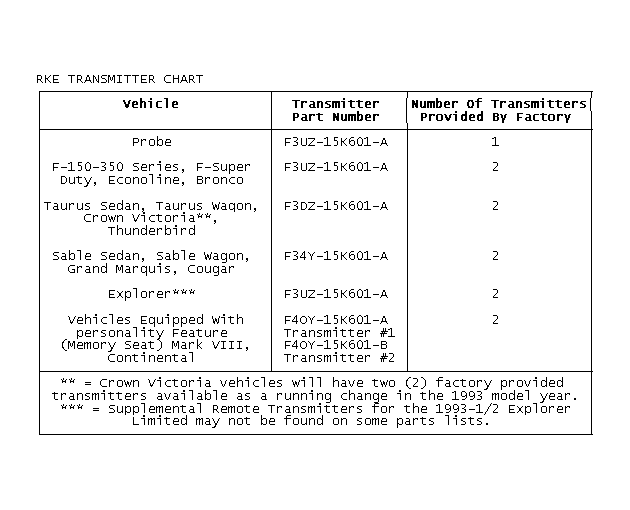

Fig 1: RKE TRANSMITTER CHART

NOTE: All 1994 model year vehicles with the exception of the Probe will have two (2) factory transmitters.

PARTS INFORMATION

Part Name	Part Number	Class
Transmitter	F3UZ-15K601-A	B
Transmitter	F3DZ-15K601-A	B
Transmitter	F34Y-15K601-A	C
Transmitter #1	F4OY-15K601-A	B
Transmitter #2	F4OY-15K601-B	B
