Electronic Diagnostic Tools/Adapters Availability (93-5-5)

Publication date: 1993-03-03
Reference number: 93-5-5

ELECTRONIC DIAGNOSTIC TOOLS/ADAPTERS AVAILABILITY

ELECTRONIC DIAGNOSTIC TOOLS/ADAPTERS AVAILABILITY

TECHNICAL SERVICE BULLETIN

Reference Number(s): 93-5-5, Date of Issue:  March 3, 1993

CONDITIONS

DIAGNOSTIC TOOLS AND ADAPTERS (ELECTRONIC) - DESCRIPTIVE LIST

ELECTRONIC DIAGNOSTIC TOOLS AND ADAPTERS - DESCRIPTIVE LIST

APPLICATION

Model(s): FORD: 1989-93 ESCORT, FESTIVA, PROBE

LINCOLN-MERCURY: 1989-93 TRACER

1991-93 CAPRI

FORD LIGHT TRUCK: 1993 VILLAGER

Group: Tools

Bulletin No.: 93-5-5

Date: March 3, 1993

ISSUE

The diagnostic tools and breakout box adapter applications for the vehicles listed above are not easily found.

ACTION

Refer to Tables 1 through 6 for a list of the diagnostic tool applications listing the model, year and engine transaxle combinations. Refer to Fig 1 through Fig 6 for breakout box adapter connections.

TABLE 1 - 1989-93 ESCORT/TRACER DIAGNOSTIC TOOLS

Year Engine MECS/EEC IV NGS/Superstar II Monitor Adapter/ Overlay 4EAT Adapter/ Overlay EEC IV Breakout Box
1989 1.6L ATX Tracer 1.6L MTX Tracer Adapter #007- 00052 or 00036 Adapter #007- 00052 or 00036 007-00038 #27 007-00038 #27 n/a n/a n/a n/a Adapter # 007-00038 Adapter # 007-00038
1989 1.9L CFI Escort 1.9L EFI Escort No adapter needed No adapter needed EEC IV #1 EEC IV #5 n/a n/a n/a n/a EEC IV EEC IV
1990 1.9L CFI 1.9L EFI No adapter needed No adapter needed EEC IV #1 EEC IV #5 n/a n/a n/a n/a EEC IV EEC IV
1991 1.8L ATX 1.8L MTX 1.9L ATX 1.9L MTX Adapter #007- 00052 or 00049 Adapter #007- 00052 or 00049 No adapter needed No adapter needed 007-00057 #36 007-00057 #36 EEC IV #41 EEC IV #41 007-00095A 3122-691 007-00095A 3122-691 007-00095A 3122-691 n/a n/a Adapter # 007-00057 Adapter # 007-00057 No adapter needed No adapter needed
1992 1.8L ATX 1.8L MTX 1.9L ATX 1.9L MTX Adapter #007- 00052 or 00049 Adapter #007- 00052 or 00049 No adapter needed No adapter needed 007-00057 #36 007-00057 #36 EEC IV #41 EEC IV #41 007-00095A 3122-691 n/a n/a 007-00095A 3122-691 n/a n/a Adapter # 007-00057 No adapter needed No adapter needed No adapter needed
1993 1.8L ATX 1.8L MTX 1.9L ATX 1.9L MTX Adapter #007- 00052 or 00049 Adapter #007- 00052 or 00049 No adapter needed No adapter needed T92C-6000AH #60 007-00057 #63 EEC IV #41 REV.A EEC IV #41 REV.A 007-00100B 3122-731 n/a n/a 007-00100C 3122-732 n/a n/a Adapter # TC92C6000AH Adapter # 007-00057 No adapter needed No adapter needed
TABLE 2 - 1989-91 PROBE DIAGNOSTIC TOOLS

Year Engine MECS/EEC IV NGS/Superstar II Monitor Adapter/ Overlay 4EAT Adapter/ Overlay EEC IV Breakout Box
1989 2.2L ATX 2.2L MTX 2.2L Turbo Adapter #007- 00052 or 00036 Adapter #007- 00052 or 00036 Adapter #007- 00052 or 00036 007-00038 #27 007-00038 #27 007-00038 #28 n/a 3122-693 n/a n/a n/a 3122-693 Adapter # 007-00038 Adapter # 007-00038 Adapter # 007-00038
1990 2.2L ATX 2.2L MTX 2.2L ATX Turbo 2.2L MTX Turbo 3.0L ATX 3.0L MTX Adapter #007- 00052 or 00036 Adapter #007- 00052 or 00036 Adapter #007- 00052 or 00036 Adapter #007- 00052 or 00036 Adapter #007- 00052 or 00036 Adapter #007- 00052 or 00036 007-00058 #39 007-00057 #38 007-00058 #40 007-00038 #40 EEC IV #43 EEC IV #43 007-0095A 3122-692 n/a n/a 007-0095A 3122-690 n/a n/a 007-00095A 3122-691 n/a n/a Adapter # 007-00058 Adapter # 007-00057 Adapter # 007-00058 Adapter # 007-00058 No Adapter needed No Adapter needed
1991 2.2L ATX 2.2L MTX 2.2L ATX Turbo 2.2L MTX Turbo 3.0L ATX 3.0L MTX Adapter #007- 00052 or 00036 Adapter #007- 00052 or 00036 Adapter #007- 00052 or 00036 Adapter #007- 00052 or 00036 Adapter #007- 00052 or 00036 Adapter #007- 00052 or 00036 007-00058 #39 007-00057 #38 007-00058 #40 007-00038 #40 EEC IV #43 EEC IV #43 007-0095B 3122-692 n/a n/a 007-0095A 3122-690 n/a n/a 007-00095A 3122-690 n/a n/a Adapter # 007-00058 Adapter # 007-00057 Adapter # 007-00058 Adapter # 007-00058 No Adapter needed No Adapter needed
TABLE 3 - 1992-93 PROBE DIAGNOSTIC TOOLS

Year Engine MECS/EEC IV NGS/Superstar II Monitor Adapter/ Overlay 4EAT Adapter/ Overlay EEC IV Breakout Box
1992 2.2L ATX 2.2L MTX 2.2L ATX Turbo 2.2L MTX Turbo 3.0L ATX 3.0L MTX Adapter #007- 00052 or 00036 Adapter #007- 00052 or 00036 Adapter #007- 00052 or 00036 Adapter #007- 00052 or 00036 Adapter #007- 00052 or 00036 Adapter #007- 00052 or 00036 007-00058 #39 007-00057 #38 007-00058 #40 007-00038 #40 EEC IV #43 EEC IV #43 007-0095B 3122-692 n/a n/a 007-0095A 3122-690 n/a n/a 007-00095A 3122-690 n/a n/a Adapter # 007-00058 Adapter # 007-00057 Adapter # 007-00058 Adapter # 007-00058 No Adapter needed No Adapter needed
1993 2.0L ATX 2.0L MTX 2.5L ATX 2.5L MTX Adapter # 007-00052 No Adapter needed Adapter # 007-00052 Adapter # 007-00052 T92C-6000AH #61 EEC IV #57 T92C-6000AH #62 T92C-6000AH #62 007-00100B 3122-697 n/a n/a 007-00100A 3122-696 n/a n/a Adapter # TC92C6000AH No Adapter needed Adapter # TC92C6000AH Adapter # TC92C6000AH
TABLE 4 - 1989-93 FESTIVA DIAGNOSTIC TOOLS

Year Engine MECS/EEC IV NGS/Superstar II Monitor Adapter/ Overlay 4EAT Adapter/ Overlay EEC IV Breakout Box
1989 1.3L FBC 1.3L EFI Adapter #007- 00052 or 00036 Adapter #007- 00052 or 00036 007-00027 #22 007-00045 #30 n/a n/a n/a n/a Adapter # 007-00027 Adapter # 007-00045
1990 1.3L ATX 1.3L MTX Adapter #007- 00052 or 00036 Adapter #007- 00052 or 00036 007-00057 #37 007-00057 #37 n/a n/a n/a n/a Adapter # 007-00057 Adapter # 007-00057
1991 1.3L ATX 1.3L MTX Adapter #007- 00052 or 00036 Adapter #007- 00052 or 00036 007-00057 #37 007-00057 #37 n/a n/a n/a n/a Adapter # 007-00057 Adapter # 007-00057
1992 1.3L ATX 1.3L MTX Adapter #007- 00052 or 00036 Adapter #007- 00052 or 00036 007-00057 #37 007-00057 #37 n/a n/a n/a n/a Adapter # 007-00057 Adapter # 007-00057
1993 1.3L ATX 1.3L MTX Adapter #007- 00052 or 00036 Adapter #007- 00052 or 00036 007-00057 #37 007-00057 #37 n/a n/a n/a n/a Adapter # 007-00057 Adapter # 007-00057
TABLE 5 - 1993 VILLAGER DIAGNOSTIC TOOLS

NGS PCM Adapter TCM Adapter ABS Adapter
No Adapter Needed #007-00053 #007-00054 #007-00055
TABLE 6 - 1991-93 CAPRI DIAGNOSTIC TOOLS

Year Engine MECS/EEC IV NGS/Superstar II Monitor Adapter/ Overlay 4EAT Adapter/ Overlay EEC IV Breakout Box
1991 thru 1993 1.6L ATX 1.6L MTX 1.6L Turbo Adapter #007- 00052 or 00036 Adapter #007- 00052 or 00036 Adapter #007- 00052 or 00036 007-00038 #46 007-00045 #46 007-00038 #47 007-0095A 3122-694 n/a n/a n/a n/a Adapter # 007-00038 Adapter # 007-00038 Adapter # 007-00038

BREAKOUT BOX ADAPTER - T92C-6000-AH

APPLICATION

1993 Probe 2.0L and 2.5L Engines

NOTE: Refer to Fig 1 for connections.
  1. Disconnect the vehicle harness from the vehicle microprocessor.
  2. Connect the vehicle harness to the Breakout Box Adapter (T92C- 6000-AH).
  3. Attach the adapter harness to the vehicle microprocessor.
  4. Determine which of the adapter's two 60-pin connectors for your application. Fasten the 60-pin connector to the EEC IV Breakout Box or the EEC IV Monitor. Use a 10mm open end wrench to tighten the connection.
  5. Refer to the appropriate diagnostic information for the system being tested to determine the correct position of the A/B switch. (An A/B switch is required to enable testing of all 64 lines of the 1993 Probe microprocessor using the EEC IV Breakout Box or the EEC IV Monitor.) Place the A/B switch in the correct position.

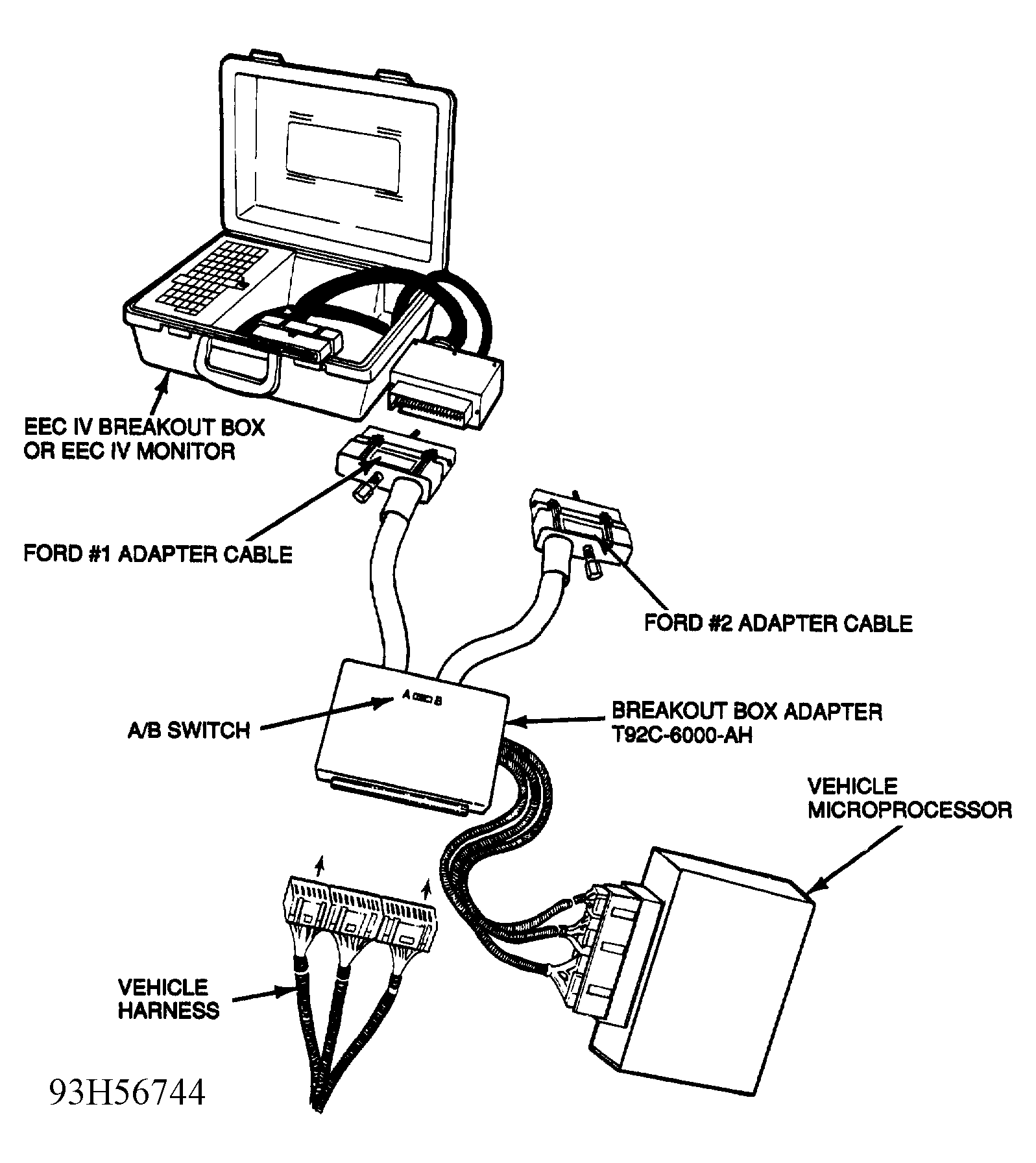

Fig 1: Adapter T92C-6000-AH Connections
G93H56744

TFI IV CABLE PIP ADAPTER (007-00083)

APPLICATION

1993 Probe 2.0L MTX

NOTE: Refer to Fig 2 for connections.
  1. Disconnect the vehicle harness from the distributor.
  2. Connect one end of the TFI IV Cable PIP Adapter (007 00083) to the vehicle harness and distributor connectors.
  3. Connect the other end of the Adapter to the TFI IV cable 8-pin sensor connectors.
  4. Install the overlay card on the previously released Breakout Box (T83L-50-EEC-IV) for correct Pinouts.

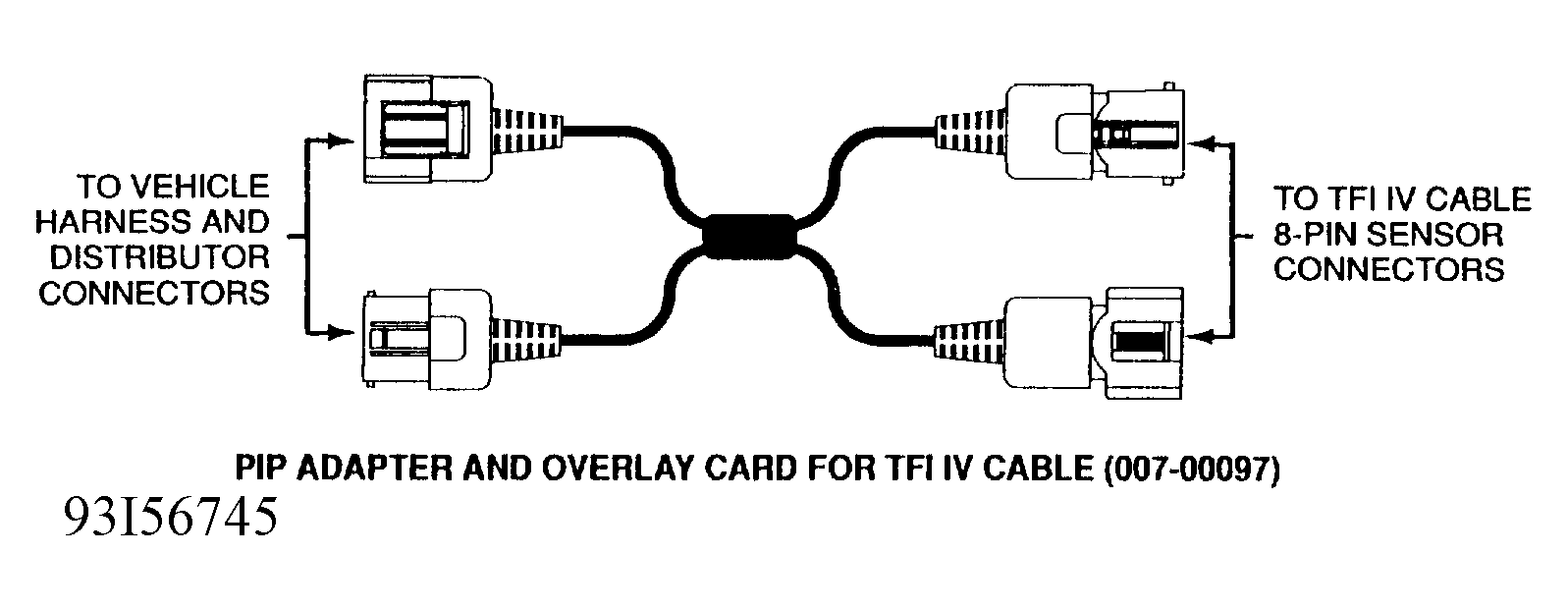

Fig 2: TFI IV Cable PIP Adapter Connections
G93I56745

SUPER MECS ADAPTER (007-00052)

APPLICATION

1989-93 Probe, 1988-92 Festiva, 1988-93 Tracer,

1991-93 Escort, 1991-92 Capri

NOTE: Refer to Fig 3 for connection identification.

The Super MECS Adapter allows you to connect the Super STAR 11 or NGS to MECS type Data Link* connectors. The Super MECS Adapter can be used for all MECS Diagnostic Tests**.

  1. Connect Super MECS Adapter to Super STAR II or to NGS's STAR/DCL Adapter (see 1). See Fig 3 .
  2. Select Super MECS Connector [either (2), (3) or (4)] based on the desired Diagnostic Test**  . See Fig 3 .
    • When using connector (3), you must select a System Type on the Switch Box. See Fig 3 .
    • When using connector (4), you must also connect (4a and 4b). See Fig 3 .
  3. Connect selected Super MECS connector to vehicle's Data Link* connector (refer to Service Manual for location).
NOTE: *  Self-Test Connector **  Self-Test

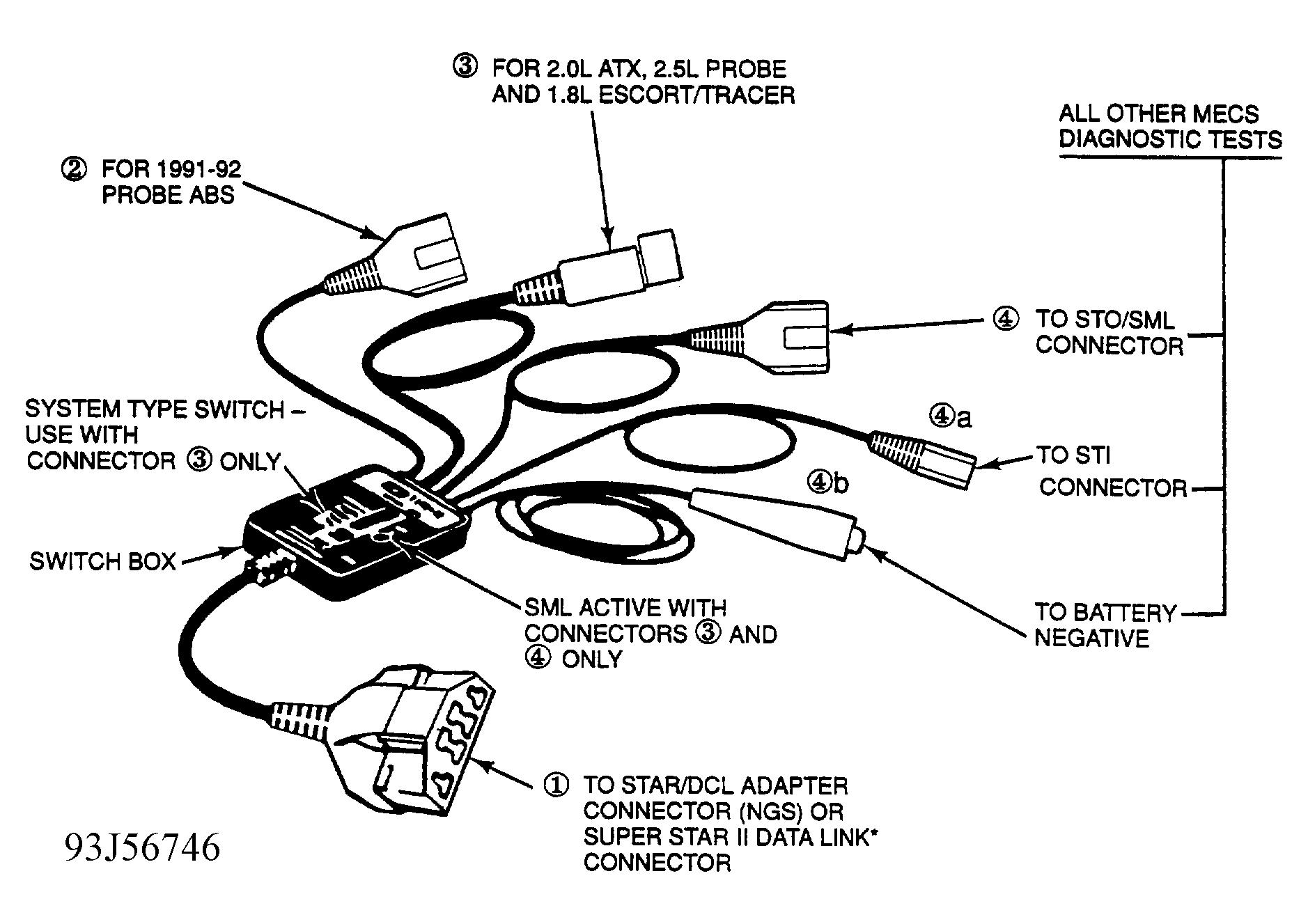

Fig 3: Adapter 007-00052 Connections
G93J56746

BREAKOUT BOX ADAPTER (007-00053)

APPLICATION

1993 Mercury Villager Engines

NOTE: Refer to Fig 4 for connection identification.
  1. Key off.
  2. Disconnect vehicle harness from PCM.
  3. Connect Adapter Harness to PCM.
  4. Connect Breakout Box's Processor Connector to adapter's 60-pin connector.
  5. Connect Vehicle Harness to adapter's Header Connector.

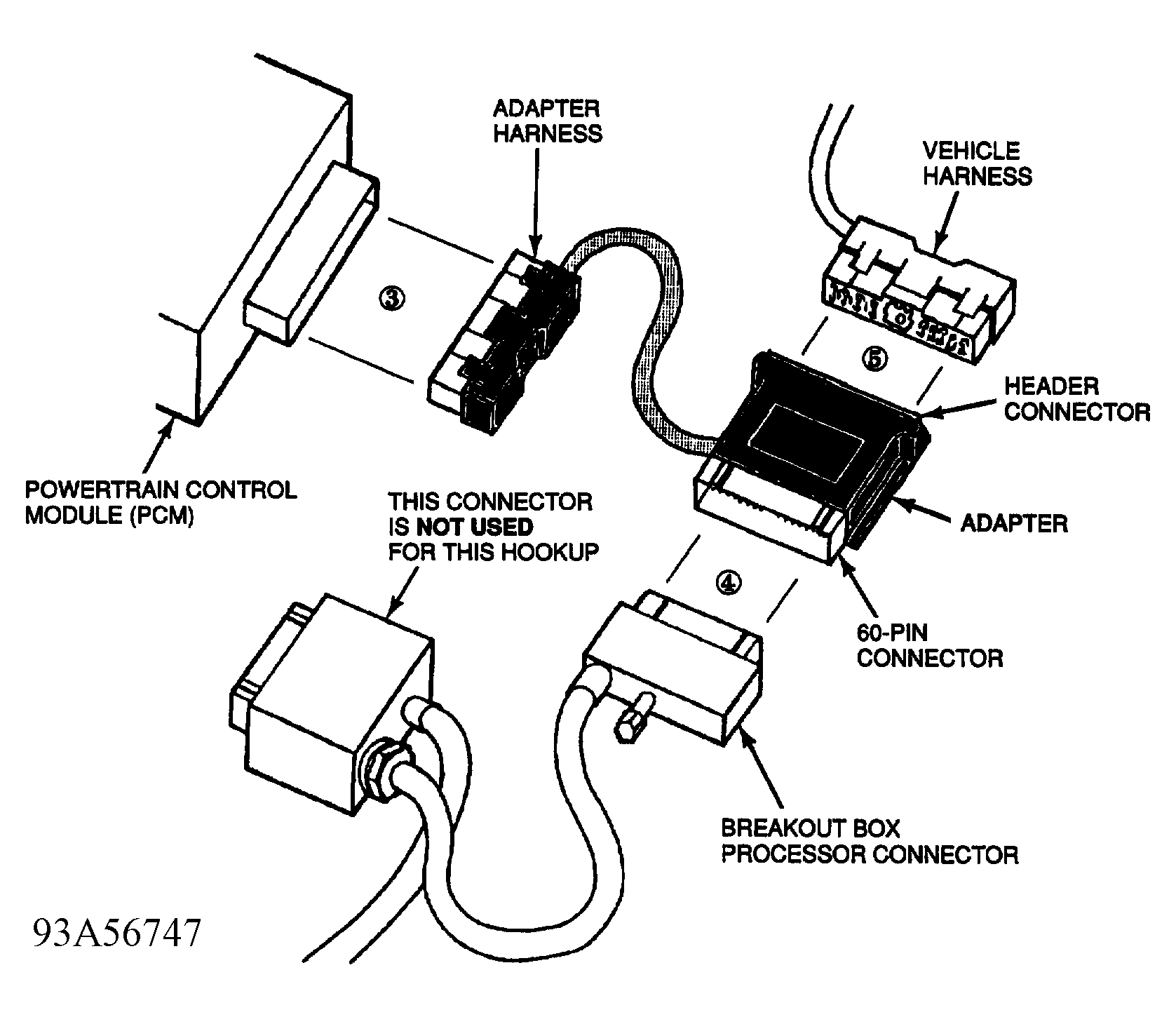

Fig 4: Adapter 007-00053 Connections
G93A56747

BREAKOUT BOX ADAPTER (007-00054)

APPLICATION

1993 Mercury Villager 4F20E Transmission Control

Module

NOTE: Refer to Fig 5 for connection identification.
  1. Key off.
  2. Disconnect vehicle harness from TCM.
  3. Connect Adapter Harness to TCM.
  4. Connect Breakout Box's Processor Connector to adapter's 60-pin connector.
  5. Connect Vehicle Harness to adapter's Header Connector.
Fig 5: Adapter 007-00054 Connections
G93B56748

BREAKOUT BOX ADAPTER (007-00055)

APPLICATION

1993 Mercury Villager ABS Module

NOTE: Refer to Fig 6 for connection identification.
  1. Key off.
  2. Disconnect vehicle harness from ABS Module.
  3. Connect Adapter Harness to ABS Module.
  4. Connect Breakout Box's Processor Connector to adapter's 60-pin connector.
  5. Connect Vehicle Harness to adapter's connector - latch ball wire over Vehicle Harness connector.

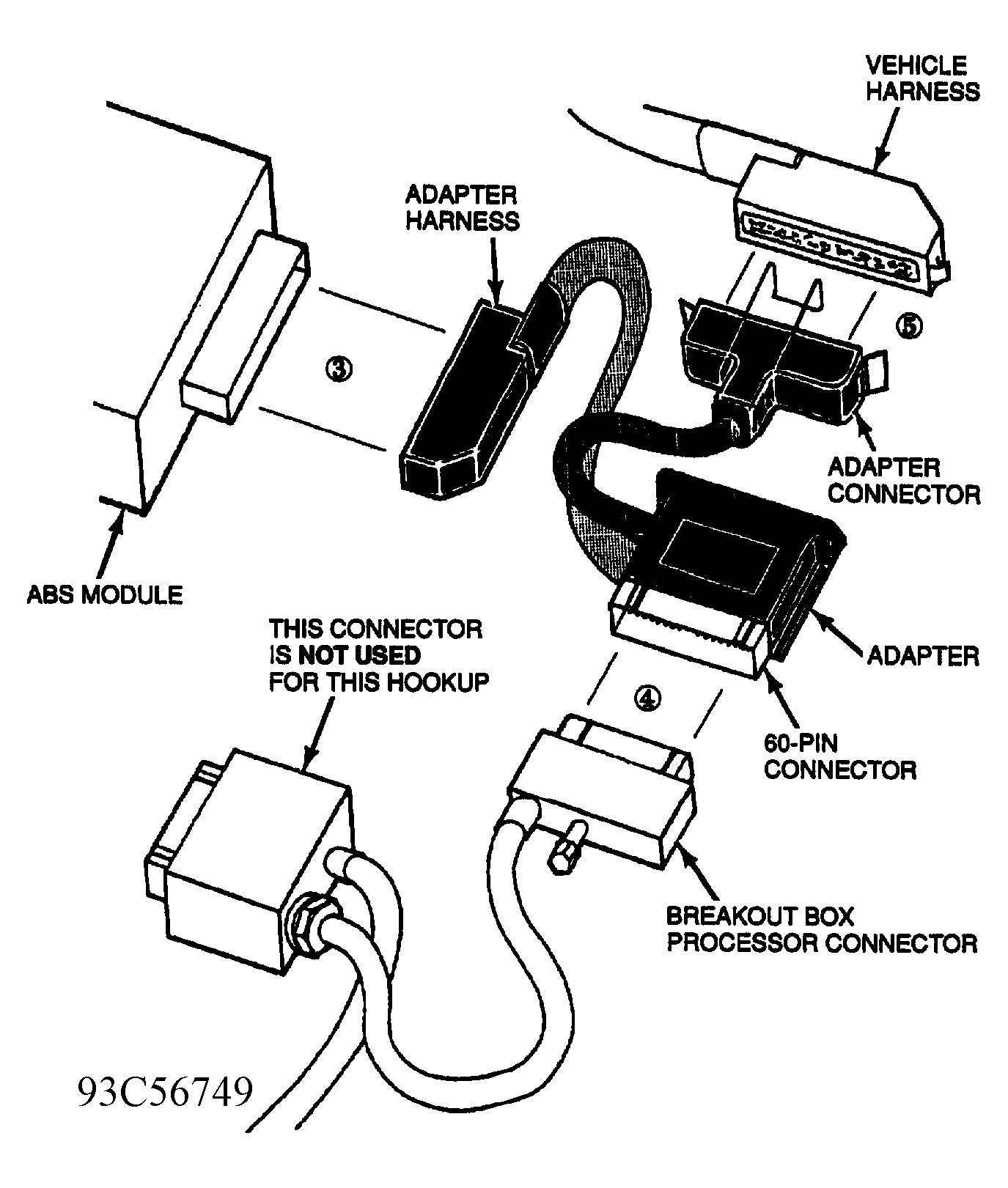

Fig 6: Adapter 007-00054 Connections
G93C56749
