Town Car

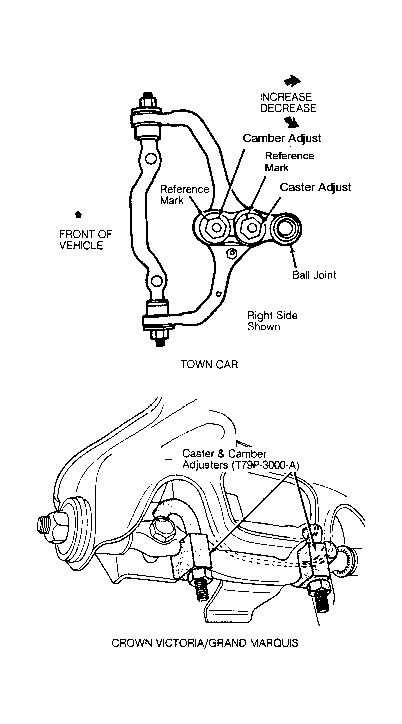

Adjusting cams are provided for camber/caster adjustment. See Figure. Loosen 2 nuts on top of adjusting cams. Turn hex cams to adjust camber/caster angle. Hold each cam and tighten nuts. Checking camber angle is not necessary after adjustment has been performed.
