Wiring Diagrams

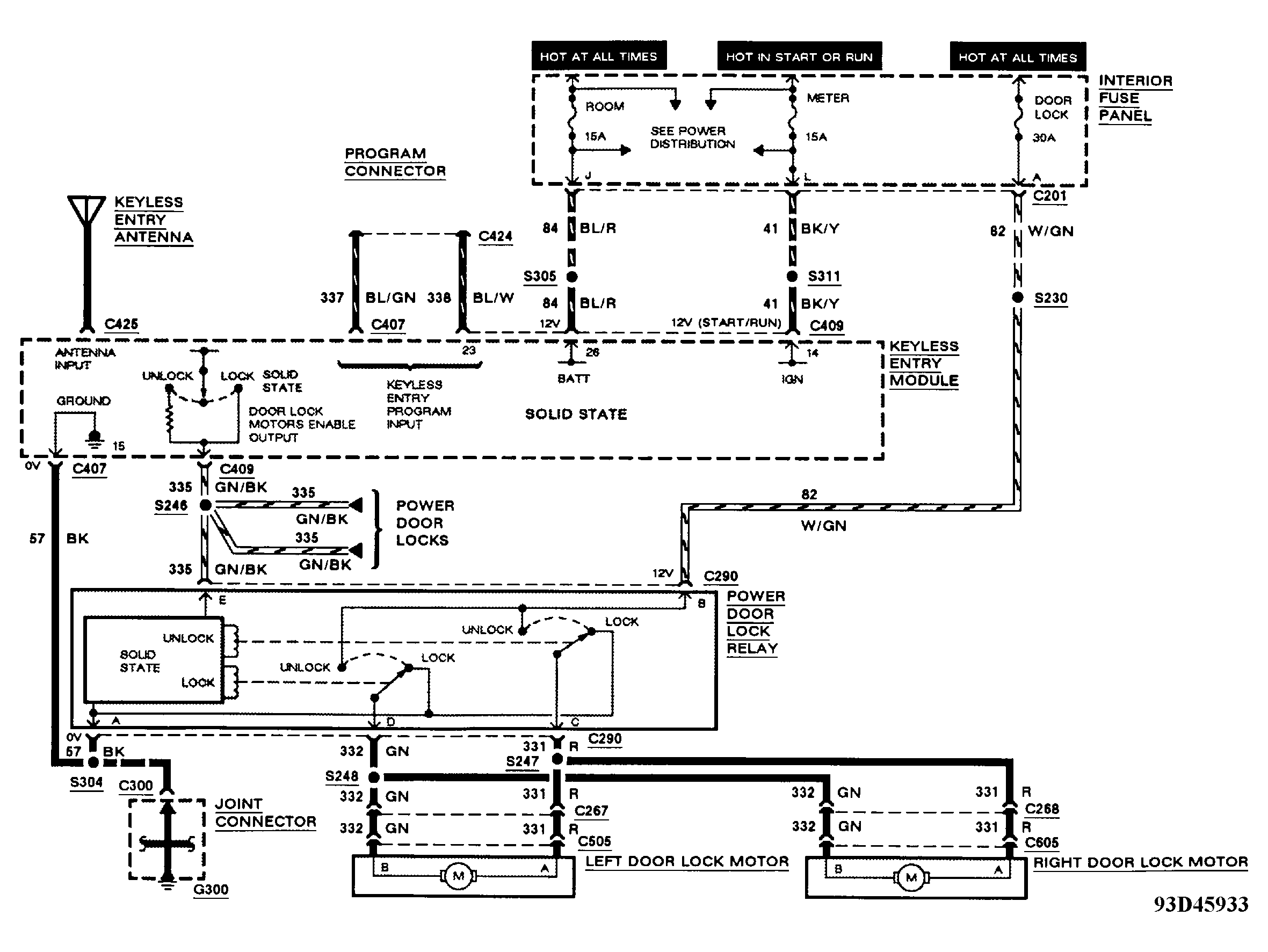

Fig 1: Remote Keyless Entry Wiring Diagram (1 Of 2)
G93D45933Courtesy of FORD MOTOR CO.

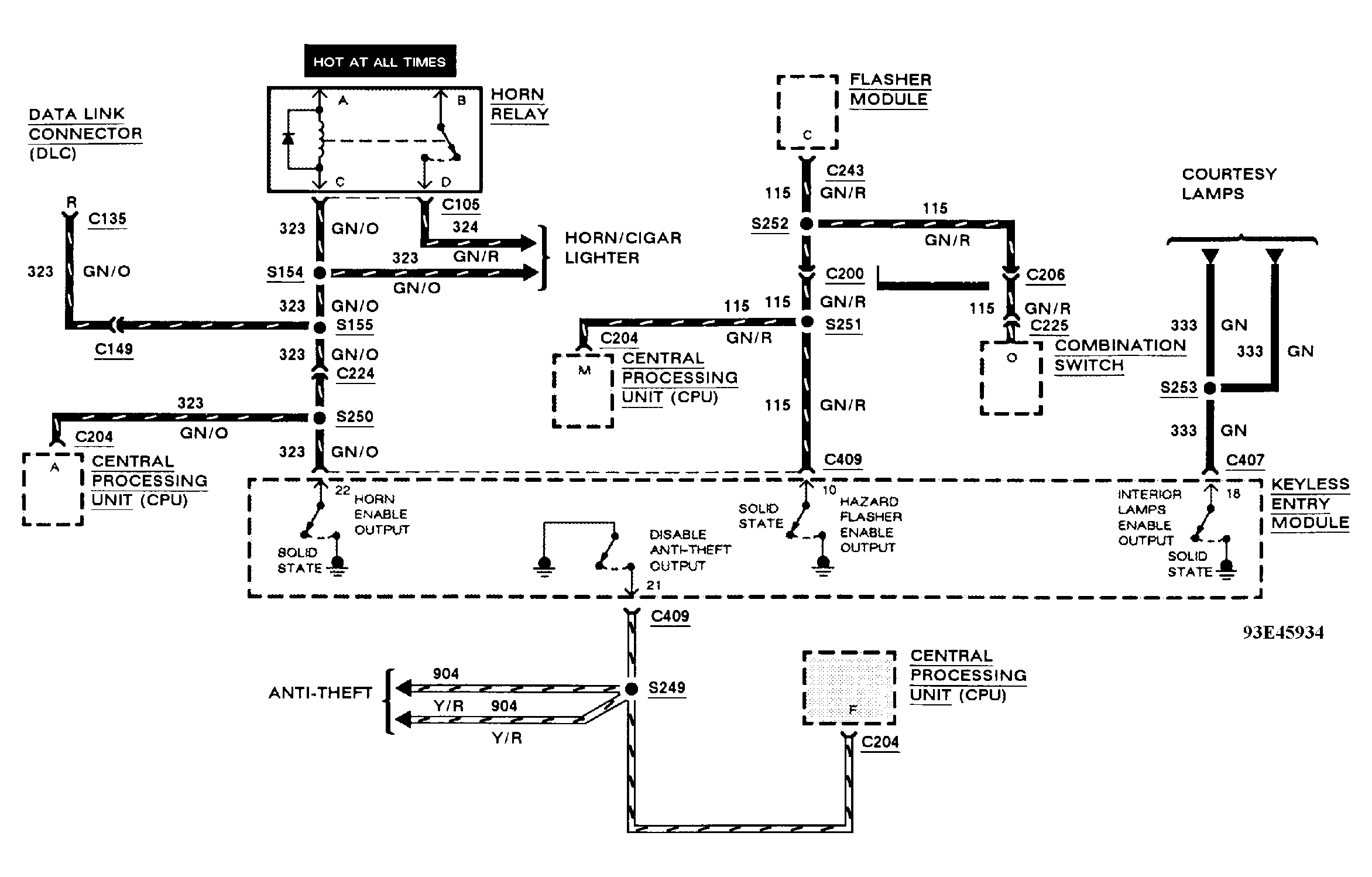

Fig 2: Remote Keyless Entry Wiring Diagram (2 Of 2)
G93E45934Courtesy of FORD MOTOR CO.
