Wiring Diagrams

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 1993 Mercury Sable, 1993 Mercury Grand Marquis, 1993 Mercury Cougar, 1993 Lincoln Mark VIII, and 1993 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.

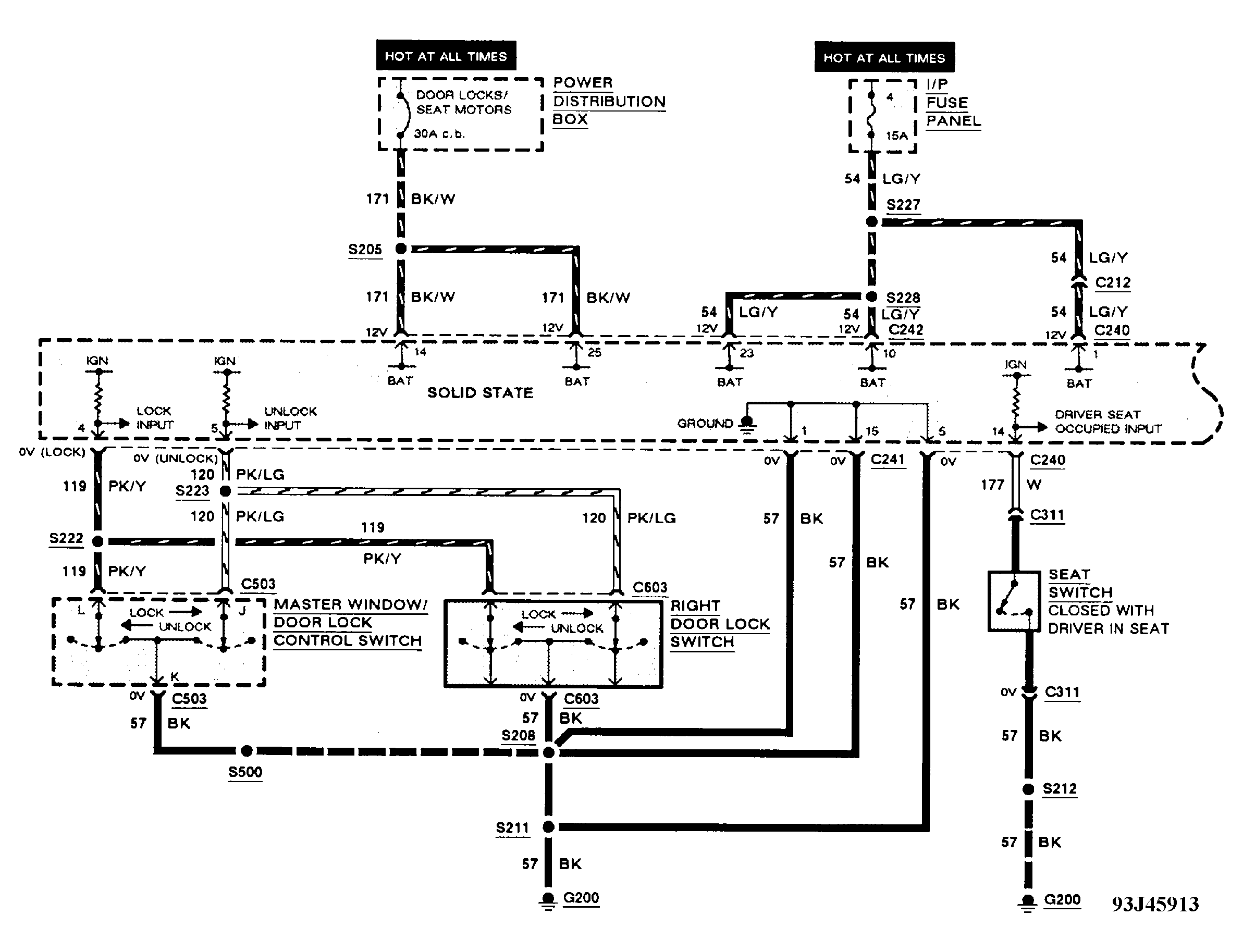

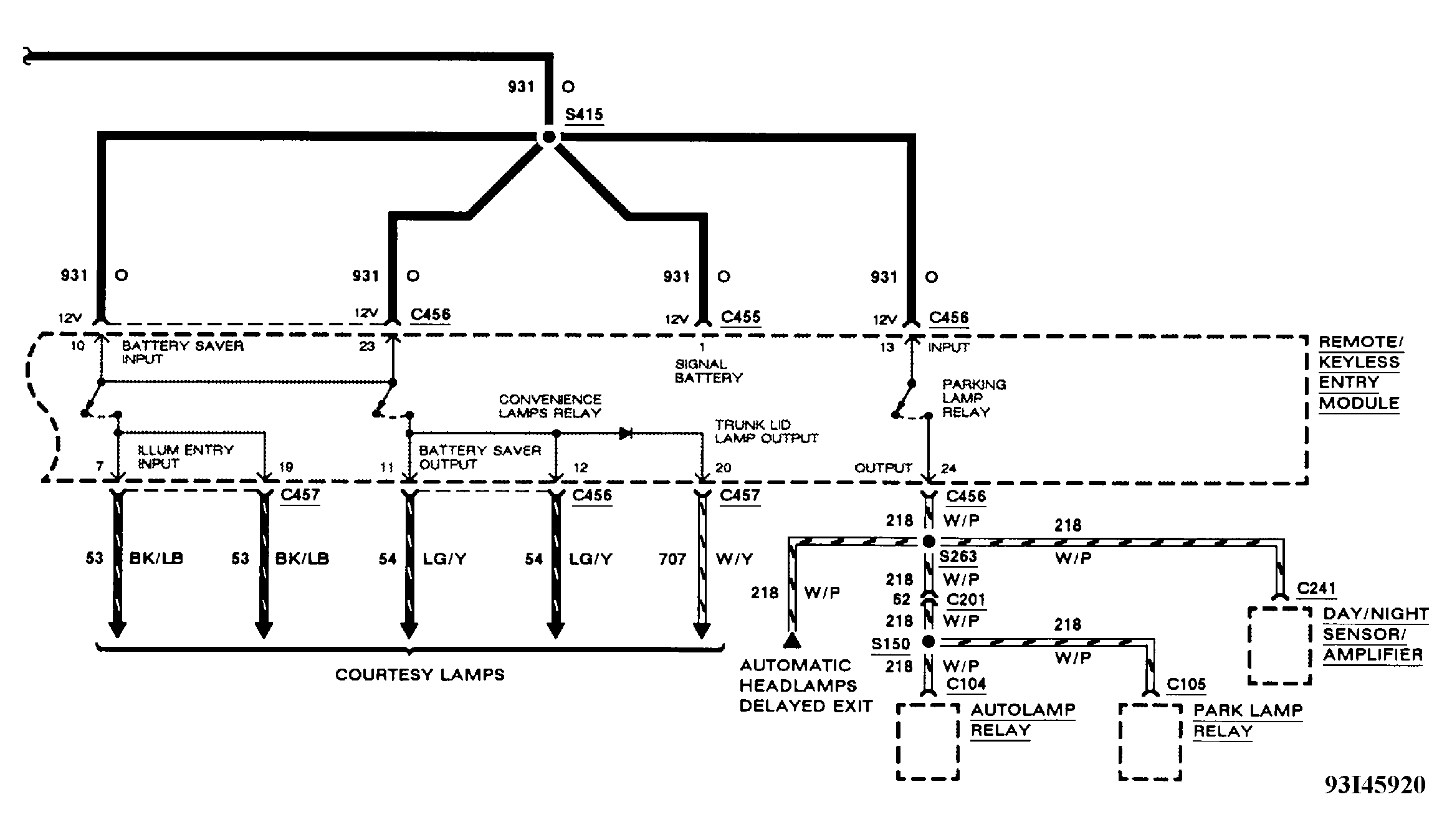

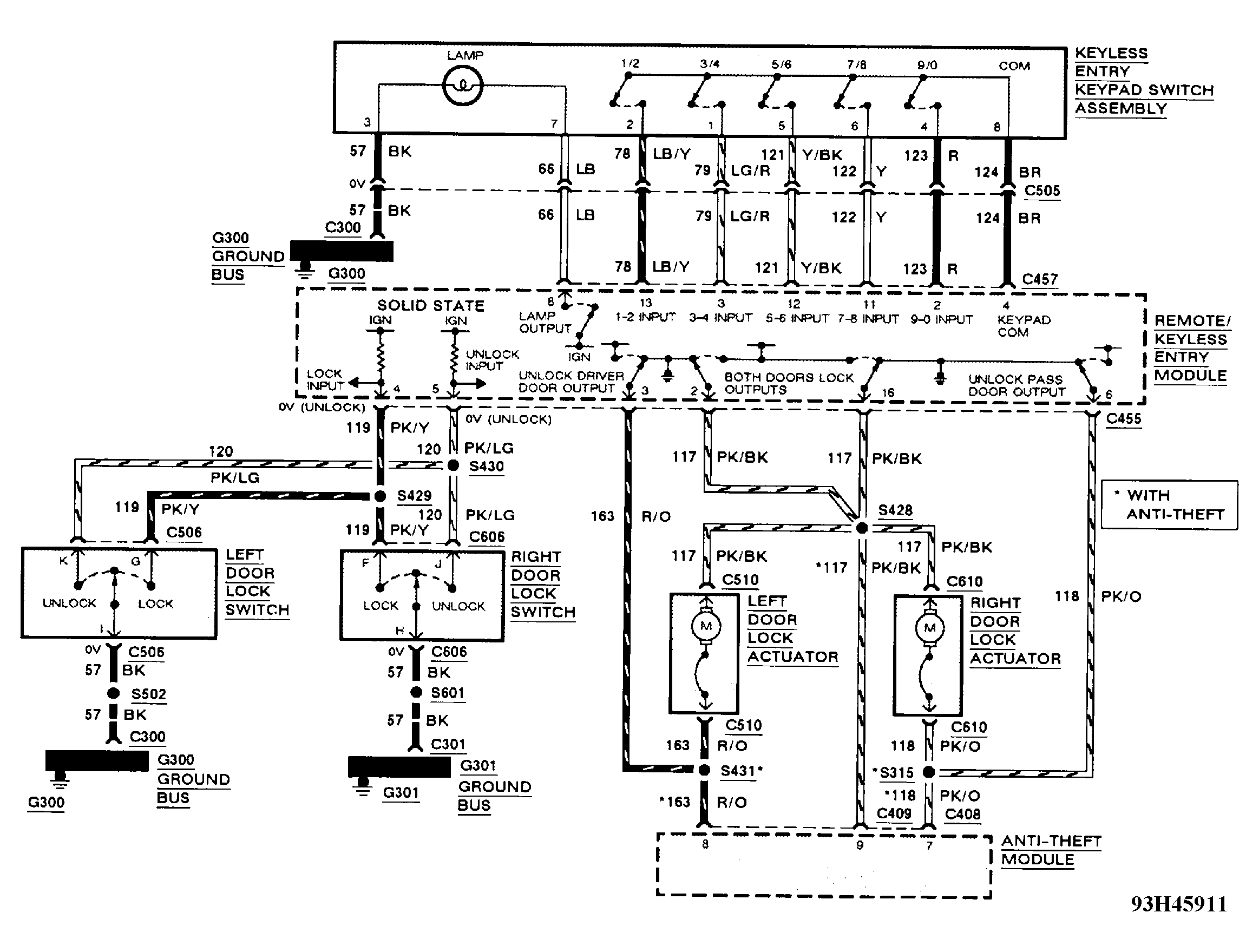

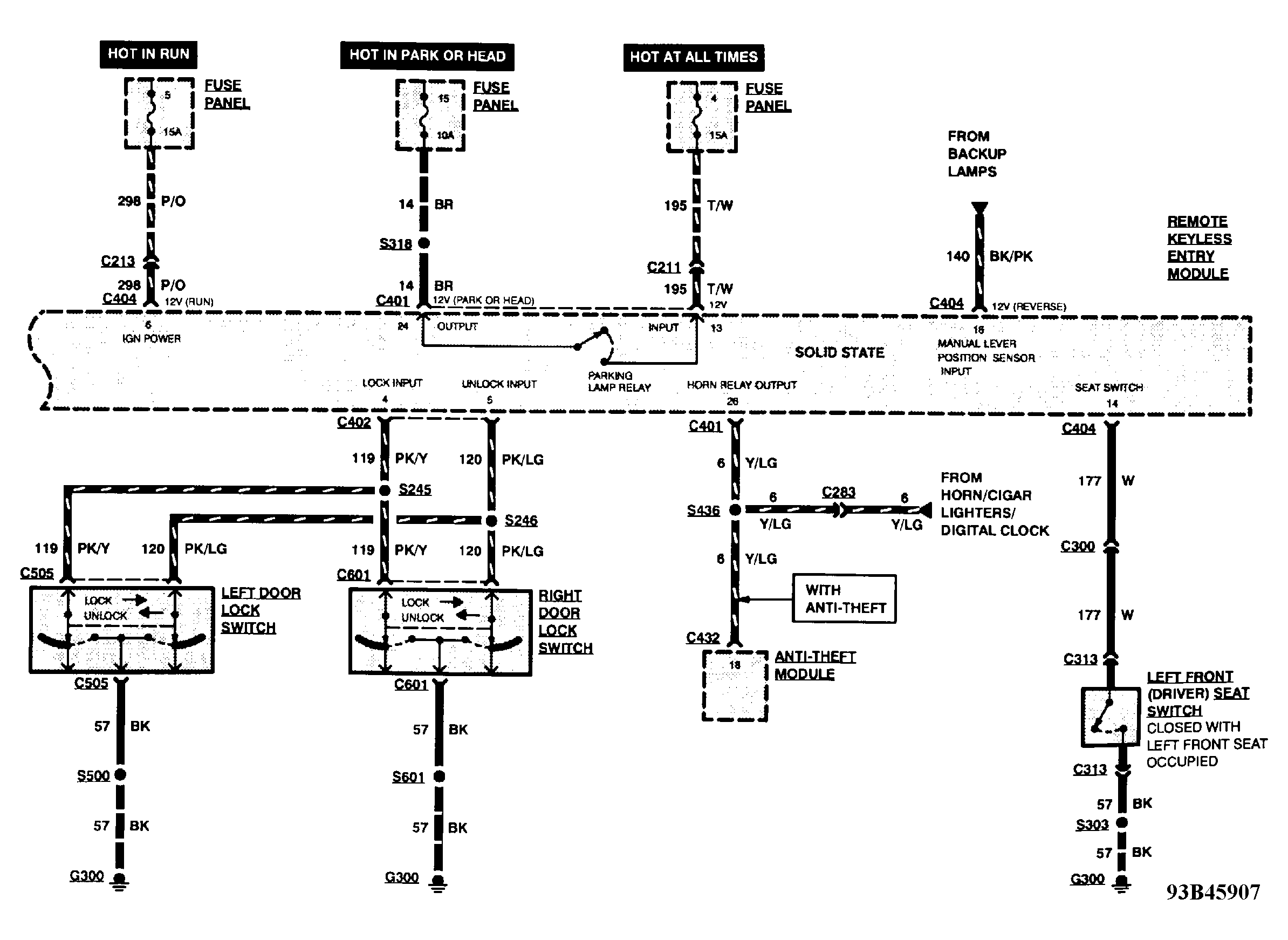

Fig 1: Remote Keyless Entry With Power Door Locks Wiring Diagram (Continental - 1 Of 5)

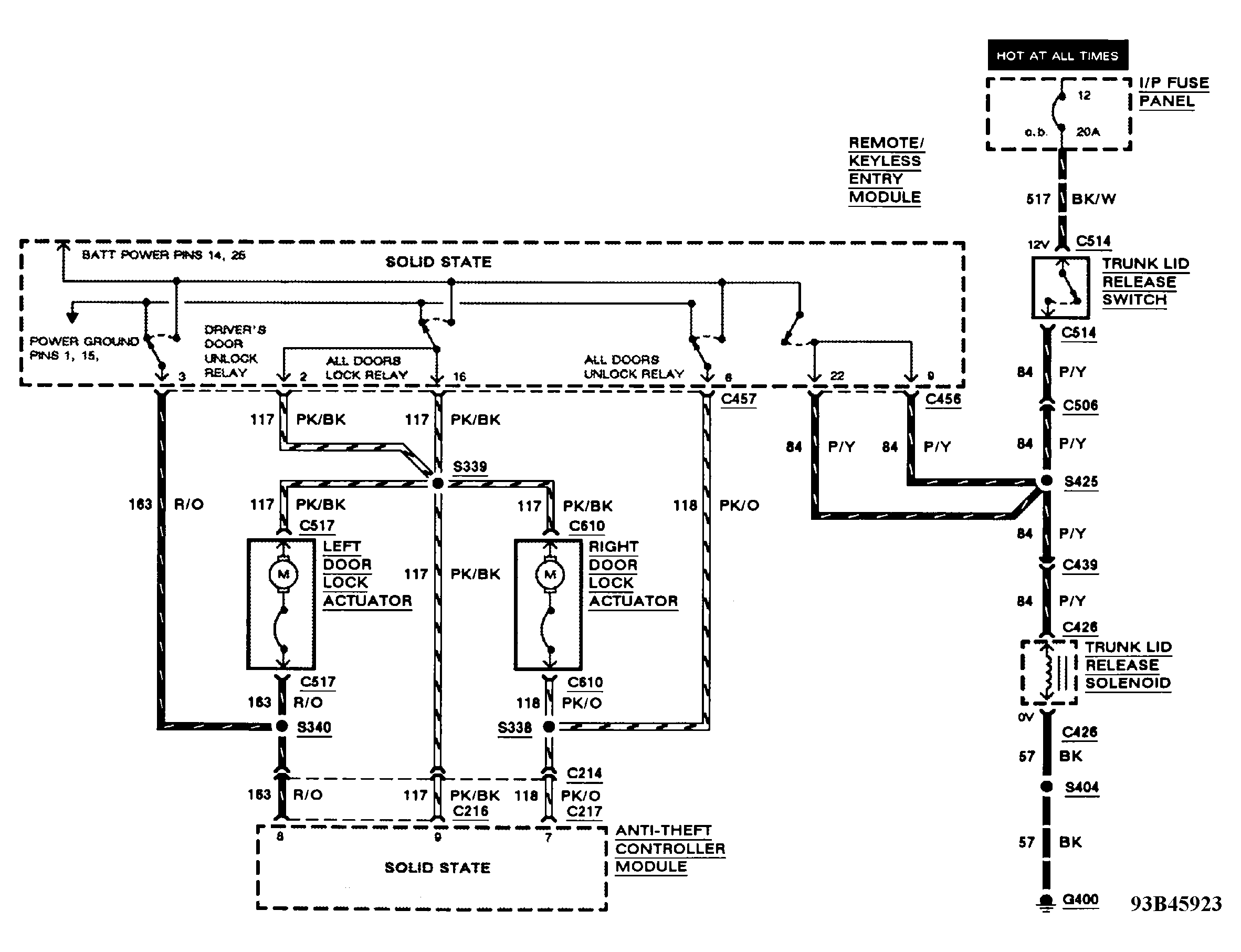

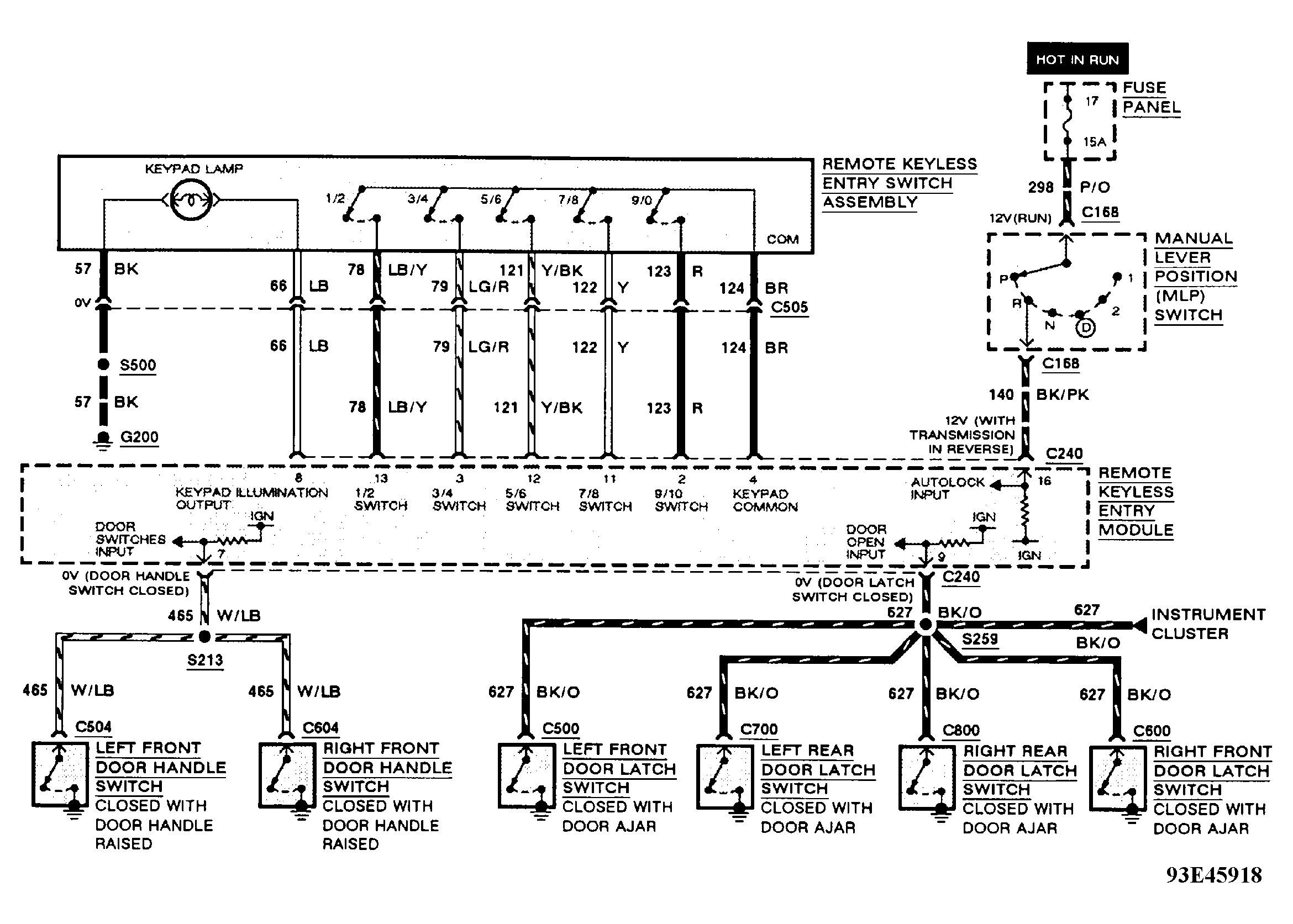

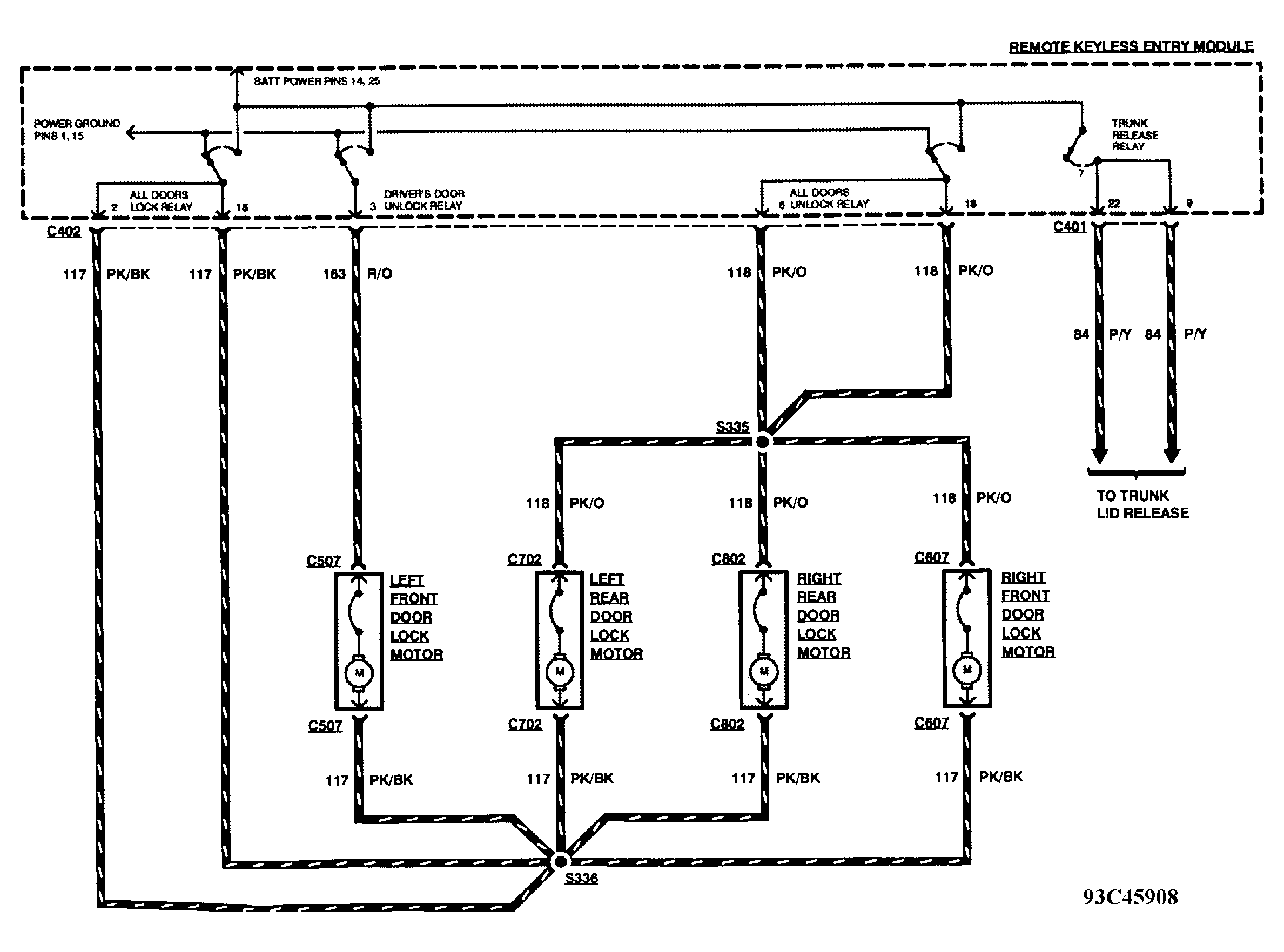

Fig 2: Remote Keyless Entry With Power Door Locks Wiring Diagram (Continental - 2 Of 5)

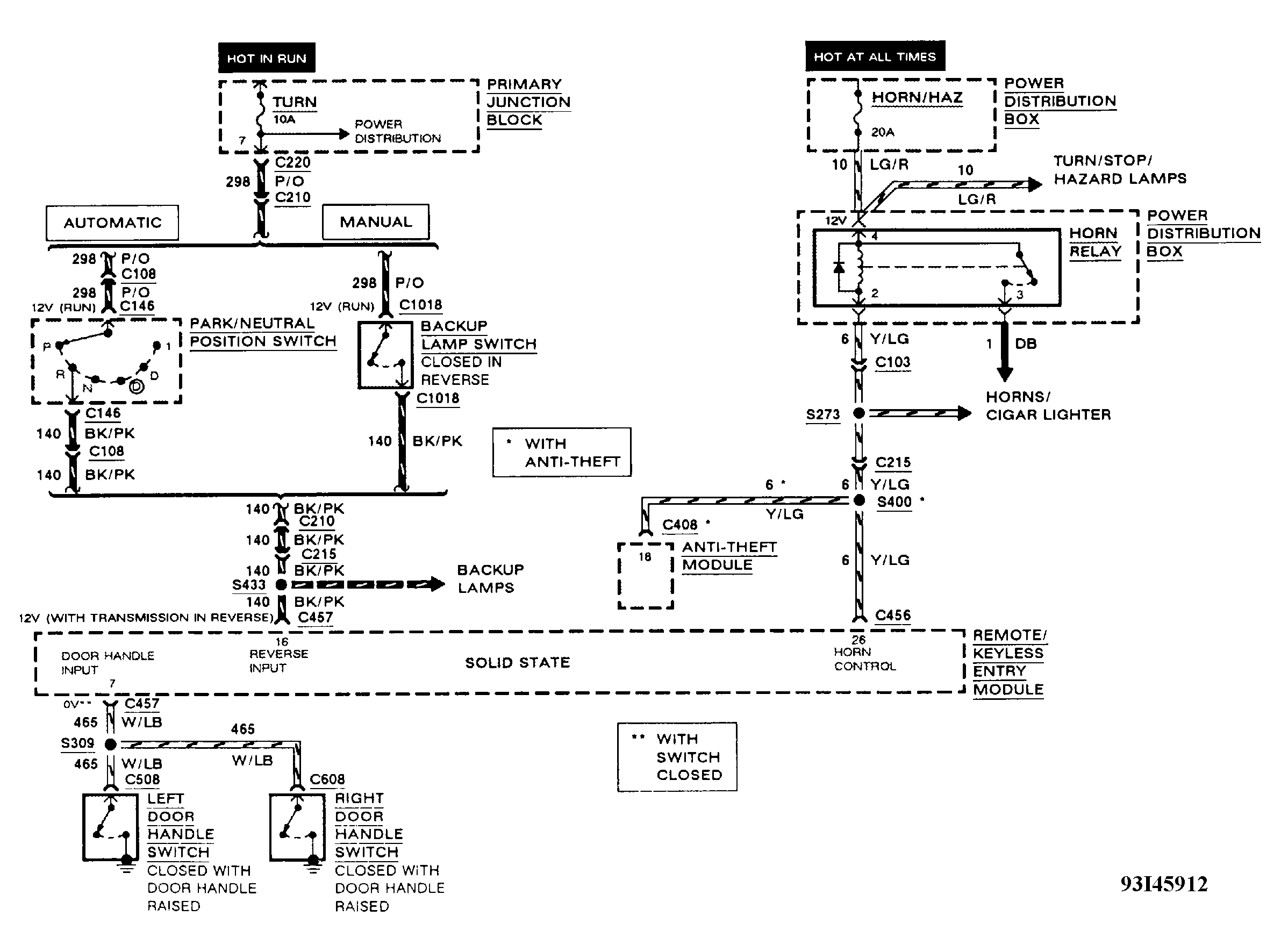

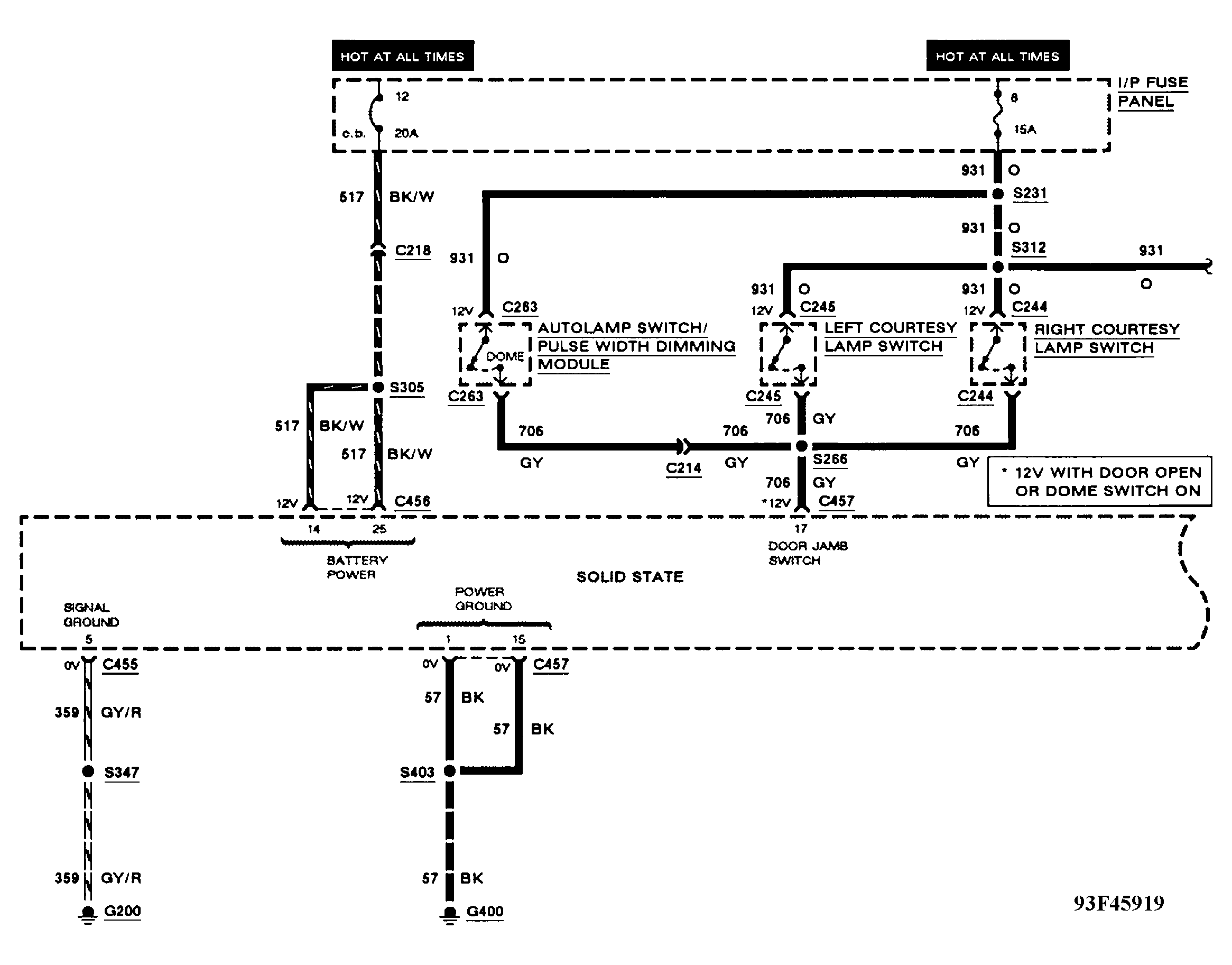

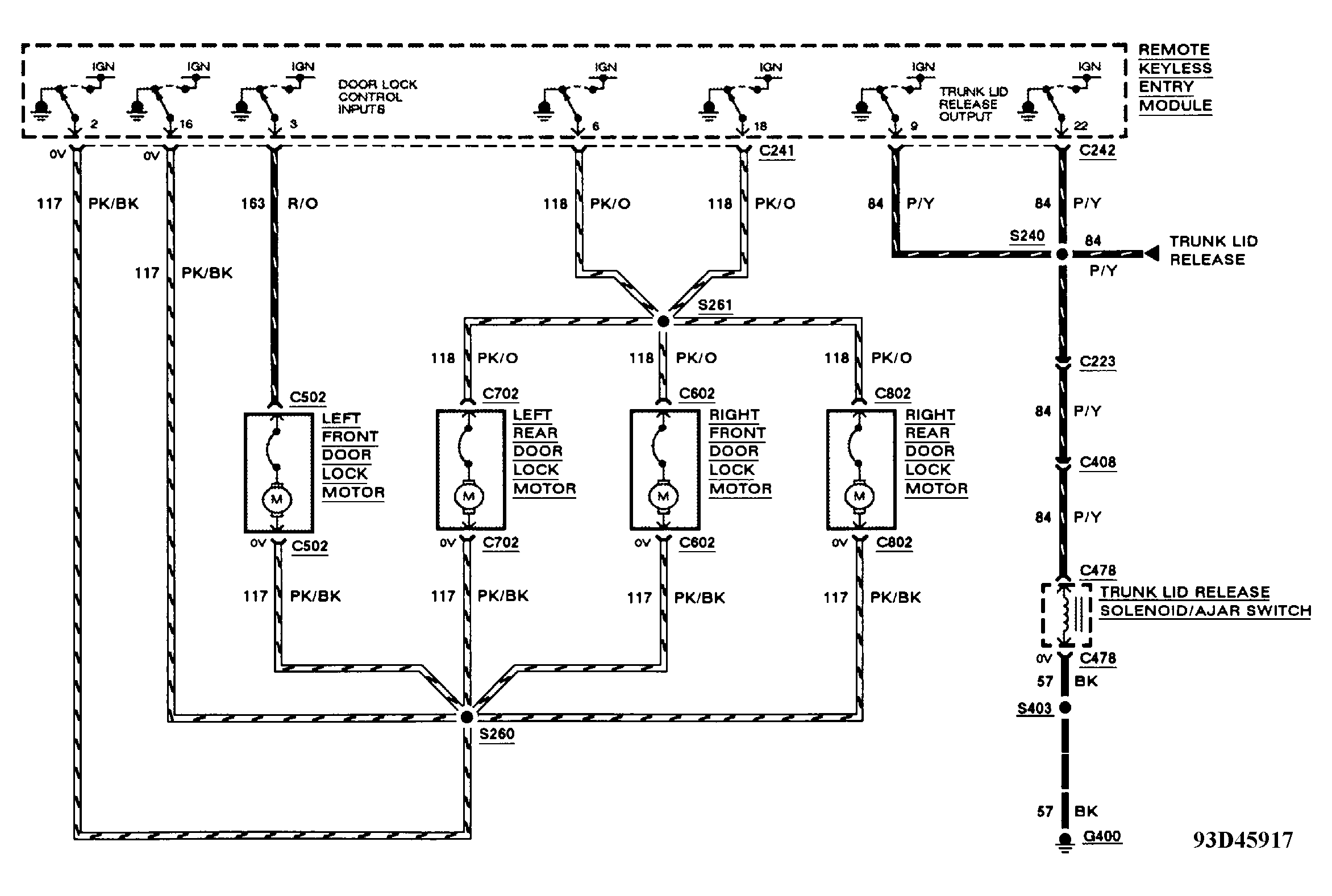

Fig 3: Remote Keyless Entry With Power Door Locks Wiring Diagram (Continental - 3 Of 5)

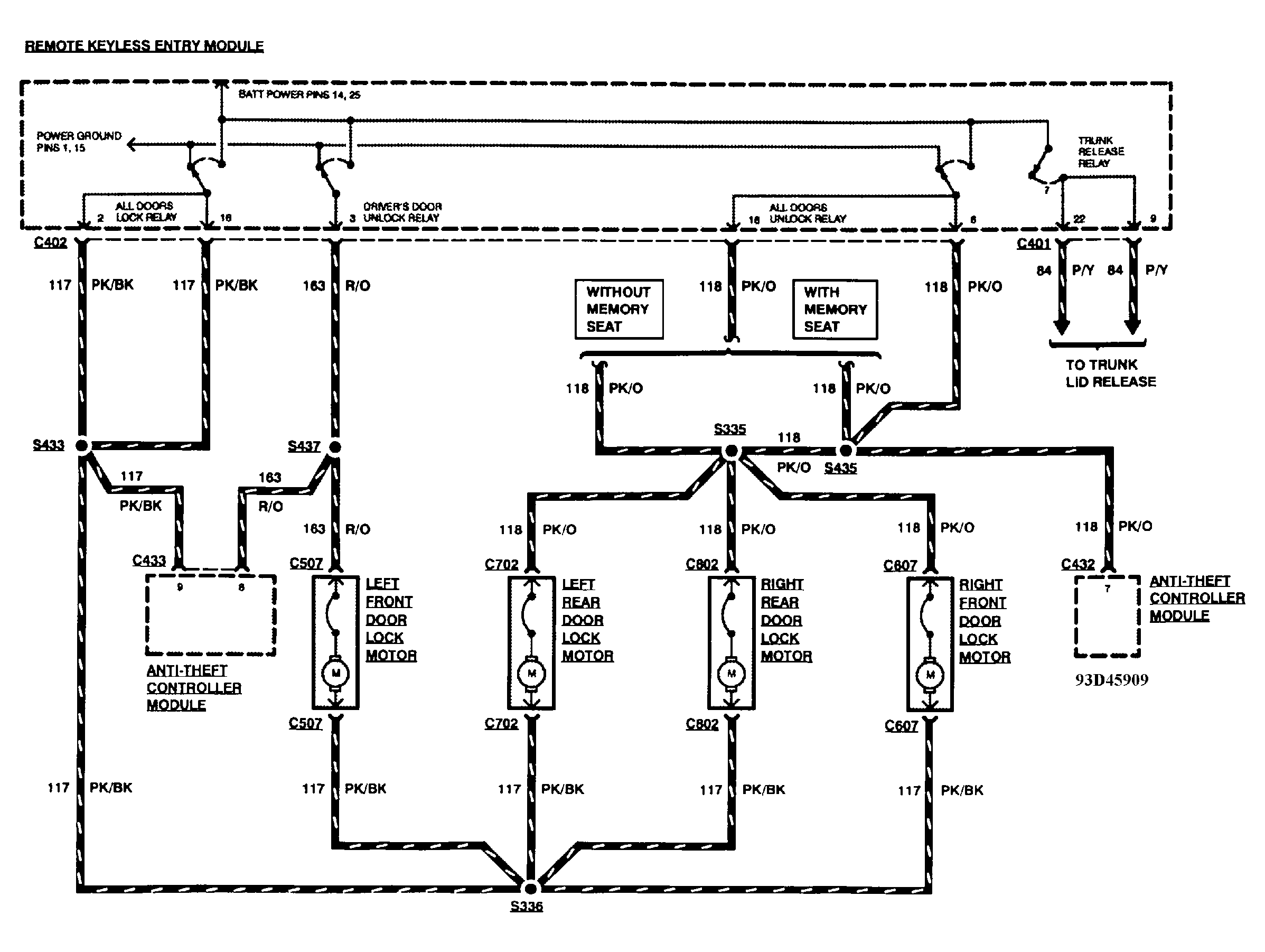

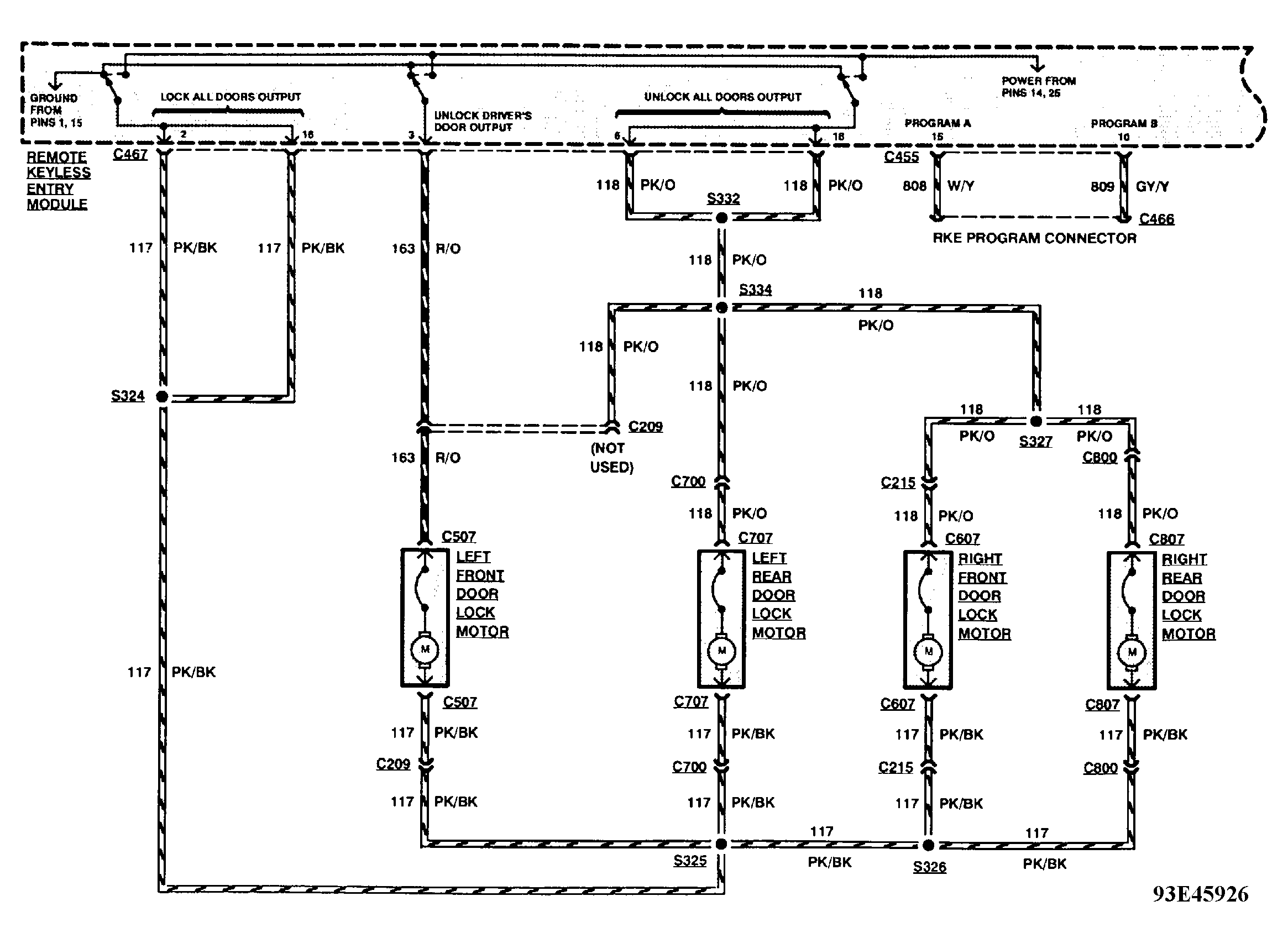

Fig 4: Remote Keyless Entry With Power Door Locks Wiring Diagram (Continental - 4 Of 5)

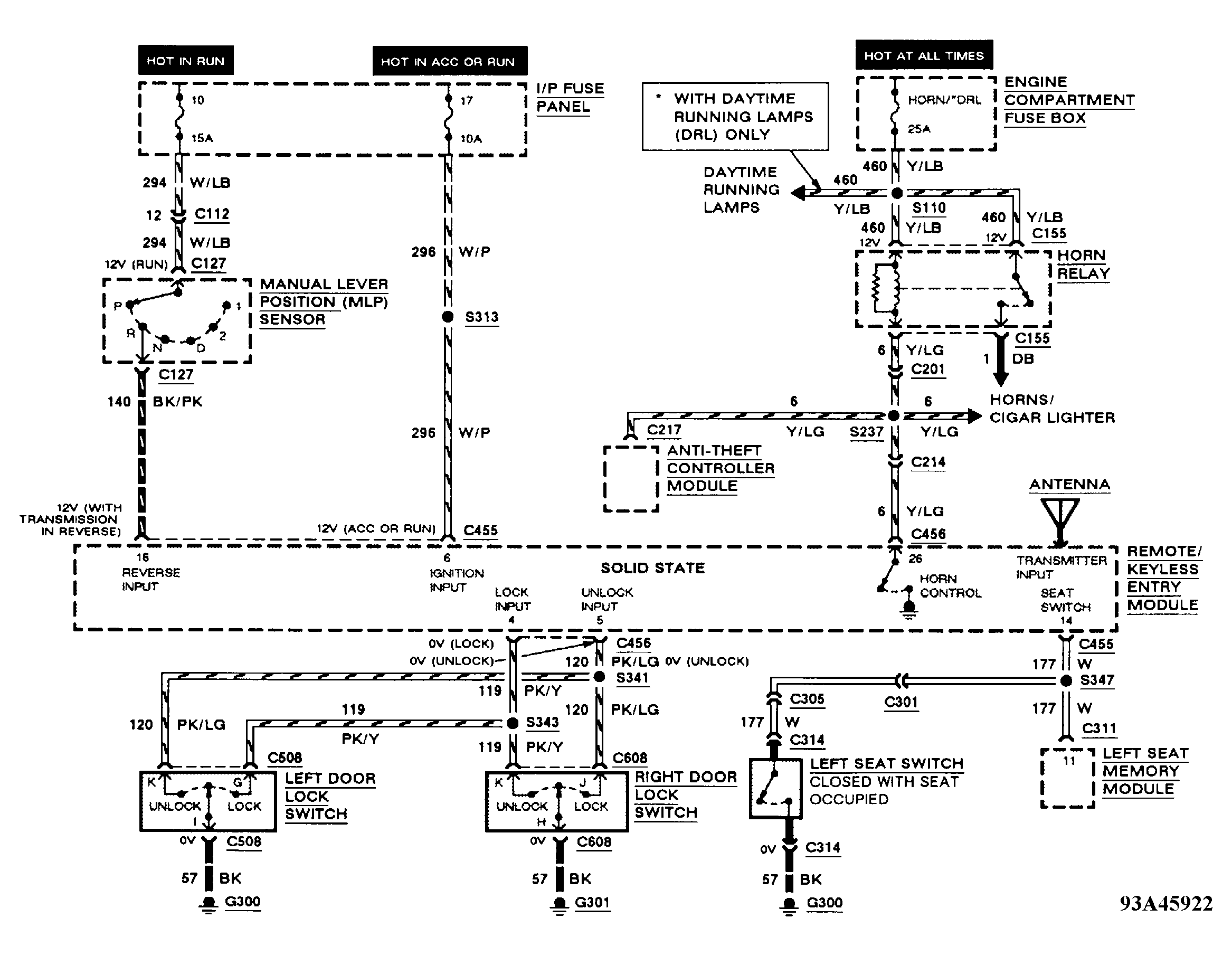

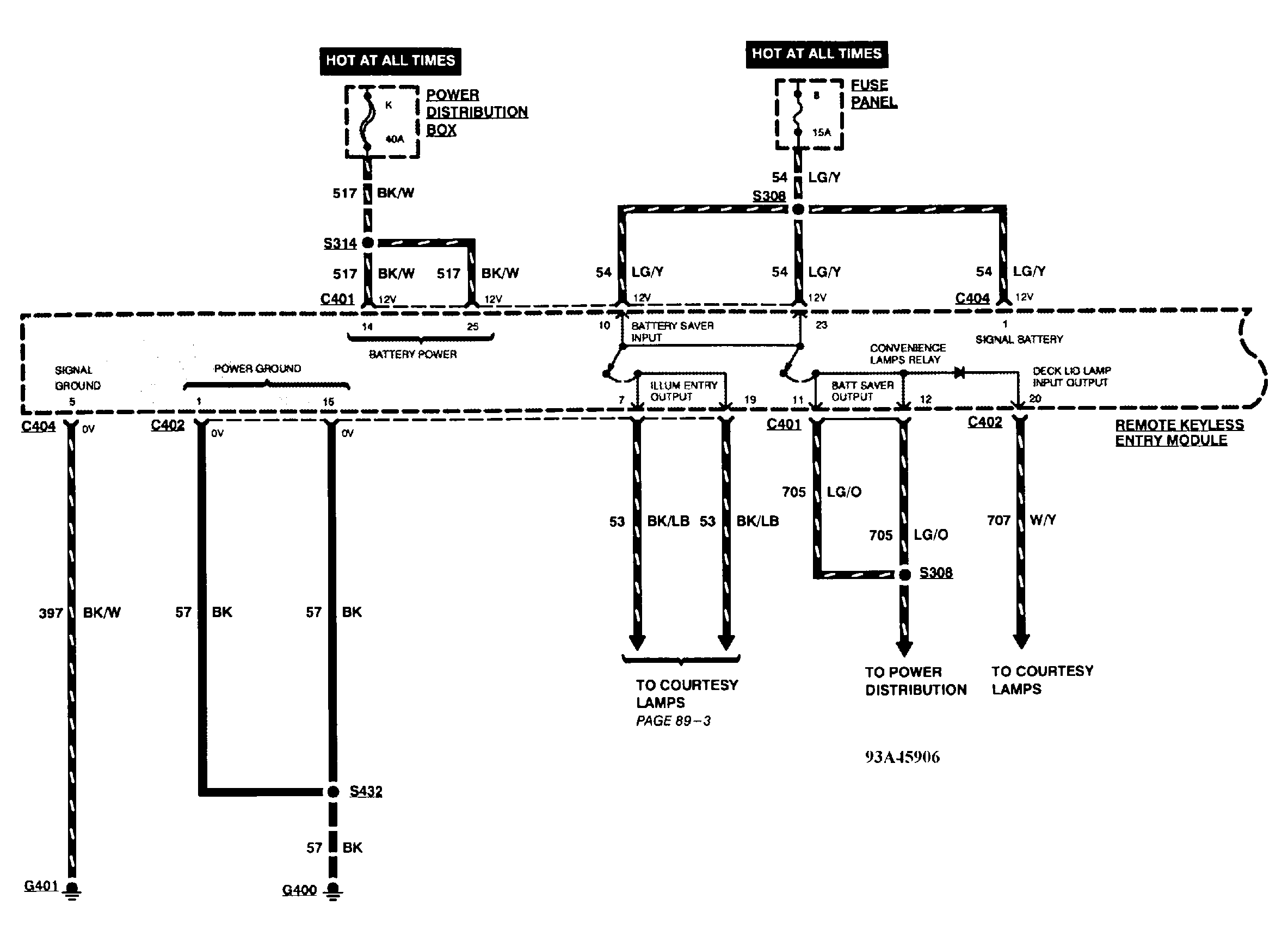

Fig 5: Remote Keyless Entry With Power Door Locks Wiring Diagram (Continental - 5 Of 5)

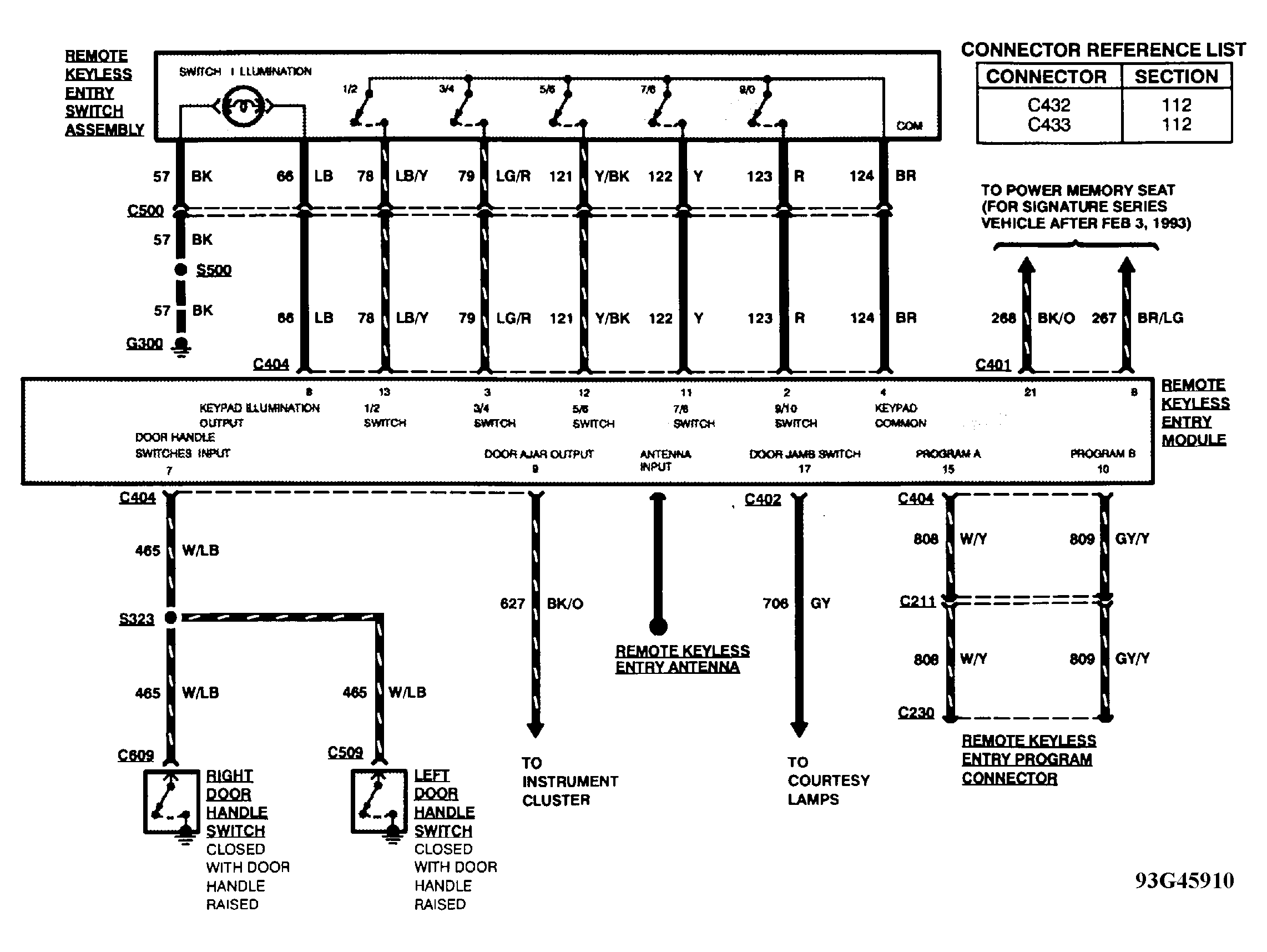

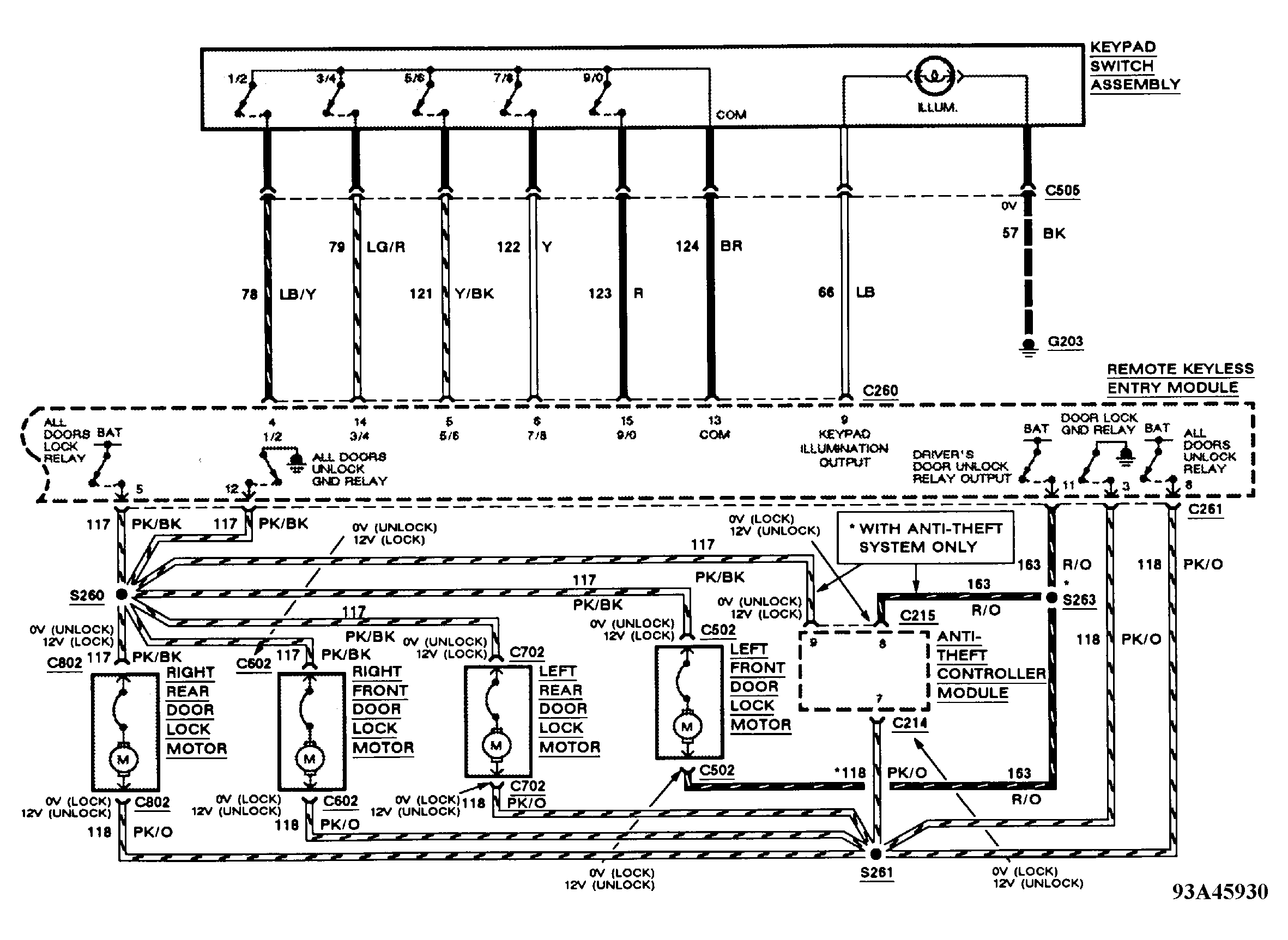

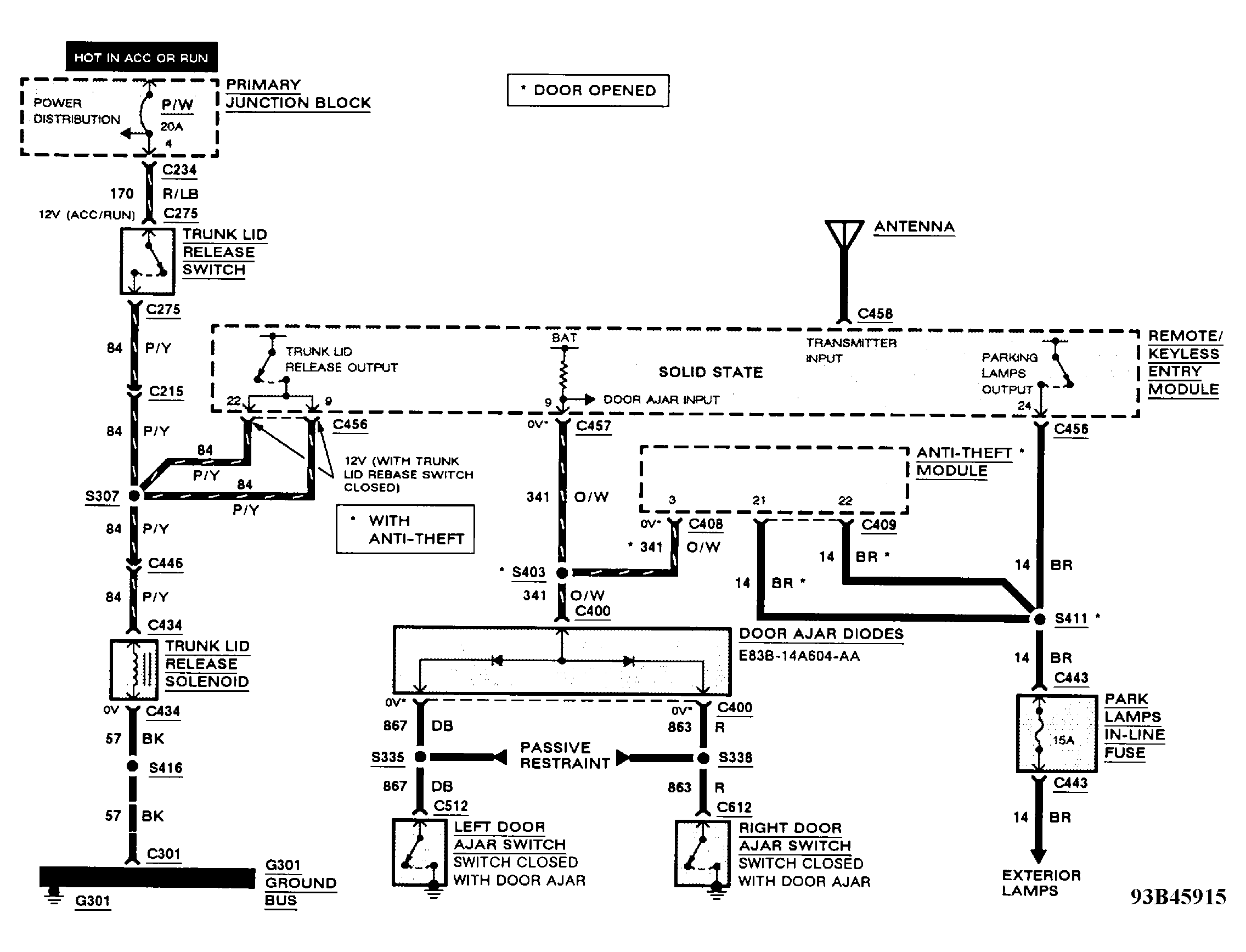

Fig 6: Remote Keyless Entry Wiring Diagram (Cougar & Thunderbird - 1 Of 4)

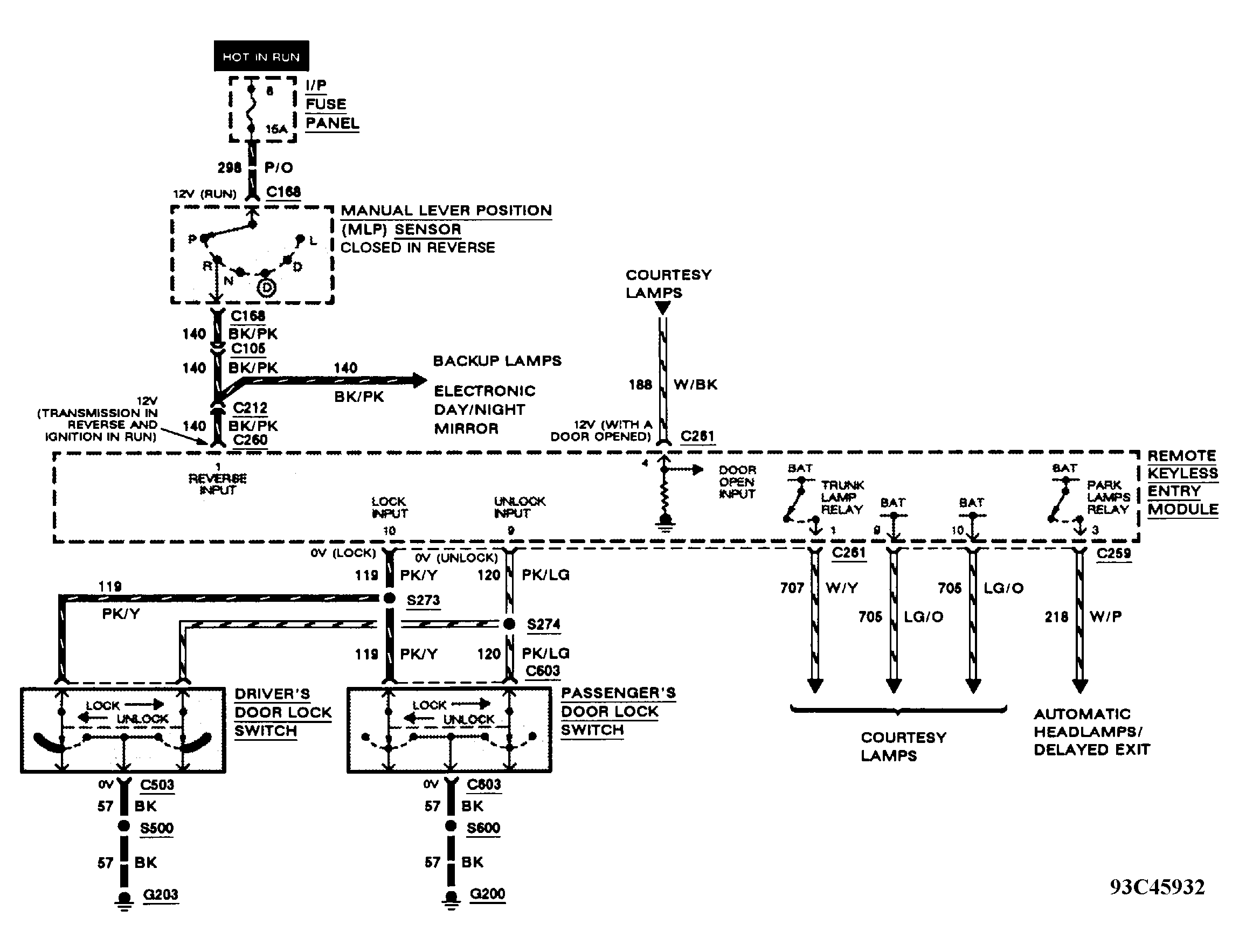

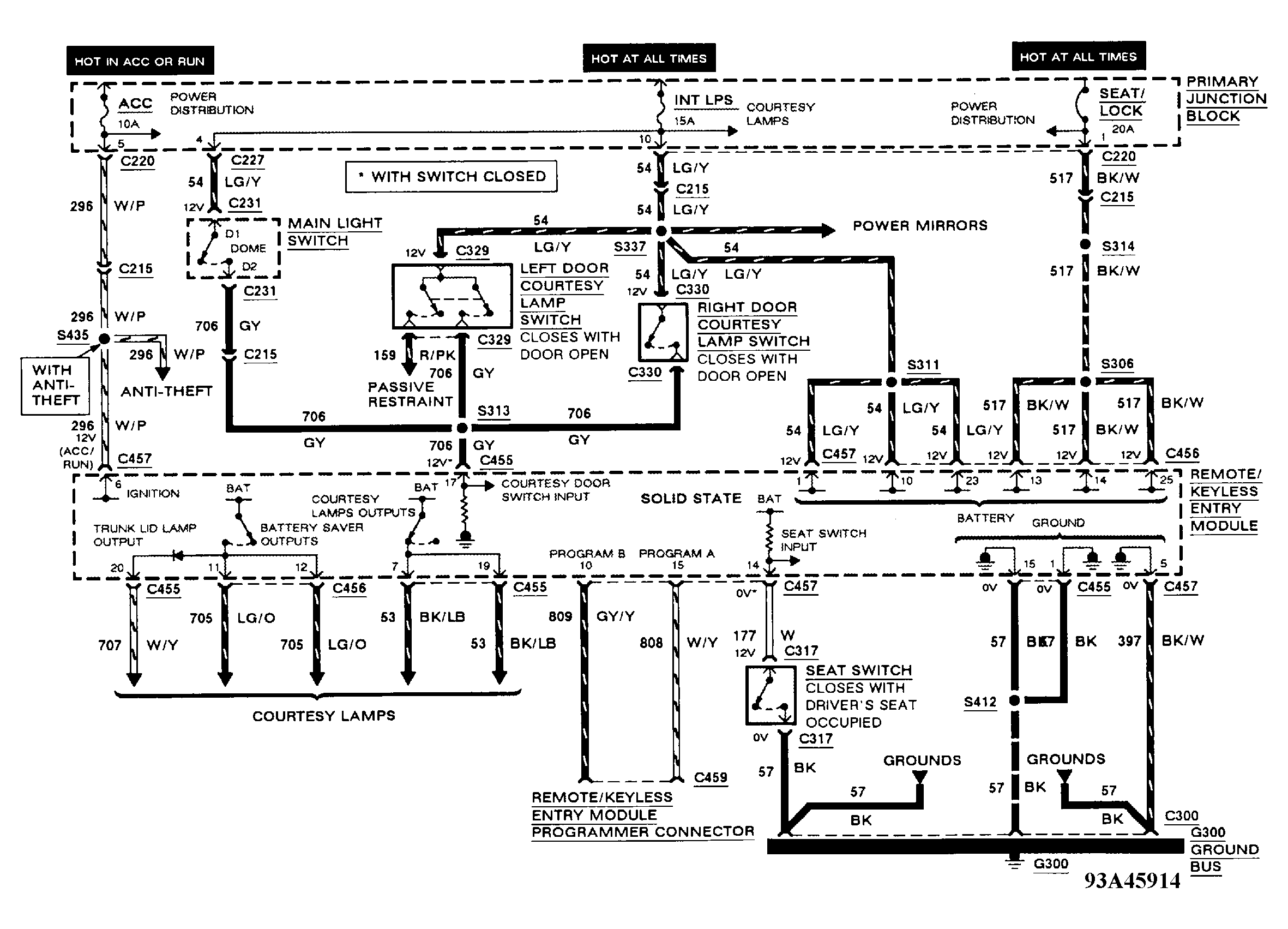

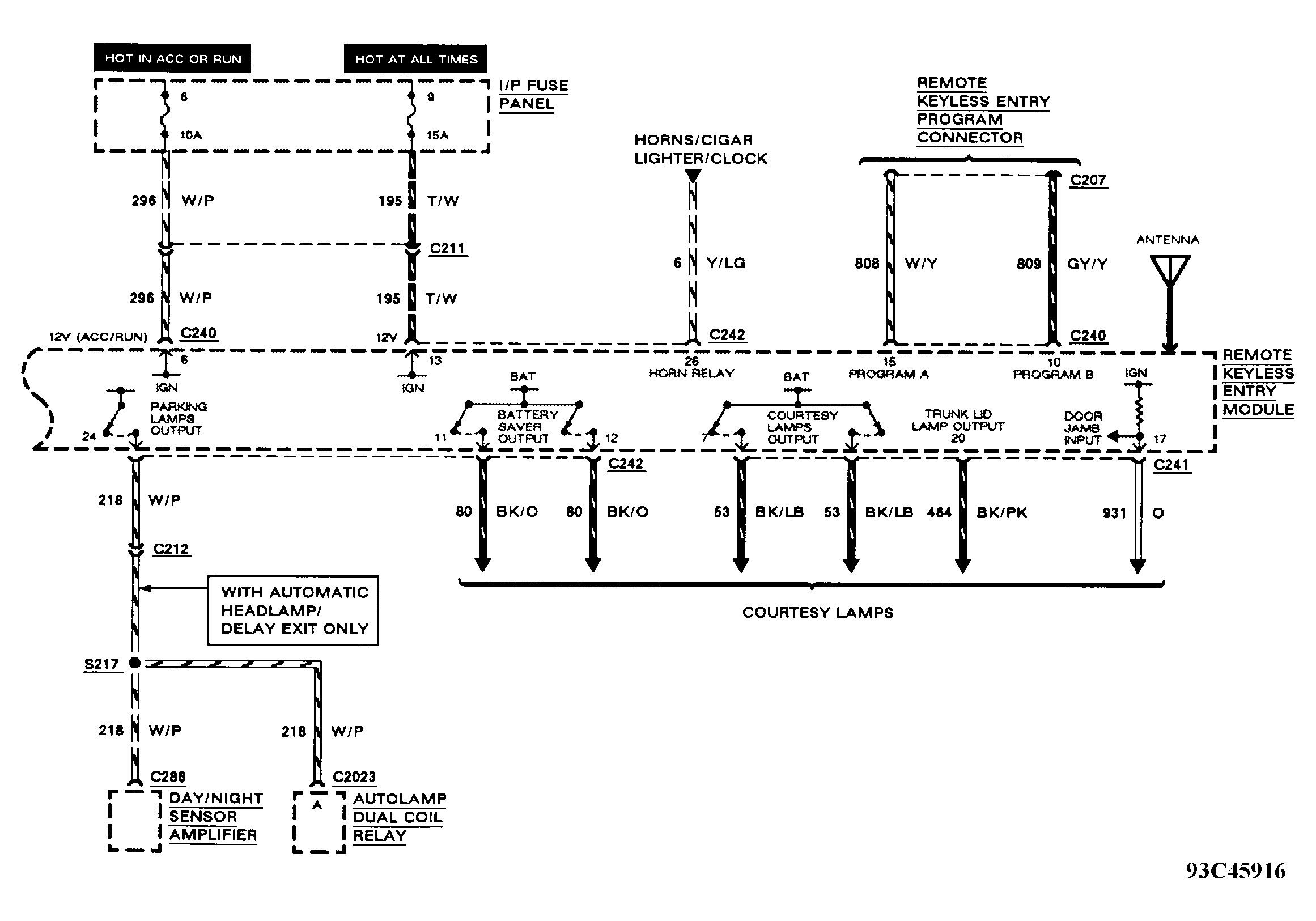

Fig 7: Remote Keyless Entry Wiring Diagram (Cougar & Thunderbird - 2 Of 4)

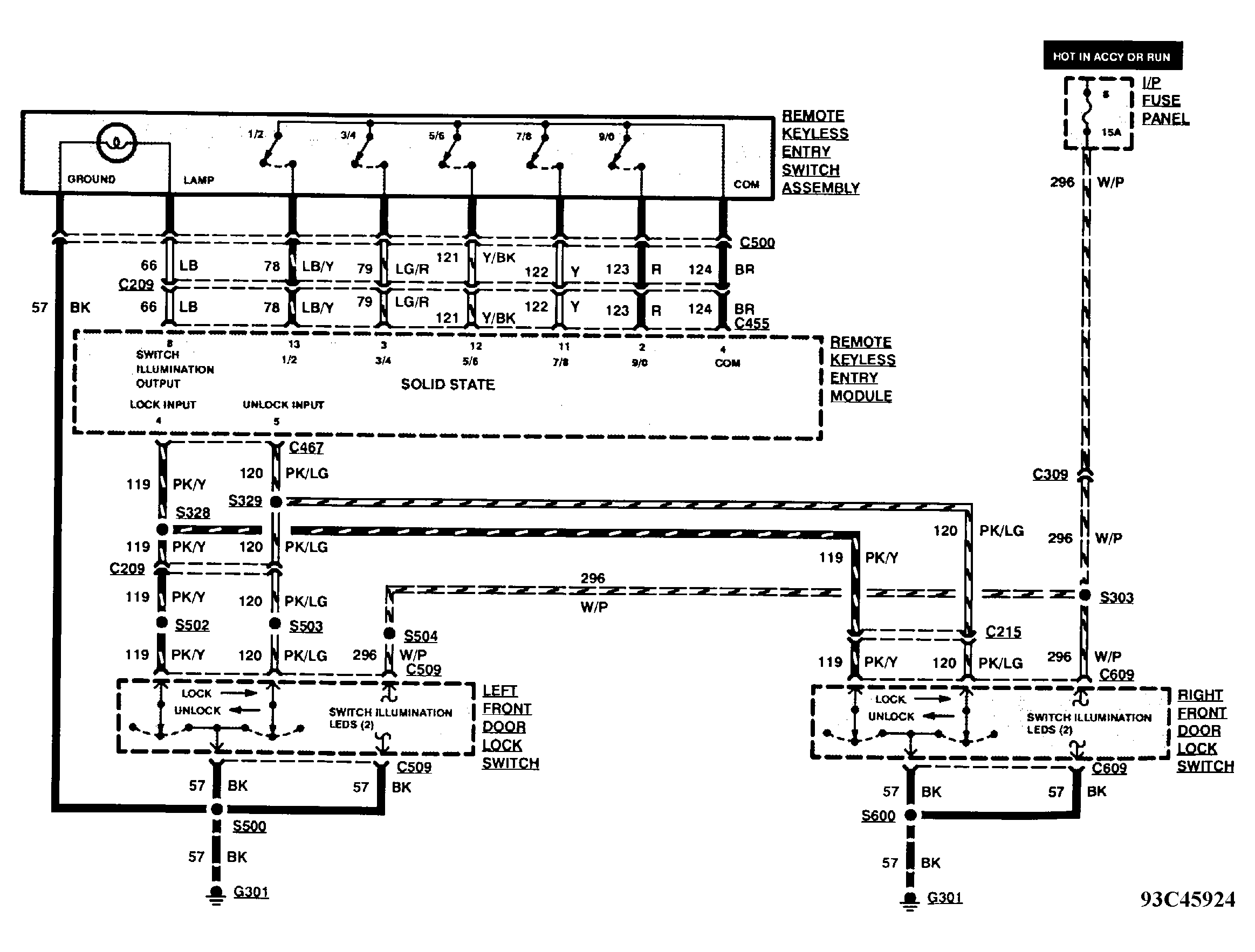

Fig 8: Remote Keyless Entry Wiring Diagram (Cougar & Thunderbird - 3 Of 4)

Fig 9: Remote Keyless Entry Wiring Diagram (Cougar & Thunderbird - 4 Of 4)

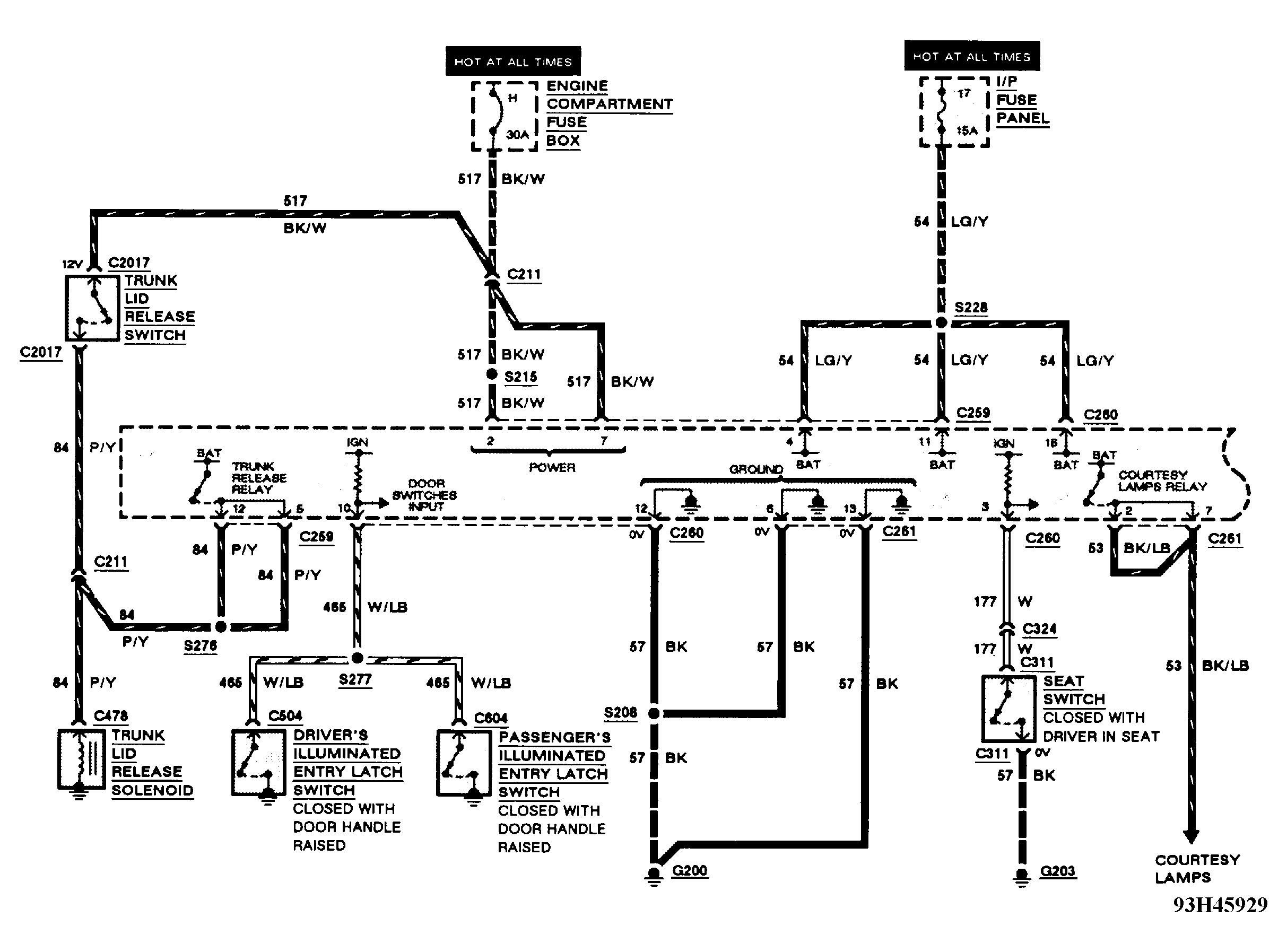

Fig 10: Remote Keyless Entry With Illuminated Entry Wiring Diagram (Crown Victoria & Grand Marquis - 1 Of 4)

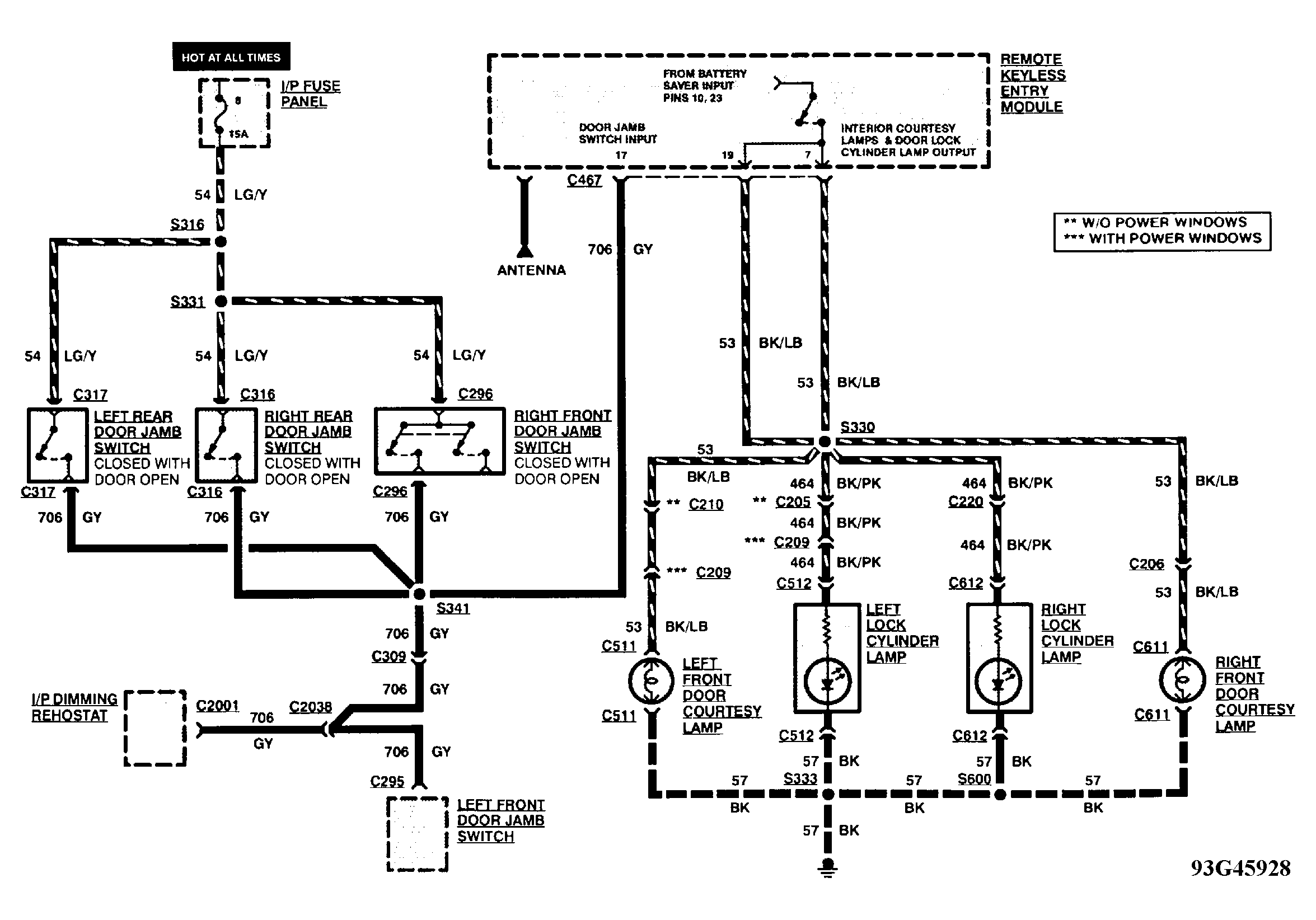

Fig 11: Remote Keyless Entry With Illuminated Entry Wiring Diagram (Crown Victoria & Grand Marquis - 2 Of 4)

Fig 12: Remote Keyless Entry With Illuminated Entry Wiring Diagram (Crown Victoria & Grand Marquis - 3 Of 4)

Fig 13: Remote Keyless Entry With Illuminated Entry Wiring Diagram (Crown Victoria & Grand Marquis - 4 Of 4)

Fig 14: Remote Keyless Entry Wiring Diagram (Mark VIII - 1 Of 5)

Fig 15: Remote Keyless Entry Wiring Diagram (Mark VIII - 2 Of 5)

Fig 16: Remote Keyless Entry Wiring Diagram (Mark VIII - 3 Of 5)

Fig 17: Remote Keyless Entry Wiring Diagram (Mark VIII - 4 Of 5)

Fig 18: Remote Keyless Entry Wiring Diagram (Mark VIII - 5 Of 5)

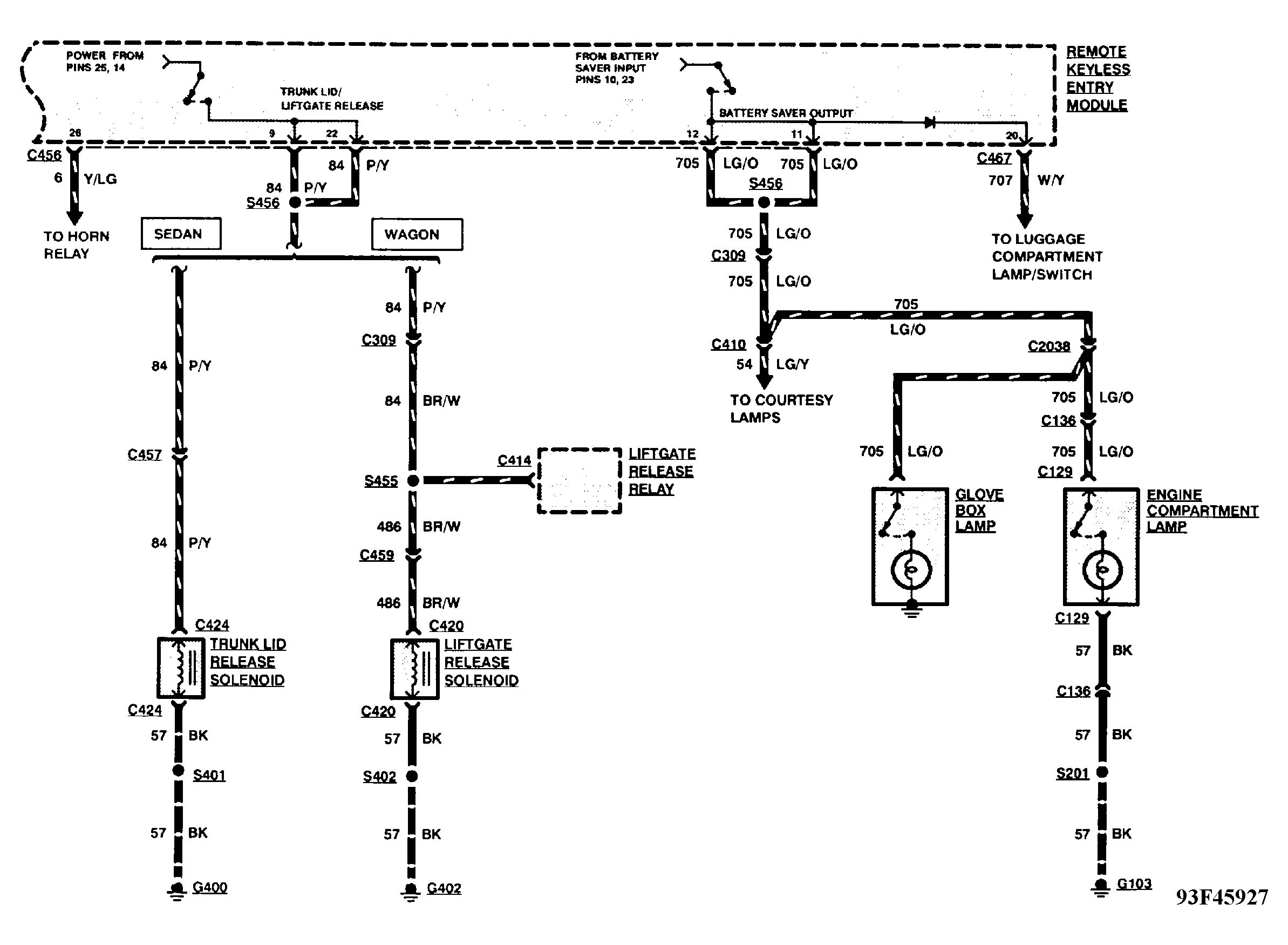

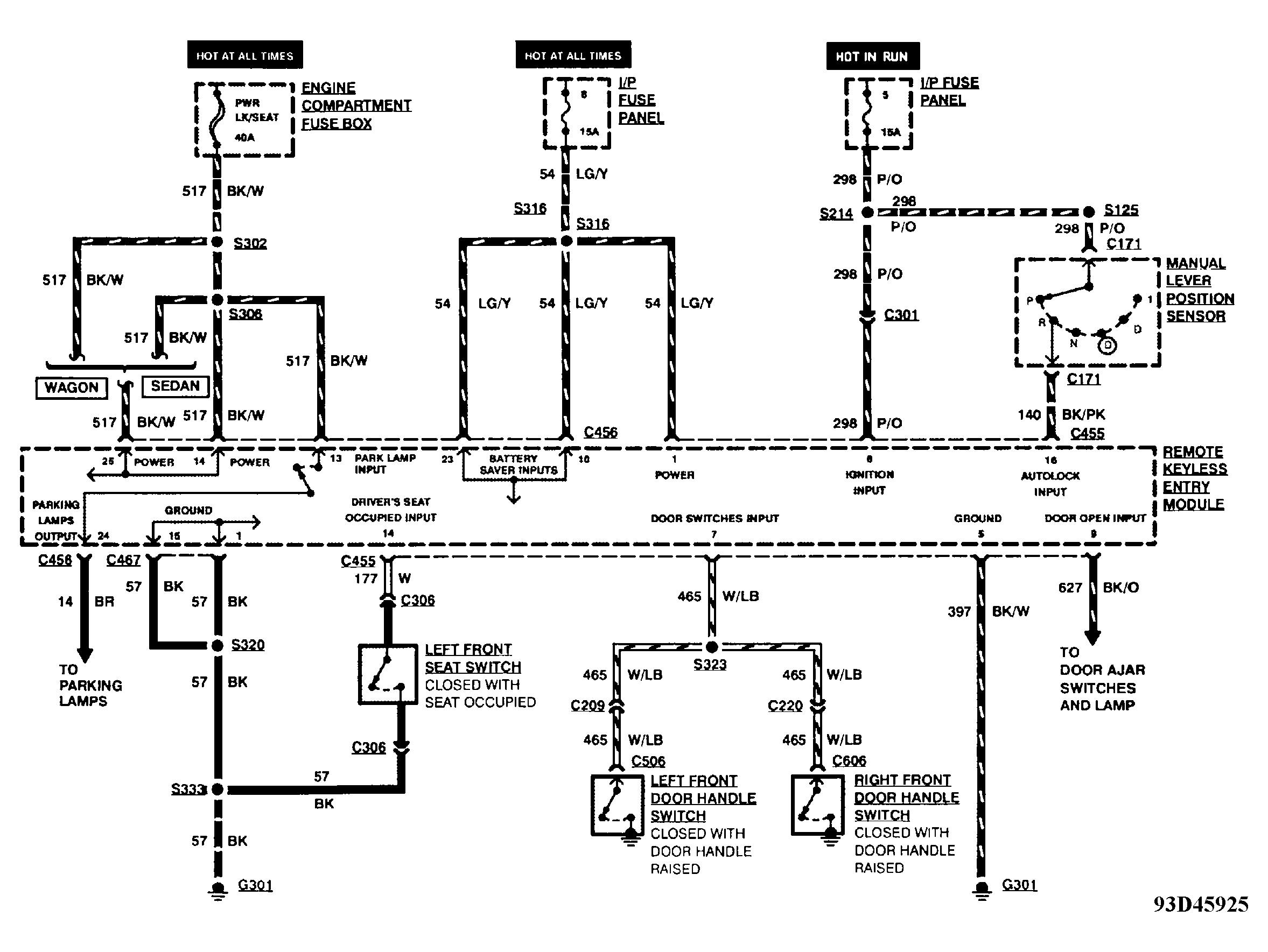

Fig 19: Remote Keyless Entry Wiring Diagram (Sable & Taurus - 1 Of 5)

Fig 20: Remote Keyless Entry Wiring Diagram (Sable & Taurus - 2 Of 5)

Fig 21: Remote Keyless Entry Wiring Diagram (Sable & Taurus - 3 Of 5)

Fig 22: Remote Keyless Entry Wiring Diagram (Sable & Taurus - 4 Of 5)

Fig 23: Remote Keyless Entry Wiring Diagram (Sable & Taurus - 5 Of 5)

Fig 24: Remote Keyless Entry Wiring Diagram (Town Car - 1 Of 4)

Fig 25: Remote Keyless Entry Wiring Diagram (Town Car - 2 Of 4)

Fig 26: Remote Keyless Entry Wiring Diagram (Town Car - 3 Of 4)

Fig 27: Remote Keyless Entry Wiring Diagram (Town Car - 3 Of 4)
