Checking Riding Height

  1. Drive onto alignment rack. Turn ignition off. Level rack as necessary. Turn ignition switch to RUN position (DO NOT start). Allow one minute for vehicle to level. Push trunk release, turn ignition off and exit vehicle.
  2. Allow 20 seconds for vehicle to vent to trim height (all doors closed). Turn air suspension system switch to OFF position. Switch is located in trunk, on left front side panel. Check for proper riding height. See Fig 1. Adjust as necessary.

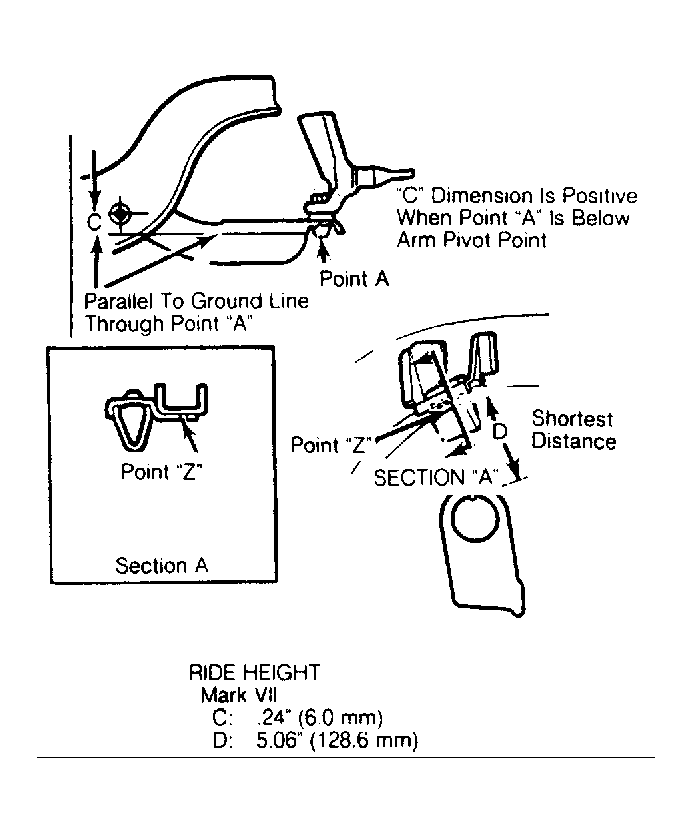

Fig 1: Checking Riding Height (Mark VII)
G56536Courtesy of FORD MOTOR CO.
