Ford
>>
1993
>>
Taurus V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>

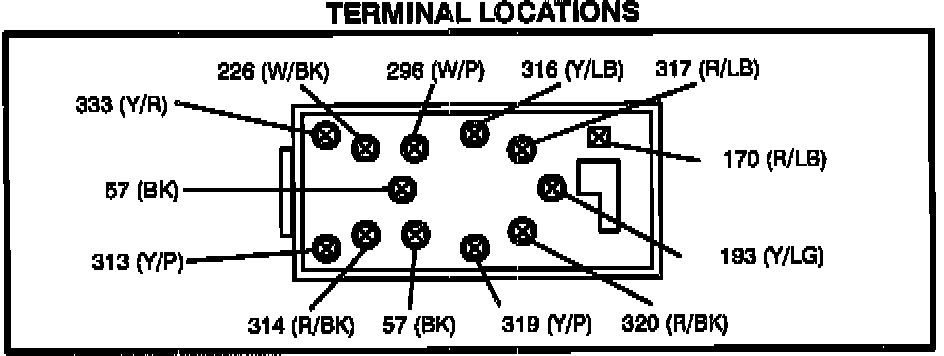

Master Window Control Switch
>>
Component Side
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Side
Terminal ID:
