Blower Motor Speed Control

WITH AUTOMATIC TEMPERATURE CONTROL

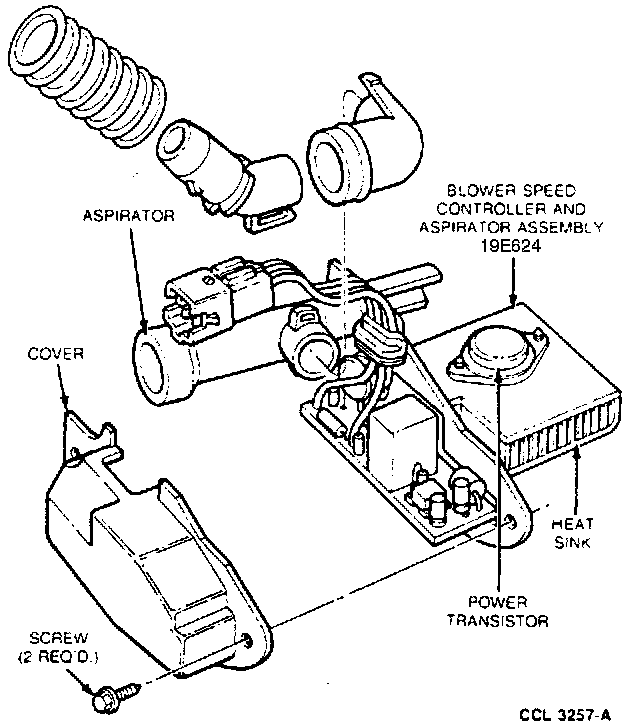

Blower Speed Controller:

BLOWER SPEED CONTROLLER
The blower speed controller is located in the evaporator case, upstream of the evaporator core.

CAUTION: The system should not be operated with the blower motor disconnected. Damage may occur to the electronic blower speed controller if cooling air is not provided by the blower motor.
