X - Constant Control Relay Module (CCRM)
>>
X94 - Check Power Pump Continuity Between CCRM and IFS Switch
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

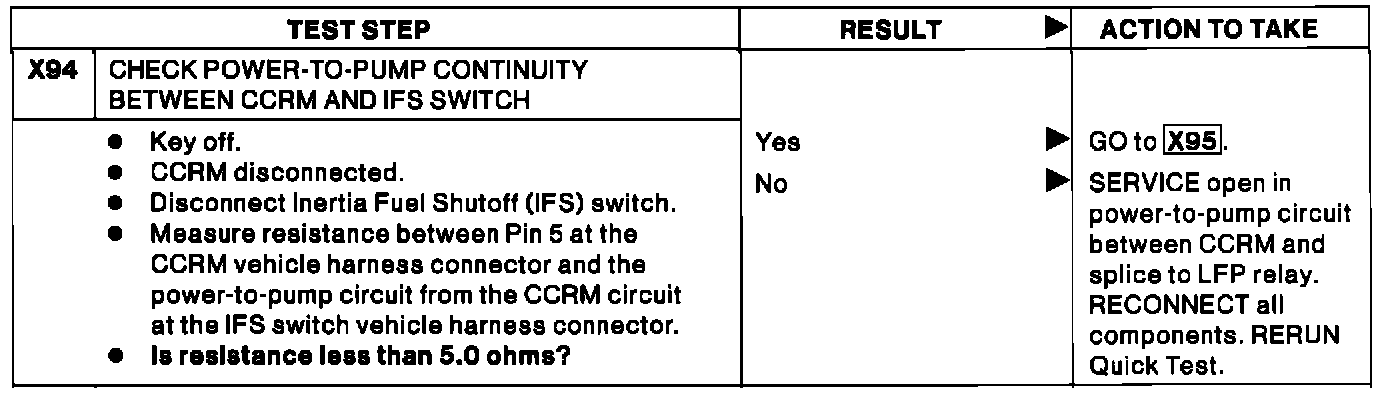

X94 - Check Power Pump Continuity Between CCRM and IFS Switch
Pinpoint Test X94:
