Transmission Position Sensor/Switch: Testing and Inspection

Component Testing Procedure:

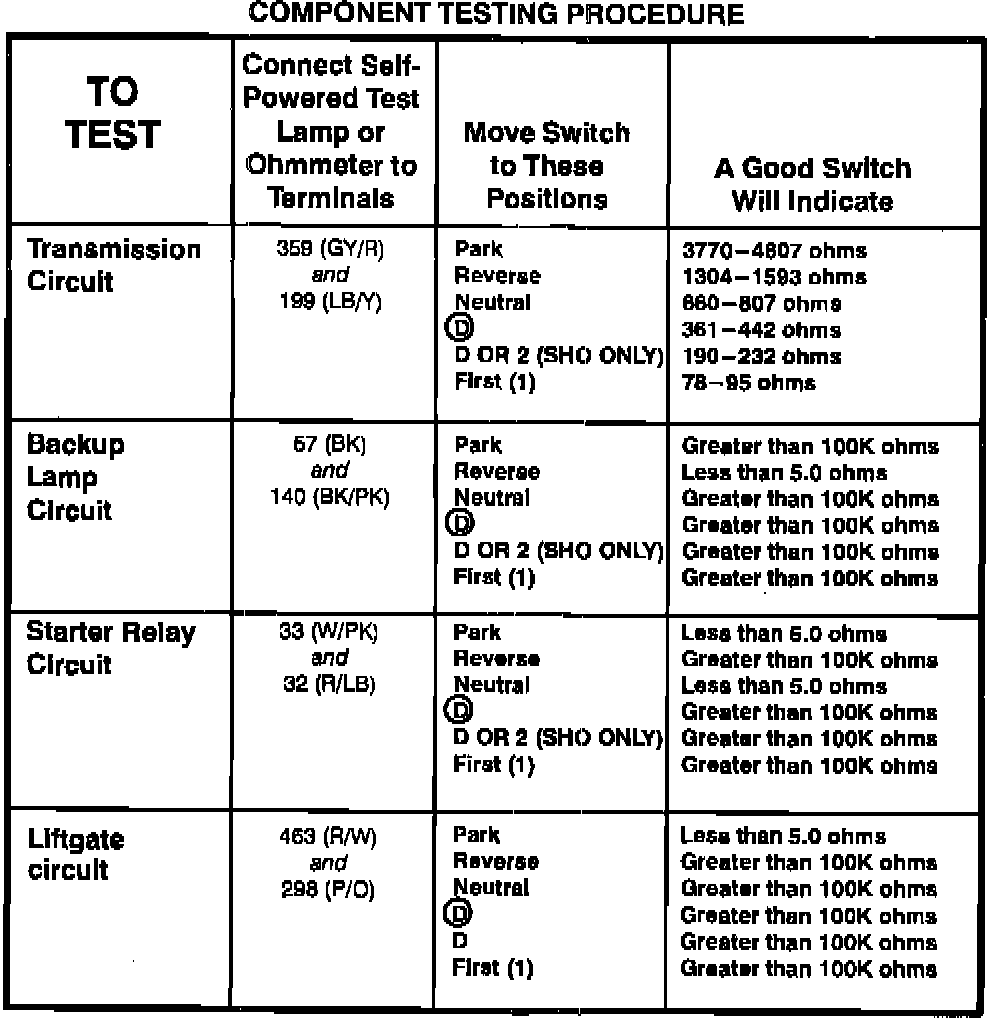

COMPONENT TESTING PROCEDURE

Manual Lever Position Sensor:

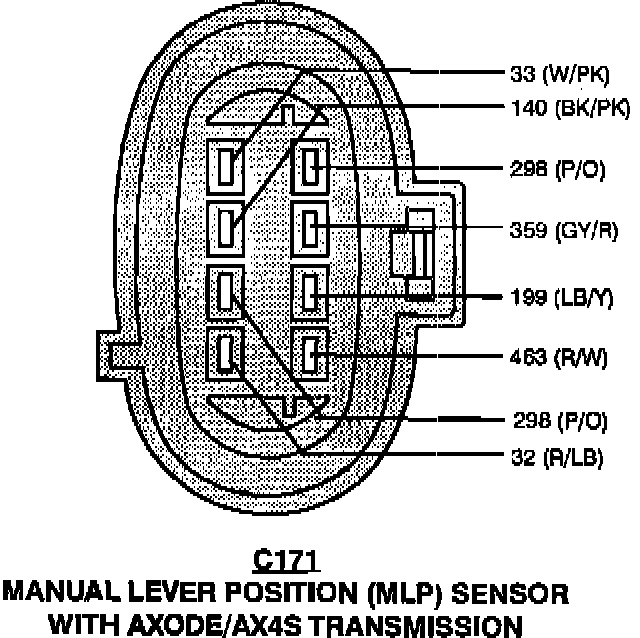

TERMINAL IDENTIFICATION

Schematic,MLP Sensor:

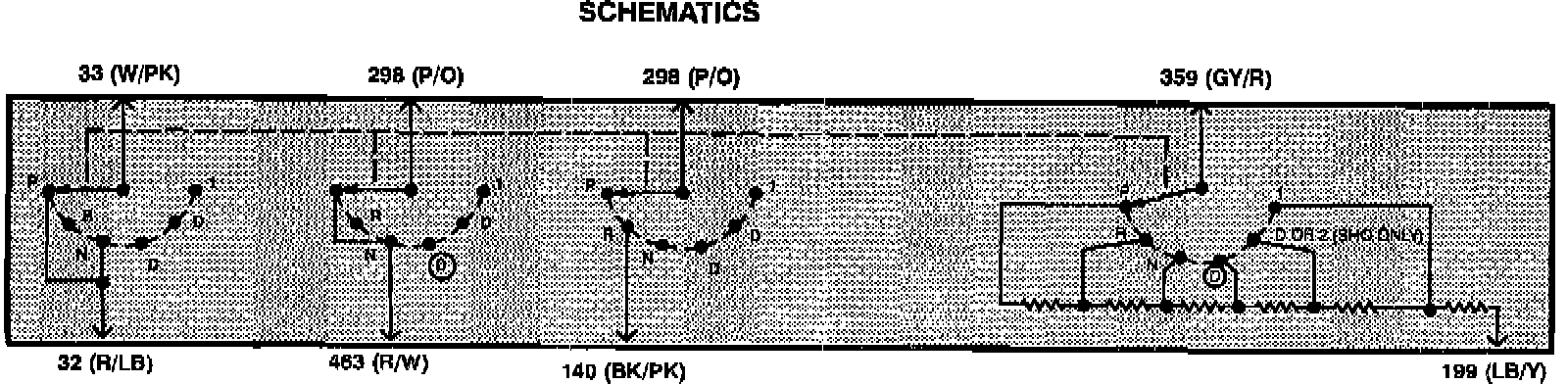

SCHEMATIC


For additional diagnosis of the Manual Positioner Sensor, go to Powertrain Management/Computers and Control Systems/Testing and Inspection. Testing and Inspection
