Ignition Switch: Testing and Inspection

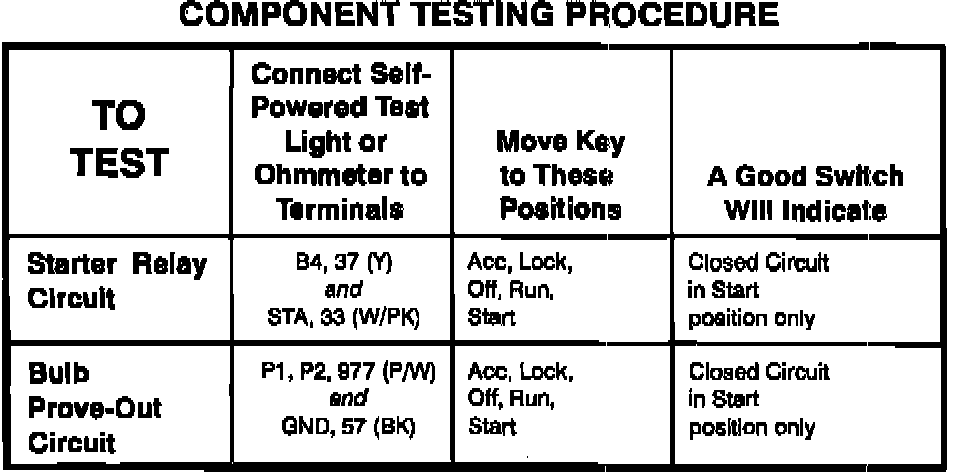

Component Testing Procedure:

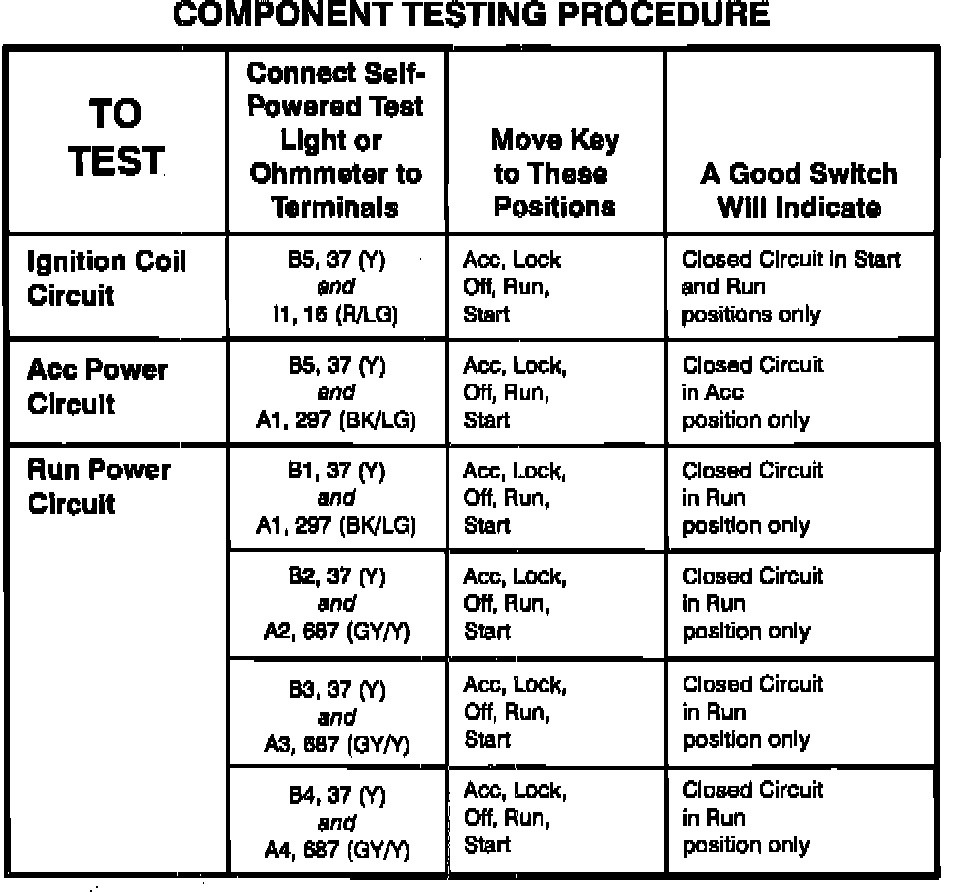

Component Testing Procedure:

COMPONENT TESTING PROCEDURE

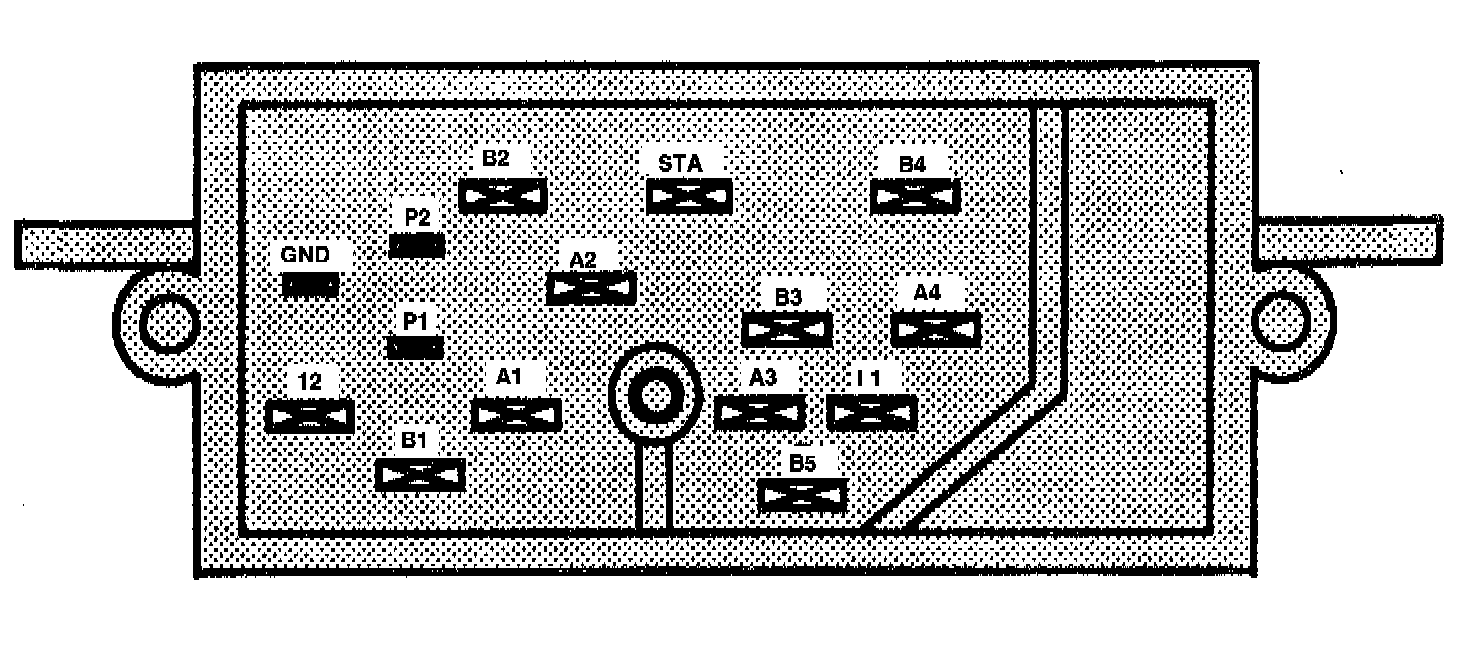

Terminal ID, Ignition Switch:

TERMINAL IDENTIFICATION

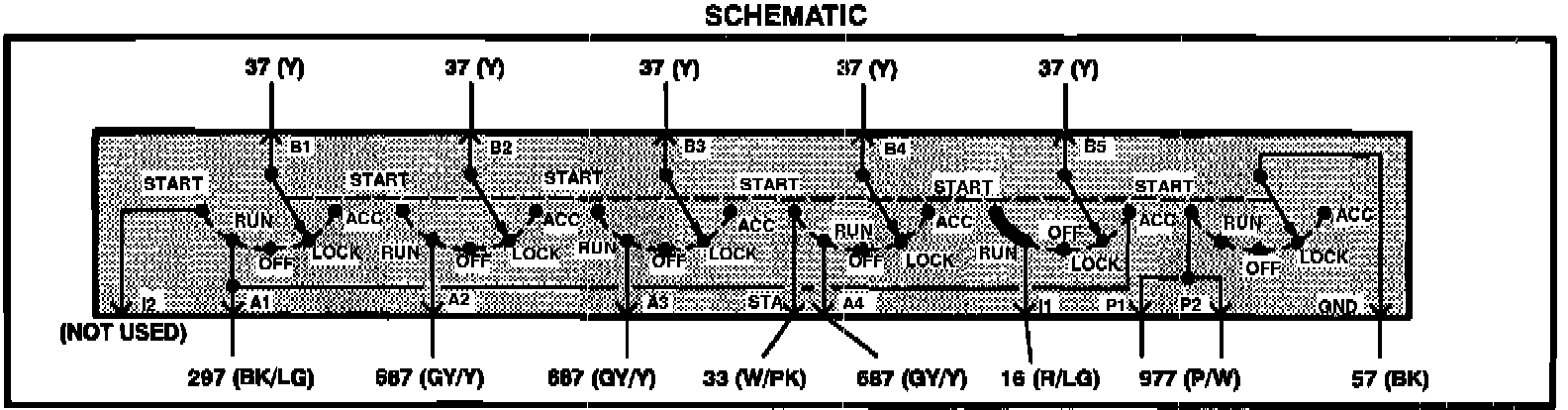

Schematic, Ignition Switch:

SCHEMATIC
