Home
>>
Ford
>>
1993
>>
Tempo L4-140 2.3L HSC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

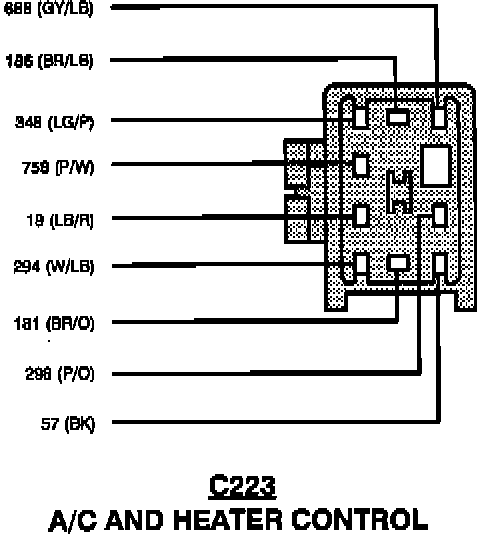

Control Assembly, HVAC
A/C And Heater Control:
